TL-OC220

⚠️ Out of stock. Contact Us or Call Us for stock status.
$0.00 CAD
$0.00 CAD $109.99 CAD
Sale Sold out

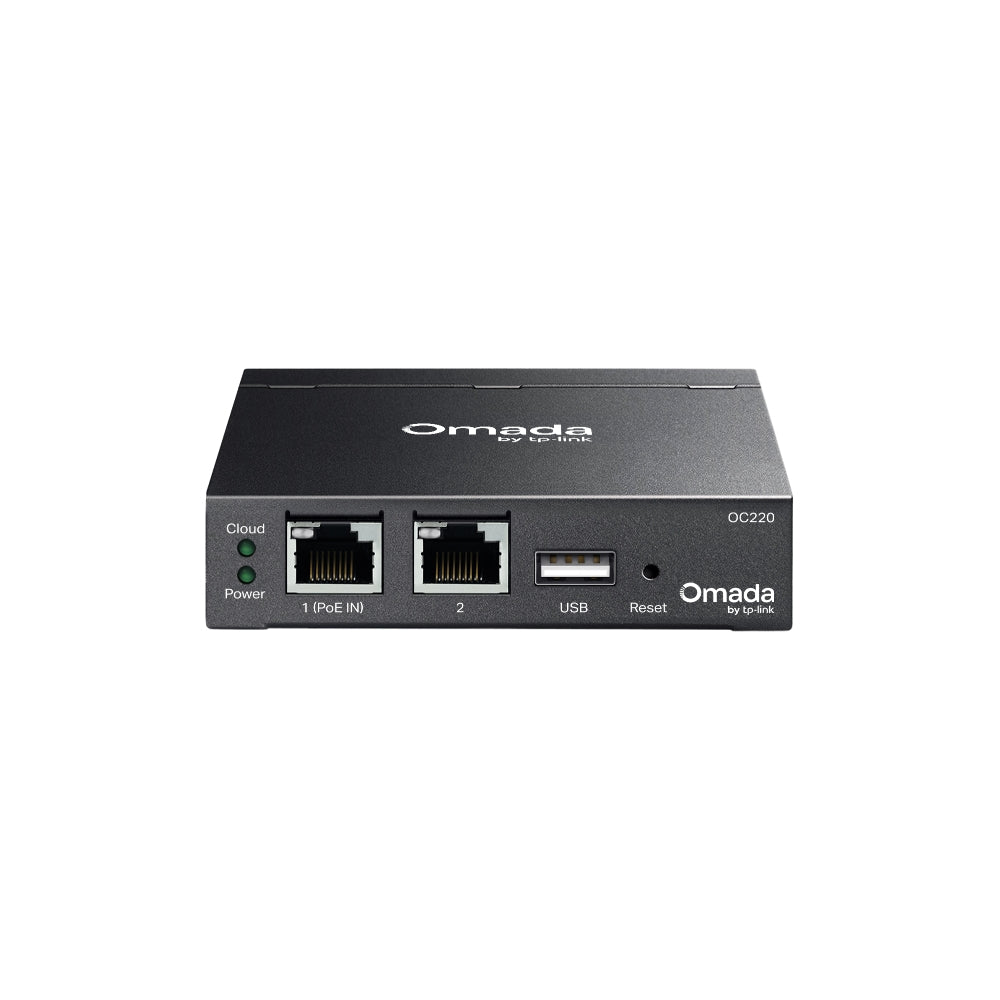

Omada Hardware Controller

Features & Compatibility

  • Centralized Cloud Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs.*
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
  • Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and 2× Gigabit Ethernet ports.
  • Flexible Deployment: Powerd via 802.3af/at PoE or Micro USB (DC 5 V / Minimum 1 A) with a compact desktop or wall mount installation.

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

    Processor: Quad-Core A53 @ 2.0 GHz/Core
    Interface:

    2× Gigabit Ethernet Ports
    1× USB 2.0 Port
    1× Micro-USB Port (only for power supply)


    Physical Security Lock: Kensington Lock
    Button: Reset Button
    Power Supply:

    802.3af/at PoE
    Micro-USB (DC 5 V / Minimum 1 A)


    Max. Power Consumption:

    11.2 W (powered by a PoE device, with USB 2.0 connected)
    3.5 W (powered via Micro-USB port, no USB 2.0 connected)


    DRAM: 2 GB DDR4
    Storage:

    4MB Nor Flash
    8 GB eMMC


    Weight: 0.305 kg
    Dimensions (W x D x H): 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

  • MANAGEMENT FEATURES

    Omada App: √
    Restore & Backup: √
    Centralized Management:

    100 Omada access points
    10 Omada gateways
    A maximum of 20 Omada switches*
    A maximum of two select DeltaStream GPON OLTs* Cloud Access: √
    L3 Management: √
    Multi-site Management: √
    Management Features:

    Wired Network
    Wireless Network
    WLAN Optimization
    Network Security (ACL/URL Filtering/Attack Defense)
    Transmission (Routing/NAT/Session Limit/Bandwidth Control)
    VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN)
    Portal (Voucher/Local User/SMS/RADIUS/External Portal Server)
    802.1x
    RADIUS (Authentication/MAC Auth/Accounting)

  • MONITORING

    Monitoring:

    DPI
    IPS/IDS
    Dashboard (Custom Dashboard)
    Statistics (Performance/Switch Statistics)
    Network topology
    Network Map
    Devices List (Custom Table)
    Clients List (Custom Table)
    Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs)
    Logs (Alerts/Events/Custom Notifications)
  • OTHERS

    Certification: CE, FCC, RoHS
    Package Content:

    Omada Hardware Controller OC220
    Quick Installation Guide
    RJ45 Ethernet Cable


    System Requirements: Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
    Environment:

    Operating Temperature: -5–50 ℃ (23–122 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
