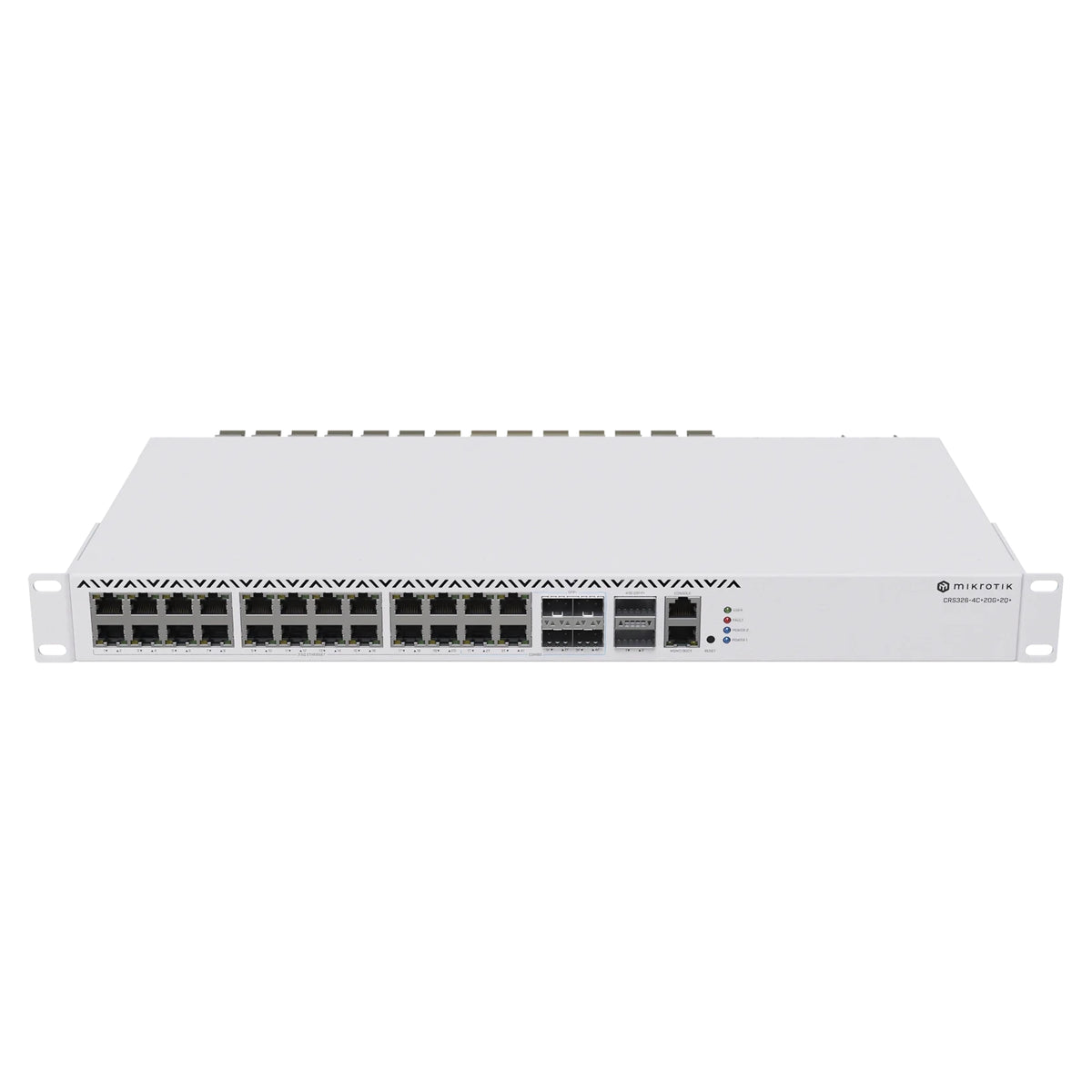

MikroTik CRS326-4C+20G+2Q+RM 2.5G Managed Switch with 10G SFP+ and 40G QSFP+

$1,265.35 CAD
$1,265.35 CAD $1,508.49 CAD
Sale Sold out
Shipping calculated at checkout.
Only 1 units left

More offices, studios, and other professional environments are making the switch to the fast and reliable 2.5 Gigabit standard. So we wanted to create an affordable solution that could be at the heart of this everchanging landscape, making your life easier, saving your budget, and offering extra flexibility with excellent port-density and additional ultra-fast fiber interfaces. The new CRS326 offers all that and even more!

There are 20x 2.5 Gigabit Ethernet ports, 4x COMBO ports that can either be used as 4x additional 2.5 Gigabit Ethernet ports OR as 10G SFP+ interfaces, and on top of all that – there are 2x 40 Gigabit QSFP+ cages for ultra-fast fiber connectivity. Practical and future-proof!

The mighty Marvell Prestera switch-chip that comes with a dedicated CPU can handle all your daily tasks without breaking a sweat. VLAN’s, Jumbo frames, link aggregation, ACL rules… You can even do some Layer3 routing!

Dual-redundant power supplies and an extra 100 Mbps Ethernet port for management purposes will save you a lot of troubles in the long run. And we’ve included everything you need to secure this marvelous switch in a standard 19” rackmount!

Like many MikroTik devices, this one was born out of necessity. Our video team needed a fast, costeffective solution that would enable them to connect all the studio devices without the need for a dedicated rack – the studio has no extra space. They use the 2.5 Gigabit Ethernet ports to connect all the equipment, computers, extra screens and recorders, and so on. Then the four combo ports go to other departments in case they need to transfer some footage for review. One 40 Gigabit line goes to the NAS media server and another 40 Gigabit line goes to the editor’s multimedia station where all the magic happens. This is a wirespeed switch, so the team can get maximum speed on all the ports and make all the videos so much faster.

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

  • General

    Product Code: CRS326-4C+20G+2Q+RM
    Architecture: MIPSBE
    Operating System: RouterOS v7
    RouterOS License: Level 6

  • CPU

    Model: QCA9531
    Cores: 1
    Frequency: 650 MHz
    Switch Chip: 98DX8332

  • Memory

    RAM: 128 MB
    Storage: 32 MB (FLASH)

  • Performance

    MTBF: ~200,000 hours @ 25°C
    Operating Temperature: -20°C to 60°C

  • Power

    AC Inputs: 2
    Input Range: 100–240V (50–60 Hz)
    PSU Slots: 2
    Max Power Consumption: 70 W
    Without Attachments: 51 W
    Cooling: 2 Fans

  • Networking

    Ethernet Ports: 1x 10/100
    2.5G Ports: 20x Ethernet
    Combo Ports: 4x (2.5G RJ45 / 10G SFP+)
    QSFP+ Ports: 2x 40G

  • Peripherals

    Console Port: RJ45

  • Monitoring

    PCB Temperature Monitor: Yes
    Voltage Monitor: Yes

  • Certification & Approvals

    Certifications: CE, EAC, ROHS
    IP Rating: IP20

The MikroTik CRS326-4C+20G+2Q+RM is a rackmount managed switch designed for professional networks that need multi-gigabit access ports and high-capacity uplinks. It provides 20× 2.5G Ethernet ports, giving businesses a practical way to connect modern access points, workstations, servers, storage systems, and other bandwidth-intensive devices. For faster backbone and aggregation links, the switch includes 4 combo ports that support either 2.5G Ethernet or 10G SFP+ connectivity, along with 2× 40G QSFP+ ports. This combination makes it suitable for enterprise networks, ISP infrastructure, server environments, and other deployments where higher uplink capacity is required. The CRS326-4C+20G+2Q+RM supports both RouterOS v7 and SwOS, allowing administrators to choose between MikroTik’s full networking operating system and a streamlined switch-focused interface. Its rackmount form factor and dual AC power inputs also make it a practical choice for professional network installations.

FAQs : MikroTik CRS326-4C+20G+2Q+RM

The CRS326-4C+20G+2Q+RM is a multi-gigabit managed switch designed for professional networks that require 2.5G Ethernet connectivity along with 10G and 40G uplinks.
It provides 20 dedicated 2.5G Ethernet ports, plus four combo interfaces that can be used for either 2.5G Ethernet or 10G SFP+ connectivity.
The switch includes 4× 10G-capable SFP+ combo ports and 2× 40G QSFP+ ports, providing flexible options for aggregation and backbone connections.
