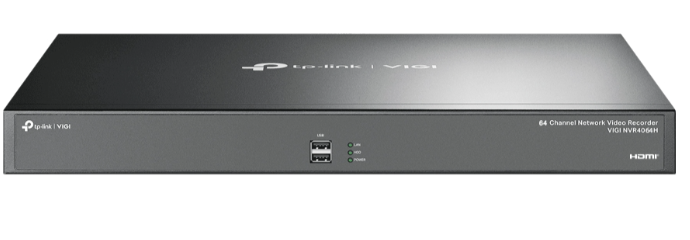

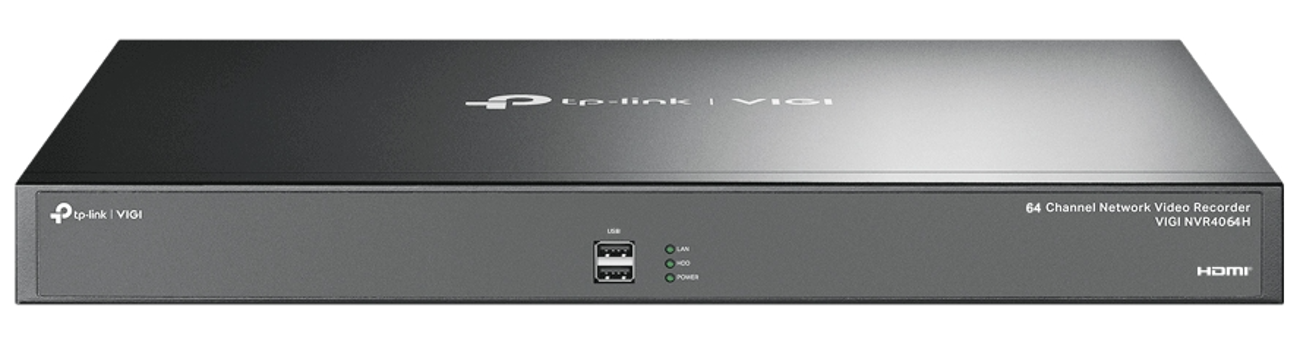

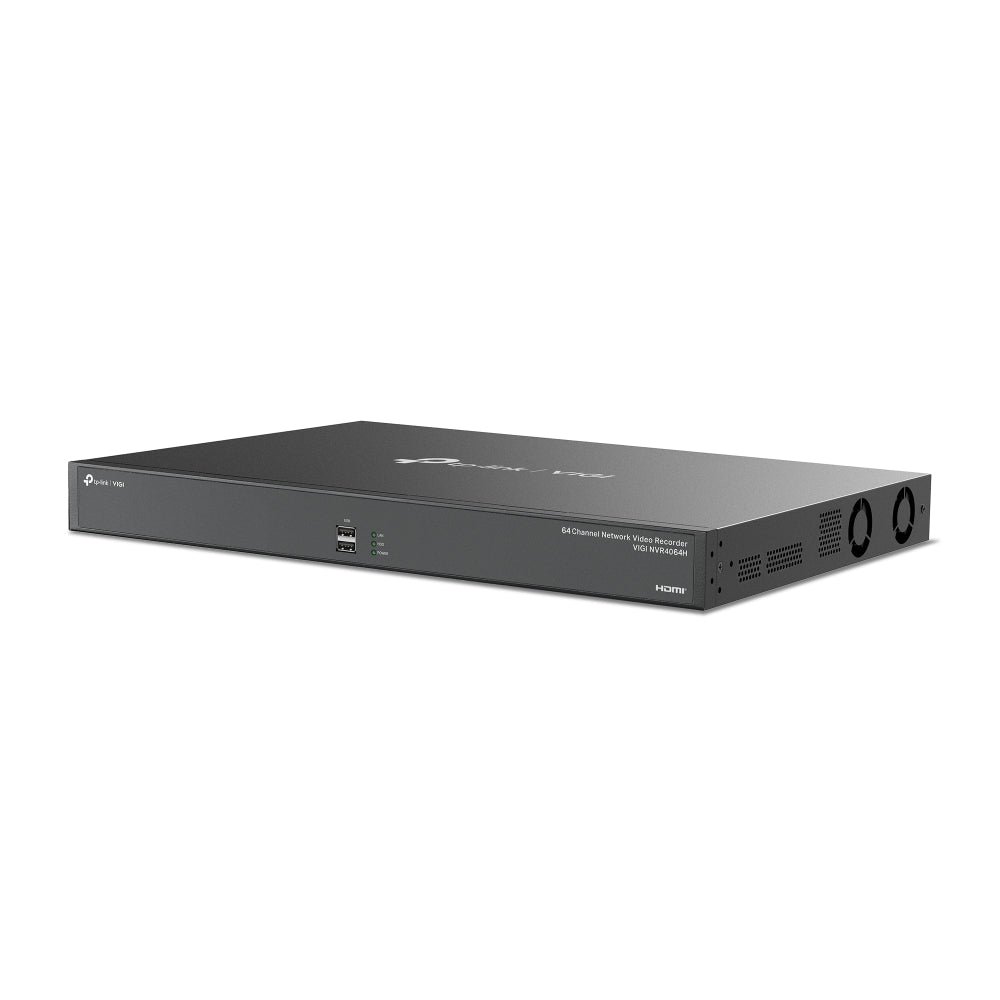

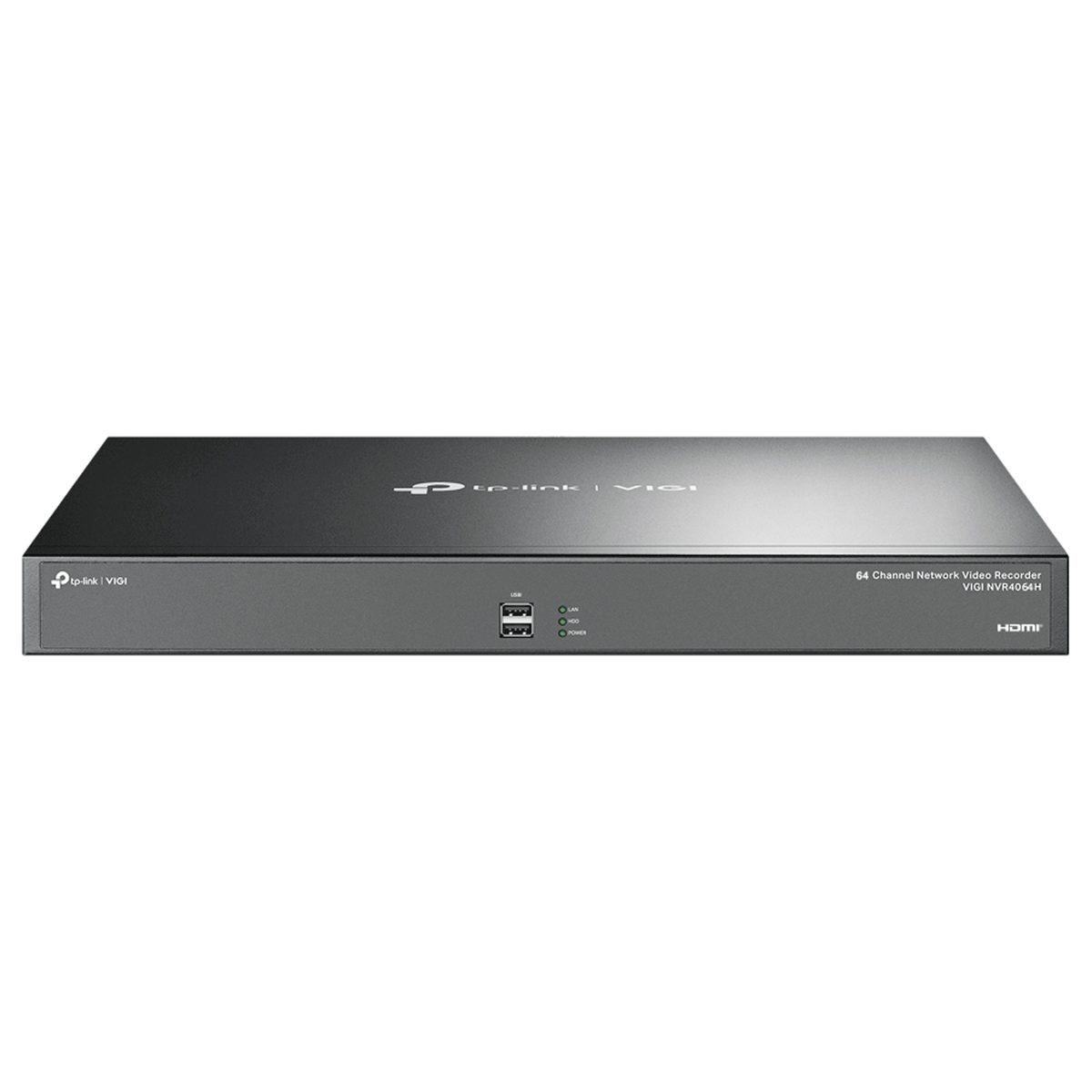

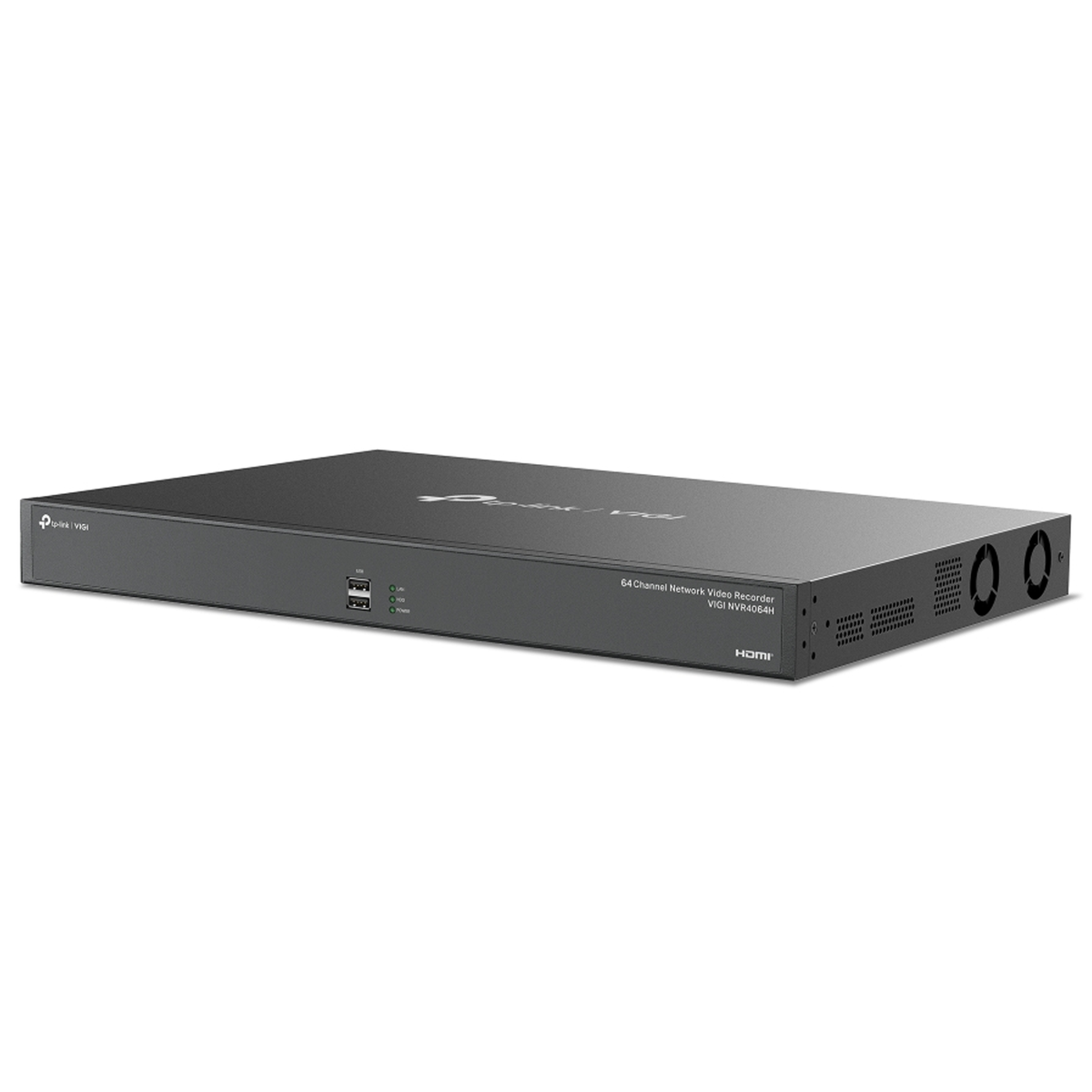

TP Link VIGI NVR4064H - VIGI 64 Channel Network Video Recorder VIGI NVR4064H

SKU: TP-VIGI-NVR4064H

$838.50 CAD
$838.50 CAD $860.00 CAD
Sale Sold out
Only 1 units left
  • 64-Channel Live View and 4K HDMI Video Output
  • Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
  • 16-Channel Synchronous Playback†
  • 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
  • 4× SATA Interfaces and 1 Up to 16 TB*
  • H.265+ Compression Technology
  • HDMI and VGA Simultaneous Output
  • Remote Monitoring
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • VIDEO & AUDIO
  • IP Video Input: 64-Channel
  • Incoming Bandwidth: Default 260Mbps; Extended Mode 320Mbps
  • Outgoing Bandwidth: Default 180Mbps; Extended Mode 320Mbps
  • HDMI Output: 2 Channels; HDMI1 up to 3840×2160/30Hz; HDMI2 up to 1920×1080/60Hz
  • VGA Output: 1 Channel up to 1920×1080/60Hz
  • Video Output Mode: HDMI1/HDMI2 Independent; HDMI1/VGA Independent (HDMI2 & VGA cannot be used simultaneously)
  • Multi-View Display: 1/4/6/8/9/16/25/32/36/49/64
  • DECODING
  • Audio Compression: G.711A, G.711U, G.726
  • Video Compression: H.265+, H.265, H.264+, H.264
  • Record Resolution: 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
  • Synchronous Playback: 16-Channel
  • Capability: 25fps: 16ch@2MP, 32ch@720p, 64ch@D1; 30fps: 4ch@8MP, 6ch@5MP, 8ch@4MP
  • RECORD MANAGEMENT
  • Record Mode: Manual, Schedule, Motion Detection
  • Playback Mode: Instant, Regular, Tag, Event
  • Backup Mode: Regular Backup, Video Clip Backup
  • Playback Functions: Play, Pause, Stop, Fast Forward/Backward, Frame Play, Full Screen, Clip, Export, Digital Zoom, Lock, Audio On/Off
  • NETWORK
  • Protocol: UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
  • Mobile Access: Android, iOS
  • Web Browser: Chrome 57+, Firefox 52+, Edge 91+
  • Interoperability: ONVIF Profile S, CGI
  • EXTERNAL INTERFACE
  • Network Interface: 2× RJ45 10/100/1000 Mbps
  • USB Interface: 2× USB 2.0 (Front), 1× USB 3.0 (Rear)
  • Audio Interface: 1× RCA Input, 1× RCA Output
  • Alarm In/Out: 16/4
  • Serial Interface: RS232

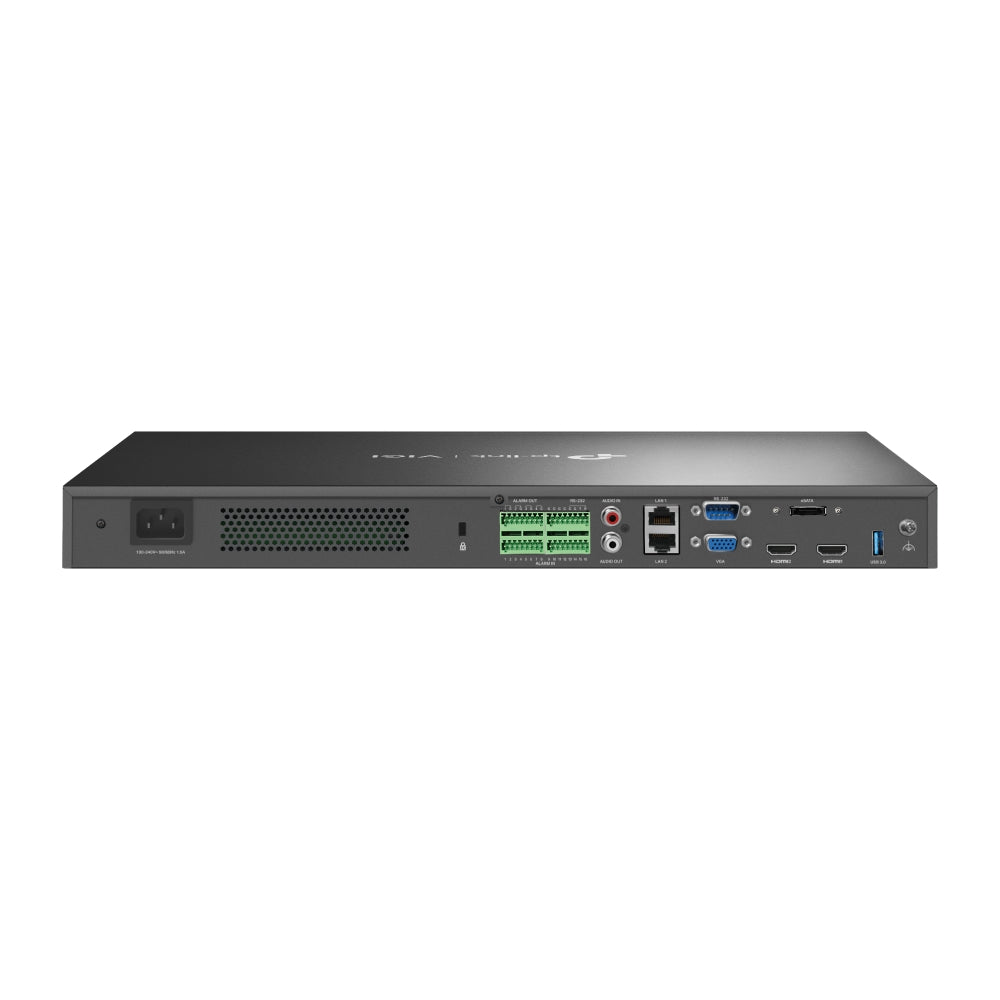

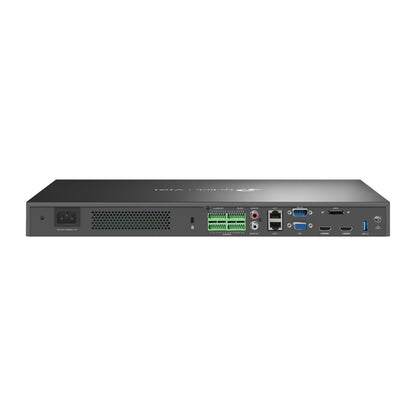

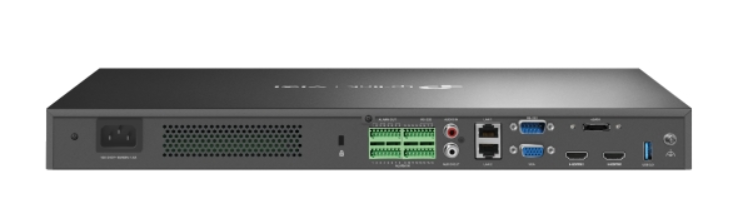

  • Ports: 2× HDMI, 1× VGA, 1× eSATA, AC Power Jack, Reset Button
  • HARD DISK
  • SATA: 4 Interfaces
  • Capacity: Up to 16TB per HDD
  • ALARM
  • General Alarm: Motion Detection, Video Tampering, Line Crossing, Intrusion, Region Entry/Exit, Loitering, Object Detection, Vehicle/Human Detection, Abnormal Sound
  • Anomaly Alarm: Video Loss, IP Conflict, Disk Exception, Login Exception, Fan Exception
  • Alarm Linkage: Recording, Light Alarm, Buzzer, Log, Audible Alarm
  • GENERAL
  • Storage Temperature: -40°C to 70°C
  • Working Temperature: -10°C to 55°C
  • Humidity: 10–90% RH Non-Condensing
  • Dimensions: 440 × 330 × 44 mm
  • Power Supply: 100–240V AC, 50/60Hz, 1.5A
  • Power Consumption: 6.95W (Without Disk), 48.38W (With Disk)
  • Weight: Net 4.0kg; Gross 5.0kg
  • PACKAGE CONTENT
  • VIGI NVR, Mouse, Installation Guide, Power Cord, HDD Power/Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet
  • CERTIFICATIONS
  • CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
No Data

FAQs : TP-Link VIGI NVR4064H

The TP-Link VIGI NVR4064H is a 64-channel network video recorder designed to manage and record video from multiple compatible IP cameras in large surveillance systems.
The NVR4064H supports up to 64 camera channels, making it suitable for offices, warehouses, retail spaces, campuses, and other large security deployments.
It is used to centralize video recording, camera monitoring, playback, and surveillance management across a multi-camera security network.
You can buy the TP-Link VIGI NVR4064H from JRS Global Technologies Canada through jrsglcanada.com for TP-Link VIGI surveillance and networking solutions.
