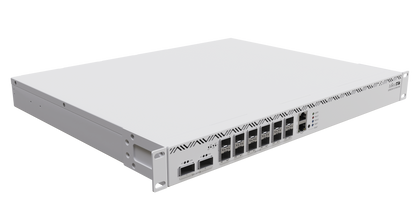

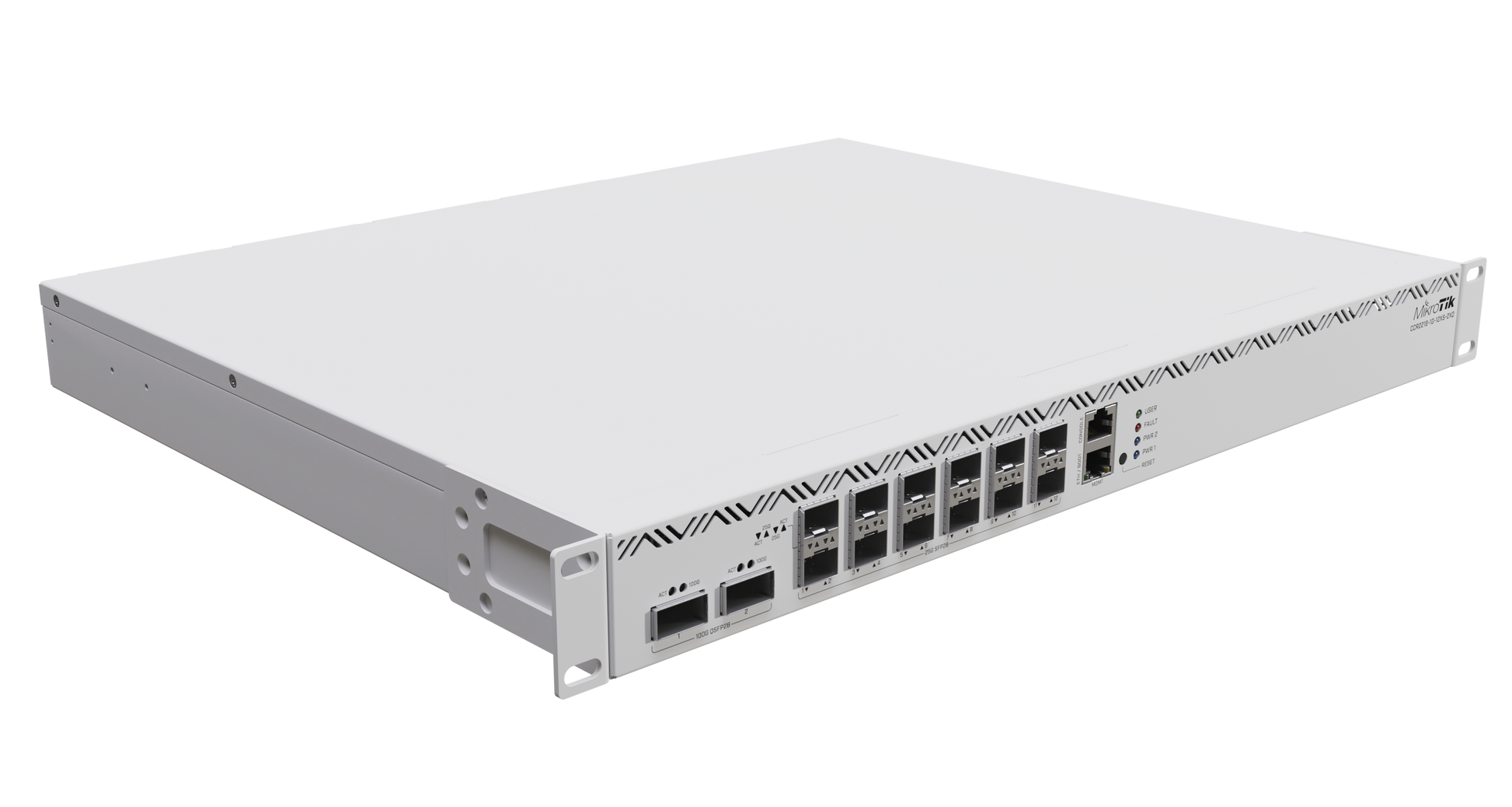

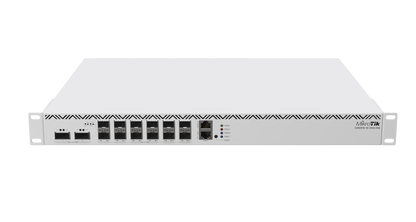

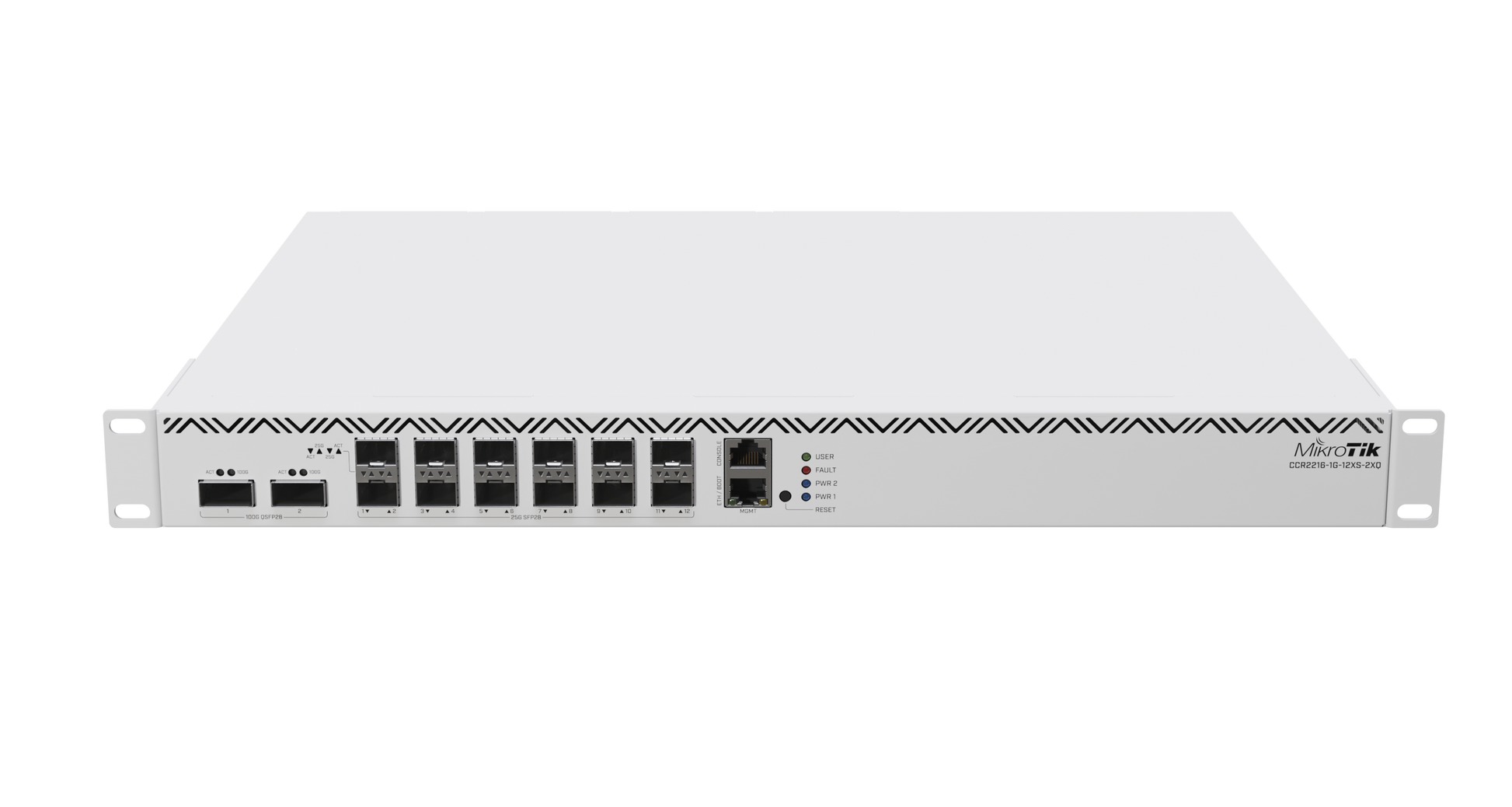

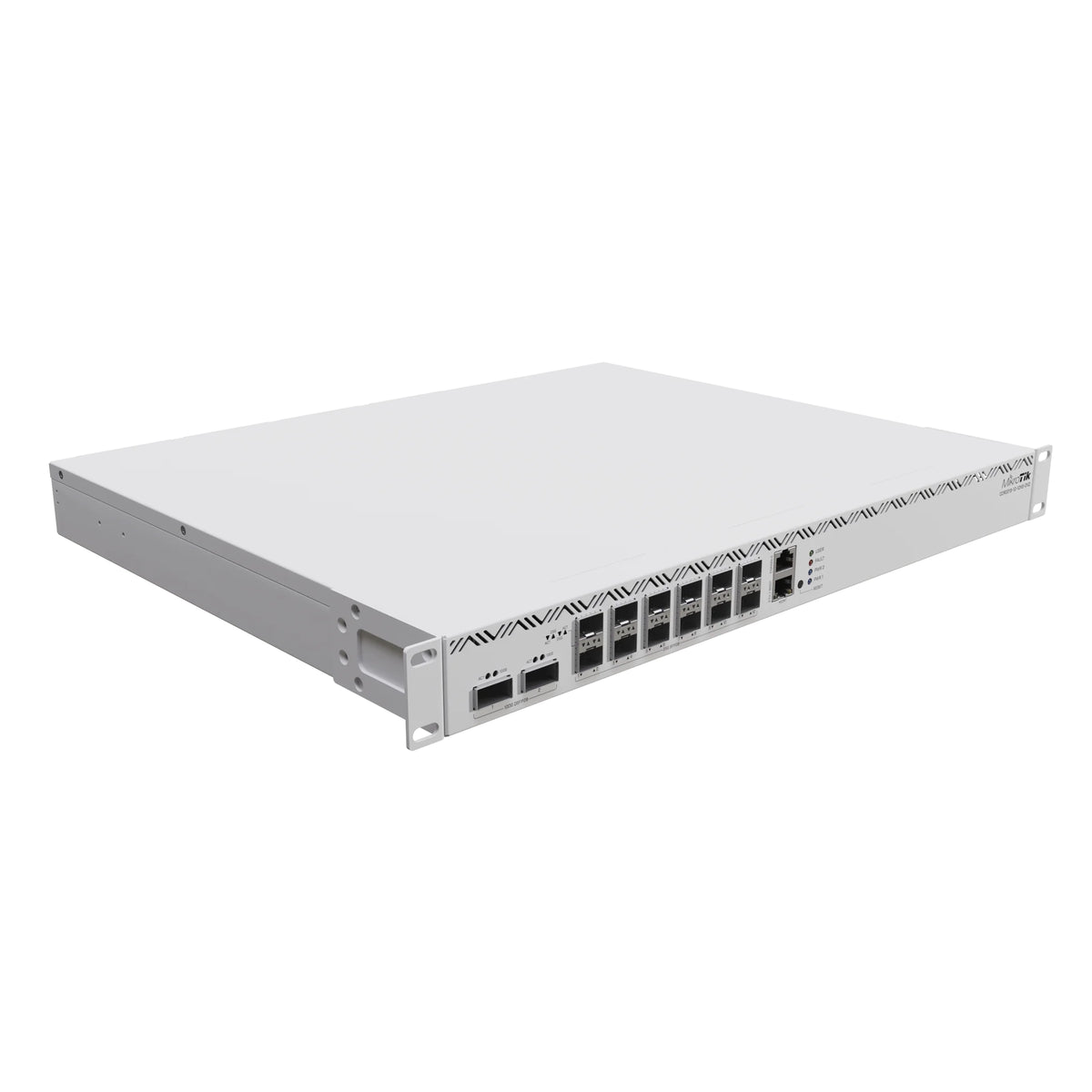

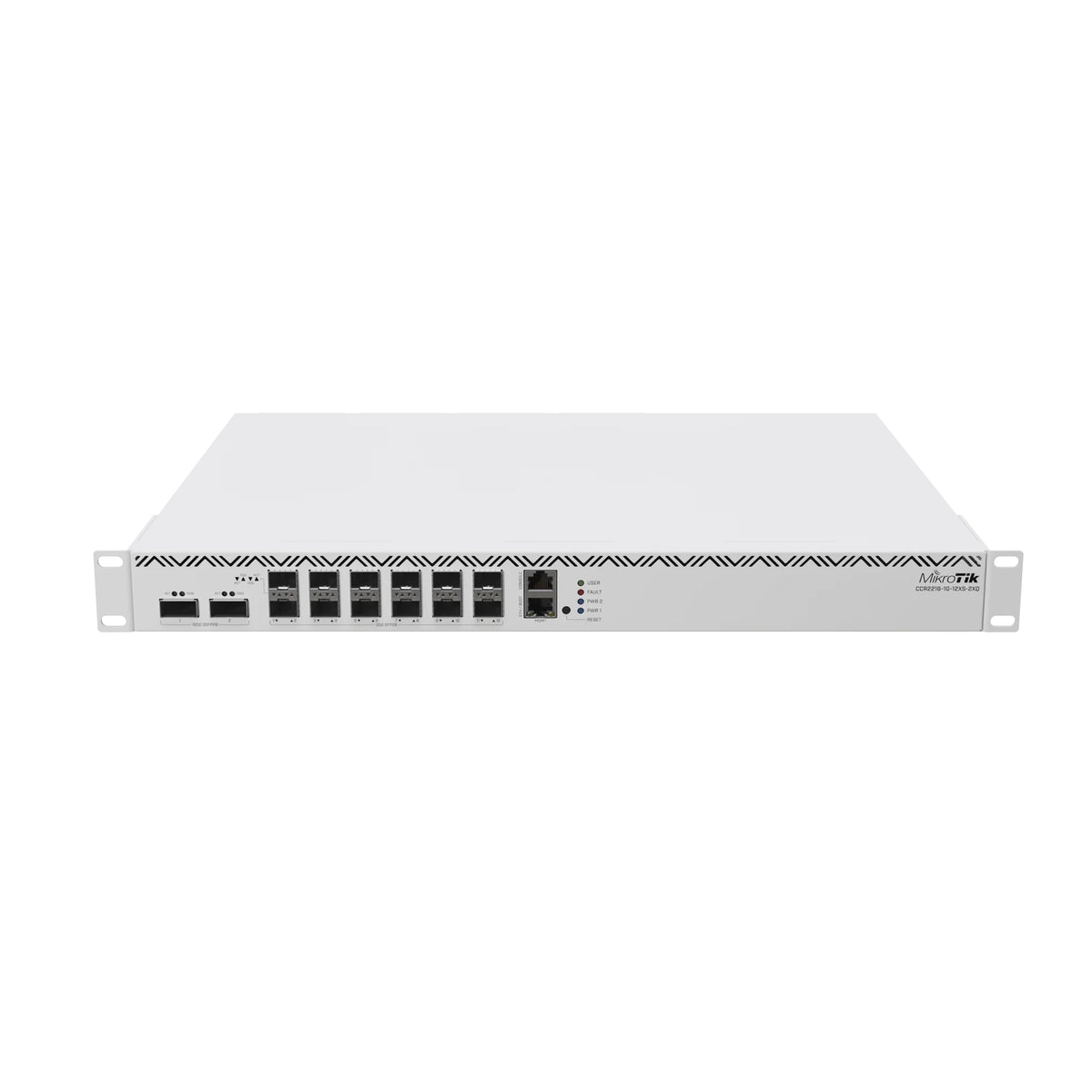

MikroTik CCR2216-1G-12XS-2XQ 100G Cloud Core Router with 12× 25G SFP28 and 2× 100G QSFP28

⚠️ Out of stock. Contact Us or Call Us for stock status.
$3,537.65 CAD
$3,537.65 CAD $4,220.45 CAD
Sale Sold out
Shipping calculated at checkout.

Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

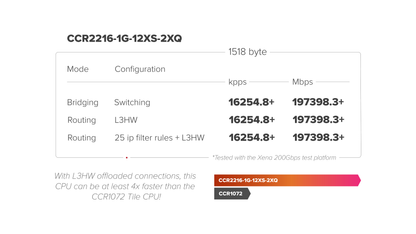

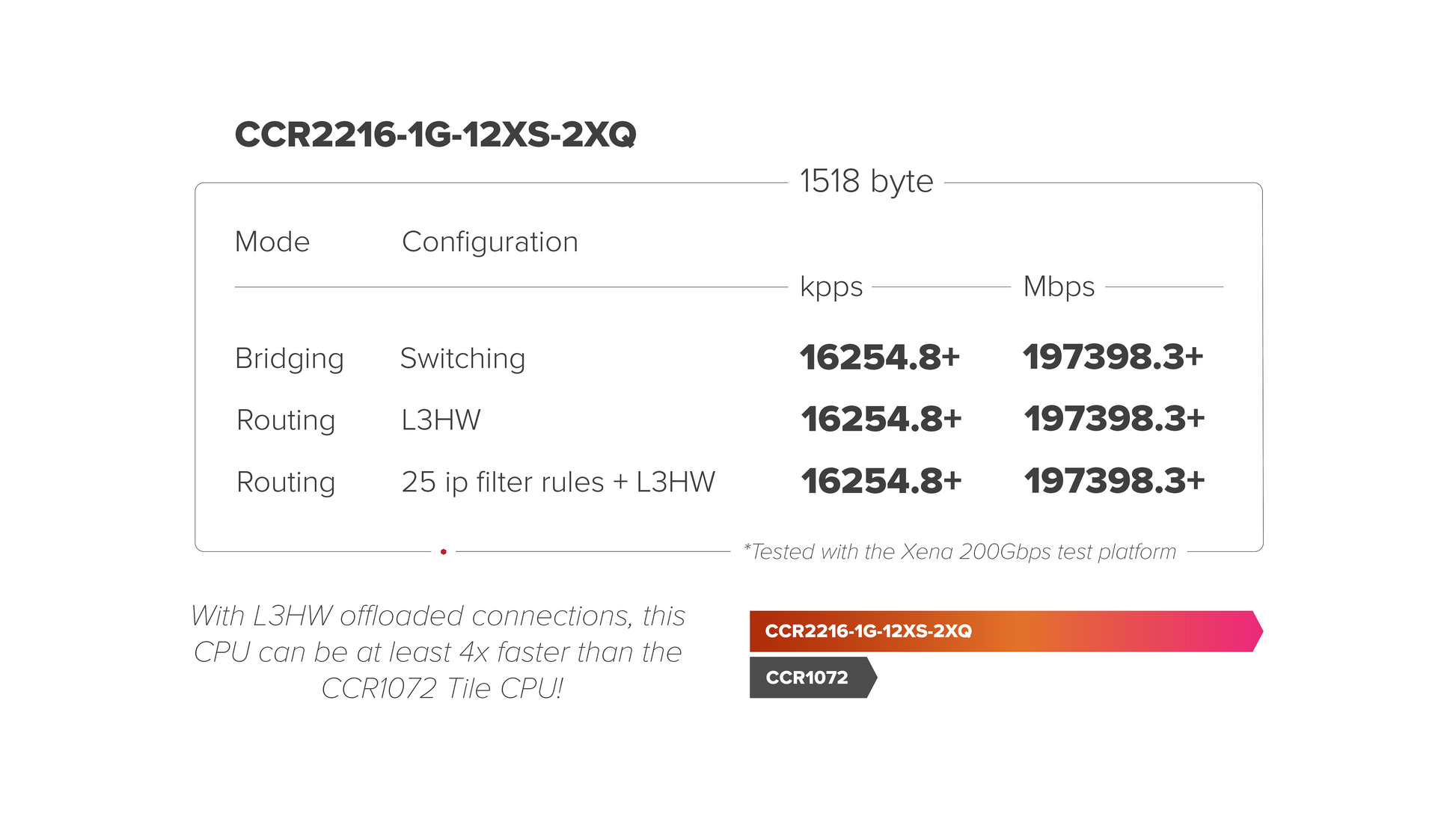

But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

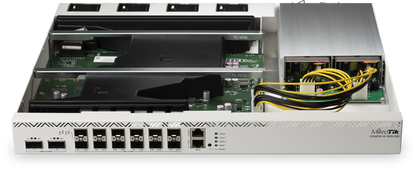

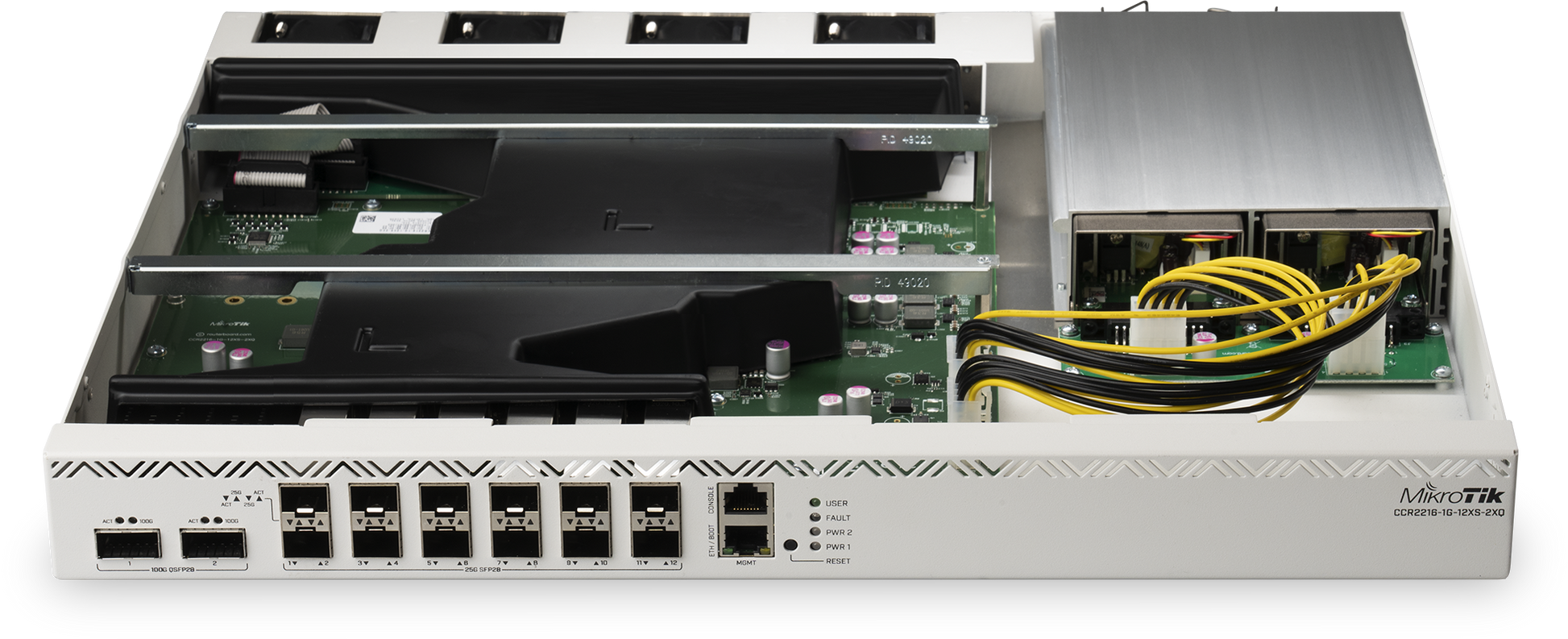

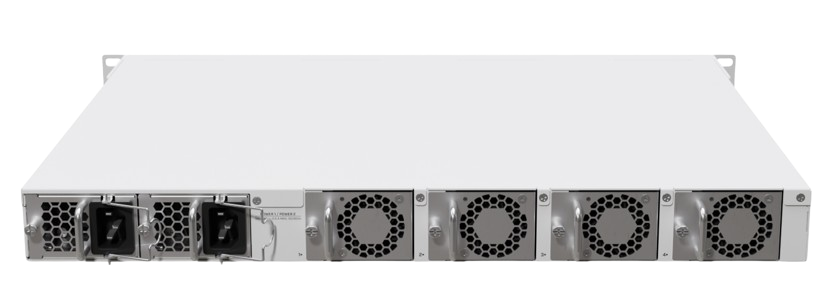

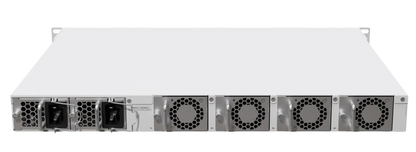

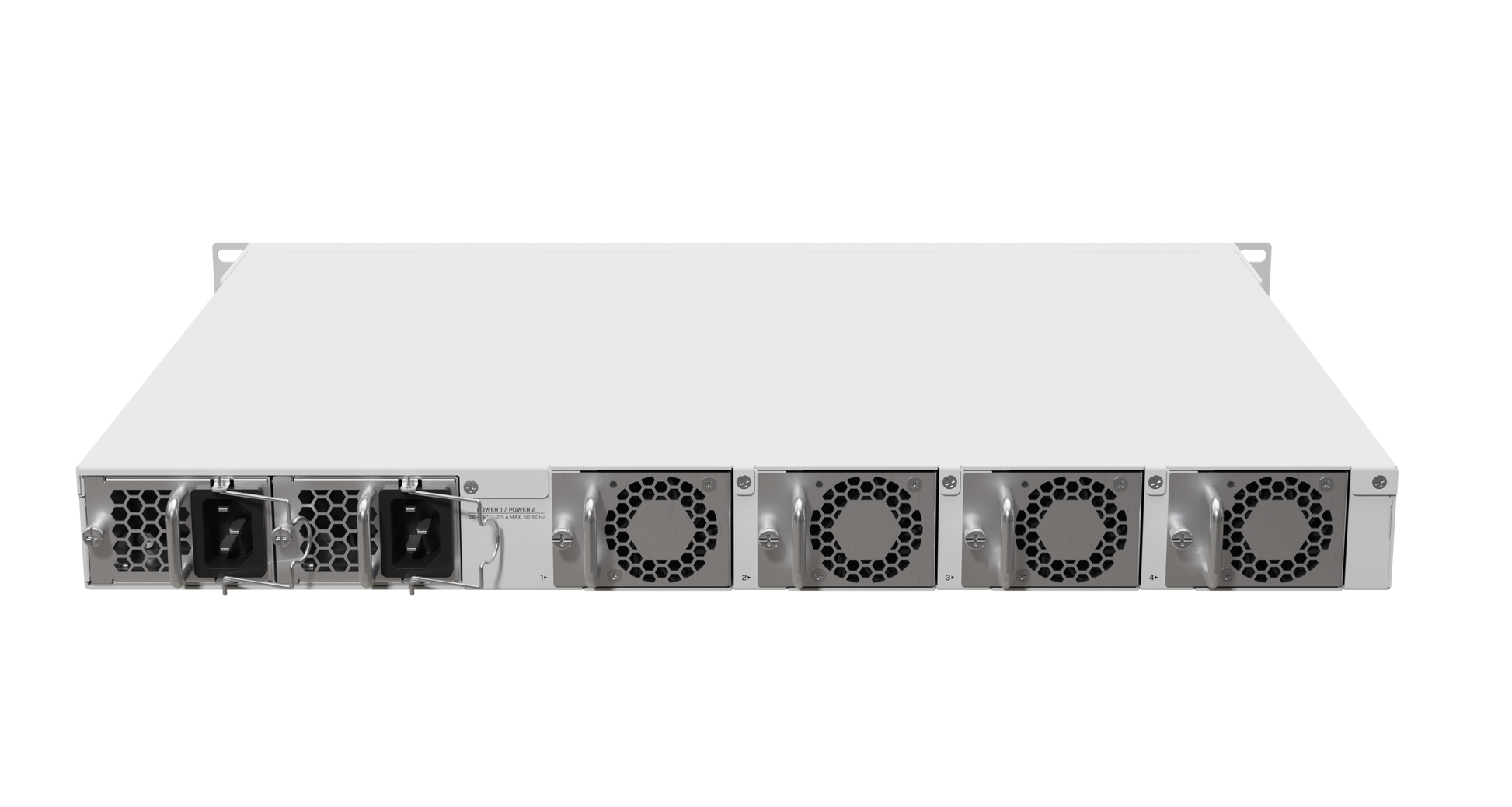

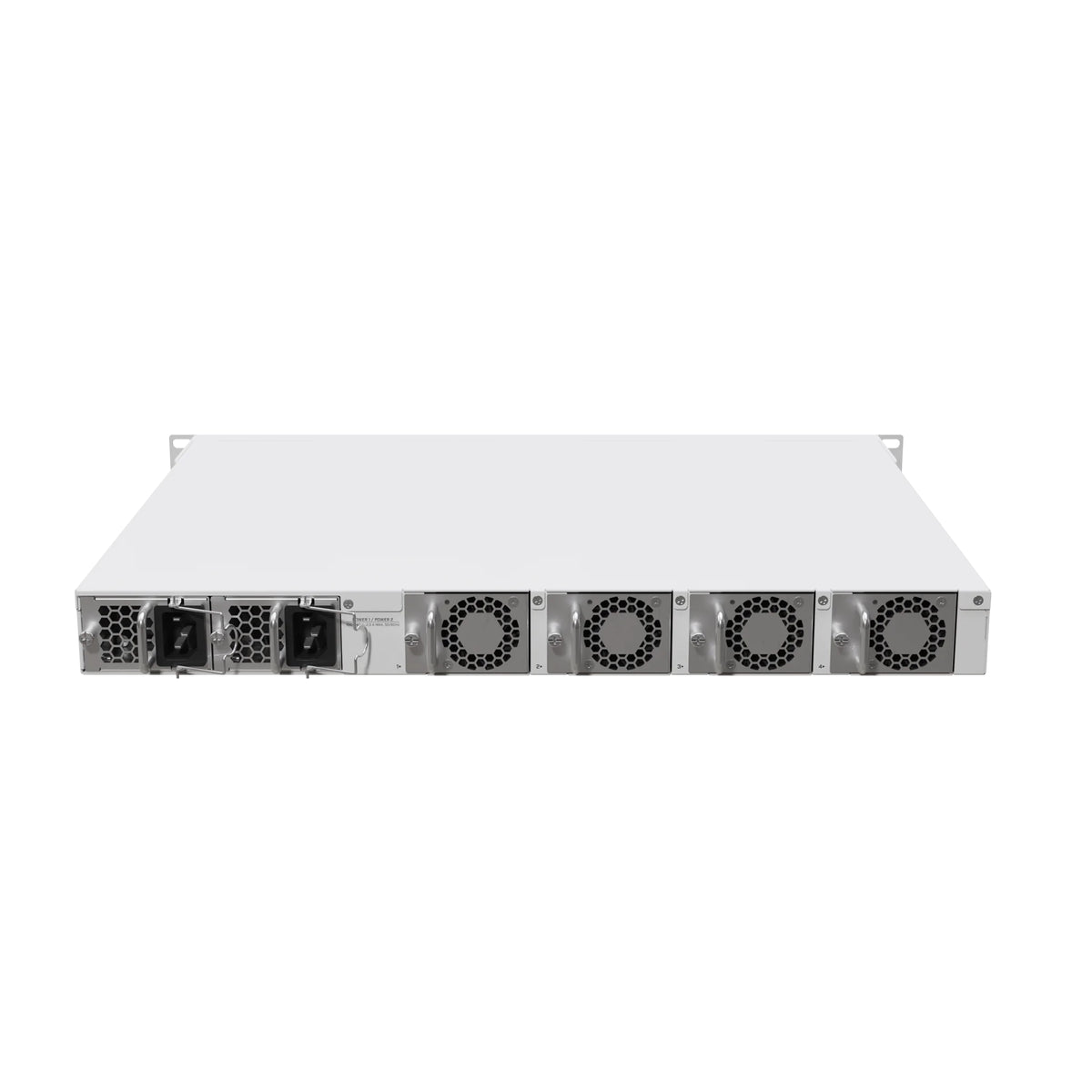

There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

General

  • Product Code: CCR2216-1G-12XS-2XQ
  • Architecture: ARM 64bit
  • CPU: AL73400 (16 cores, 2000 MHz)
  • CPU Threads: 16
  • Switch Chip Model: 98DX8525
  • Dimensions: 443 x 367 x 44 mm
  • RouterOS License: 6
  • Operating System: RouterOS v7
  • RAM Size: 16 GB
  • Storage Size: 128 MB NAND
  • MTBF: Approximately 200,000 hours at 25°C
  • Operating Temperature: -20°C to 60°C

Powering

  • AC Inputs: 2 (100–240 V)
  • Number of PSU Slots: 2
  • Frequency: 50–60 Hz
  • Max Power Consumption: 128 W (without attachments: 80 W)
  • Cooling Type: 4 fans

Ethernet & Fiber

  • 10/100/1000 Ethernet Ports: 1
  • 25G SFP28 Ports: 12
  • 100G QSFP28 Ports: 2

Peripherals

  • Serial Console Port: RJ45
  • M.2 Slots: 2

Monitoring & Other

  • CPU Temperature Monitor: Yes
  • PCB Temperature Monitor: Yes
  • Voltage Monitor: Yes

Certification & Approvals

  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
The MikroTik CCR2216-1G-12XS-2XQ is a flagship Cloud Core Router built for ISP backbones, enterprise networks, data centers, and other high-capacity routing environments. It uses a 16-core 2 GHz ARM64 processor with 16 GB DDR4 RAM, giving it the processing resources needed for demanding routing, traffic management, and large-scale network workloads. For high-speed connectivity, the CCR2216 provides 12× 25G SFP28 ports, 2× 100G QSFP28 ports, and 1 Gigabit Ethernet port. This interface mix makes it suitable for network aggregation, backbone links, high-throughput server connections, and modern 25G/100G infrastructure. The router runs RouterOS v7 and supports Layer 3 hardware offloading through its Marvell Prestera switch chip. It also includes two M.2 SATA slots, dual redundant hot-swappable power supplies, and four hot-swappable fans, making it well suited for professional rack-mounted deployments where performance and service continuity are important.

FAQs : MikroTik CCR2216-1G-12XS-2XQ

The CCR2216-1G-12XS-2XQ is a high-performance 100G Cloud Core Router designed for ISPs, data centers, and enterprise networks that need large routing capacity and high-speed fiber connectivity.
It includes 12× 25G SFP28 ports, 2× 100G QSFP28 ports, and 1× Gigabit Ethernet port, providing flexible options for high-speed network aggregation and backbone connections.
The router features a 16-core 2 GHz ARM64 processor and 16 GB DDR4 RAM, along with RouterOS v7 and Level 6 licensing.
