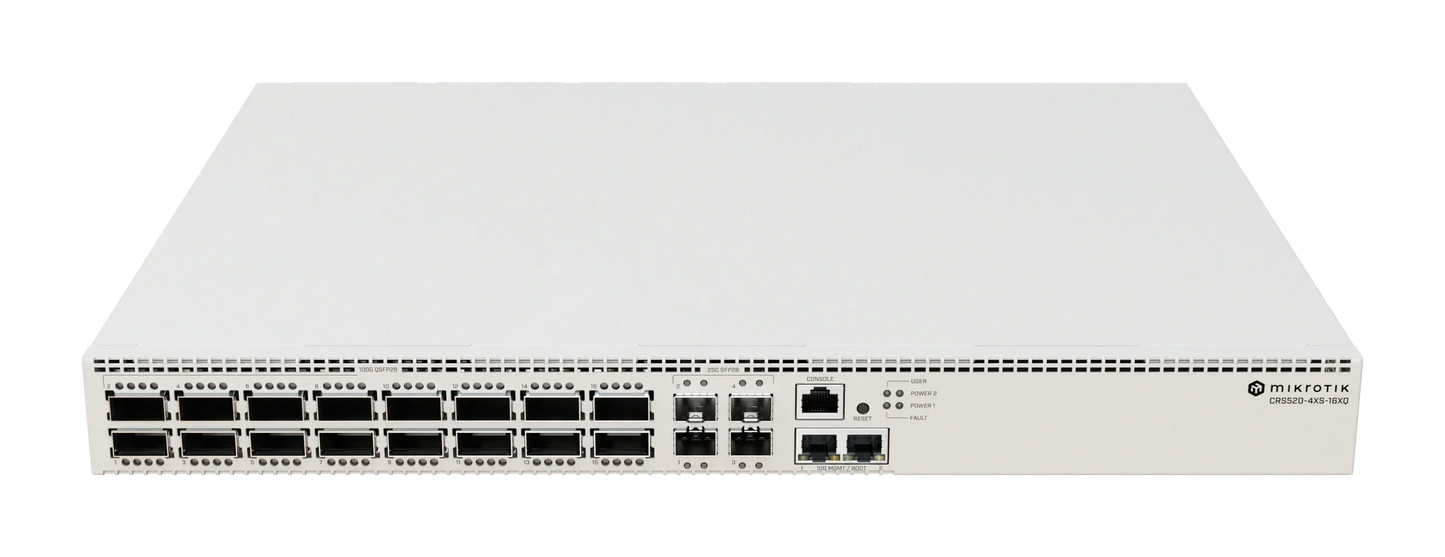

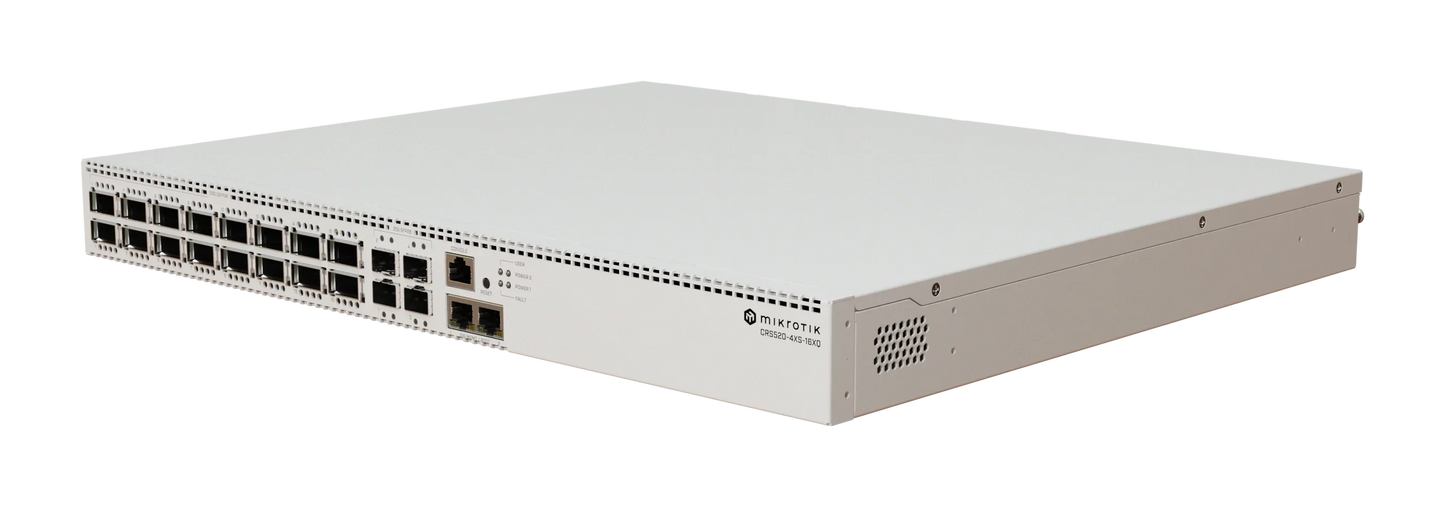

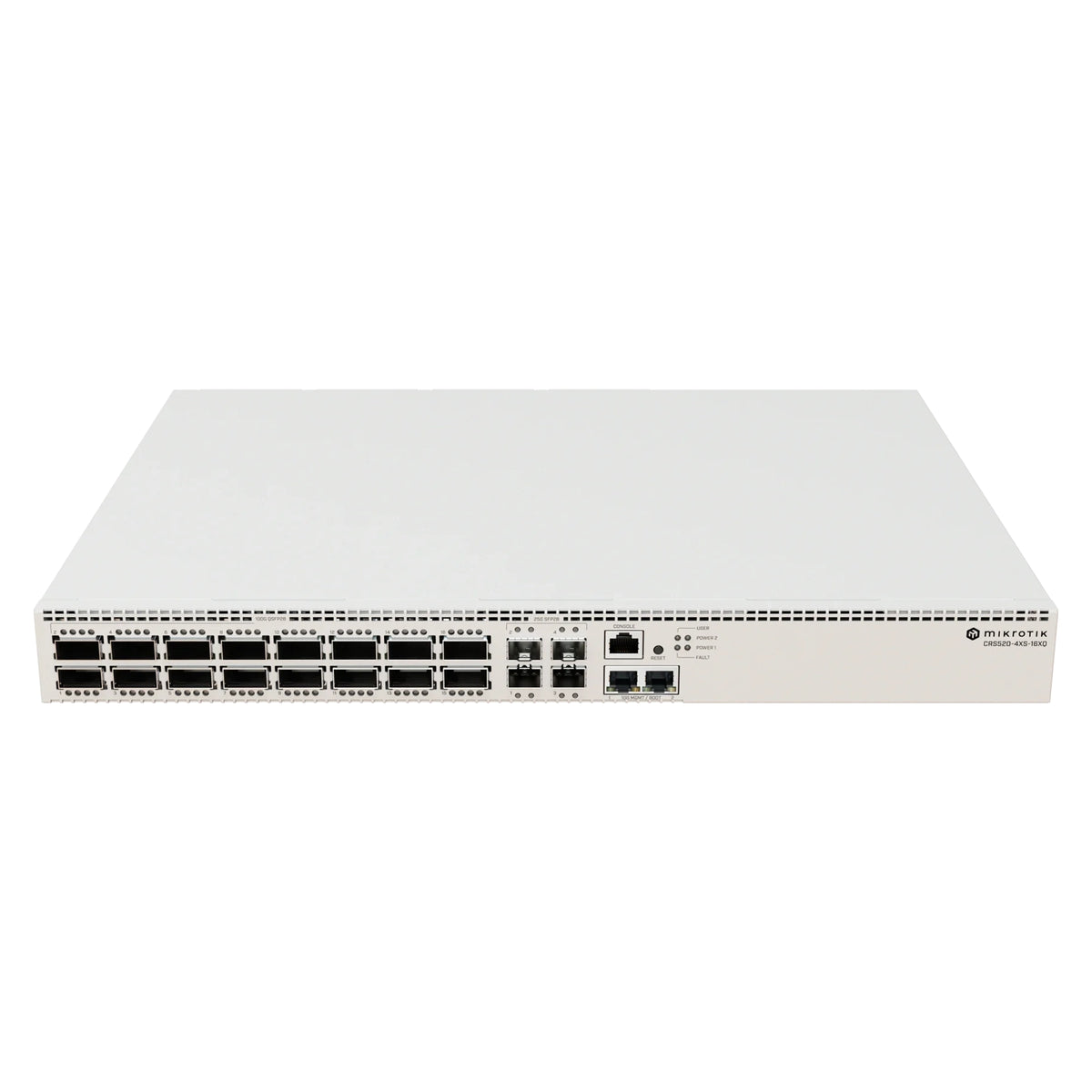

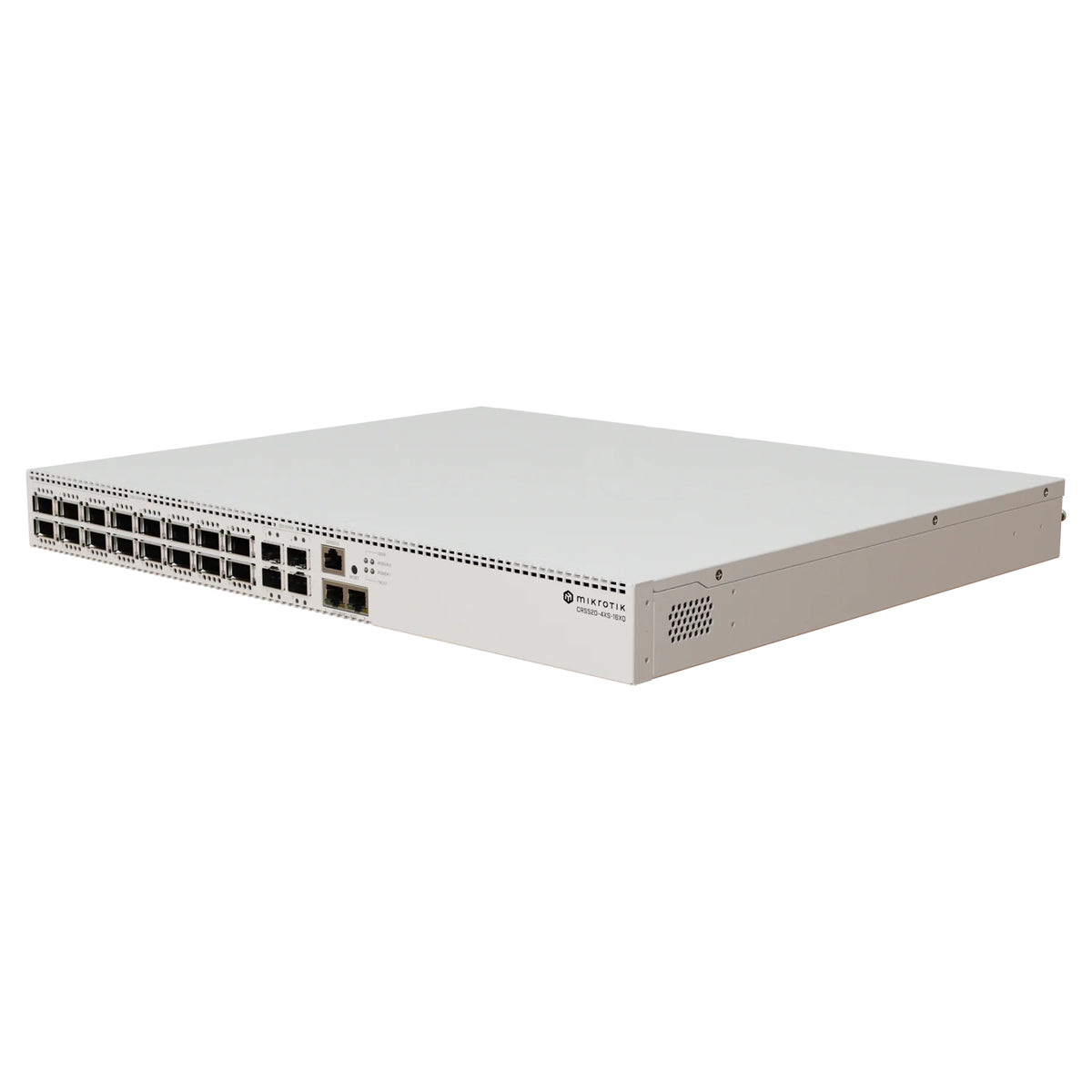

MikroTik CRS520-4XS-16XQ-RM 100G Enterprise Switch with 16× QSFP28 and 4× 25G SFP28

⚠️ Out of stock. Contact Us or Call Us for stock status.
$2,787.50 CAD
$2,787.50 CAD $3,314.45 CAD
Sale Sold out
Shipping calculated at checkout.

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!

Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:

1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

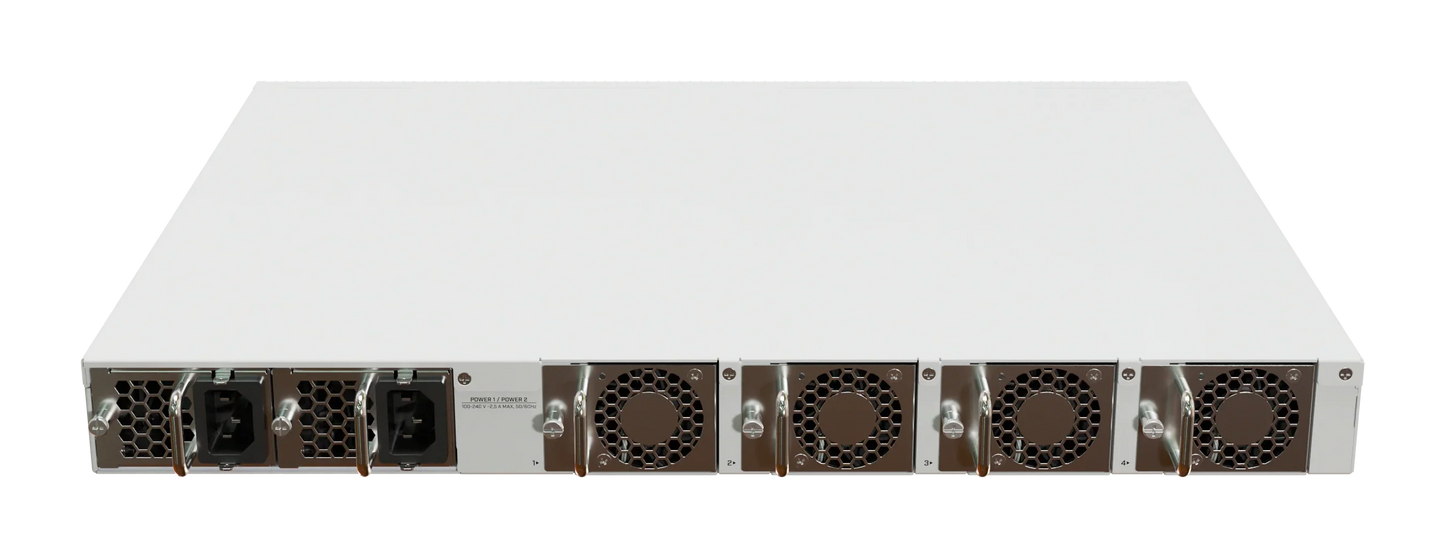

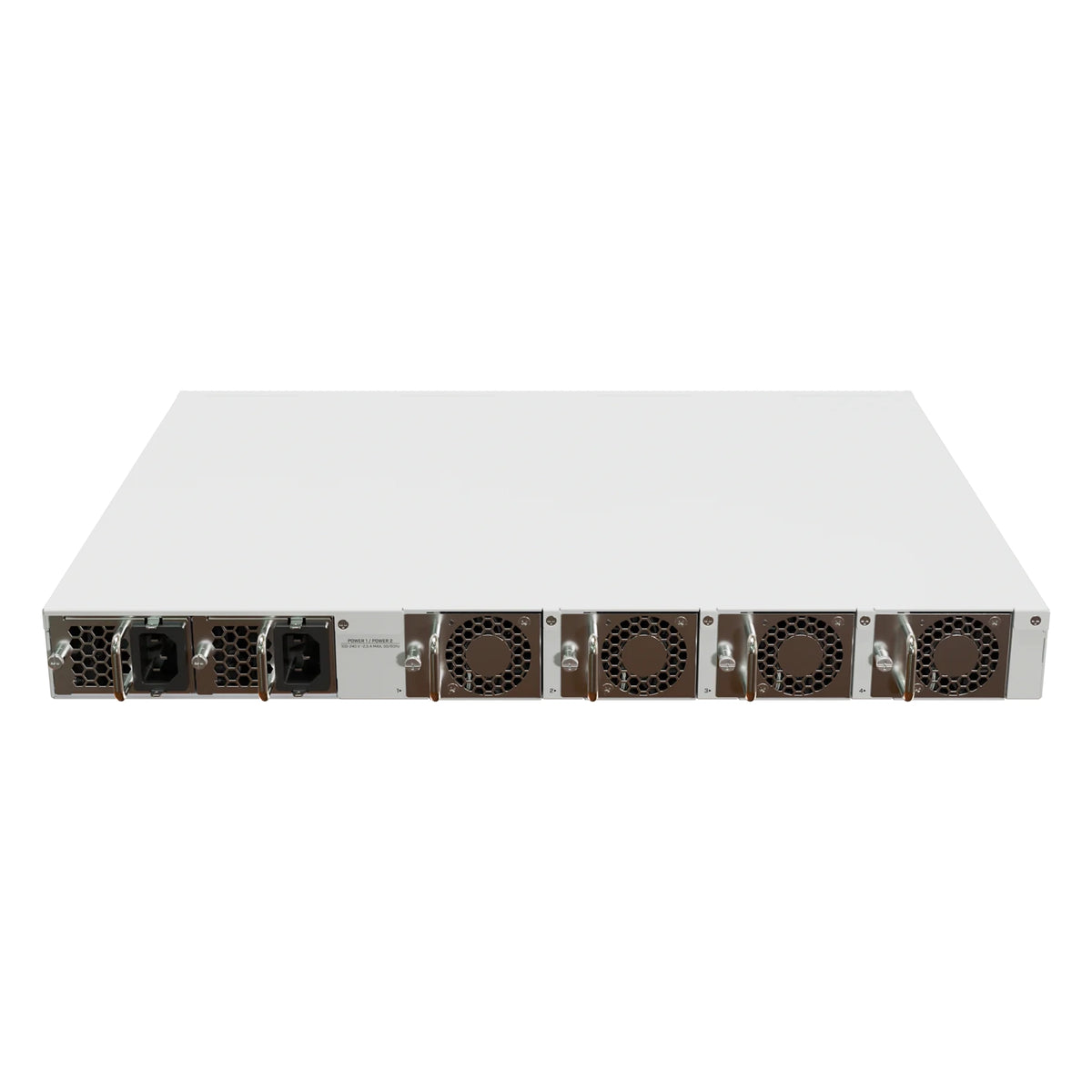

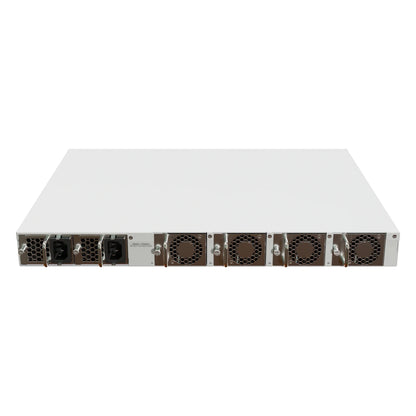

Two hot-swap power supplies and four hot-swap fans for cooling are included.



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

  • Product Code: CRS520-4XS-16XQ-RM
  • Architecture: ARM 64-bit
  • CPU: AL52400 (Quad-Core, 2 GHz)
  • Switch Chip: 98CX8410
  • Operating System: RouterOS v7 (Level 5)
  • RAM: 4 GB
  • Storage: 128 MB (NAND)
  • MTBF: ~200,000 hours @ 25°C
  • Operating Temperature: -20°C to 50°C
  • Power Input: Dual AC (100–240V, 50–60 Hz)
  • PSU Slots: 2
  • Power Consumption: 150W (220W with dual PSUs)
  • Cooling: 4x Fans
  • Ethernet Ports: 2x Multi-Gig (10M/100M/1G/10G)
  • SFP28 Ports: 4x 25G
  • QSFP28 Ports: 16x 100G
  • Console Port: RJ45 Serial
  • Monitoring: CPU Temp, PCB Temp, Voltage Monitor
  • Certifications: CE, EAC, ROHS
  • IP Rating: IP20
The MikroTik CRS520-4XS-16XQ-RM is a high-performance enterprise switch designed for data centers, ISP backbones, multimedia environments, and other networks that need substantial switching capacity. It provides 16× 100G QSFP28 ports, 4× 25G SFP28 ports, and 2× 10G Ethernet ports, giving network administrators flexible options for aggregation, backbone, server, and high-speed uplink connections. Powered by a quad-core 2 GHz ARM64 processor and 4 GB DDR4 RAM, the CRS520 offers more processing capability than a conventional switch. It runs RouterOS v7 and can handle features such as OSPF, BGP, ACLs, VPN management, jumbo frames, and Layer 3 hardware-offloaded routing, making it suitable for advanced enterprise networking. For deployment reliability, the CRS520 includes two hot-swappable power supplies and four hot-swappable cooling fans. Its 1U rackmount design makes it well suited for professional network racks where high port density, fast uplinks, and service continuity are important.

FAQs : MikroTik CRS520-4XS-16XQ-RM

The CRS520-4XS-16XQ-RM is a high-capacity enterprise switch designed for networks that require multiple 25G and 100G connections along with advanced RouterOS management.
It provides 16× 100G QSFP28 ports, making it suitable for high-speed aggregation, backbone, and data center connectivity.
In addition to its 100G ports, it includes 4× 25G SFP28 ports and 2× 10G-capable Ethernet ports, providing flexible connectivity for different network roles.
You can buy the MikroTik CRS520-4XS-16XQ-RM from JRS Global Technologies Canada through jrsglcanada.com for MikroTik enterprise networking products and solutions.
