Grandstream GXW4232

$820.08 CAD
$820.08 CAD
Sale Sold out
In stock (16 units), ready to be shipped

PRODUCT SPECIFICATIONS

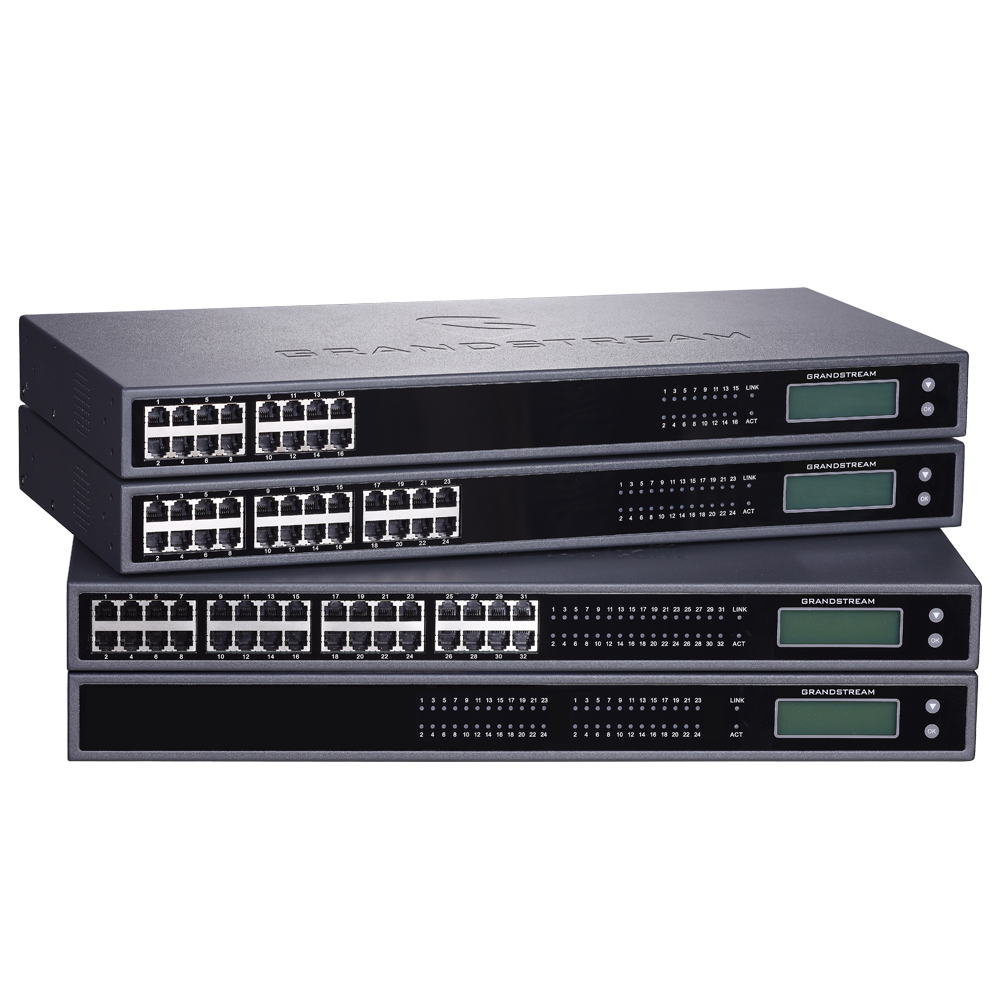

The GXW4200 v2 high-density FXS gateway series enables businesses of all sizes to create a cost-effective hybrid IP and analog telephone system that offers the benefits of VoIP communications and takes advantage of Gigabit speeds

  • 16/24/32 FXS ports, GXW4248 includes 2 50-pin Telco connectors
  • 1 Gigabit network port
  • 132x48 backlit graphic display with support for multiples languages
  • 4 SIP server profiles per system, independent SIP account per port
  • Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
  • Advanced security protection with SRTP/TLS/HTTPS
  • Supports 16KHz wide-band voice sampling rate and wide-band codecs such as Opus and G.722
  • Carrier-grade security features including secure boot, unique certificate and random default password per device, dual firmware images
  • Supports simultaneous 3-way voice conferencing per port

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

  • FXS Ports: 32 × RJ11 FXS ports with 50-pin Telco connectors
  • Network Interfaces: 1 × 10/100/1000 Mbps Gigabit Ethernet port (RJ45)
  • Display: 132 × 48 backlit graphical LCD display
  • SIP Accounts: Independent SIP account per port, up to 4 SIP server profiles
  • Audio Conferencing: 3-way voice conferencing per port
  • Voice Codecs: G.711 (a/u-law), G.723.1, G.726, G.729A/B, iLBC, Opus, G.722 (wideband)
  • Fax over IP: T.38-compliant Group 3 fax relay (up to 14.4 kbps) with automatic fallback to G.711
  • Telephony Features: Caller ID, call waiting, call transfer (blind/attended), call forwarding, do not disturb, paging, message waiting indicator, auto dial, flexible dial plan
  • Voice Processing: Carrier-grade echo cancellation (128 ms), dynamic jitter buffer, modem detection
  • Provisioning: TFTP, HTTP, HTTPS, TR-069, XML configuration
  • Security: SRTP, TLS, HTTPS, secure boot, unique device certificate, dual firmware images
  • Management: Web GUI, voice prompts, Syslog, TR-069, GDMS
  • Power Supply: 100–240V AC input, 12V DC output
  • Mounting: Rack-mountable (1U)
  • Operating Temperature: 0°C to 45°C
  • Compliance: FCC, CE, UL
