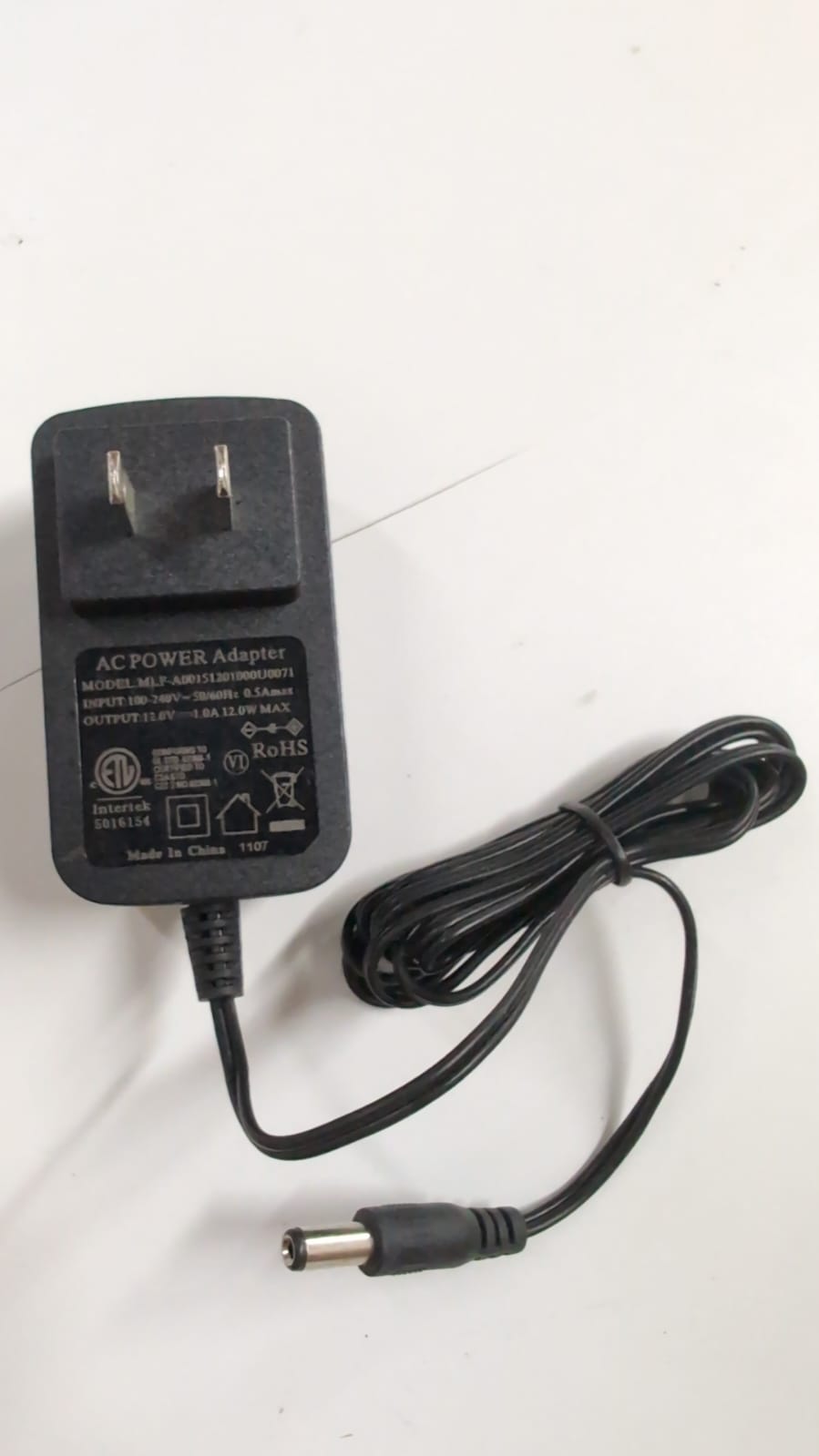

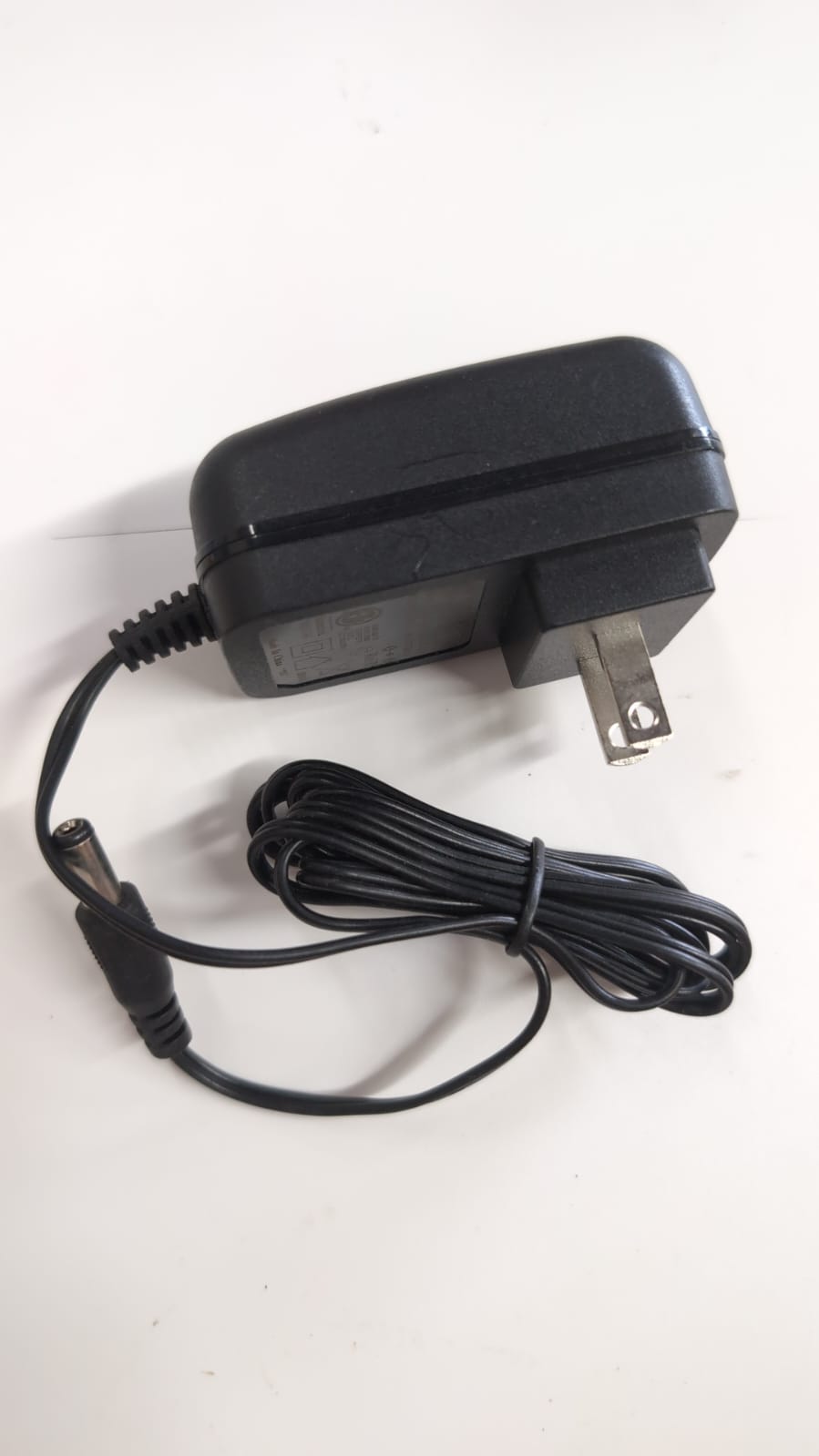

Adapter 12V US PIN

12W AC DC Adapter 12V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type C.

FEATURES

• Universal input voltage of 90Vac to 264Vac
• 12V dc output voltage
• 12W power rating
• Two-pin EuroPlug style casing
• Lightweight and portable with a low profile, compact design of 56mm x 27mm x 73mm
• 1.5m cable length
• 2.1mm x 5.5mm x 10mm centre positive DC connector
• Class II double insulation
• Low standby power consumption of just 0.075 W

General Specifications

Type - Switched Mode Power Supply
Plug Type - Type C
Output Connector- 2.1 x 5.5 x 10 mm Centre Positive
Input Connector - EU Plug
Number Of Outputs - 1
Efficiency - DOE VI / CoC V5 tier 2
Energy Efficiency Level - VI
Applications - Single board computers, Wireless communications, Peripheral equipment, Networking equipment, Portable equipment, Tablets and Laptops, Smartphones,
Telecommunications equipment
Safety Requirements - TÜV/GSEN60950- 1:2006+A11(2009)+A1(2010)+

Electrical Specifications

Output Voltage - 12V
Input Voltage -100V ac, 110V ac, 115V ac, 120Vac, 127V ac, 220Vac, 230V ac, 240V ac
Output Current - 1A
Power Rating -12W
Overcurrent Protection - Continuous, auto restart
Overvoltage Protection - Typ. 120%
Input Frequency - 47…63Hz
Hold-up time, nom. conditions - 20ms at 230VAC
Inrush Current -<30A/230VAC
No Load Power Consumption - <0.075W
Recovery Time - ±2% Max. 1ms
Ripple and Noise - Max. 100mV pp
Short Circuit - Yes
Standby Power - ≤0.075w
