TP-Link XZ000-G7

HARDWARE FEATURES

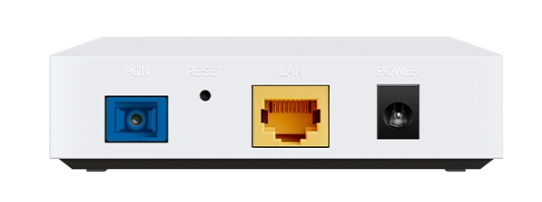

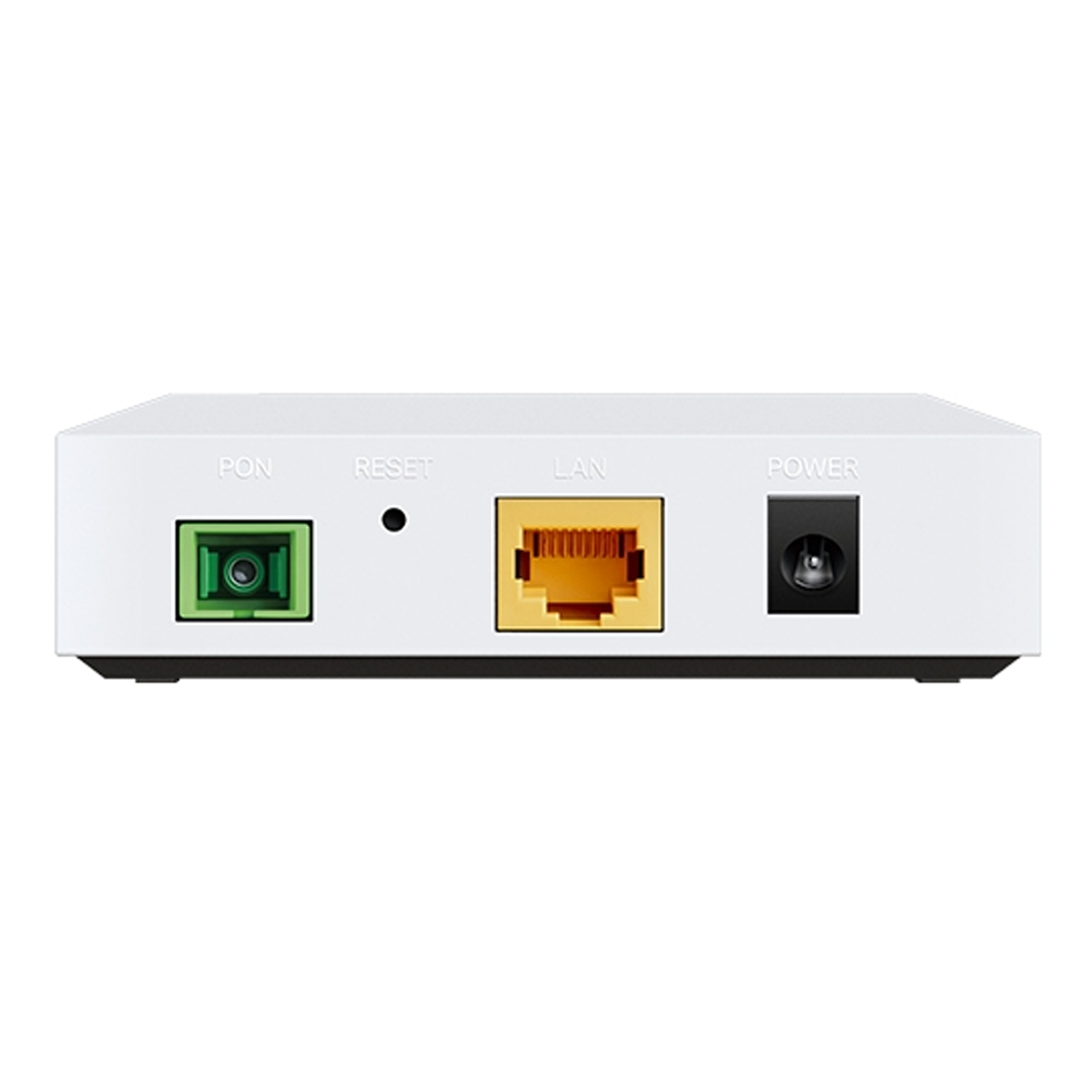

• Interface:

  1× PON Port (SC/APC)
  1× 10/100/1000 Mbps RJ45 Port


• Button: 1 RESET Button
• External Power Supply: 9VDC/0.6A
• IEEE Standards: IEEE 802.3, 802.3u, 802.1p, 802.1Q
• Data Rates:

  Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)
  Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)


• Wave Length:

  Upstream: 1310 nm
  Downstream: 1490 nm


• Dimensions (W × D × H): 3.7 × 3.0 × 1.2 in (95.0 × 75.0 × 29.3 mm)
• Distance: 0–20 Km Max
• GPON Standards: ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
• Optical Module: Class B+
• Receiver: Super-TIA
• Transmitter: DFB Laser

SOFTWARE FEATURES

• Advanced Features:

  Upstream and Downstream FEC
  Dynamic Bandwidth Allocation (DBA) support NSR/SR
  Up to 16 T-CONTs and 256 GEM Ports
  Optical power detection
  Dying Gasp
  Terminal Silent mechanism


• VLAN: 802.1Q tag VLAN, VLAN transparent mode, VLAN translation mode, VLAN trunk mode; Authentication based on SN and Password; VLAN Auto Detect
• Security: AES Encryption, Packet Filter based on VLAN
• Management Features:

  Local management: WebGUI, Telnet
  Remote management: OMCI


• IGMP: IGMP v1/v2/v3

OTHERS

• Package Content:

  XPON Terminal XZ000-G7
  Power Adapter


• System Requirements:

  Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
  Internet Explorer 11, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Java-enabled browser
  Subscription with an Internet Service Provider (for internet access)


• Certifications: CE, RoHS
• Environment:

  Operating Temperature: 0℃–40℃ (32℉–104℉)
  Storage Temperature: -40℃–60℃ (-40℉–140℉)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
