CRS354-48P-4S+2Q+RM

$1,265.00 CAD
$1,265.00 CAD
Sale Sold out
Shipping calculated at checkout.
Only 1 units left

The 48 port champion you’ve been waiting for - now with PoE-out!

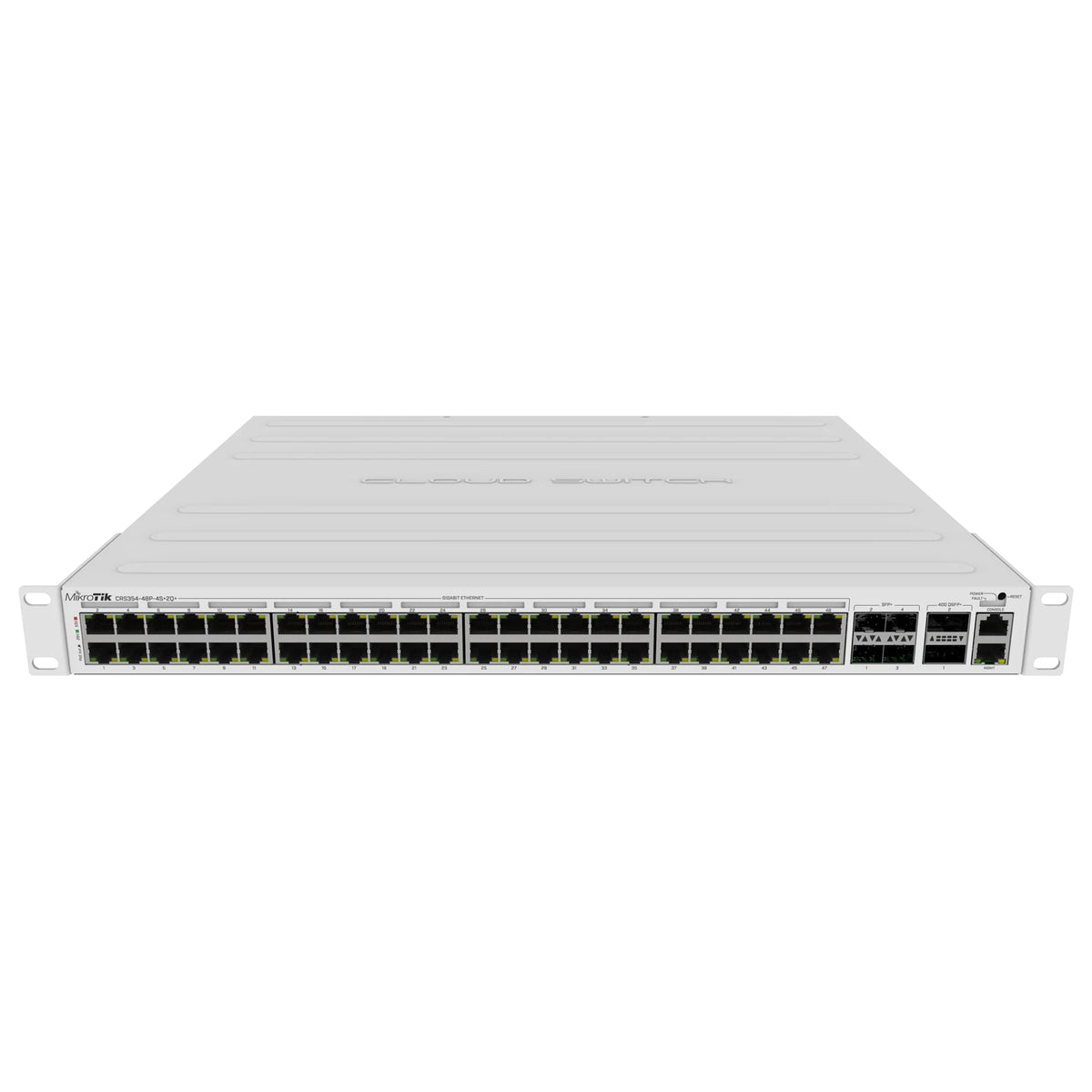

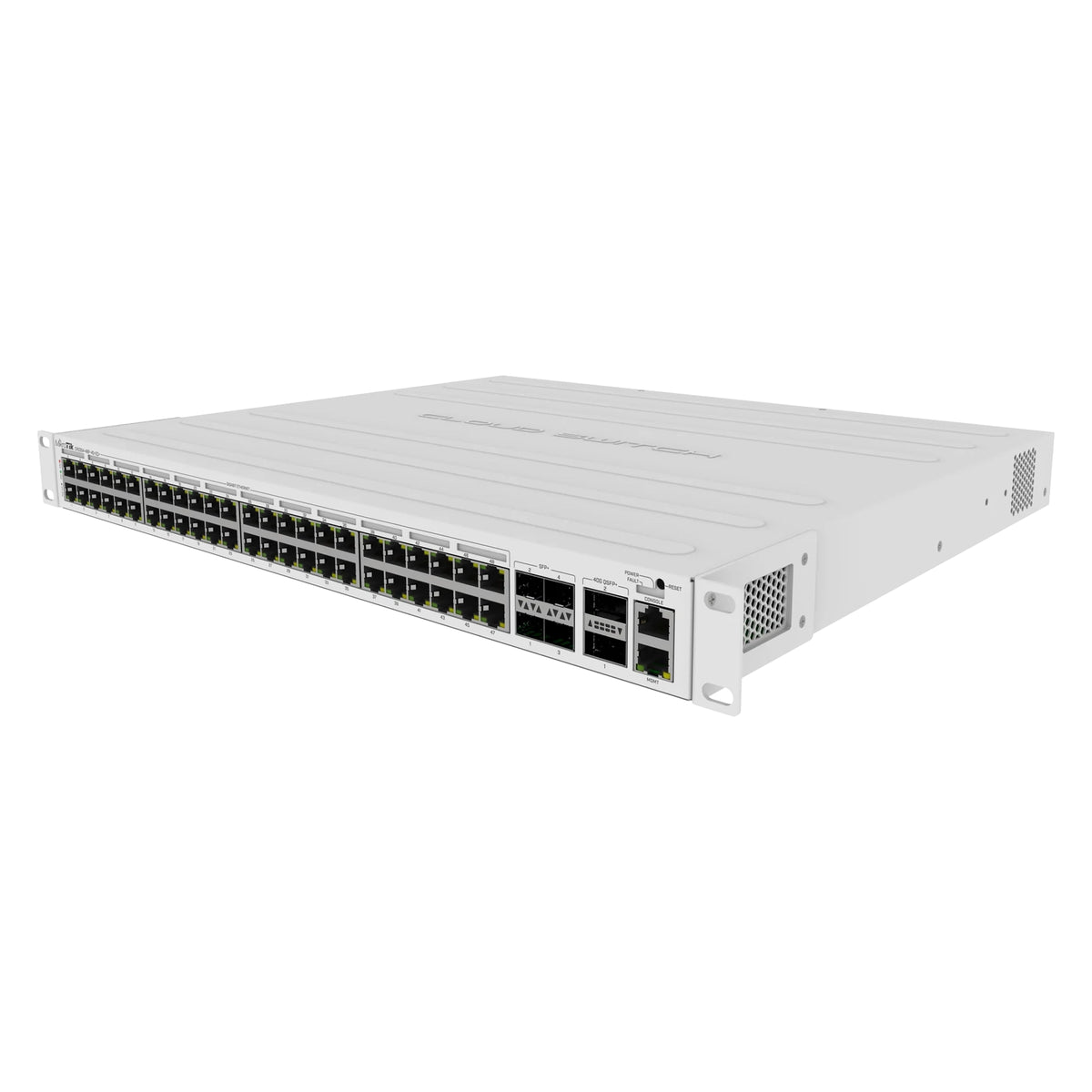

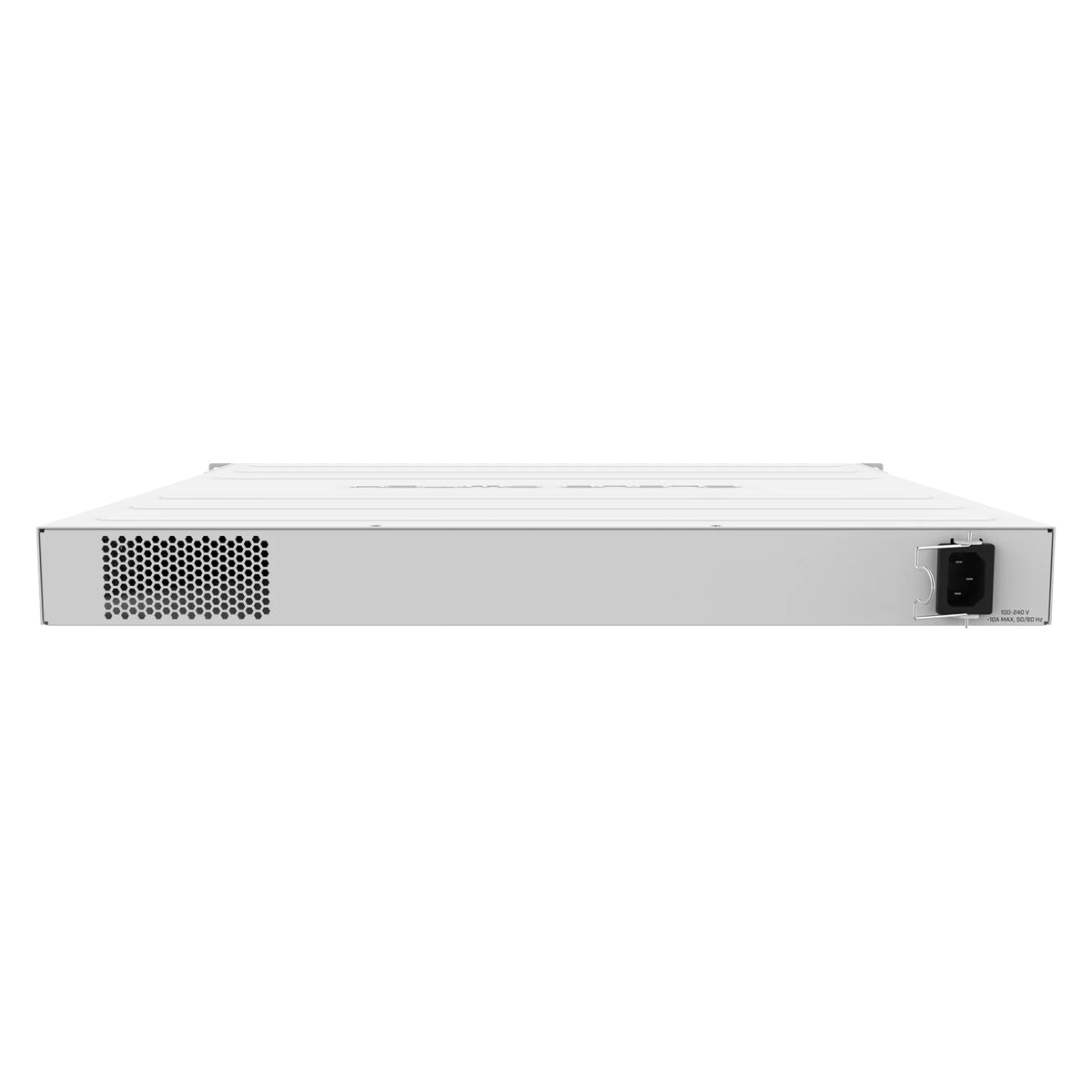

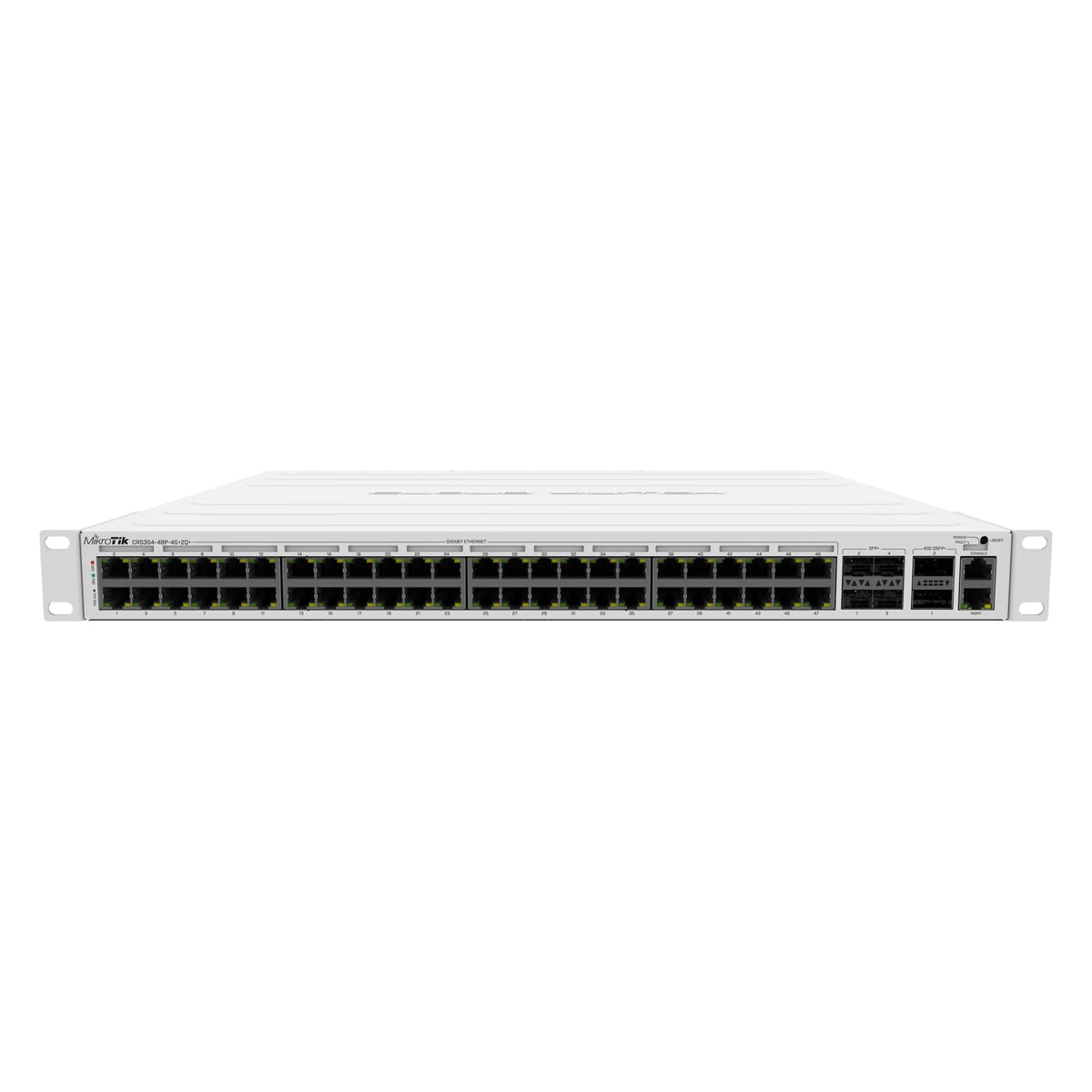

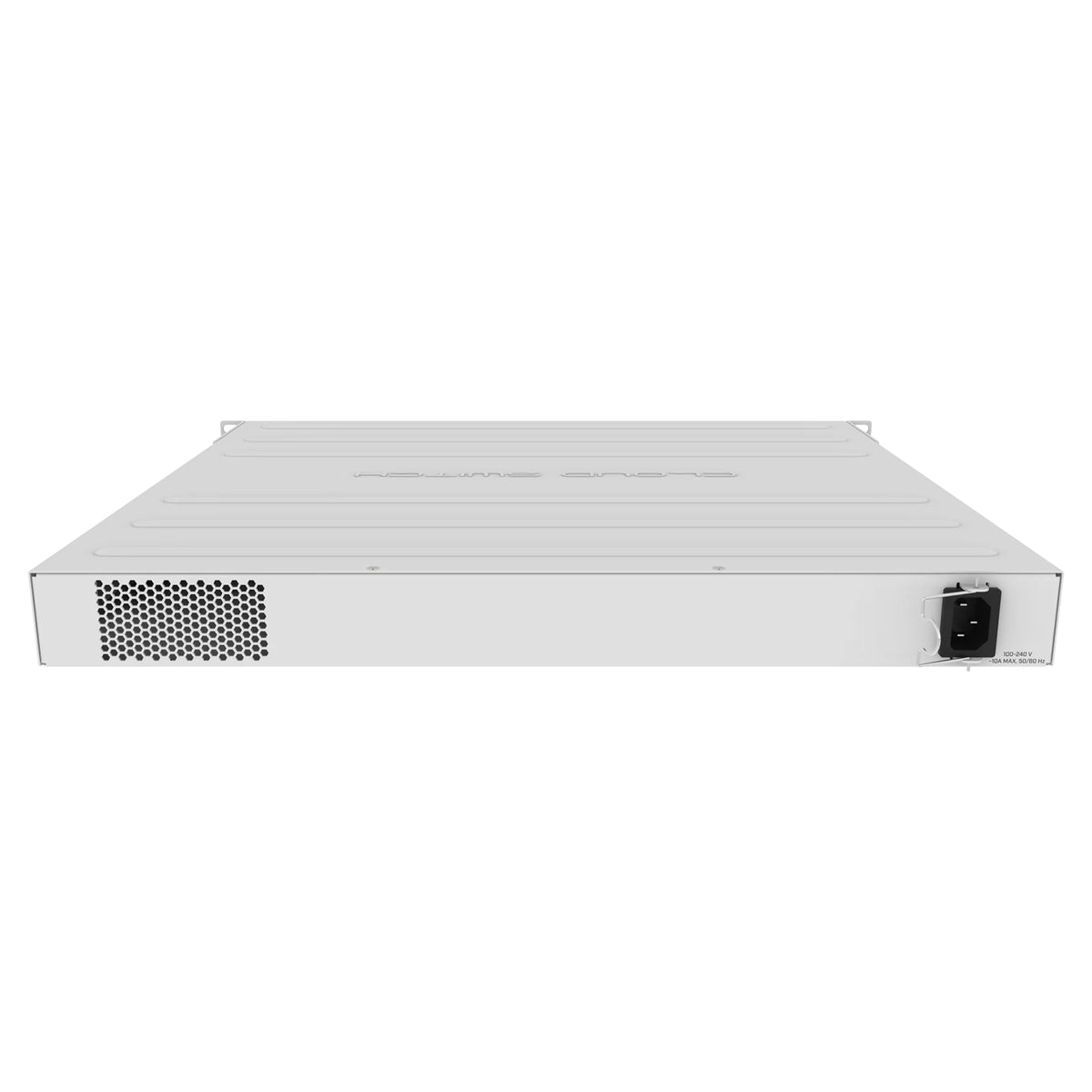

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    MikroTik

View Product Details

Specifications

General

  • Product Code: CRS354-48P-4S+2Q+RM
  • Architecture: MIPSBE
  • CPU: QCA9531 (Single-core, 650 MHz)
  • Switch Chip Model: 98DX3257
  • Dimensions: 443 × 382 × 44 mm
  • RouterOS License: Level 5
  • Operating System: RouterOS v7 / SwitchOS
  • RAM: 128 MB
  • Storage: 32 MB FLASH
  • MTBF: ~200,000 hours at 25°C
  • Operating Temperature: -20°C to 60°C

Powering

  • AC Input: 100–240 V (1 PSU)
  • Frequency: 50–60 Hz
  • Max Power Consumption: 800 W (85 W without attachments)
  • Cooling: 4 fans

PoE-Out

  • PoE-Out Ports: Ether1–Ether48
  • PoE Standard: 802.3af/at
  • Low Voltage Limit: 1000 mA
  • High Voltage Limit: 570 mA
  • Total Output Current: 27A @ 26V / 13.2A @ 53V
  • Total Output Power: 700 W

Ethernet & Fiber

  • Ethernet Ports: 48 × 10/100/1000 + 1 × 10/100
  • SFP+ Ports: 4
  • 40G QSFP+ Ports: 2

Peripherals

  • Serial Console Port: RJ45

Monitoring & Other

  • CPU Temperature Monitor: Yes
  • PCB Temperature Monitor: Yes
  • Voltage Monitor: Yes
  • Current Monitor: Yes

Certification & Approvals

  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
The MikroTik CRS354-48P-4S+2Q+RM is a high-capacity rackmount switch designed for professional networks that need extensive Gigabit connectivity, PoE power delivery, and fast fiber uplinks. It provides 48 Gigabit Ethernet ports, all supporting PoE output, along with 4× 10G SFP+ ports and 2× 40G QSFP+ ports. All 48 Ethernet ports support 802.3af/at PoE as well as compatible passive PoE options, making the switch suitable for powering access points, IP cameras, VoIP phones, and other supported network devices. MikroTik specifies up to 700W total PoE output, giving the CRS354-48P-4S+2Q+RM the capacity to support large powered deployments. For high-bandwidth network infrastructure, the four 10G SFP+ and two 40G QSFP+ interfaces provide flexible options for backbone links, switch aggregation, servers, and other high-speed connections. The switch supports dual boot with RouterOS v7 and SwitchOS, allowing administrators to choose the management environment that best fits their network requirements.

FAQs : MikroTik CRS354-48P-4S+2Q+RM

The CRS354-48P-4S+2Q+RM is a 48-port Gigabit PoE switch designed for large professional networks, with additional 10G and 40G interfaces for high-speed uplinks.
It provides 48 Gigabit Ethernet ports with PoE output, supporting 802.3af/at and compatible passive PoE options.
The switch includes 4× 10G SFP+ ports and 2× 40G QSFP+ ports, making it suitable for aggregation and high-bandwidth backbone connections.
