SG2210P

$169.99 CAD
$169.99 CAD
Sale Sold out
Only 10 units left
  • Features 8 PoE+ ports, with total PoE power budget of 58W* and useful PoE power management features
  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
  •  L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features
  •  Innovative energy-efficient technology saves up to 50% of power consumption

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

  • Standards and Protocols: IEEE 802.3i, 802.3u, 802.3z, 802.3ab, 802.3ad, 802.3af, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x

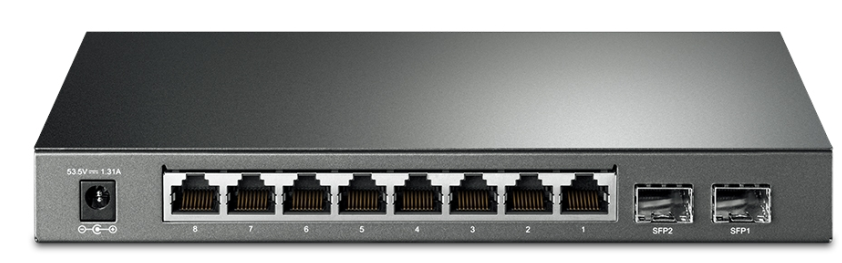

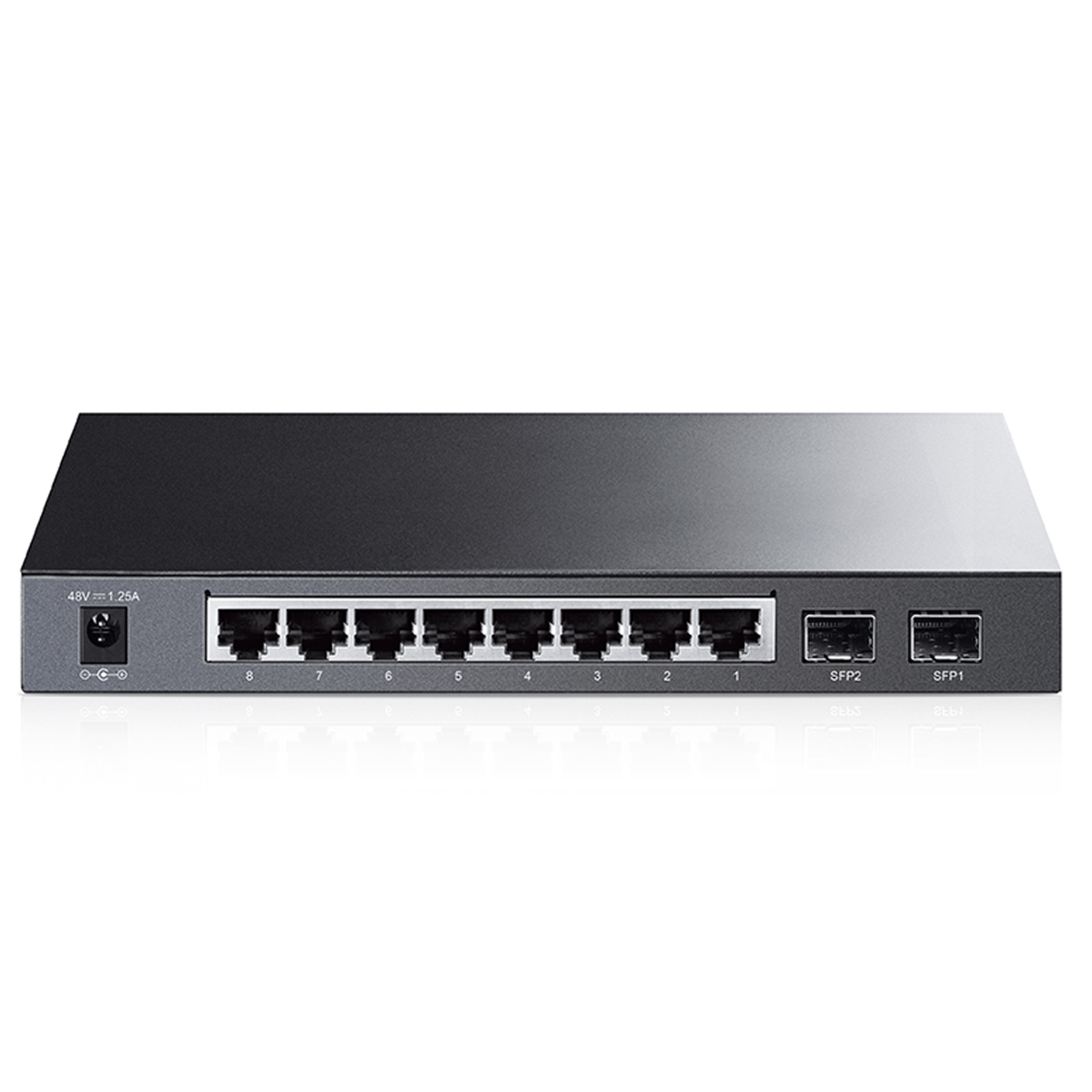

  • Interface:

    8 × 10/100/1000 Mbps RJ45 Ports
    2 × 1000 Mbps SFP Slots (Auto-Negotiation / Auto MDI/MDIX)

  • Network Media:

    10BASE-T: UTP Category 3, 4, 5 (max 100 m)
    100BASE-TX/1000BASE-T: UTP Category 5, 5e or above (max 100 m)
    1000BASE-X: MMF, SMF

  • Fan Quantity: Fanless
  • Power Supply: 100–240 VAC, 50/60 Hz, External Power Adapter (48 VDC / 1.25 A)
  • Power Consumption:

    Max (PoE On): 63.4 W (220V/50Hz)
    Max (PoE Off): 10.4 W (220V/50Hz)

  • PoE Ports (RJ45):

    Standard: 802.3af compliant
    Number of PoE Ports: 8
    PoE Power Budget: 53 W

  • Dimensions (W × D × H): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PERFORMANCE

  • Bandwidth / Backplane: 20 Gbps
  • Packet Forwarding Rate: 14.9 Mpps
  • MAC Address Table: 8k
  • Packet Buffer Memory: 512 KB
  • Jumbo Frame: 9216 Bytes

SOFTWARE FEATURES

  • Quality of Service:

    802.1p CoS / DSCP priority support
    4 priority queues
    Queue scheduling: SP, WRR, SP+WRR
    Port / Flow-based Rate Limiting
    Voice VLAN

  • L2 and L2+ Features:

    16 IP Interfaces (IPv4 / IPv6)
    Static Routing (32 IPv4 / IPv6 routes)
    DHCP Server, Relay, VLAN Relay
    Static ARP, Proxy ARP, Gratuitous ARP
    Link Aggregation: Static and 802.3ad LACP, up to 8 groups / 8 ports each
    Spanning Tree Protocol: STP (802.1D), RSTP (802.1w), MSTP (802.1s), with TC Protect, BPDU Filter/Protect, Root Protect
    Loopback Detection
    Flow Control: 802.3x
    Mirroring: Port, CPU, One-to-One, Many-to-One, Flow-Based (Ingress/Egress/Both)
    Device Link Detection Protocol (DLDP)
    802.1ab LLDP / LLDP-MED

  • VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
  • Access Control List: L2–L4 filtering by MAC, IP, TCP/UDP ports, 802.1p, DSCP, protocol, VLAN ID, time range based
  • Security:

    SSH v1/v2
    SSL v2/v3 / TLSv1
    Port Security
    Broadcast / Multicast / Unknown Unicast Storm Control
    802.1x and RADIUS Authentication
    IP-MAC-Port-VID Binding, ARP Inspection, DHCP Snooping, DoS Defense

  • L2 Switching Features:

    IGMP Snooping V1/V2/V3
    802.3ad LACP (up to 6 aggregation groups, 4 ports per group)
    STP/RSTP/MSTP with BPDU Filtering / Guard, TC / Root Protect
    Loopback Detection
    802.3x Flow Control
    LLDP / LLDP-MED

  • Management:

    Web-based GUI and CLI
    SNMP v1/v2c/v3 (public & TP-LINK private MIBs)
    RMON (groups 1, 2, 3, 9)
    CPU Monitoring
    Port Mirroring
    Time Setting: SNTP
    Firmware Upgrade: TFTP & Web
    System Diagnose: VCT
    SYSLOG & Public MIBs

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents:

    TL-SG2210P Switch
    Power Adapter
    Installation Guide
    Resource CD
    Rubber Feet

  • System Requirements: Microsoft® Windows® 98SE / NT / 2000 / XP / Vista™ / 7 / 8, MAC® OS, NetWare®, UNIX®, Linux
  • Environment:

    Operating Temperature: 0℃–40℃ (32℉–104℉)
    Storage Temperature: -40℃–70℃ (-40℉–158℉)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
