TP-Link SG2210MP

$249.99 CAD
$249.99 CAD
Sale Sold out
Only 6 units left

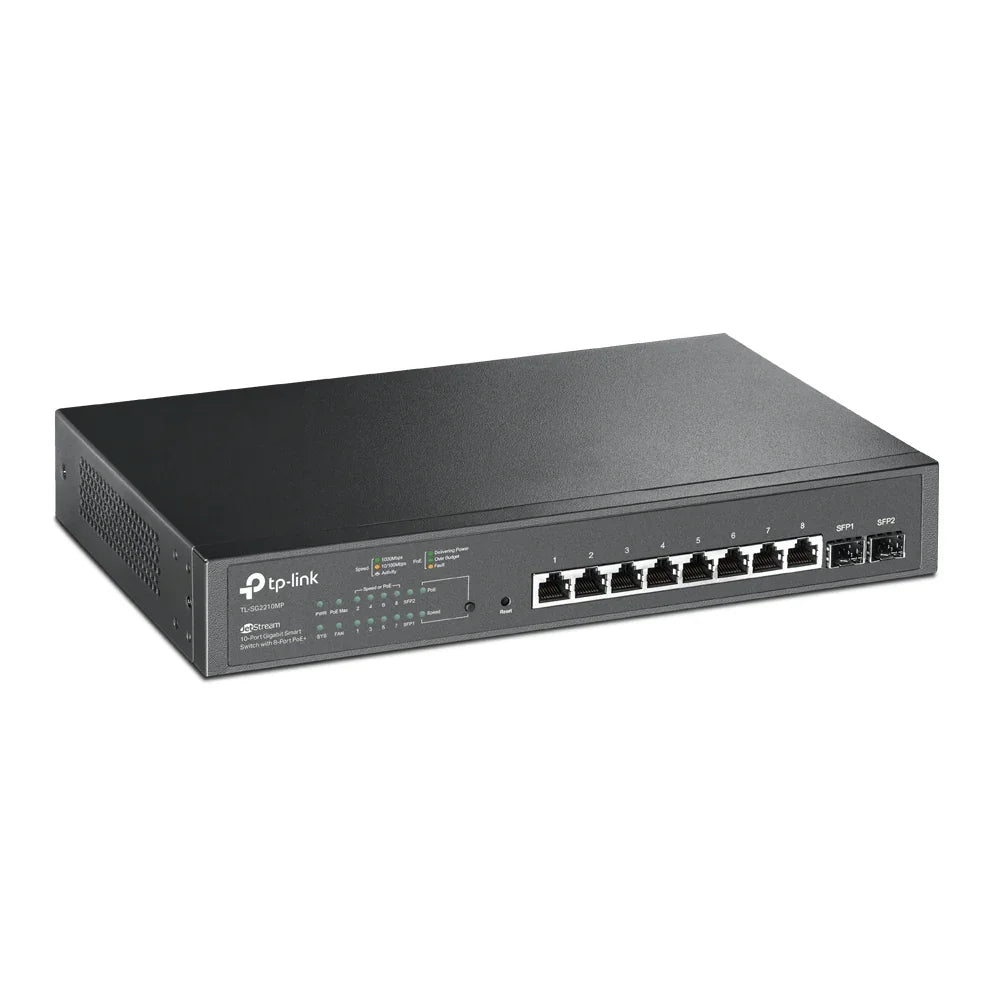

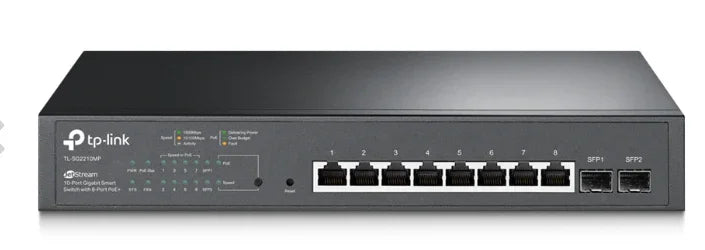

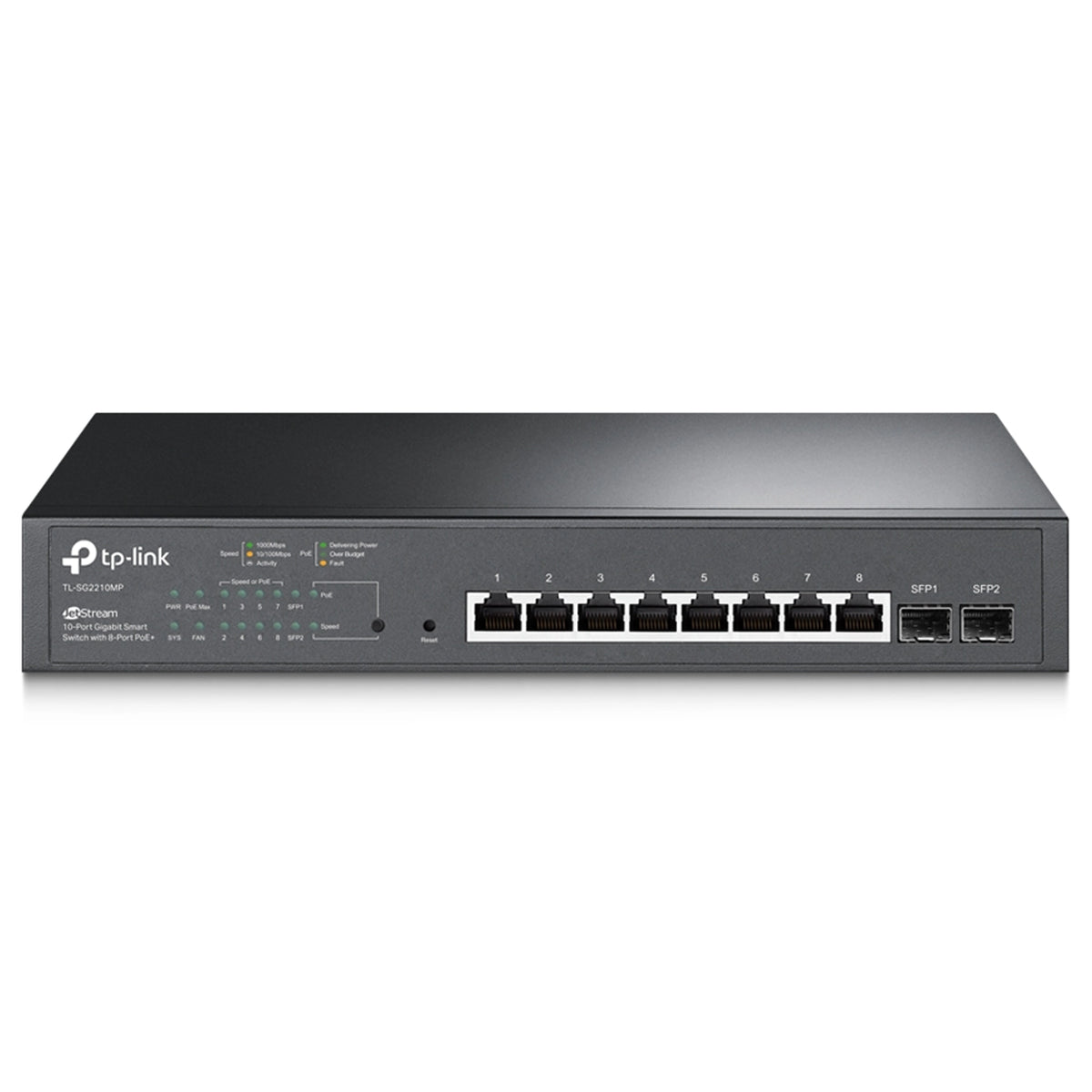

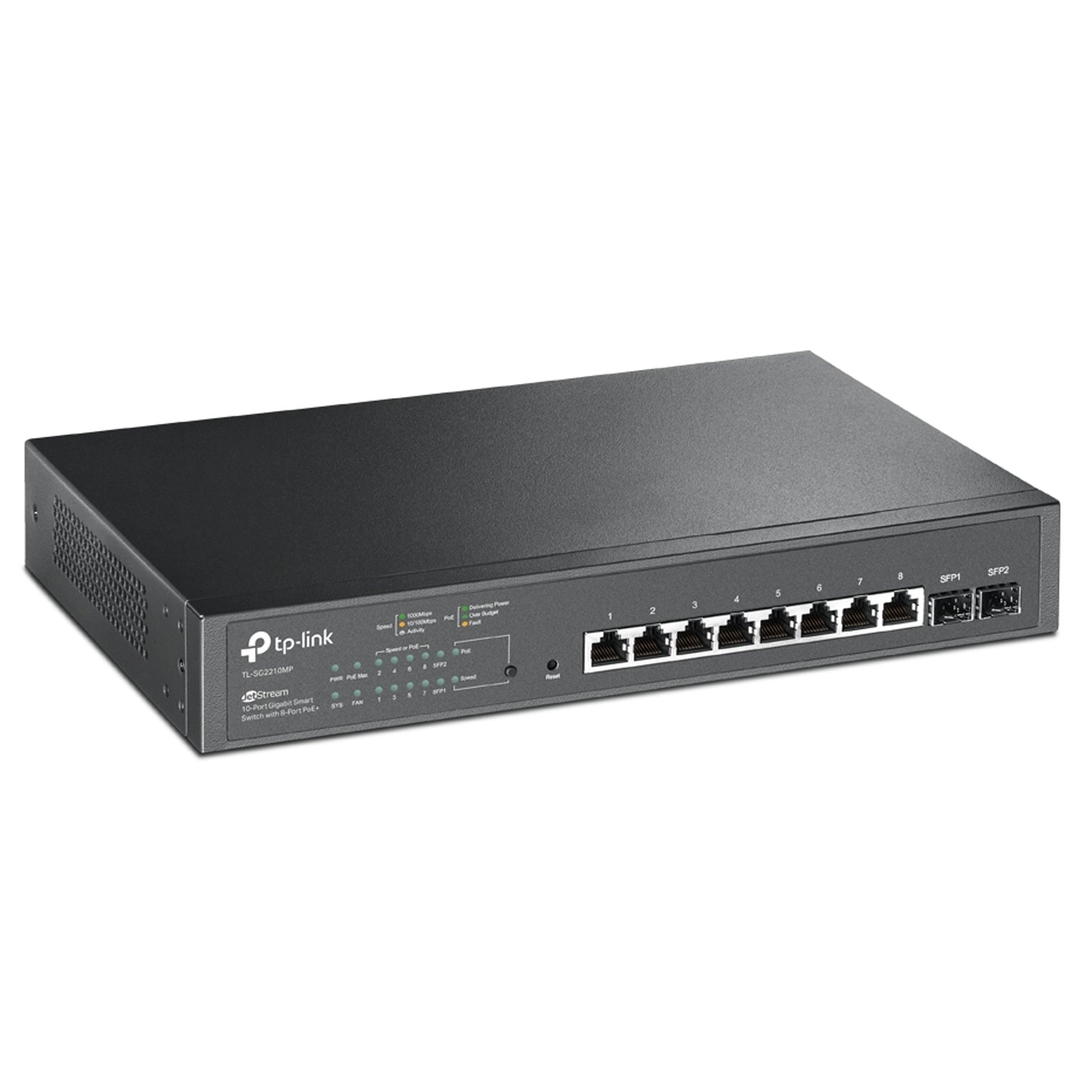

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

  • 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

  • Standards and Protocols: IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.3at, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p
  • Interface:

    8 × 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation / Auto MDI/MDIX)
    2 × 100/1000 Mbps SFP Slots

  • Network Media:

    10BASE-T: UTP/STP Category 3, 4, 5 (max 100 m)
    100BASE-TX / 1000BASE-T: UTP/STP Category 5, 5e or above (max 100 m)
    100BASE-FX: MMF, SMF
    1000BASE-X: MMF, SMF

  • Fan Quantity: 1
  • Physical Security Lock: Yes

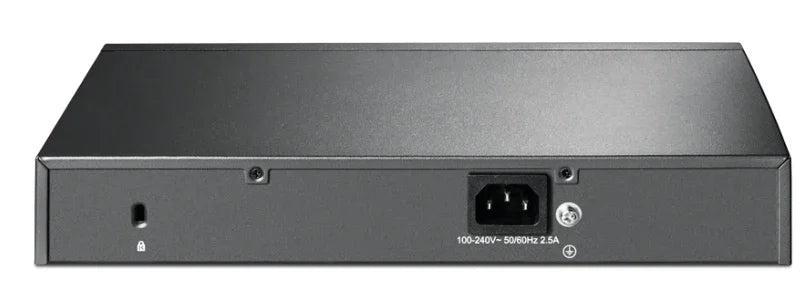

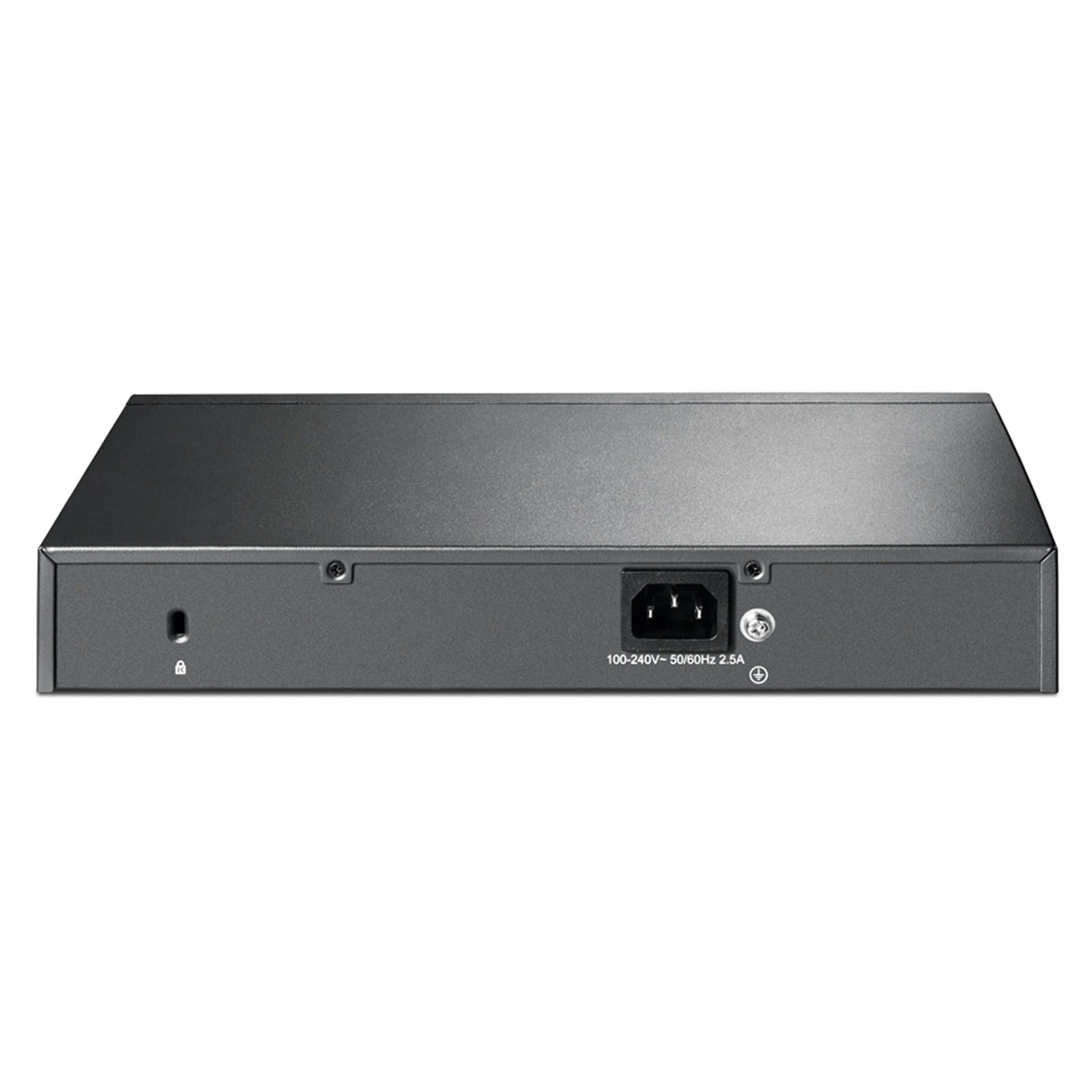

  • Power Supply: 100–240 V AC, 50/60 Hz
  • PoE Ports (RJ45):

    Standard: 802.3at/af compliant
    PoE+ Ports: 8
    PoE Power Budget: 150 W

  • Dimensions (W × D × H): 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
  • Mounting: Rackmount / Desktop
  • Max Power Consumption:

    V1: 173.9 W (110 V/60 Hz, with 150 W PD connected); 12.2 W (no PD connected)
    V2: 169.5 W (220 V/50 Hz, with 150 W PD connected)
    V3: 175.3 W (110 V/60 Hz, with 150 W PD connected)
    V4: 174.2 W (110 V/60 Hz, with 150 W PD connected)

  • Max Heat Dissipation:

    V1: 41.63 BTU/h (no PD connected); 539.35 BTU/h (with 150 W PD connected)
    V2: 578.42 BTU/h (220 V/50 Hz, with 150 W PD connected)
    V3: 597.8 BTU/h (110 V/60 Hz, with 150 W PD connected)
    V4: 594.46 BTU/h (110 V/60 Hz, with 150 W PD connected)

PERFORMANCE

  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.9 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB

SOFTWARE FEATURES

  • Quality of Service:

    802.1p CoS / DSCP priority
    8 priority queues
    Queue Scheduling: SP (Strict Priority), WRR (Weighted Round Robin)
    Queue Weight Configuration
    Bandwidth Control: Port / Flow-based Rate Limiting
    Smoother Performance
    Storm Control: multiple modes (kbps / ratio), Broadcast / Multicast / Unknown Unicast control

  • L2 and L2+ Features:

    DHCP Relay (VLAN & L2 Relay)
    Link Aggregation: Static & 802.3ad LACP, up to 8 groups / 8 ports each
    Spanning Tree Protocol: STP / RSTP / MSTP, with TC Protect, BPDU Filter/Protect, Root Protect
    Loopback Detection
    Flow Control: 802.3x
    Mirroring: Port / CPU / One-to-One / Many-to-One / Flow-Based / Ingress/Egress/Both
    Device Link Detection Protocol (DLDP)
    802.1ab LLDP / LLDP-MED

  • L2 Multicast:

    511 IPv4 / IPv6 shared multicast groups
    IGMP Snooping (v1/v2/v3), Fast Leave, Snooping Querier, Static Group Config
    Multicast VLAN Registration (MVR) & Filtering
    MLD Snooping (v1/v2), Fast Leave, Snooping Querier, Static Group Config
    Limited IP Multicast: 256 profiles, 16 entries per profile

  • Advanced Features: Automatic Device Discovery, Batch Configuration, Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
  • VLAN: VLAN Group (max 4K), 802.1Q tag VLAN, MAC VLAN (12 entries), Protocol VLAN, GVRP, Voice VLAN
  • Access Control List (ACL): Up to 230 entries, Time-based ACL, MAC / IP / IPv6 ACL, combined ACL, policy actions (Mirror / Rate Limit / Redirect / QoS Remark), ACL rules binding to Port/VLAN, actions for flows
  • Security: AAA, 802.1X (Port/MAC-based), RADIUS authentication, IP/IPv6-MAC Binding, DHCP / ARP inspection, IP / IPv6 Source Guard, DoS Defense, Static/Dynamic Port Security, Storm Control, Port Isolation, Secure web (HTTPS), Secure CLI (SSH), IP/Port/MAC access control
  • IPv6: Static Routing & ACL, Dual IPv4/IPv6, Interface, MLD Snooping, Neighbor Discovery, MTU Discovery, ICMPv6, TCPv6/UDPv6, Applications (DHCPv6, Ping6, Tracert6, Telnet v6, SNMP v6, SSH v6, SSL v6, HTTP/HTTPS, TFTP)
  • MIBs: MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RADIUS Accounting & Authentication MIBs, Remote Ping/Traceroute MIB (RFC2925), TP-Link private MIBs, RMON (RFC1757, groups 1,2,3,9)

MANAGEMENT

  • Omada App: Supported via Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller
  • Centralized Management: Omada Cloud / Hardware Controllers (OC300, OC200) / Software Controller
  • Cloud Access: Yes (Omada Cloud / OC300 / OC200 / Software Controller)
  • Zero-Touch Provisioning: Supported on TL-SG2210MP v1, v3 and above via Omada Cloud (not supported on v2)
  • Management Features: Web GUI, CLI, SNMP v1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9), SDM Template, DHCP/BOOTP Client, Dual Image / Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents: TL-SG2210MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • System Requirements: Microsoft® Windows® 98SE / NT / 2000 / XP / Vista™ / 7 / 8 / 10 / 11, MAC® OS, NetWare®, UNIX®, Linux
  • Environment:

    Operating Temperature: 0–50 ℃ (32–122 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
