SG2016P

⚠️ Out of stock. Contact Us or Call Us for stock status.
$180.42 CAD
$180.42 CAD $229.99 CAD
Sale Sold out

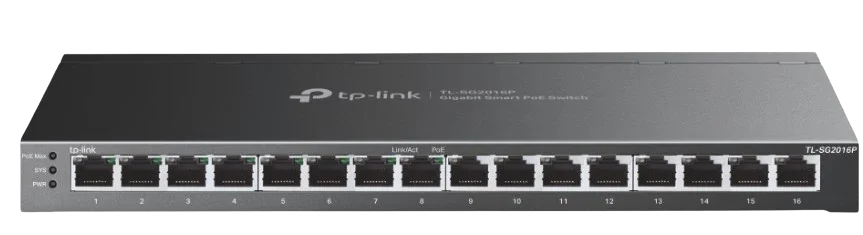

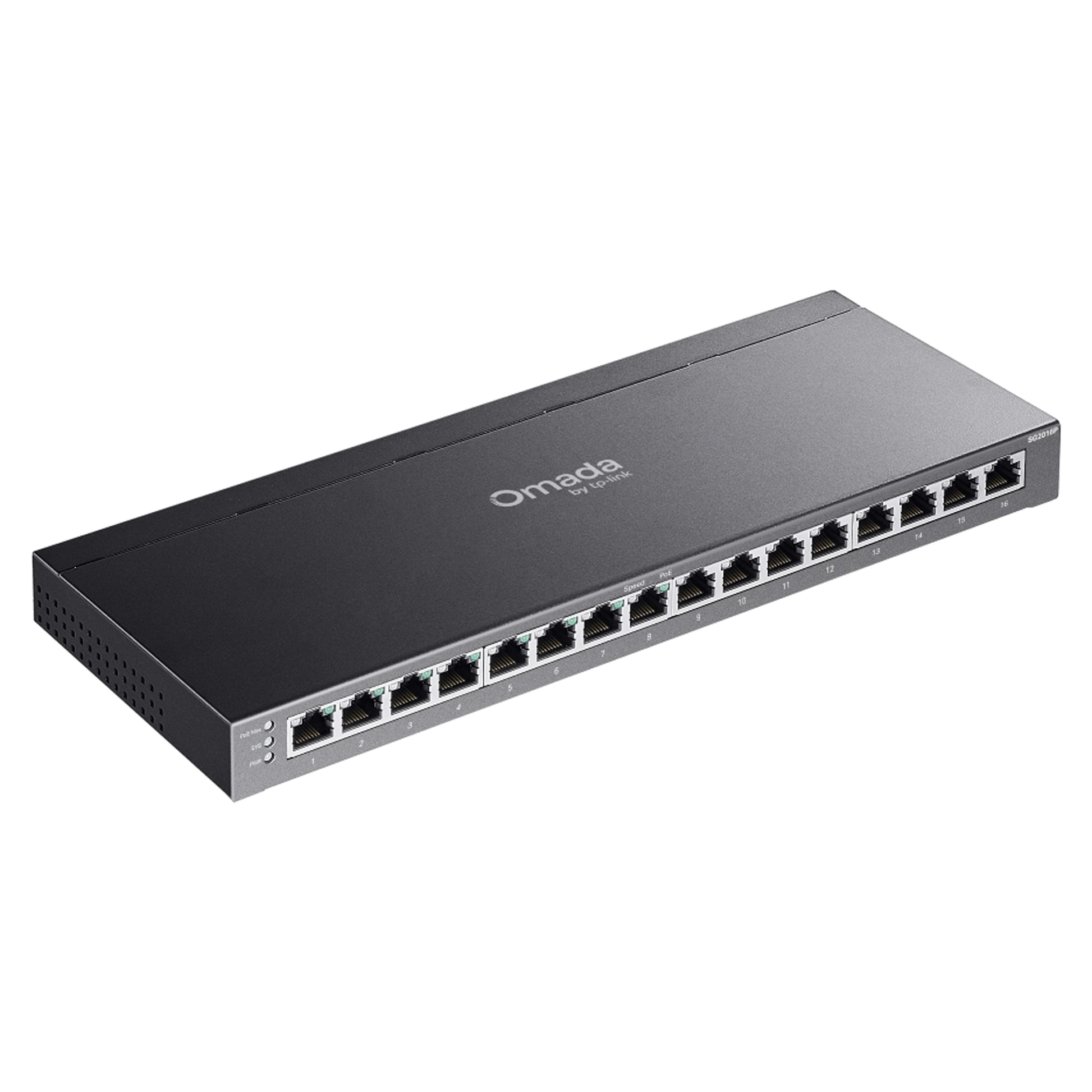

JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

  • 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

  • Interface:

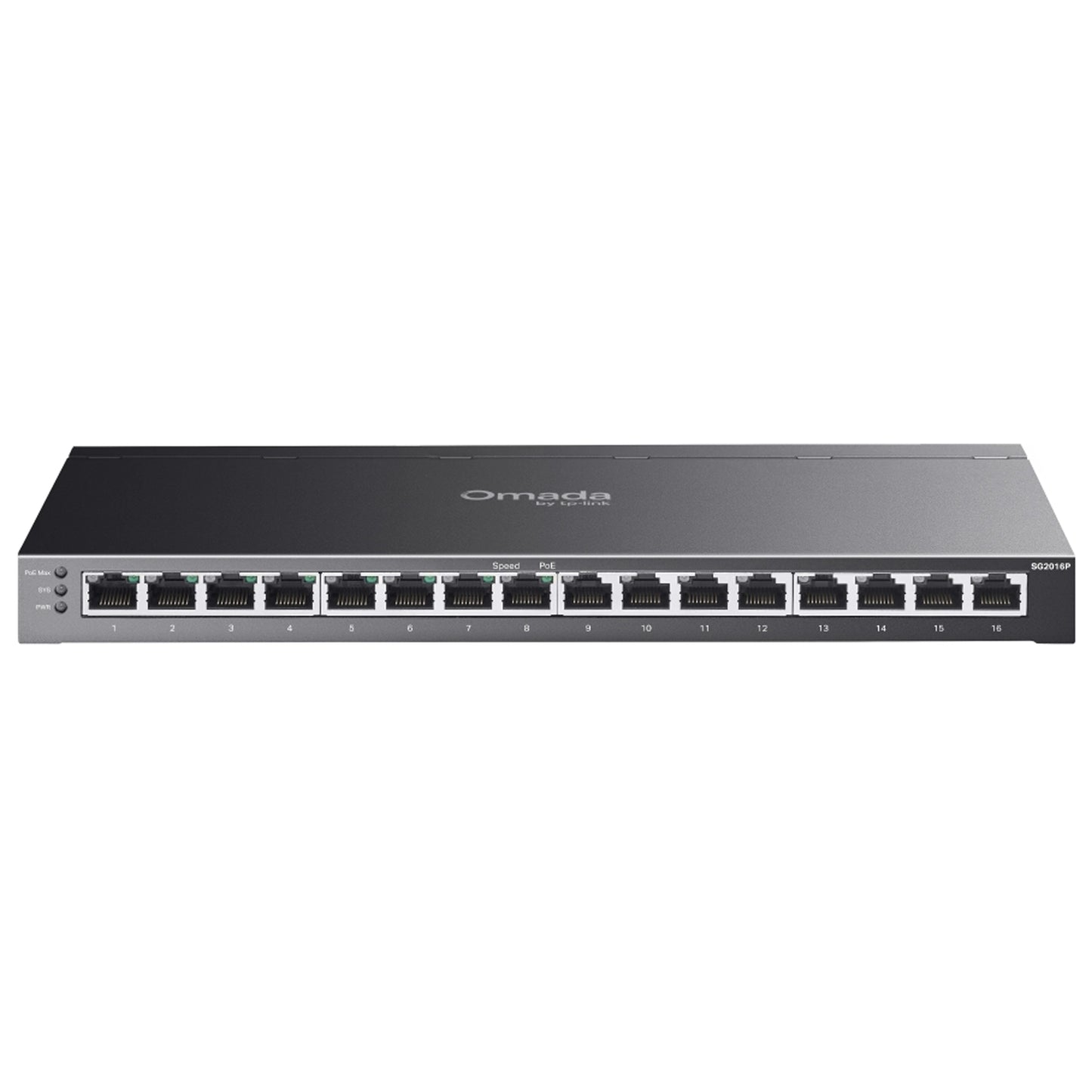

    16 × 10/100/1000 Mbps RJ45 Ports (Ports 1–8 support 802.3af/at PoE+)
    Auto-Negotiation / Auto MDI/MDIX

  • Fan Quantity: Fanless
  • Physical Security Lock: √

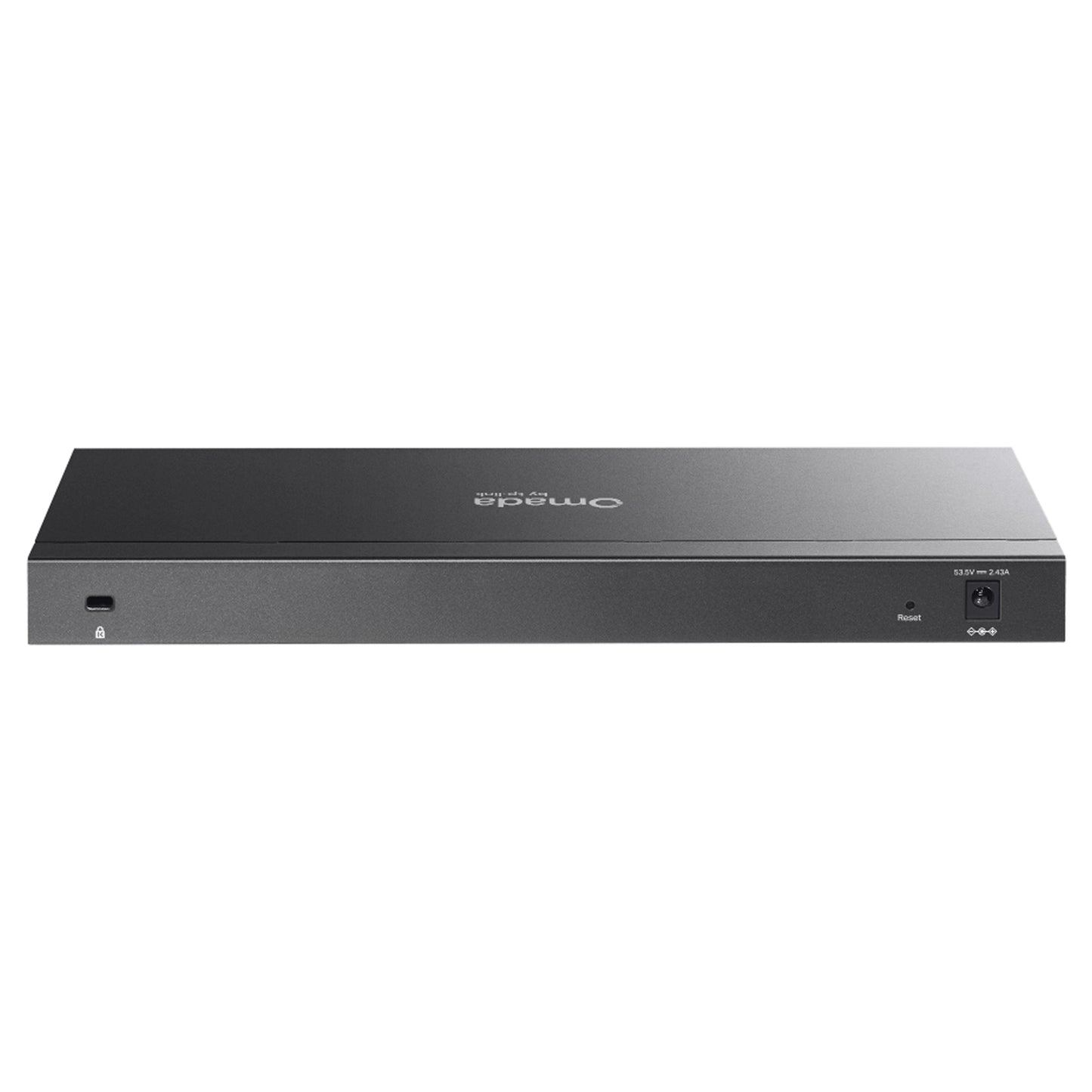

  • Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
  • PoE Ports (RJ45):

    Standard: 802.3af/at compliant
    PoE Ports: 8
    Power Supply: 120 W*

  • Dimensions (W × D × H): 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm)

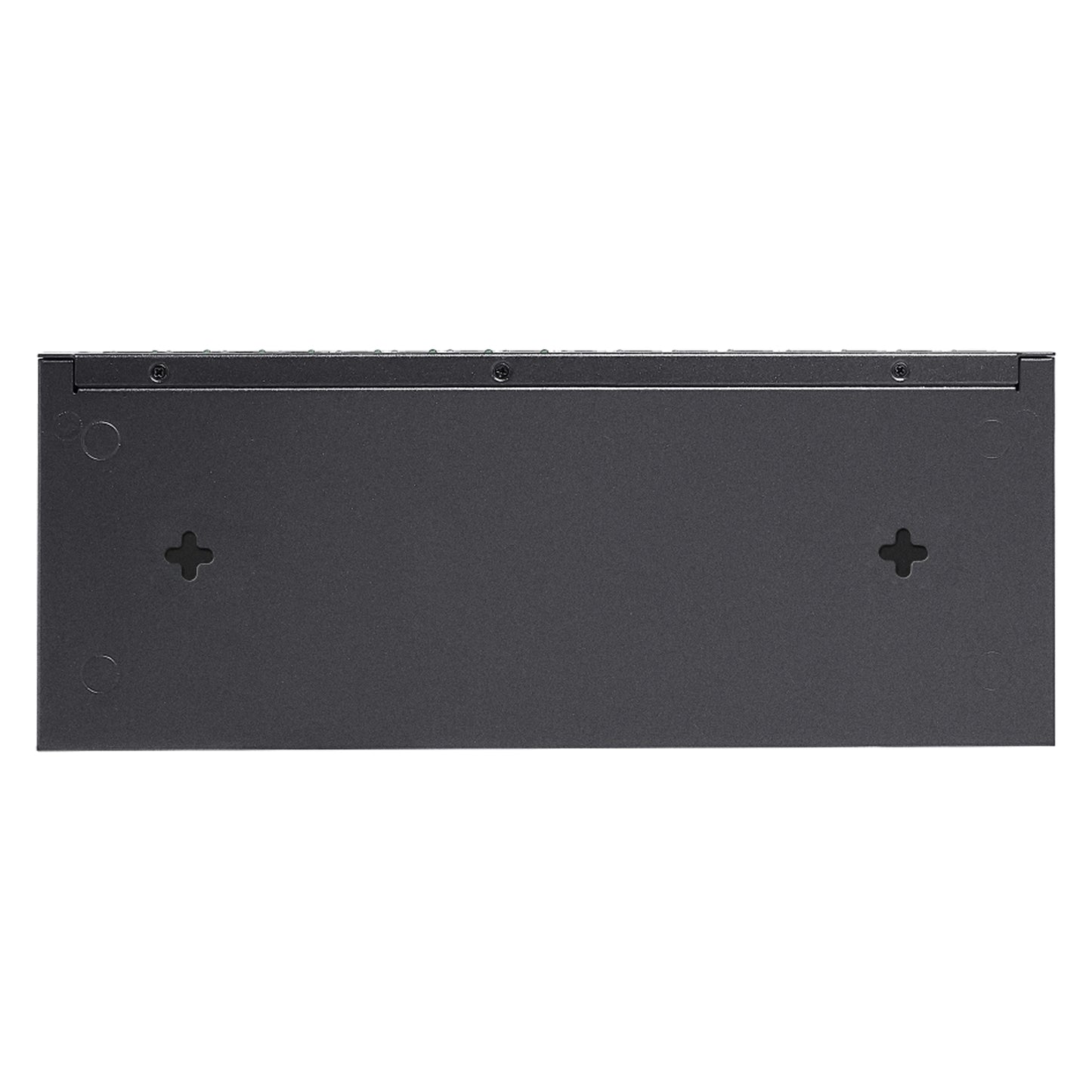

  • Mounting: Desktop / Wall-Mounting
  • Max Power Consumption: 146.5 W (110 V/60 Hz, with 120 W PD connected)
  • Max Heat Dissipation: 499.98 BTU/hr (110 V/60 Hz, with 120 W PD connected)

PERFORMANCE

  • Switching Capacity: 32 Gbps
  • Packet Forwarding Rate: 23.81 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB

SOFTWARE FEATURES

  • Quality of Service:

    802.1p CoS / DSCP priority
    8 priority queues
    Queue Scheduling Mode: SP (Strict Priority), WRR (Weighted Round Robin)
    Queue Weight Configuration
    Bandwidth Control: Port / Flow-based Rate Limit
    Smoother Performance
    Storm Control: multiple modes (kbps / ratio), Broadcast / Multicast / Unknown-Unicast Control

  • L2 and L2+ Features:

    16 IP Interfaces: Support IPv4/IPv6
    Static Routing: 32 IPv4/IPv6 static routes
    DHCP Server & DHCP Relay (Interface / VLAN / L2 Relay)
    Static ARP, Proxy ARP, Gratuitous ARP
    Link Aggregation & Spanning Tree Protocol
    Loopback Detection & 802.3x Flow Control
    Mirroring (Port / CPU / Ingress / Egress)
    Device Link Detection Protocol (DLDP)
    802.1ab LLDP / LLDP-MED

  • L2 Multicast:

    511 IPv4/IPv6 shared multicast groups
    IGMP Snooping
    Multicast VLAN Registration (MVR) & Filtering
    Limited IP Multicast: 256 profiles, 16 entries per profile

  • Advanced Features:
    Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
  • VLAN: Max 4K VLAN Groups, 802.1Q tag VLAN, MAC VLAN (12 entries), Protocol VLAN, GVRP, Voice VLAN
  • Access Control List (ACL):

    Up to 230 entries, Time-based ACL, MAC / IP / IPv6 ACL, Combined ACL
    Rule Operation: Permit / Deny
    Policy Actions: Mirror, Redirect, Rate Limit, QoS Remark
    ACL Rules Binding: Port / VLAN

  • Security:

    IP-MAC-Port Binding, AAA, 802.1X (Port/MAC authentication, PAP/EAP-MD5, MAB, Guest VLAN, RADIUS support)
    IP/IPv6-MAC Binding: 512 Entries, DHCP / DHCPv6 Snooping, ARP Inspection, ND Detection
    IP / IPv6 Source Guard
    DoS Defense
    Static / Dynamic / Permanent Port Security (Up to 64 MAC addresses per port)
    Storm Control: Broadcast / Multicast / Unicast, kbps / ratio control
    Port Isolation
    Secure management: HTTPS (SSLv3/TLS 1.2), CLI (SSHv1/SSHv2), IP/Port/MAC access control

  • IPv6 Features:
    Static Routing & ACL, Dual IPv4/IPv6, Interface, MLD Snooping, Neighbor Discovery, MTU Discovery, ICMPv6, TCPv6/UDPv6, IPv6 Applications (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMP v6, SSH v6, SSL v6, HTTP/HTTPS, TFTP)
  • MIBs: MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RADIUS Accounting & Authentication MIBs, Remote Ping / Traceroute MIB (RFC2925), TP-Link Private MIBs, RMON (RFC1757, groups 1,2,3,9)

MANAGEMENT

  • Omada App: Supported via Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
  • Centralized Management: Omada Cloud / Hardware / Software Controller
  • Cloud Access: Yes, via Omada Controllers
  • Zero-Touch Provisioning: Supported via Omada Cloud-Based Controller
  • Management Features: Web GUI, CLI (Telnet), SNMP v1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9), SDM Template, DHCP/BOOTP Client, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents: SG2016P, Power Adapter, Installation Guide, Rubber Feet
  • System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, 7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux
  • Environment:

    Operating Temperature: 0–40 ℃ (32–104 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
