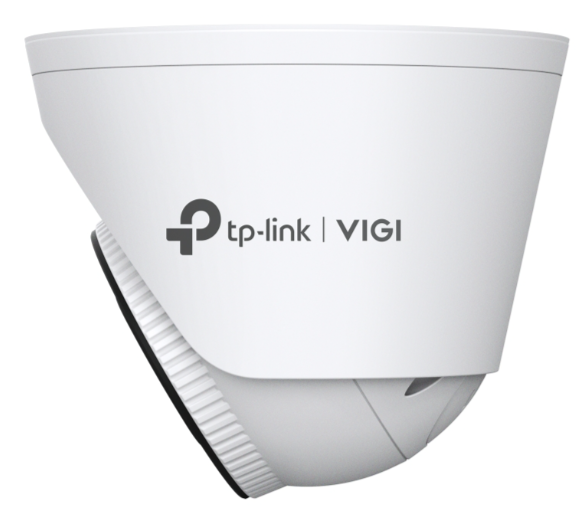

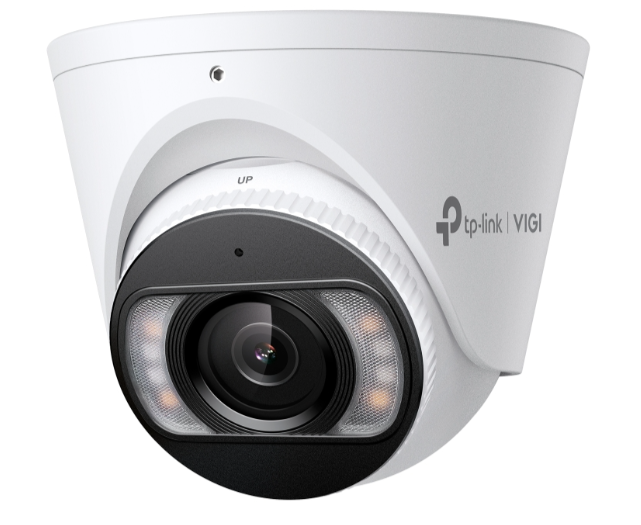

TP-Link InSight S485

$229.13 CAD
$229.13 CAD $235.00 CAD
Sale Sold out
Select Lens: 4mm Lens
Only 1 units left
  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics§
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • CAMERA
  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter: Yes
  • Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified / Scheduled / Auto
  • LENS
  • Type: Fixed Focal Lens
  • Focal Length: 2.8 mm / 4 mm
  • Aperture: F1.6
  • FOV: 2.8mm: H 111.4°, V 58.8°, D 134°; 4mm: H 91.5°, V 46.1°, D 109.6°
  • Lens Mount: M12 × P0.5
  • DORI Distance: 2.8mm: Detect 85m, Observe 35m, Recognize 17m, Identify 8m; 4mm: Detect 107m, Observe 44m, Recognize 21m, Identify 11m
  • Angle Adjustment: Pan 0–360°, Tilt 0–85°, Rotation 0–360°
  • ILLUMINATOR
  • IR LED: 4 LEDs, 30m Range, 850nm
  • White LED: 4 LEDs, 30m Range
  • Illuminator Control: Auto / Scheduled / Always On / Always Off
  • VIDEO
  • Max Resolution: 3840 × 2160
  • Main Stream: Up to 25fps (50/60Hz), Resolutions up to 3840×2160
  • Sub Stream: Up to 25fps, Resolutions up to 848×480
  • Bit Rate Control: CBR, VBR
  • Video Compression: Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264
  • Video Bit Rate: Main: 256Kbps–8Mbps; Sub: 64Kbps–512Kbps
  • IMAGE
  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC
  • Image Enhancement: BLC, 3D DNR, HLC, SmartIR
  • Wide Dynamic Range: 120dB
  • SNR: ≥ 52dB
  • Privacy Mask: Up to 4 Areas
  • ROI: 1 Region
  • OSD: Supported
  • AUDIO
  • Audio: Two-Way Audio, Input & Output Supported
  • Compression: G.711 alaw
  • Sampling Rate: 8KHz
  • Noise Filtering: Supported
  • Bit Rate: 64Kbps
  • NETWORK
  • Protocol: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4/IPv6, SSL/TLS
  • ONVIF: Supported (Profile S/T/G)
  • Live View: 3 Main Streams & 3 Sub Streams
  • Client: VIGI App, VMS, Web UI, Cloud VMS
  • Browser Support: Chrome, Firefox, Safari, Edge
  • Cloud: Yes
  • Security: Password Protection, HTTPS, IP Filter, Digest Authentication
  • ALARM & EVENTS
  • Smart Events: Intrusion, Line Crossing, Region Entry/Exit, Loitering, Object Detection, People & Vehicle Detection, Sound Detection
  • Basic Events: Motion Detection, Video Tampering, Illegal Login
  • Alarm Linkage: Recording, Push Notification, Audible Warning, Light Flash
  • INTERFACES
  • Network Interface: RJ45 10/100M PoE Port
  • Storage: MicroSD Slot up to 512GB
  • Built-in Mic/Speaker: Yes
  • Reset Button: Yes
  • Power: DC Port
  • GENERAL
  • Operating Temperature: -30°C to 60°C
  • Storage Temperature: -40°C to 60°C
  • Humidity: Up to 95% RH (Non-Condensing)
  • Material: Metal
  • Weight: 0.48 kg
  • Power Supply: 12V DC, Max 11.5W; PoE 802.3af/at, Max 12.5W
  • Protection: IP67
  • Dimensions: 111 × 111 × 83.7 mm
  • PACKAGE CONTENT

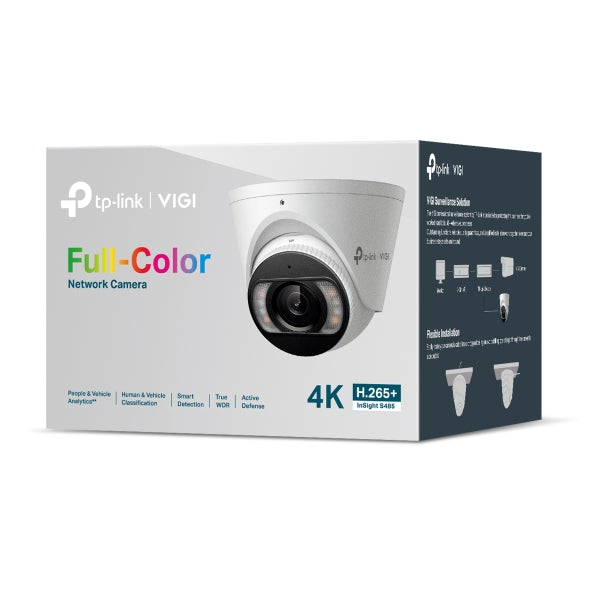

  • VIGI Network Camera, Quick Start Guide, Waterproof Accessories, Mounting Kit
  • CERTIFICATIONS
  • CE, NTRA, VCCI, KC, BSMI, FCC, IC
