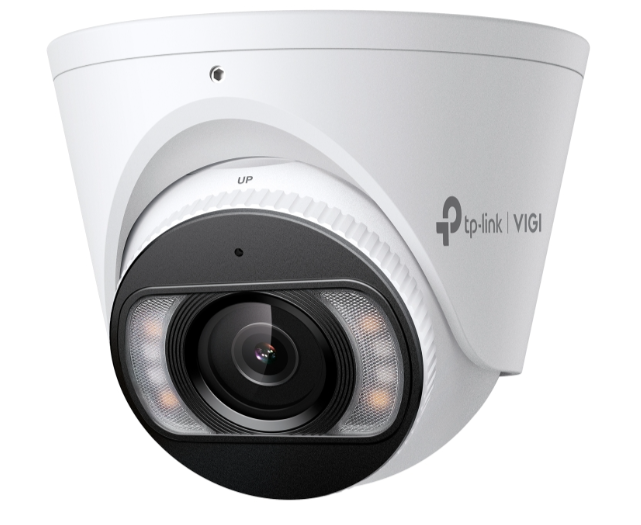

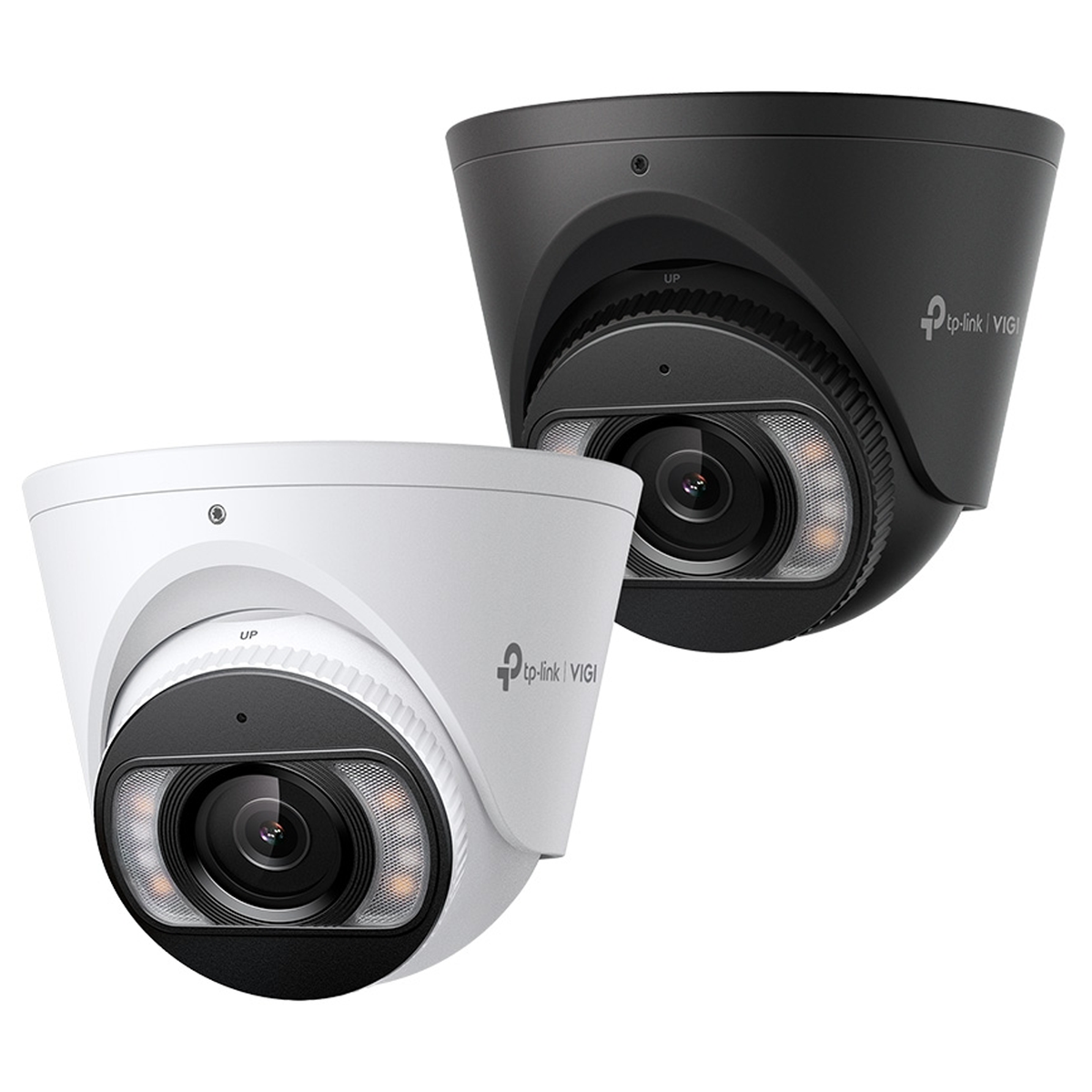

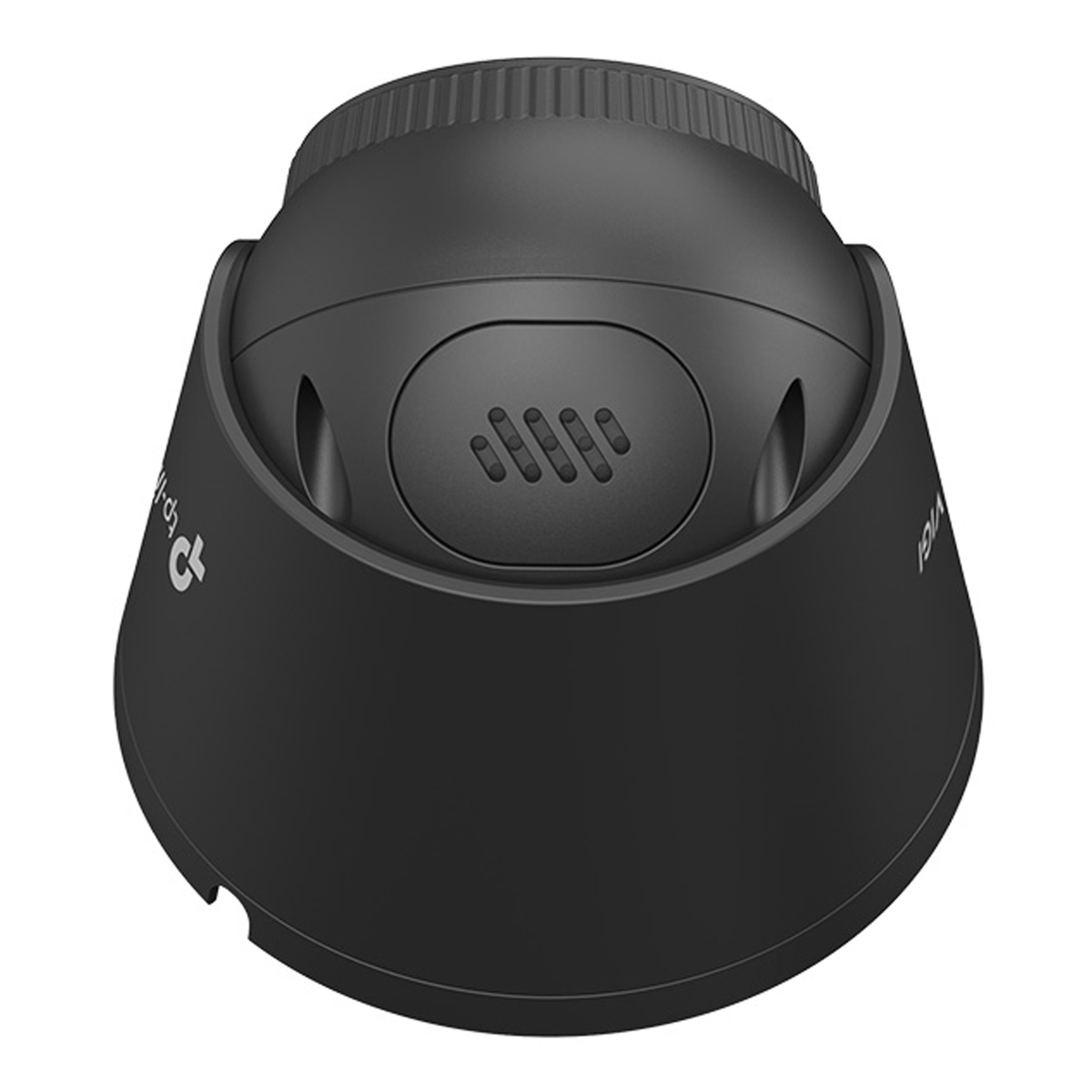

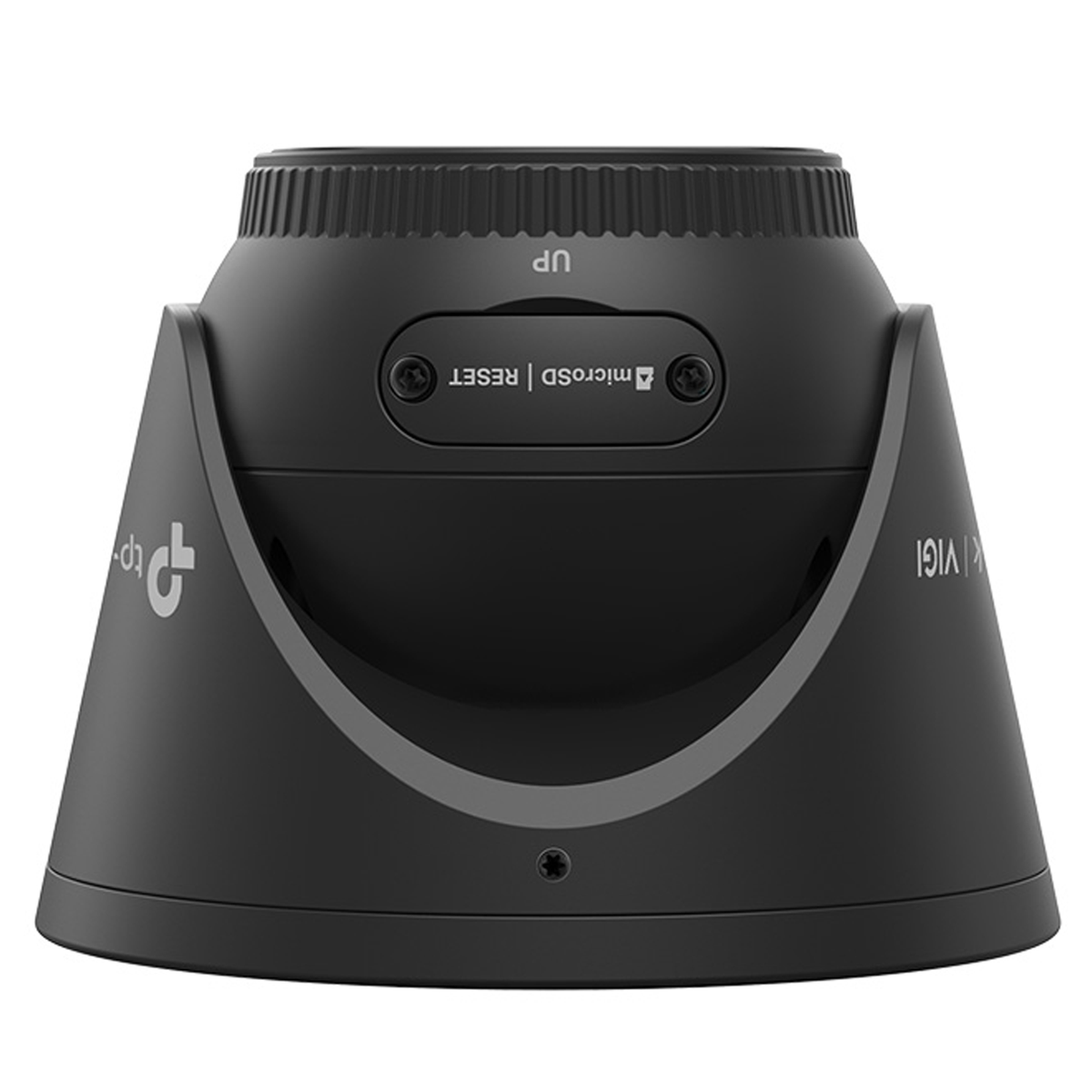

TP-Link S485 8 Megapixel 4K Network Camera - Color - Turret INSIGHT S485(4MM, 2.8MM)

SKU: InSight-S486

$172.02 CAD
$172.02 CAD $235.00 CAD
Sale Sold out
Shipping calculated at checkout.
Select Lens: 2.8mm Lens
Only 9 units left
  • 4K (8MP) Ultra HD and 24h Full-Color
  • People & Vehicle Analytics§
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • IP67 Waterproof
  • H.265+ Compression Technology
  • 12V DC/PoE

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • CAMERA
  • Image Sensor: 1/2.7” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter: Yes
  • Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified / Scheduled / Auto
  • LENS
  • Type: Fixed Focal Lens
  • Focal Length: 2.8 mm / 4 mm
  • Aperture: F1.6
  • FOV: 2.8mm: H 111.4°, V 58.8°, D 134°; 4mm: H 91.5°, V 46.1°, D 109.6°
  • Lens Mount: M12 × P0.5
  • DORI Distance: 2.8mm: Detect 85m, Observe 35m, Recognize 17m, Identify 8m; 4mm: Detect 107m, Observe 44m, Recognize 21m, Identify 11m
  • Angle Adjustment: Pan 0–360°, Tilt 0–85°, Rotation 0–360°
  • ILLUMINATOR
  • IR LED: 4 LEDs, 30m Range, 850nm
  • White LED: 4 LEDs, 30m Range
  • Illuminator Control: Auto / Scheduled / Always On / Always Off
  • VIDEO
  • Max Resolution: 3840 × 2160
  • Main Stream: Up to 25fps (50/60Hz), Resolutions up to 3840×2160
  • Sub Stream: Up to 25fps, Resolutions up to 848×480
  • Bit Rate Control: CBR, VBR
  • Video Compression: Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264
  • Video Bit Rate: Main: 256Kbps–8Mbps; Sub: 64Kbps–512Kbps
  • IMAGE
  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC
  • Image Enhancement: BLC, 3D DNR, HLC, SmartIR
  • Wide Dynamic Range: 120dB
  • SNR: ≥ 52dB
  • Privacy Mask: Up to 4 Areas
  • ROI: 1 Region
  • OSD: Supported
  • AUDIO
  • Audio: Two-Way Audio, Input & Output Supported
  • Compression: G.711 alaw
  • Sampling Rate: 8KHz
  • Noise Filtering: Supported
  • Bit Rate: 64Kbps
  • NETWORK
  • Protocol: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4/IPv6, SSL/TLS
  • ONVIF: Supported (Profile S/T/G)
  • Live View: 3 Main Streams & 3 Sub Streams
  • Client: VIGI App, VMS, Web UI, Cloud VMS
  • Browser Support: Chrome, Firefox, Safari, Edge
  • Cloud: Yes
  • Security: Password Protection, HTTPS, IP Filter, Digest Authentication
  • ALARM & EVENTS
  • Smart Events: Intrusion, Line Crossing, Region Entry/Exit, Loitering, Object Detection, People & Vehicle Detection, Sound Detection
  • Basic Events: Motion Detection, Video Tampering, Illegal Login
  • Alarm Linkage: Recording, Push Notification, Audible Warning, Light Flash
  • INTERFACES
  • Network Interface: RJ45 10/100M PoE Port
  • Storage: MicroSD Slot up to 512GB
  • Built-in Mic/Speaker: Yes
  • Reset Button: Yes
  • Power: DC Port
  • GENERAL
  • Operating Temperature: -30°C to 60°C
  • Storage Temperature: -40°C to 60°C
  • Humidity: Up to 95% RH (Non-Condensing)
  • Material: Metal
  • Weight: 0.48 kg
  • Power Supply: 12V DC, Max 11.5W; PoE 802.3af/at, Max 12.5W
  • Protection: IP67
  • Dimensions: 111 × 111 × 83.7 mm
  • PACKAGE CONTENT
  • VIGI Network Camera, Quick Start Guide, Waterproof Accessories, Mounting Kit
  • CERTIFICATIONS
  • CE, NTRA, VCCI, KC, BSMI, FCC, IC
The TP-Link VIGI InSight S485 is an 8MP 4K turret network camera designed for professional video surveillance in business, commercial, and property security environments. With high-resolution imaging, the camera is built to capture clear visual detail that can help with everyday monitoring, incident review, and overall site security. The InSight S485 is available with 2.8 mm and 4 mm lens options, giving installers added flexibility when planning camera coverage. The 2.8 mm version is well suited to areas that benefit from a wider field of view, while the 4 mm option provides a more focused viewing angle for locations where targeted monitoring is preferred. Its turret-style form factor makes the camera suitable for a variety of installations, including offices, retail stores, entrances, warehouses, corridors, and other commercial spaces. The design also helps support a neat and professional surveillance setup. For organizations building or expanding a VIGI security system, the InSight S485 offers a practical balance of 4K video quality, flexible lens selection, and professional deployment options. It is a strong choice for users who need dependable, high-detail network surveillance across different indoor or business environments.

FAQs : TP-Link VIGI InSight S485

The TP-Link VIGI InSight S485 is an 8MP 4K turret network camera designed to capture high-detail video for professional security and surveillance environments.
The camera is available with 2.8 mm and 4 mm lens options, allowing users to choose between a wider field of view or a more focused viewing angle.
Yes. Its 8MP 4K resolution and turret-style design make it suitable for offices, retail spaces, warehouses, entrances, and other commercial security applications.
