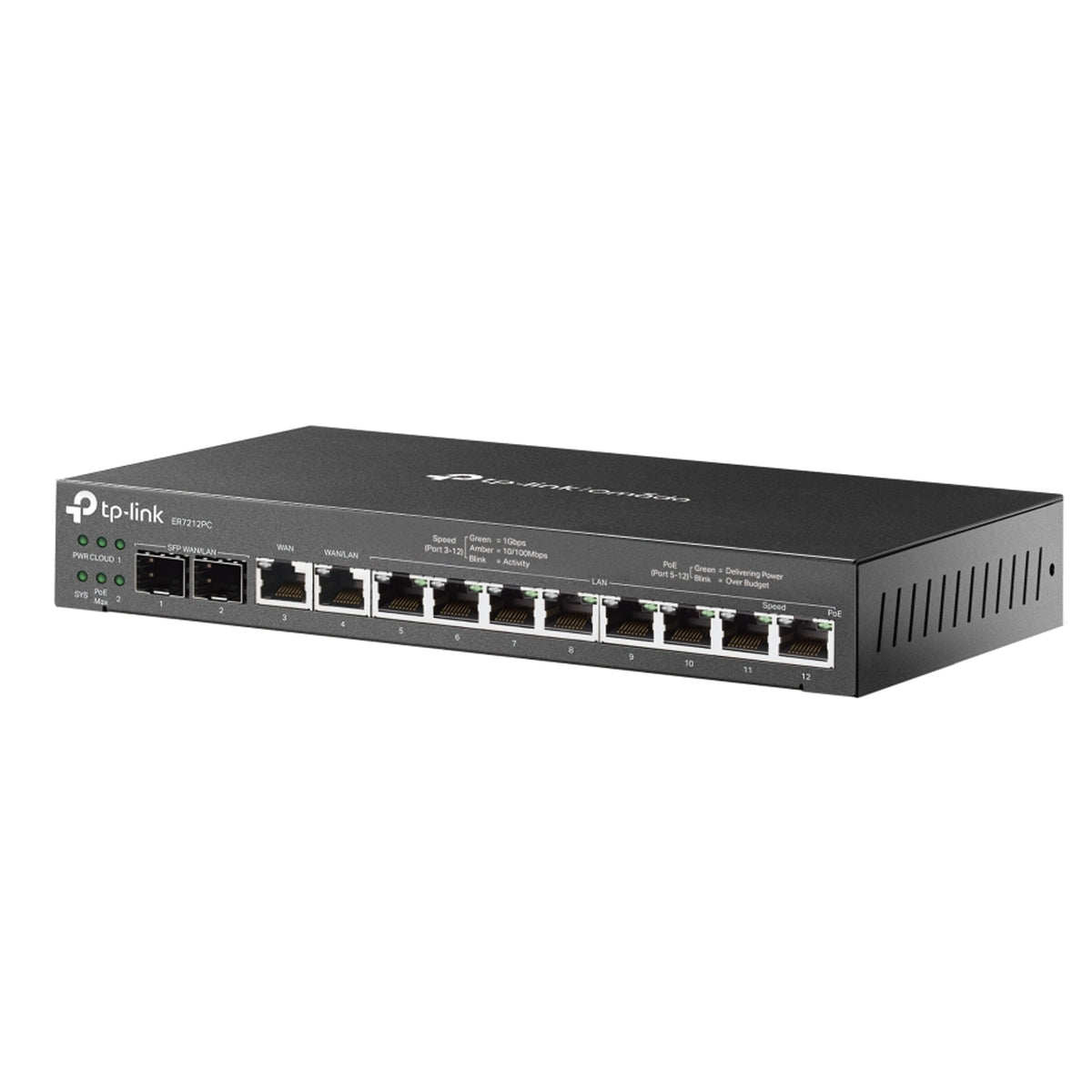

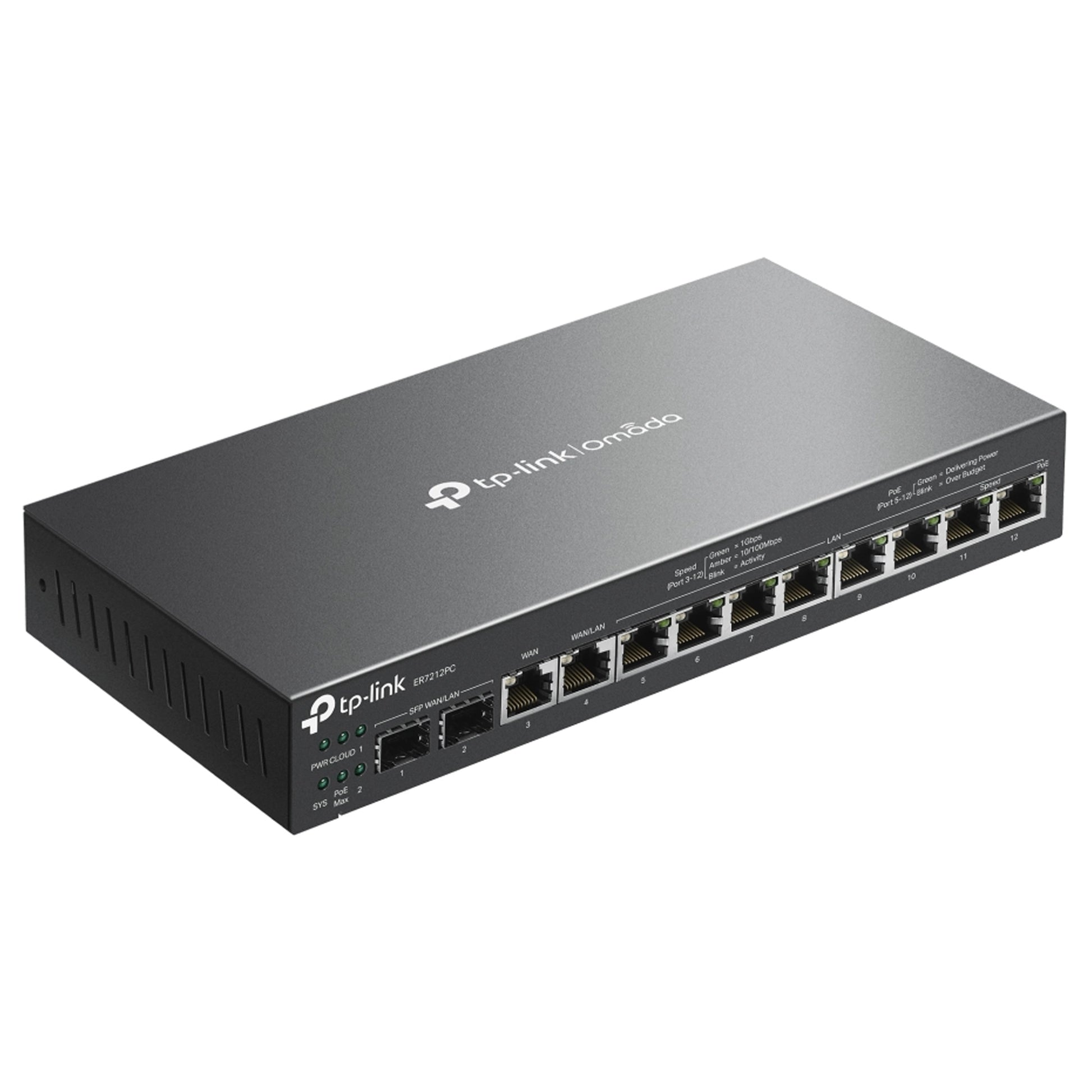

TP-Link ER7212PC

⚠️ Out of stock. Contact Us or Call Us for stock status.
$359.99 CAD
$359.99 CAD
Sale Sold out
  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Centralized Management: Cloud access and the Omada app offer convenience and easy management.
  • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
  • Easy Installation: Fanless and compact design for desktop and wall mounting.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

SECURITY

  • Access Control: Source/Destination IP Based Access Control
  • Filtering: URL Filtering
  • ARP Inspection: -
  • Attack Defense:

    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

HARDWARE FEATURES

  • Standards and Protocols:

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
    TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

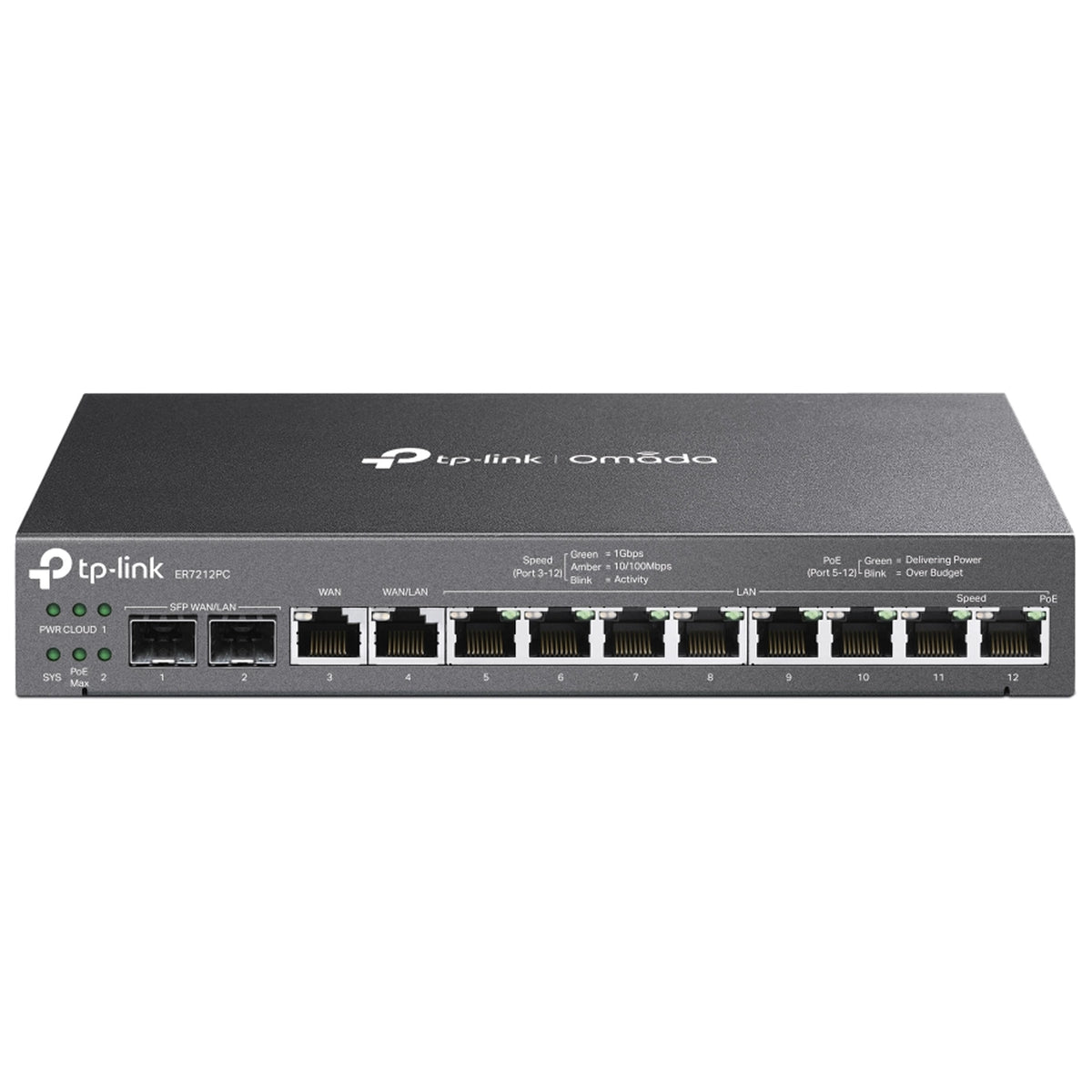

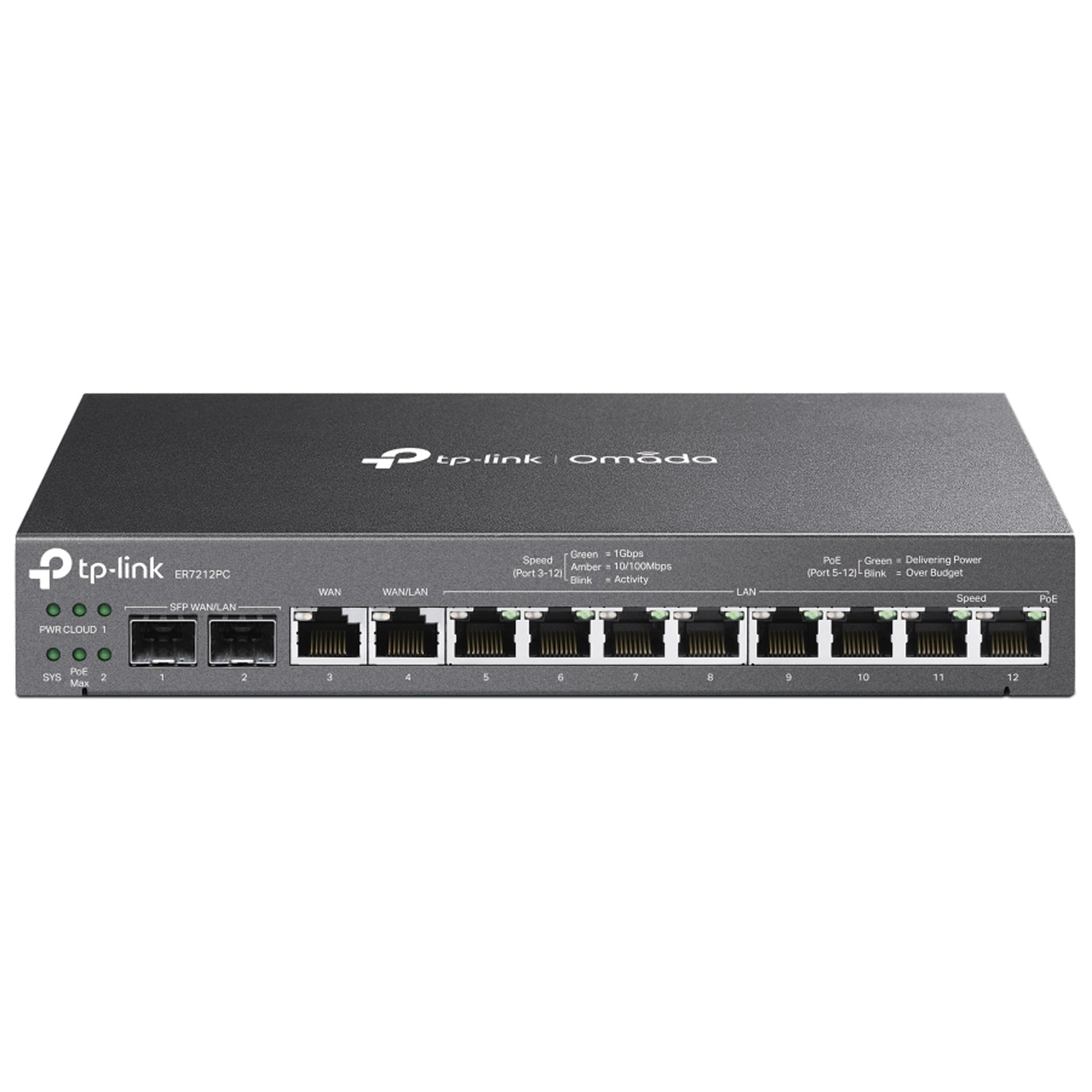

  • Interface:

    2 Gigabit SFP WAN/LAN ports
    1 Gigabit WAN port
    1 Gigabit LAN/WAN port
    8 Gigabit LAN ports

  • Network Media:

    10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
    100BASE-TX: UTP category 5, 5e cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
    1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

  • Fan Quantity: Fanless

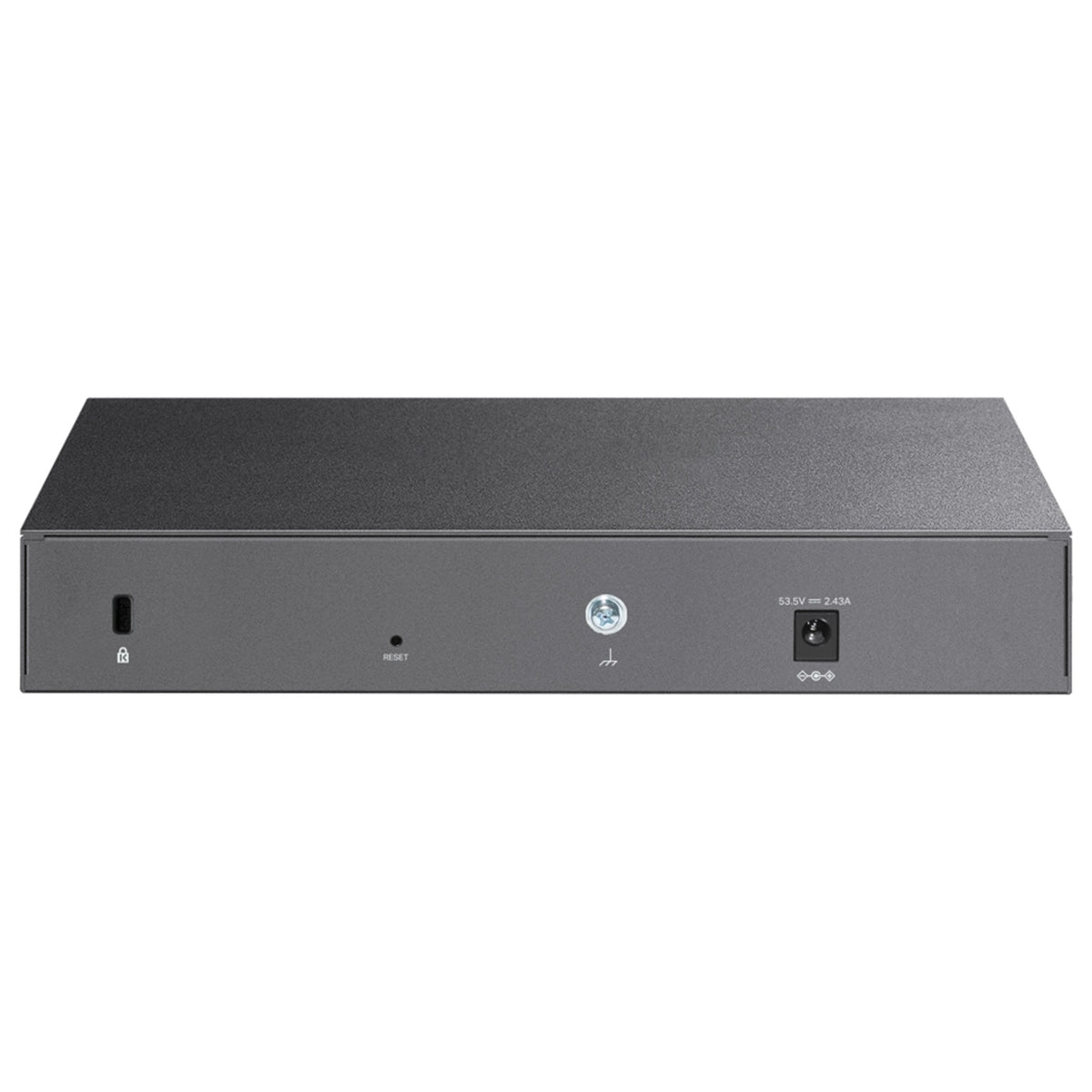

  • Button: Reset Button
  • Power Supply: 53.5VDC/2.43A Adapter
  • PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
  • Flash / DRAM: 8Mb Nor + 4 GB EMMC / 1 GB DDR3
  • LED Indicators: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed/Link/Act), LAN (Speed/Link/Act)
  • Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel

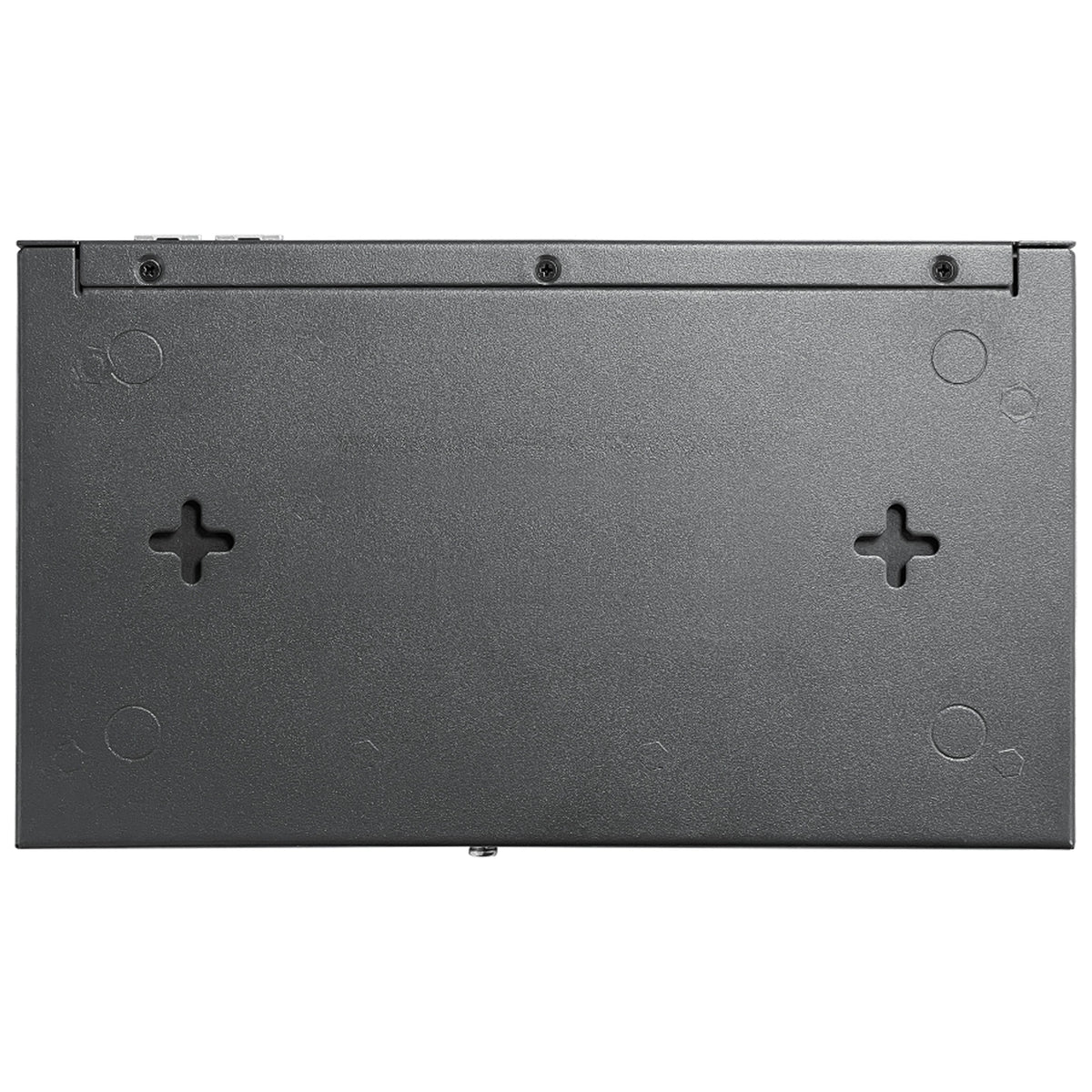

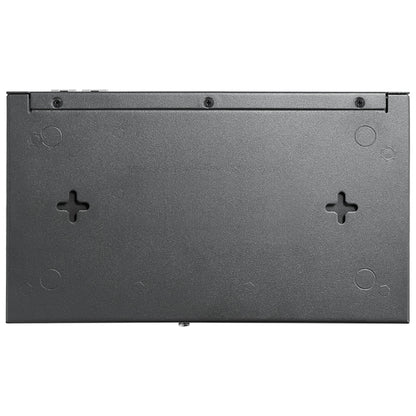

  • Mounting: Desktop/Wall-mount
  • Max. Power Consumption:

    With PoE Max: 133.2 W
    Without PoE: 13.88 W

PERFORMANCE

  • Concurrent Session: 24,980
  • New Sessions/Second: 1,900
  • NAT Throughput:

    Static IP: 935.5 Mbps / 942.1 Mbps
    DHCP: 940.2 Mbps / 941.7 Mbps
    PPPoE: 913.1 Mbps / 935.2 Mbps
    L2TP: 545.0 Mbps / 912.7 Mbps
    PPTP: 523.0 Mbps / 912.8 Mbps

  • IPsec VPN Throughput (AES256): 168.5 Mbps
  • OpenVPN Throughput: 34 Mbps
  • L2TP VPN Throughput: Unencrypted: 845.3 Mbps, Encrypted: 333.2 Mbps
  • PPTP VPN Throughput: Unencrypted: 1012.6 Mbps, Encrypted: 401.4 Mbps
  • Packet Forwarding Rate:

    66 Byte: 154,069 pps / 156,977 pps
    1,518 Byte: 81,193 pps / 81,193 pps

BASIC FUNCTIONS

  • WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
  • MAC Clone: Modify WAN MAC Address
  • DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • IPv6: Supported
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy

ADVANCED FEATURES

  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing
  • Bandwidth Control: IP/Port-based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
  • NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Session Limit: IP-based Session Limit

VPN

  • IPsec VPN:

    20 Tunnels, LAN-to-LAN, Client-to-LAN
    Main / Aggressive Negotiation Mode
    AES128, AES192, AES256 Encryption
    IKE v1/v2
    SHA1, SHA2 Authentication
    NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)

  • PPTP VPN: Server, 10 Clients, 16 Tunnels, PPTP with MPPE Encryption
  • L2TP VPN: Server, 10 Clients, 16 Tunnels, L2TP over IPSec
  • OpenVPN: Server, 10 Clients, 16 Tunnels

AUTHENTICATION

  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, Facebook

MANAGEMENT

  • Omada App: Yes
  • Centralized Management: Yes
  • Cloud Access: Yes
  • Service: Dynamic DNS (DynDNS, No-IP)
  • Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Syslog Support
  • Zero-Touch Provisioning: -
  • Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Management up to 1 Router, 2 Switches, and 10 EAPs

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Content: ER7212PC, Power Adapter, Power Cord, Quick Installation Guide
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
  • Environment:

    Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
    Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    Operating Humidity: 10% to 90% non-condensing
    Storage Humidity: 5% to 90% non-condensing
