TP-Link Omada ER706W AX3000 WiFi 6 Gigabit VPN Router

SKU: TP-ER706W

$194.99 CAD
$194.99 CAD $199.99 CAD
Sale Sold out
Shipping calculated at checkout.
Only 22 units left

ER706W

Omada Gigabit AX3000 WiFi 6 VPN Gateway

Features:

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
  • 1 Gigabit SFP slot and 5 Gigabit RJ45 ports
  • 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
  • Mesh with Omada access points to extend WiFi without extra cabling and switch**
  • Centralized cloud management via the web or the Omada app§
  • High-security SSL/ IPSec / GRE† / WireGuard / PPTP / L2TP VPN & OpenVPN△
  • DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • SECURITY
  • Access Control: Source/Destination IP Based Access Control
  • Filtering: Web Group Filtering, URL Filtering, Web Security
  • ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
  • Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
  • HARDWARE FEATURES
  • Interface: 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports, 1 USB3.0 (supports USB LTE dongle and USB Storage)
  • Button: Reset Button
  • Power Supply: 12V DC / 2A Power Adapter
  • Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
  • Flash: 128 MB NAND
  • DRAM: 512 MB DDR4
  • Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions not included)
  • Antenna: 2.4 GHz: 2× 3 dBi dual-band detachable antennas, 5 GHz: 3× 4.5 dBi dual-band detachable antennas

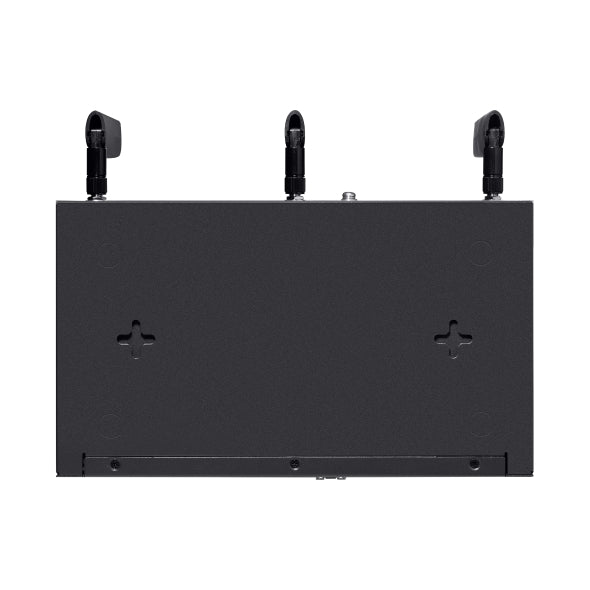

  • Mounting: Desktop / Wall-mounting
  • Max. Power Consumption: EU: 16.8 W (with USB 3.0 connected), 11.8 W (without USB 3.0); US: 22.7 W (with USB 3.0), 18.2 W (without USB 3.0)
  • PERFORMANCE
  • GRE: Unencrypted: 624.2 Mbps, Encrypted: 301.5 Mbps
  • WireGuard VPN: 393.5 Mbps
  • Concurrent Session: 150,000
  • New Sessions / Second: 5,100
  • NAT (Static IP): 937.2 Mbps / 936.1 Mbps
  • NAT (DHCP): 945.8 Mbps / 940.6 Mbps
  • NAT (PPPoE): 942.9 Mbps / 942.9 Mbps
  • NAT (L2TP): 837.4 Mbps / 881.5 Mbps
  • NAT (PPTP): 803.0 Mbps / 910.5 Mbps
  • IPsec VPN Throughput: ESP-SHA1-AES256: 646.9 Mbps, ESP-SHA256-AES256: 642.8 Mbps, ESP-SHA384-AES256: 648.9 Mbps, ESP-SHA512-AES256: 658.4 Mbps
  • OpenVPN: 129.3 Mbps
  • L2TP VPN Throughput: Unencrypted: 1034.0 Mbps, Encrypted: 570.0 Mbps
  • PPTP VPN Throughput: Unencrypted: 1165.0 Mbps, Encrypted: 209.0 Mbps
  • SSL VPN Throughput: 126.7 Mbps
  • Packet Forwarding Rate: 66 Byte: 1,453,489 pps / 1,453,488 pps; 1,518 Byte: 81,274 pps / 91,275 pps
  • WIRELESS FEATURES
  • Advanced Features: Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, MU-MIMO, Wireless Encryption: WPA/WPA2/WPA3 Personal & Enterprise
  • Guest Network: Supported
  • BASIC FUNCTIONS
  • WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP
  • MAC Clone: Modify WAN Address
  • DHCP: DHCP Server, DHCPv6 PD Server (Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
  • ADVANCED FEATURES
  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing, RIP, OSPF
  • Bandwidth Control: IP-Based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
  • NAT: One-to-One NAT, Multi-Net NAT, Port Forwarding, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Session Limit: IP-Based Session Limit
  • VPN:

    SD-WAN: Only in Controller Mode
    SSL VPN: 50 Tunnels
    IPsec VPN: 100 Tunnels, LAN-to-LAN, Client-to-LAN, DES/3DES/AES128/192/256, IPsec Failover, IKE v1/v2, MD5/SHA1/SHA2-384/SHA2-512, NAT Traversal, Dead Peer Detection, Perfect Forward Secrecy
    PPTP VPN: Server, Client (10), 50 Tunnels, MPPE Encryption
    L2TP VPN: Server, Client (10), 50 Tunnels, L2TP over IPSec
    OpenVPN: Server, Client (5), 55 Tunnels, Certificate + Account Mode, Full Mode
    WireGuard VPN: 20 Tunnels

  • AUTHENTICATION
  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, LDAP
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller, Hardware Controller (OC300/OC200), Software Controller
  • Cloud Access: Yes
  • Service: Dynamic DNS (DynDNS, No-IP, PeanutHull, Comexe, DDNS Customization)
  • Maintenance: Web Management Interface, Remote Management, Export/Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog Support
  • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
  • Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration
  • NETWORK SERVICES ENABLED BY DEFAULT
  • Web Server: Port 80/443, Protocol TCP
  • TDP Server: Port 20003, Protocol UDP
  • DHCP Server: Port 67, Protocol UDP
  • DNS: Port 53, Protocol TCP/UDP
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: ER706W, Power Adapter, Quick Installation Guide
  • System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, MAC OS, NetWare, UNIX, Linux
  • Environment: Operating Temperature 0°C–40°C (32°F–104°F), Storage Temperature -40°C–70°C (-40°F–158°F), Operating Humidity 10%–90% non-condensing, Storage Humidity 5%–90% non-condensing
The TP-Link Omada ER706W is a wireless VPN router designed for small and medium business networks that need reliable WiFi 6 connectivity, secure routing, and centralized management. Combining wired and wireless networking in one device, it helps simplify deployments while supporting modern business applications. With WiFi 6 support, the ER706W is built to handle multiple connected devices more efficiently while providing faster and more stable wireless performance. Its Gigabit Ethernet connectivity makes it suitable for offices, retail locations, branch networks, and other professional environments that need dependable internet access and local network performance. As part of the TP-Link Omada ecosystem, the ER706W can be centrally managed alongside compatible Omada switches, access points, and other networking devices. It also supports VPN functionality, making it suitable for secure remote access and site-to-site connectivity between business locations.

FAQs : TP-Link Omada ER706W

The TP-Link Omada ER706W is an AX3000 WiFi 6 wireless VPN router designed for business networks that need secure routing, reliable wireless connectivity, and centralized management.
Yes. The ER706W supports IEEE 802.11ax WiFi 6 technology, helping improve wireless efficiency and performance for compatible devices.
Yes. It supports VPN functionality, making it useful for secure remote access and connections between offices or branch locations.
You can buy the TP-Link Omada ER706W from JRS Global Technologies Canada through jrsglcanada.com for TP-Link business networking products and solutions.
