ER706W

$179.99 CAD
$179.99 CAD
Sale Sold out
In stock (18 units), ready to be shipped

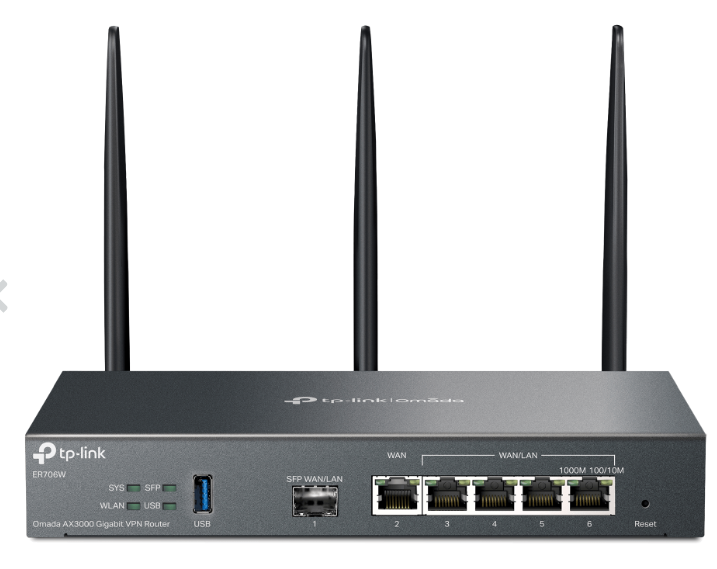

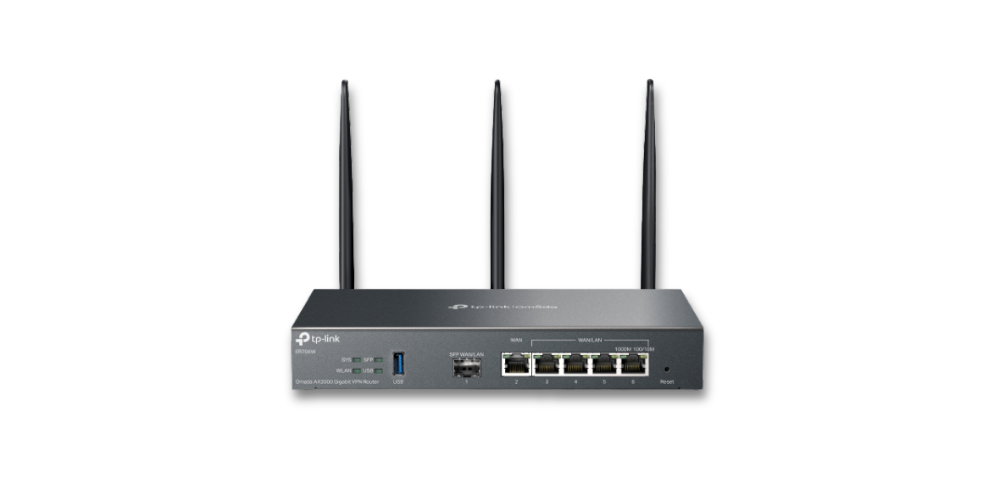

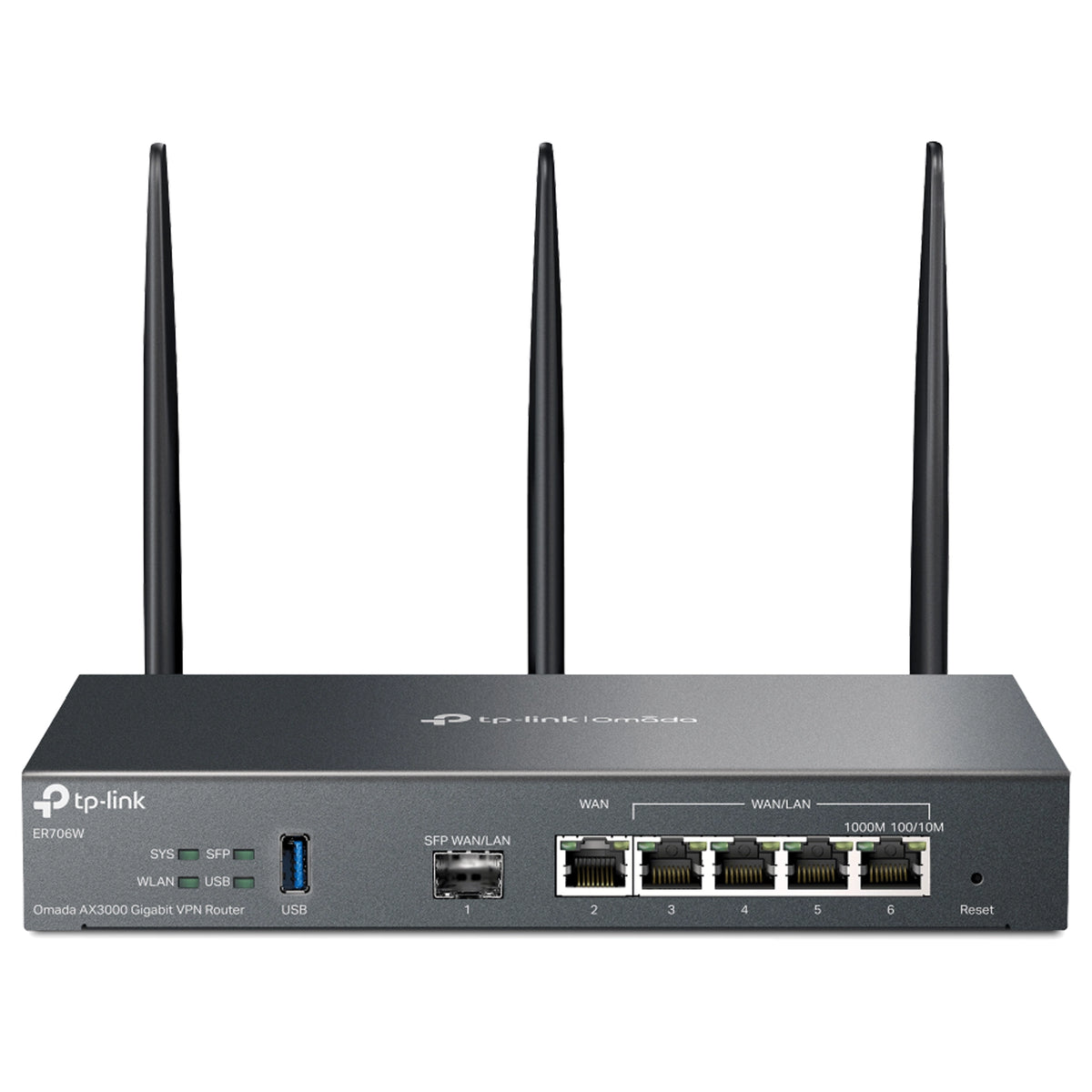

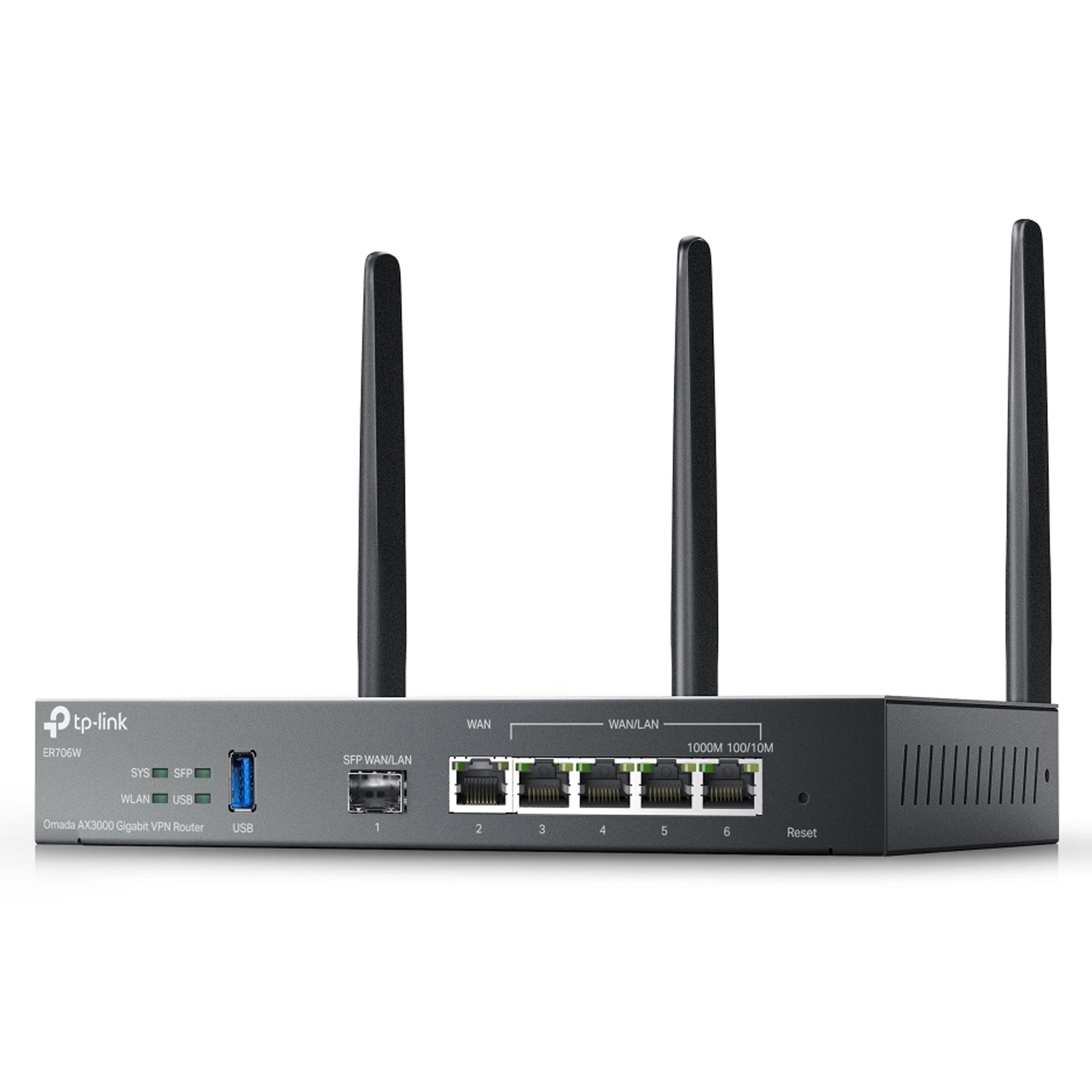

ER706W

Omada Gigabit AX3000 WiFi 6 VPN Gateway

Features:

  • AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
  • 1 Gigabit SFP slot and 5 Gigabit RJ45 ports
  • 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
  • Mesh with Omada access points to extend WiFi without extra cabling and switch**
  • Centralized cloud management via the web or the Omada app§
  • High-security SSL/ IPSec / GRE† / WireGuard / PPTP / L2TP VPN & OpenVPN△
  • DoS defense, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • SECURITY
  • Access Control: Source/Destination IP Based Access Control
  • Filtering: Web Group Filtering, URL Filtering, Web Security
  • ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
  • Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
  • HARDWARE FEATURES

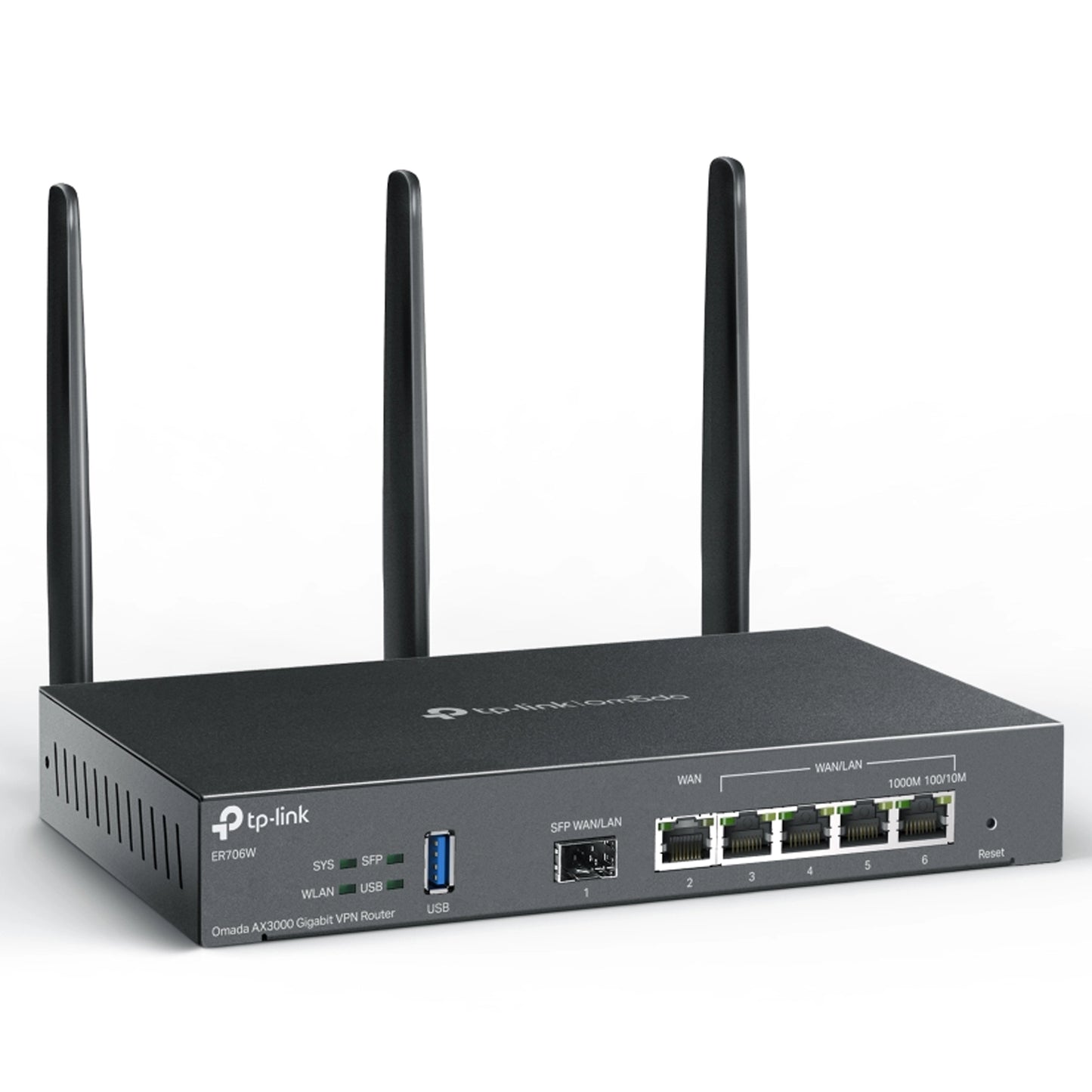

  • Interface: 1 Gigabit SFP WAN/LAN Port, 1 Gigabit WAN Port, 4 Gigabit LAN/WAN Ports, 1 USB3.0 (supports USB LTE dongle and USB Storage)
  • Button: Reset Button

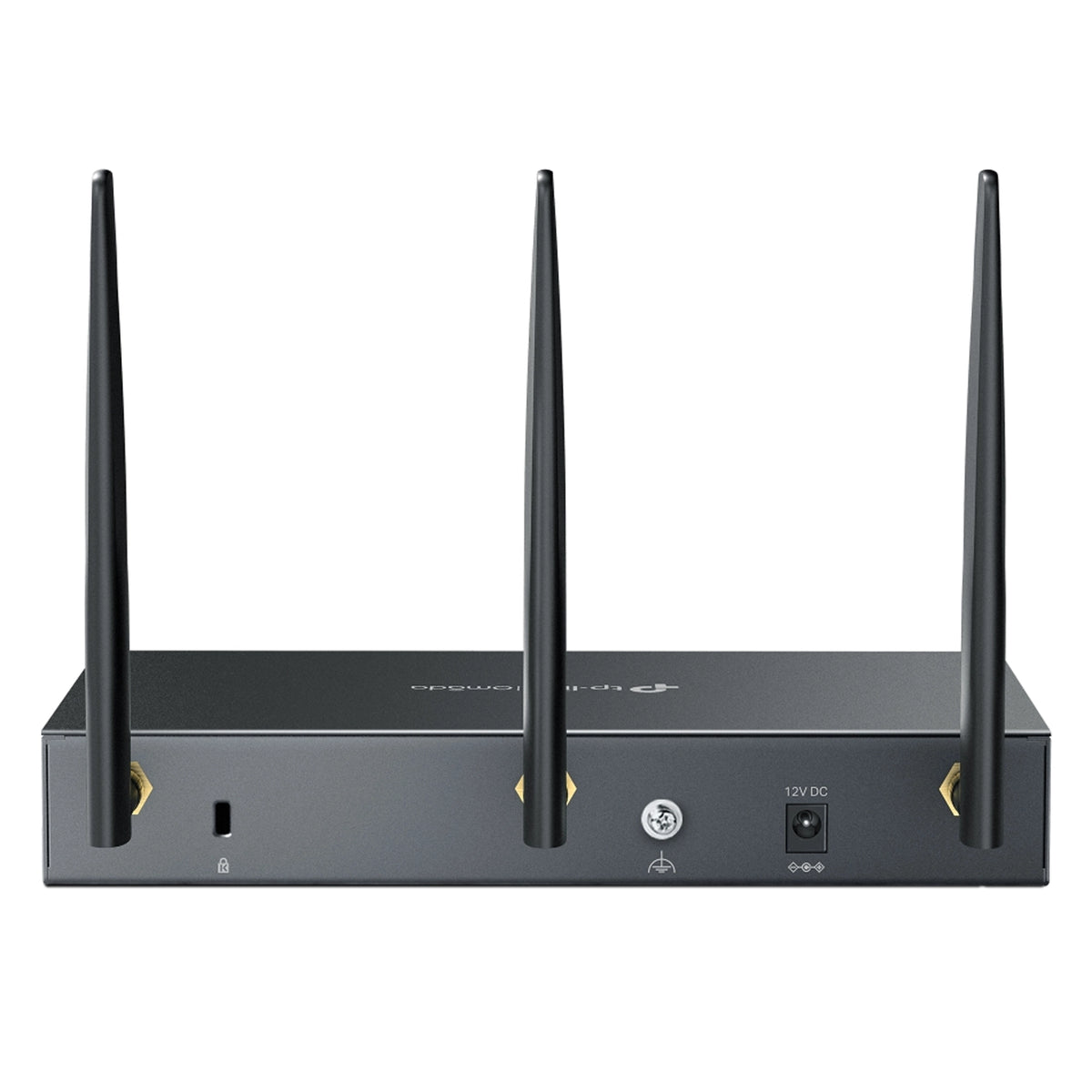

  • Power Supply: 12V DC / 2A Power Adapter
  • Wi-Fi Frequency & Signal Rate: 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
  • Flash: 128 MB NAND
  • DRAM: 512 MB DDR4
  • Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions not included)
  • Antenna: 2.4 GHz: 2× 3 dBi dual-band detachable antennas, 5 GHz: 3× 4.5 dBi dual-band detachable antennas
  • Mounting: Desktop / Wall-mounting
  • Max. Power Consumption: EU: 16.8 W (with USB 3.0 connected), 11.8 W (without USB 3.0); US: 22.7 W (with USB 3.0), 18.2 W (without USB 3.0)
  • PERFORMANCE
  • GRE: Unencrypted: 624.2 Mbps, Encrypted: 301.5 Mbps
  • WireGuard VPN: 393.5 Mbps
  • Concurrent Session: 150,000
  • New Sessions / Second: 5,100
  • NAT (Static IP): 937.2 Mbps / 936.1 Mbps
  • NAT (DHCP): 945.8 Mbps / 940.6 Mbps
  • NAT (PPPoE): 942.9 Mbps / 942.9 Mbps
  • NAT (L2TP): 837.4 Mbps / 881.5 Mbps
  • NAT (PPTP): 803.0 Mbps / 910.5 Mbps
  • IPsec VPN Throughput: ESP-SHA1-AES256: 646.9 Mbps, ESP-SHA256-AES256: 642.8 Mbps, ESP-SHA384-AES256: 648.9 Mbps, ESP-SHA512-AES256: 658.4 Mbps
  • OpenVPN: 129.3 Mbps
  • L2TP VPN Throughput: Unencrypted: 1034.0 Mbps, Encrypted: 570.0 Mbps
  • PPTP VPN Throughput: Unencrypted: 1165.0 Mbps, Encrypted: 209.0 Mbps
  • SSL VPN Throughput: 126.7 Mbps
  • Packet Forwarding Rate: 66 Byte: 1,453,489 pps / 1,453,488 pps; 1,518 Byte: 81,274 pps / 91,275 pps
  • WIRELESS FEATURES
  • Advanced Features: Seamless Roaming, Mesh (with EAP that supports Mesh), OFDMA, Beamforming, MU-MIMO, Wireless Encryption: WPA/WPA2/WPA3 Personal & Enterprise
  • Guest Network: Supported
  • BASIC FUNCTIONS
  • WAN Connection Type: Static IP, Dynamic IP, PPPoE (supports MRU Configuration), PPTP, L2TP
  • MAC Clone: Modify WAN Address
  • DHCP: DHCP Server, DHCPv6 PD Server (Standalone Mode), DHCP Options Customization, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
  • ADVANCED FEATURES
  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing, RIP, OSPF
  • Bandwidth Control: IP-Based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing, Failover), Online Detection
  • NAT: One-to-One NAT, Multi-Net NAT, Port Forwarding, Port Triggering, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Session Limit: IP-Based Session Limit
  • VPN:

    SD-WAN: Only in Controller Mode
    SSL VPN: 50 Tunnels
    IPsec VPN: 100 Tunnels, LAN-to-LAN, Client-to-LAN, DES/3DES/AES128/192/256, IPsec Failover, IKE v1/v2, MD5/SHA1/SHA2-384/SHA2-512, NAT Traversal, Dead Peer Detection, Perfect Forward Secrecy
    PPTP VPN: Server, Client (10), 50 Tunnels, MPPE Encryption
    L2TP VPN: Server, Client (10), 50 Tunnels, L2TP over IPSec
    OpenVPN: Server, Client (5), 55 Tunnels, Certificate + Account Mode, Full Mode
    WireGuard VPN: 20 Tunnels

  • AUTHENTICATION
  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, LDAP
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller, Hardware Controller (OC300/OC200), Software Controller
  • Cloud Access: Yes
  • Service: Dynamic DNS (DynDNS, No-IP, PeanutHull, Comexe, DDNS Customization)
  • Maintenance: Web Management Interface, Remote Management, Export/Import Configuration, SNMP v1/v2c/v3, Diagnostics (Ping & Traceroute), NTP Synchronize, Port Mirroring, CLI (Standalone Mode), Syslog Support
  • Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)
  • Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration
  • NETWORK SERVICES ENABLED BY DEFAULT
  • Web Server: Port 80/443, Protocol TCP
  • TDP Server: Port 20003, Protocol UDP
  • DHCP Server: Port 67, Protocol UDP
  • DNS: Port 53, Protocol TCP/UDP
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: ER706W, Power Adapter, Quick Installation Guide
  • System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, MAC OS, NetWare, UNIX, Linux
  • Environment: Operating Temperature 0°C–40°C (32°F–104°F), Storage Temperature -40°C–70°C (-40°F–158°F), Operating Humidity 10%–90% non-condensing, Storage Humidity 5%–90% non-condensing
