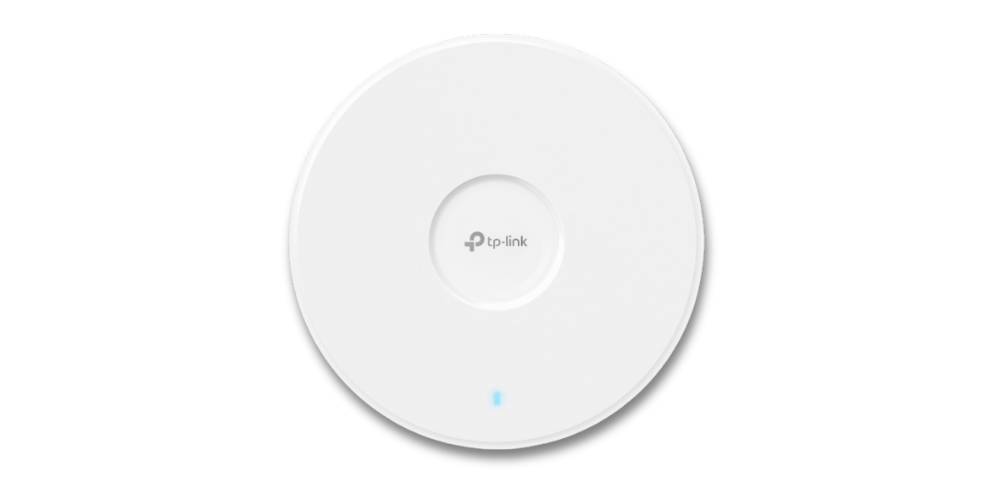

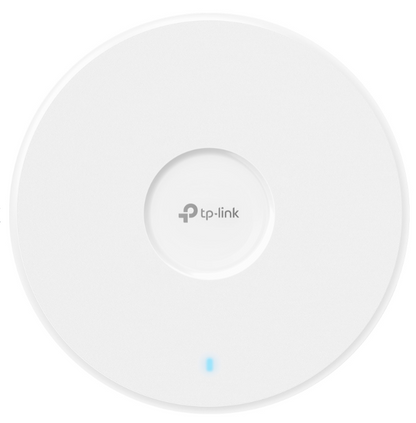

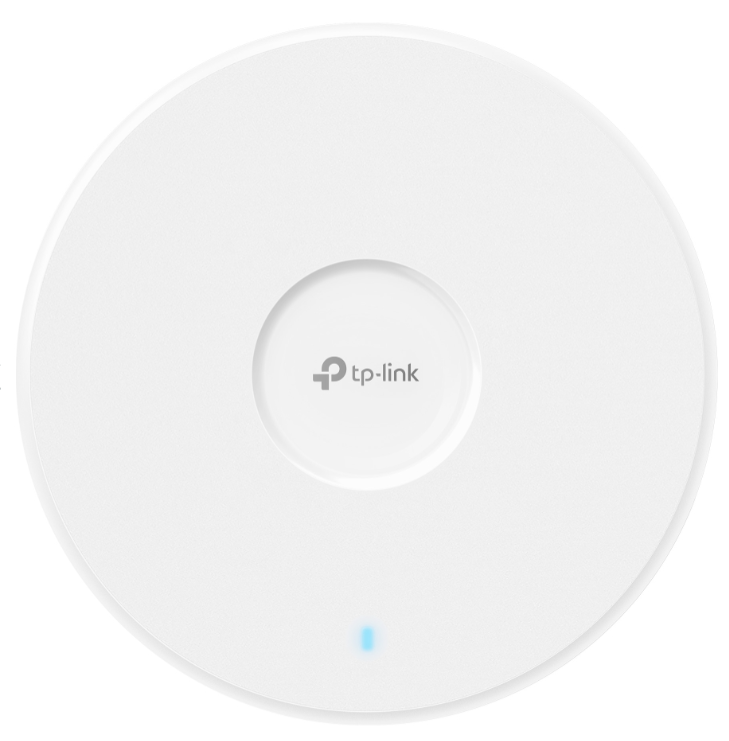

TP-Link Omada EAP783 BE22000 Tri-Band WiFi 7 Access Point

SKU: TP-EAP783

$699.99 CAD
$699.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz). †
  • A clear 6 GHz band brings cleaner and wider band resources.‡
  • 2× 10G ports unlock the full potential of Wi-Fi 7.
  • 320 MHz bandwidth enables many more simultaneous transmissions.‡
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
  • Advanced Functions: Centralized management, mesh, and AI roaming.△

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • HARDWARE FEATURES
  • Interface: 2× 10G Ethernet Ports (20G Aggregation Speed)
  • Button: Reset
  • Power Supply: 802.3bt PoE or 12V DC (Note: DC power adapter not included, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
  • Max. Power Consumption: 39 W
  • Dimensions (W x D x H): 11.0 × 11.0 × 1.8 in (280 × 280 × 46.5 mm)
  • Antenna: 2.4 GHz: 4× 4 dBi, 5 GHz: 4× 5.5 dBi, 6 GHz: 4× 5 dBi
  • Bluetooth: V5.2
  • Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
  • WIRELESS FEATURES
  • Coverage: 200㎡ (2150 ft²)
  • Concurrent Clients: 760+**
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, 2.4 GHz
  • Signal Rate: 6 GHz: Up to 11520 Mbps, 5 GHz: Up to 8640 Mbps, 2.4 GHz: Up to 1376 Mbps
  • Wireless Functions: MLO, 4K-QAM, MU-MIMO (4x4 DL/UL), 320 MHz Bandwidth, Mesh, Seamless Roaming (802.11k/v/r), Automatic Channel Selection & Power Adjustment, BSS Coloring, UL/DL OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP/Dynamic IP
  • Wireless Security: PPSK, VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, Maximum MAC Filter: 4,000, Wireless Isolation Between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
  • Transmission Power: FCC: <28 dBm (2.4 GHz), <28 dBm (5G band 1 & 4), <24 dBm (5G band 2 & 3), <28 dBm (6 GHz)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Restore & Backup: Yes
  • Firmware Update via Web: Yes
  • NTP: Yes
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes (Requires Omada Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • SSH: Yes
  • Web-based Management: Yes
  • GENERAL
  • Weight: Net Weight 1384.6 g
  • OTHERS
  • Certification: CE, FCC, RoHS, IC
  • Package Content: EAP783, Installation Guide, Ceiling/Wall Mounting Kits
  • Environment: Operating Temperature 0 °C–40 °C (32 °F–104 °F), Storage Temperature -40 °C–70 °C (-40 °F–158 °F), Operating Humidity 10%–90% non-condensing, Storage Humidity 5%–90% non-condensing
The TP-Link Omada EAP783 is a high-performance tri-band WiFi 7 access point designed for demanding business and enterprise wireless environments. With wireless performance reaching up to 21.03 Gbps, it is built to support high-bandwidth applications, dense device environments, and modern network requirements. Supporting IEEE 802.11 a/b/g/n/ac/ax/be standards, the EAP783 offers broad device compatibility while introducing the speed and efficiency advantages of WiFi 7. Its tri-band architecture helps distribute wireless traffic more effectively, making it suitable for applications such as cloud services, large file transfers, video conferencing, and high-resolution media. As part of the TP-Link Omada ecosystem, the EAP783 is a strong option for organizations that need scalable and centrally managed wireless infrastructure. It is well suited for corporate offices, hotels, universities, campuses, conference facilities, and other locations where reliable high-capacity WiFi is essential.

FAQs : TP-Link Omada EAP783

The EAP783 is a tri-band WiFi 7 wireless access point designed for enterprise and professional networks that require very high throughput, capacity, and reliable connectivity.
The EAP783 supports combined wireless performance of up to 21.03 Gbps, making it suitable for bandwidth-intensive and high-density network environments.
It supports IEEE 802.11 a/b/g/n/ac/ax/be, allowing compatibility with both older WiFi devices and newer WiFi 7 clients.
