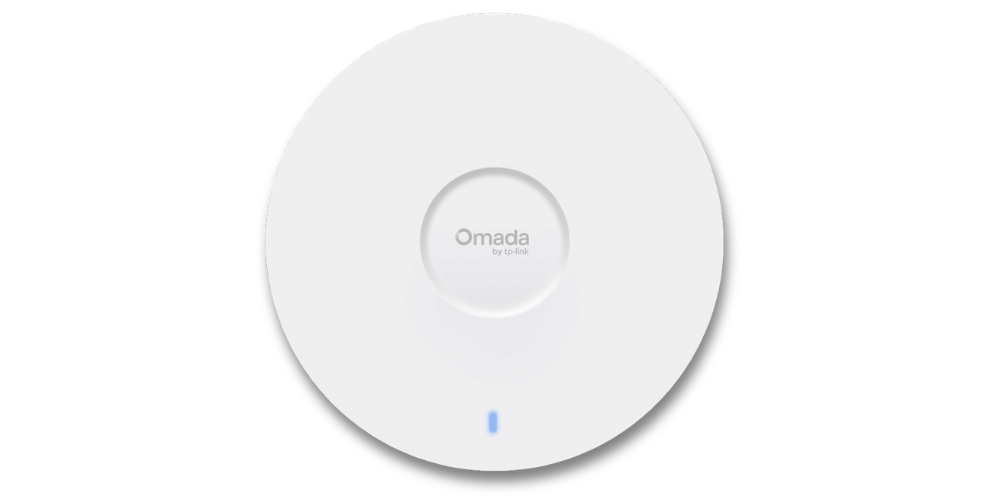

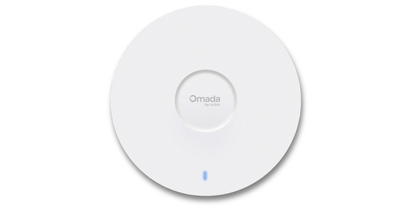

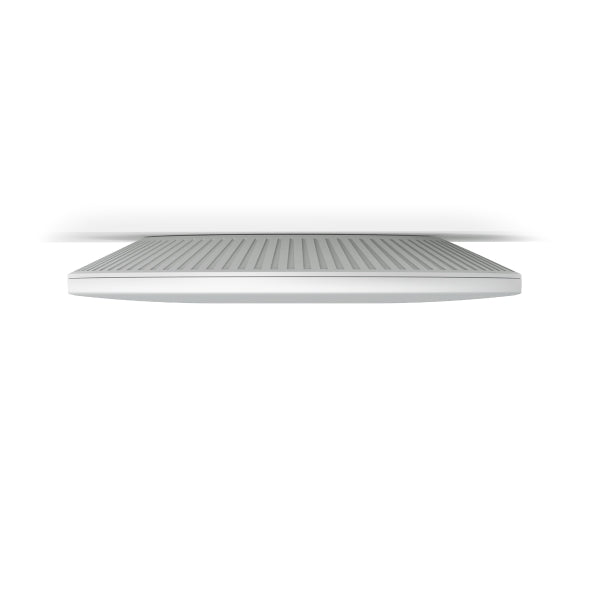

EAP673

⚠️ Out of stock. Contact Us or Call Us for stock status.
$199.99 CAD
$199.99 CAD $179.99 CAD
Sale Sold out
  • Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).†
  • Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.
  • 160 MHz Channel double the data at peak transmission times on a single stream.‡
  • Advanced features: Supports seamless roaming§,Omada Mesh§, and more.
  • Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

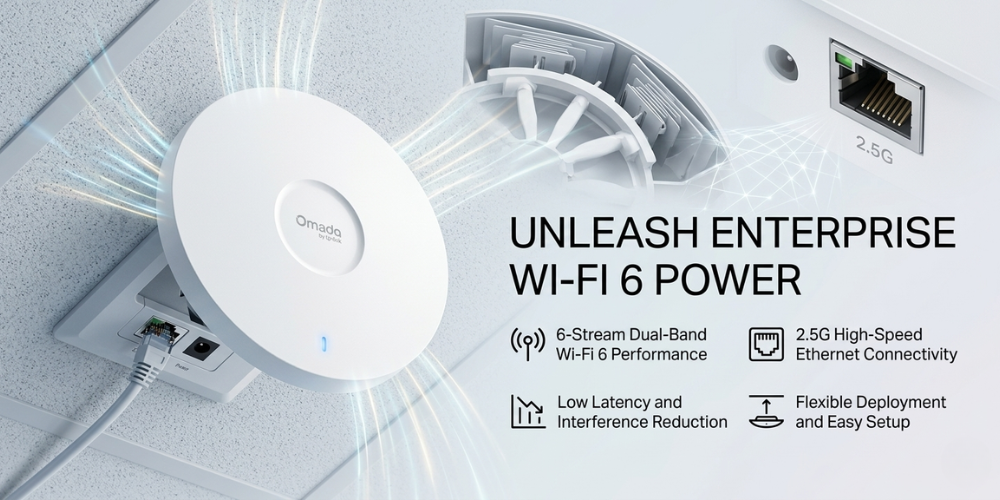

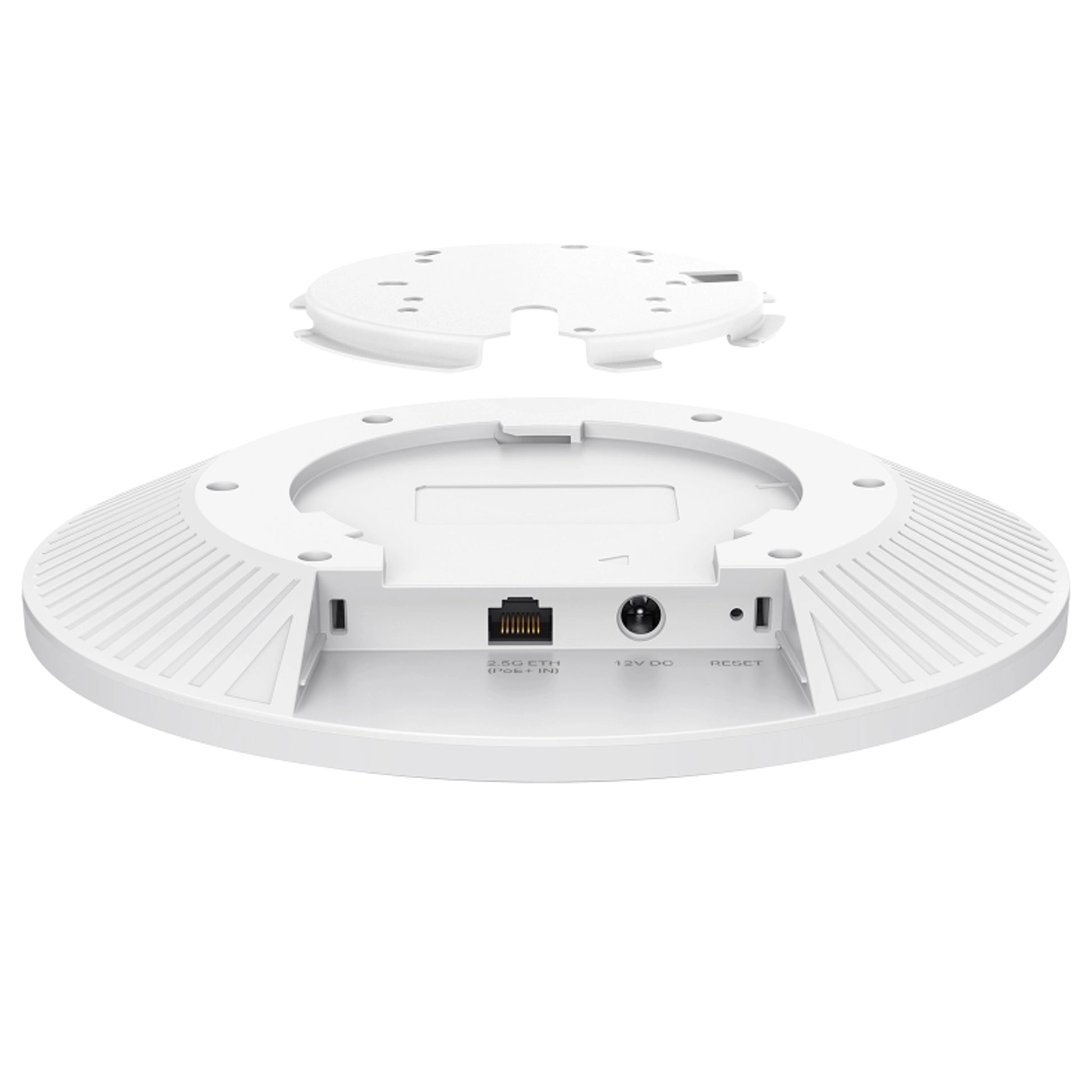

  • Interface: 1× 2.5 Gigabit RJ45 Port
  • Button: Reset
  • Power Supply: 802.3at PoE, 12 V / 2 A DC (Power Adapter Not Included)
  • Max. Power Consumption: 22.3 W
  • Weight: Main Unit: 0.68 kg (1.5 lbs), Mounting Bracket: 0.05 kg (0.11 lbs), Shipping Unit: 1.10 kg (2.43 lbs)
  • Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  • Antenna: Internal Omni, 2.4 GHz: 2× 4 dBi, 5 GHz: 4× 5.5 dBi
  • Bluetooth: V5.2
  • Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
  • WIRELESS FEATURES
  • Coverage: 1500 ft² (140㎡)*
  • Concurrent Clients: 250+**
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5 GHz: Up to 4804 Mbps, 2.4 GHz: Up to 574 Mbps
  • Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO (5G: 4×4 DL/UL MU-MIMO), HE160 (160 MHz Bandwidth), Seamless Roaming (802.11k/v/r), Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
  • Wireless Security: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: 4-25 dBm (2.4 GHz), 7-28 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII2C & U-NII-3)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes (Require the use of an Omada controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (Require the use of an Omada controller)
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: EAP673, Ceiling/Wall/Junction Mounting Kits, Installation Guide
  • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
  • Environment: Operating Temperature 0–40 ℃ (32–104 ℉), Storage Temperature -40–70 ℃ (-40–158 ℉), Operating Humidity 10–90% RH non-condensing, Storage Humidity 5–90% RH non-condensing
