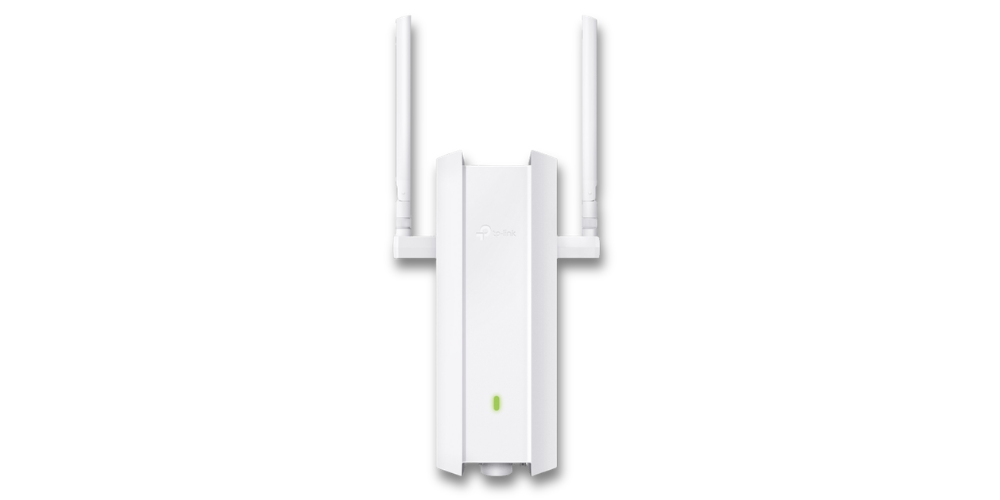

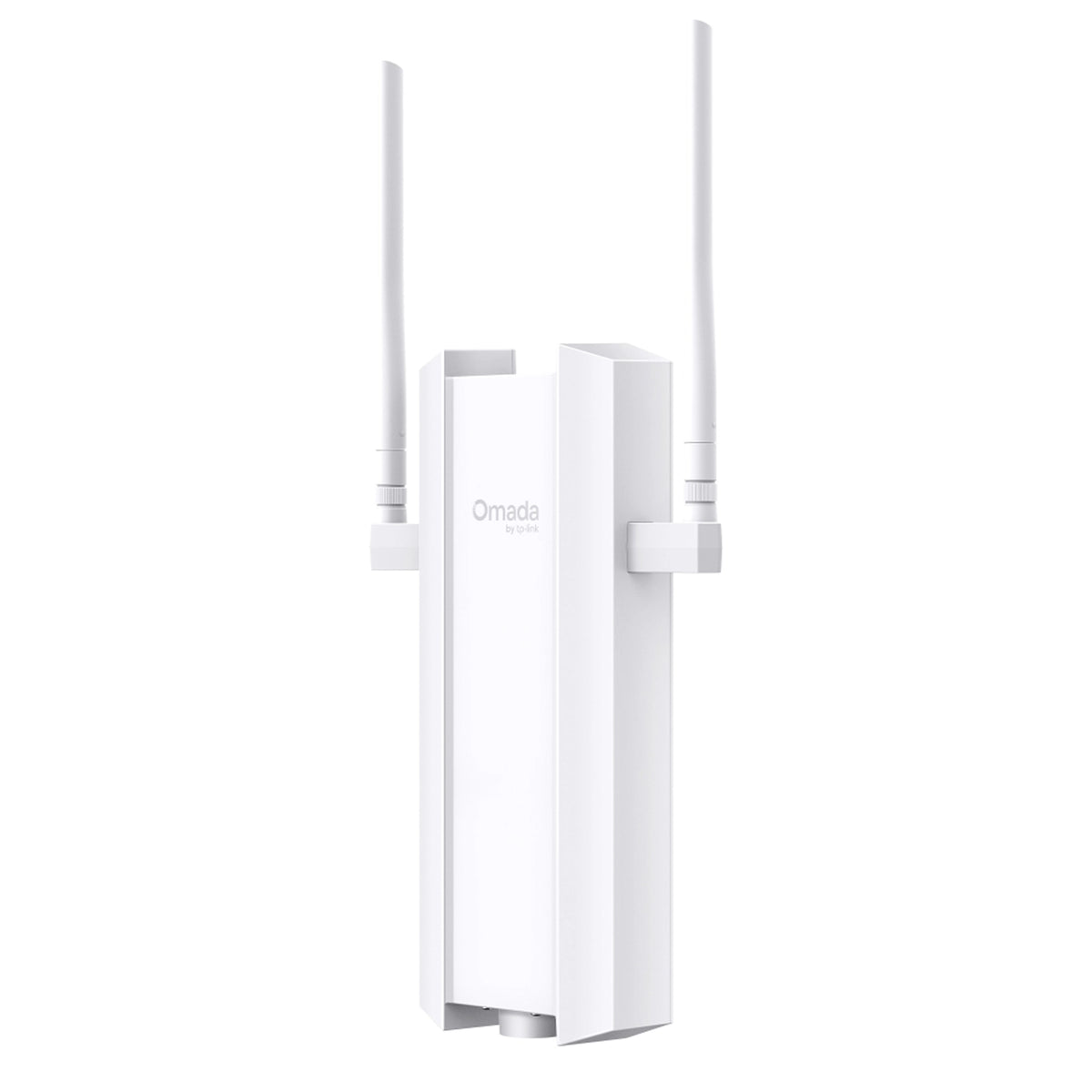

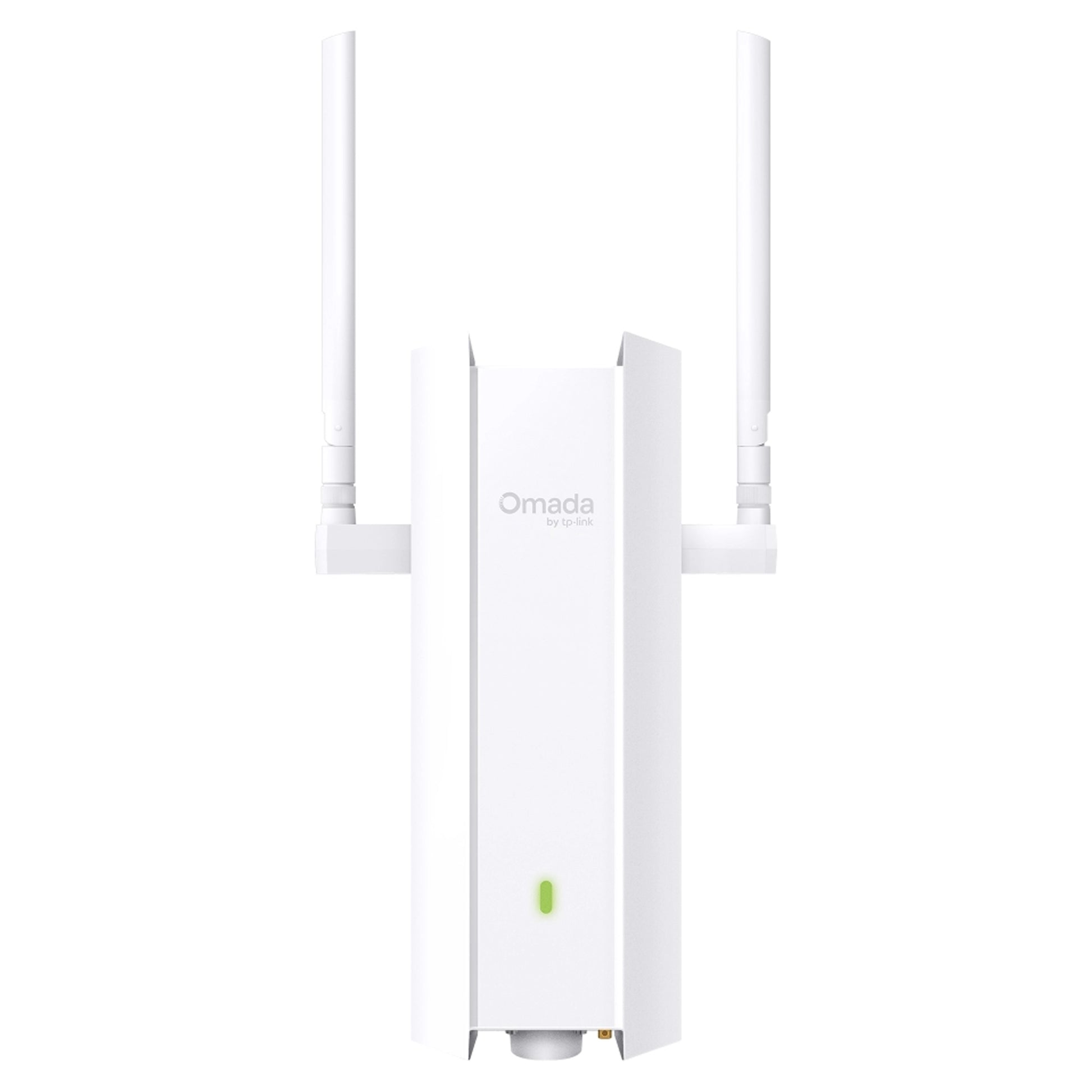

EAP625-Outdoor HD

⚠️ Out of stock. Contact Us or Call Us for stock status.
$214.49 CAD
$214.49 CAD $219.99 CAD
Sale Sold out

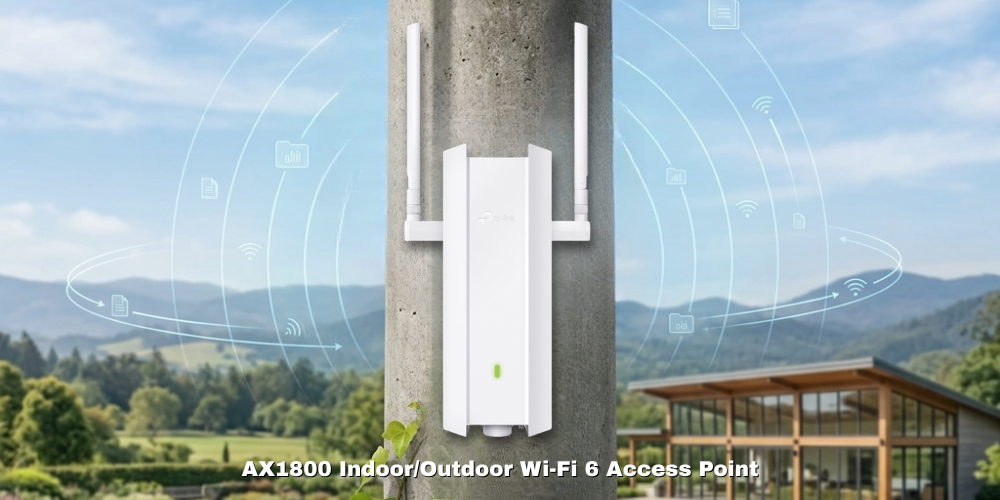

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

  • Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.*1
  • Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.*2
  • High-density connectivity up to 1,000+ clients.*3
  • Long-range coverage with the high-power amplifier and 2× detachable antennas.
  • IP67 weatherproof enclosure for various outdoor environments.
  • Advanced Functions: Centralized management, Omada mesh, and seamless roaming.*4
  • PoE+ Powered: Supports both 802.3at PoE (adapter not included).



Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

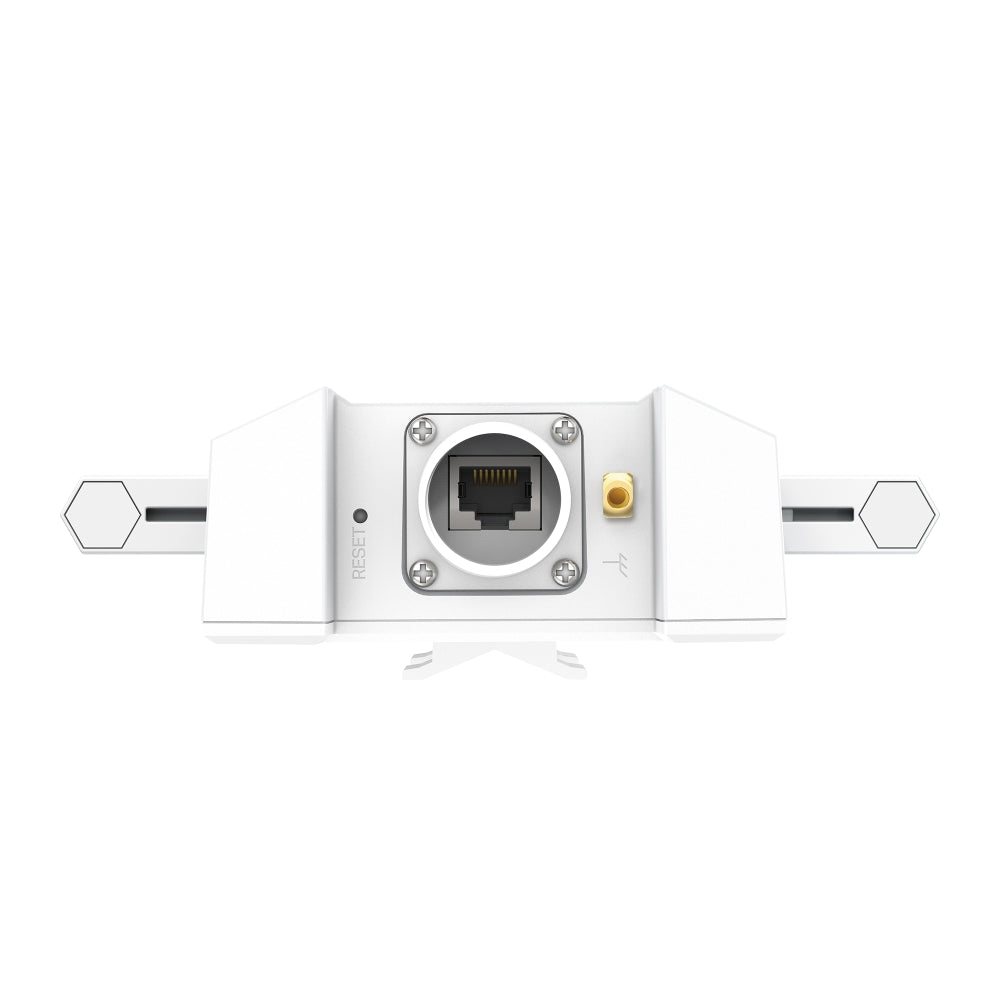

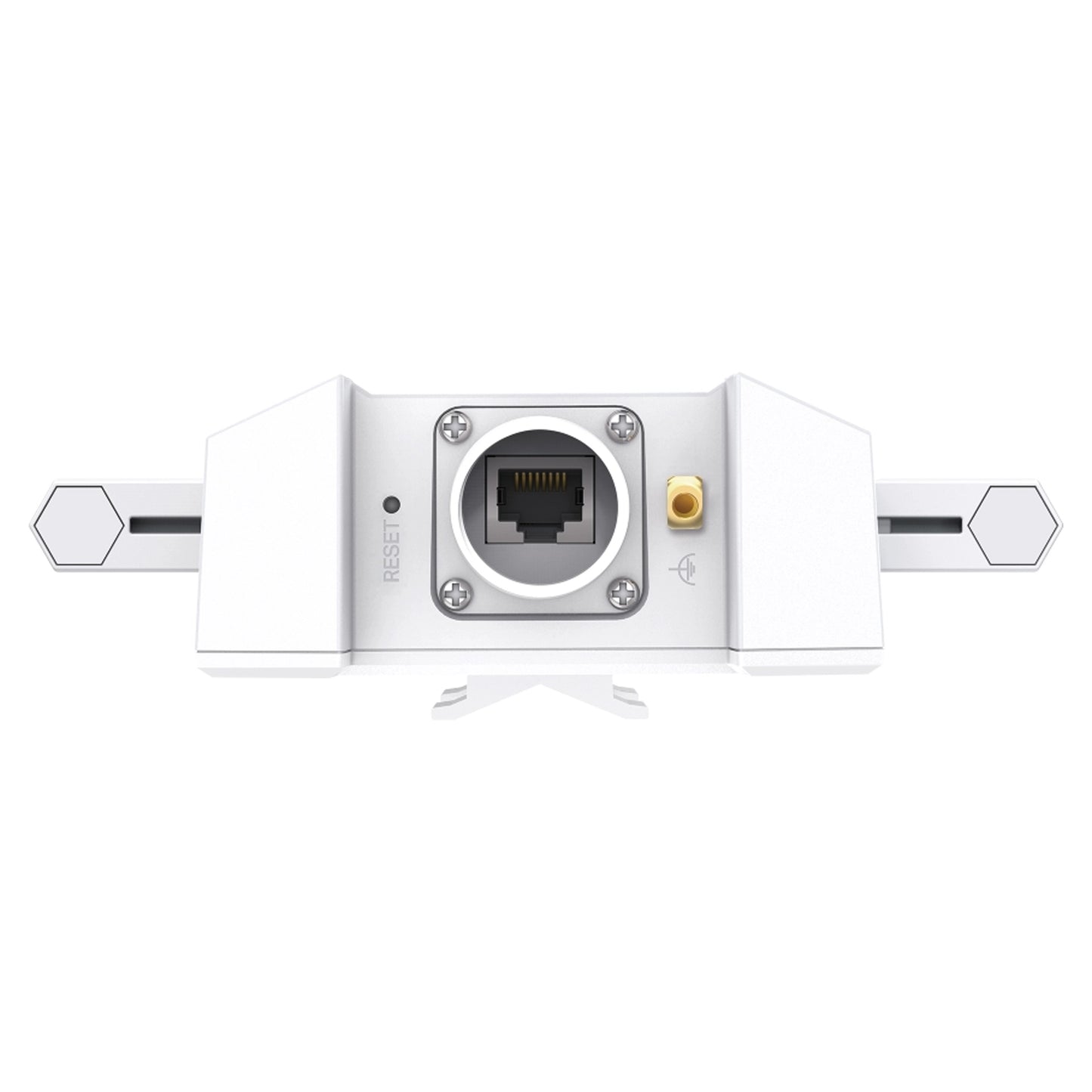

  • Interface: 1 × Gigabit Ethernet Port
  • Button: Reset
  • Power Supply:

    802.3at PoE
    48V Passive PoE
    Note: PoE adapter is not included

  • Max. Power Consumption: 14.7 W (802.3at PoE or Passive PoE)
  • Dimensions (W × D × H): 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)
  • Antenna: 2 × External Dual-Band Omni Antennas

    2.4 GHz: 3.0 dBi
    5 GHz: 5.0 dBi

  • Bluetooth: V5.2
  • Weatherproof Enclosure: IP68

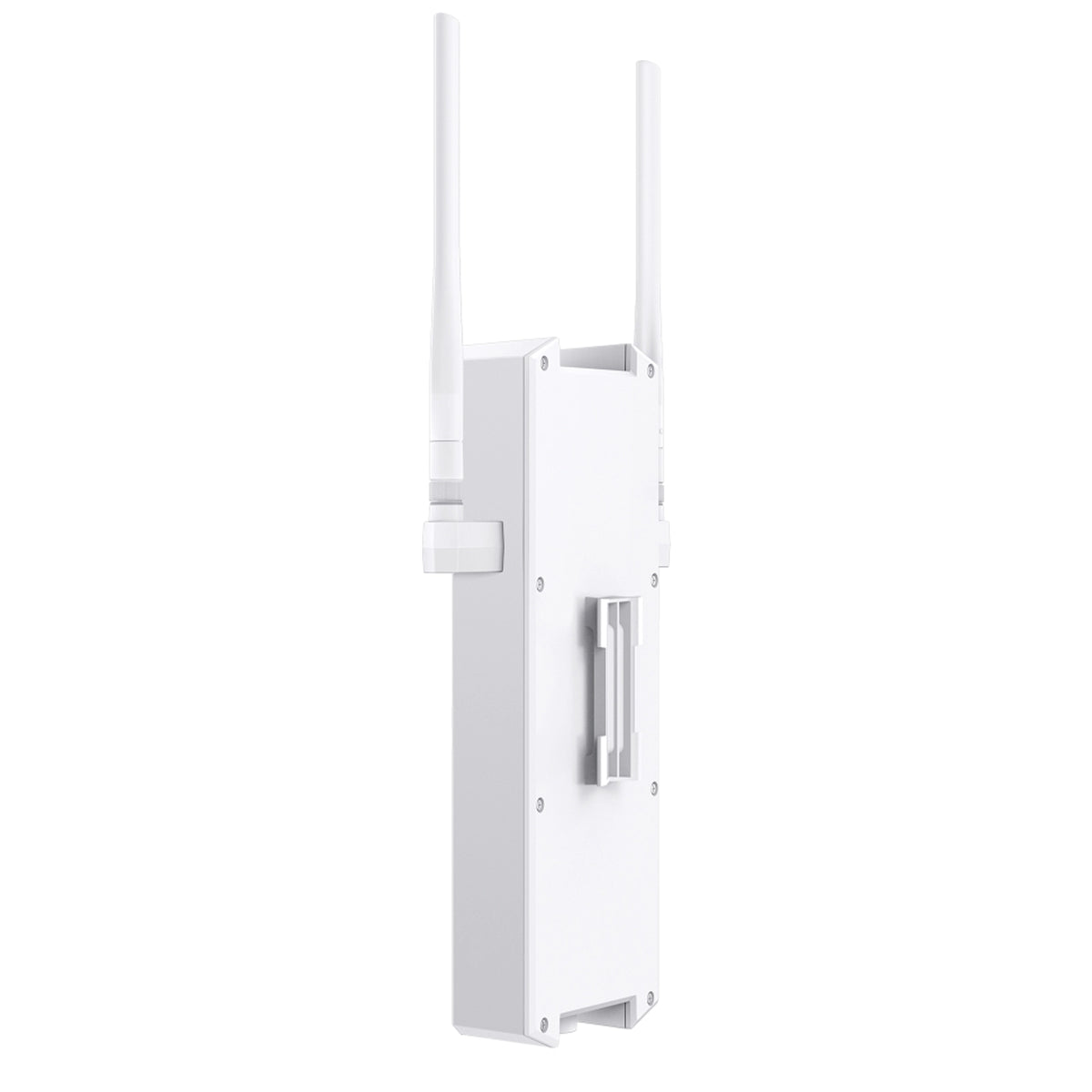

  • Mounting: Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

  • Concurrent Clients: 1,020+
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax
  • Frequency: 2.4 GHz & 5 GHz
  • Signal Rate:

    5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps

  • Wireless Functions:

    Mesh Support
    Seamless Roaming (802.11k/v/r)
    Automatic Channel Assignment
    Load Balance & Band Steering
    Beamforming & Airtime Fairness
    Multiple SSIDs: 16 (8 per band)
    MU-MIMO (2×2 DL)
    Wireless Statistics & Scheduling
    Reboot Schedule
    RADIUS Accounting & MAC Authentication
    Static / Dynamic IP support

  • Wireless Security:

    VLAN & Access Control
    Rogue AP Detection
    Captive Portal Authentication
    MAC Filter: Max 4,000 entries
    Wireless Isolation between Clients
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    802.1X Support

  • Transmission Power:

    CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
    FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

MANAGEMENT FEATURES

  • Omada App: Yes
  • Restore & Backup: Yes
  • Firmware Update via Web: Yes
  • NTP Support: Yes
  • Centralized Management:

    Omada Hardware Controller (OC300 / OC200)
    Omada Software Controller
    Omada Cloud-Based Controller

  • Cloud Access: Yes (requires controller)
  • Email Alerts: Yes
  • LED Control: On / Off
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • SSH: Yes
  • Web-Based Management: Yes

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents:

    EAP625-Outdoor HD
    2 × Detachable Antennas
    Installation Guide
    Mounting Kit
    Waterproof Kit

  • Environment:

    Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
    Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    Operating Humidity: 10%–90% non-condensing
    Storage Humidity: 5%–90% non-condensing
