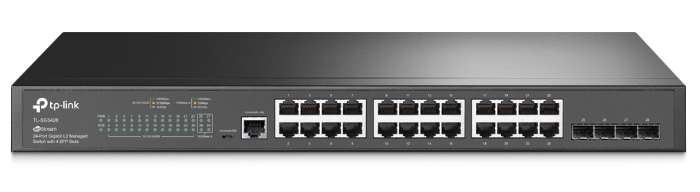

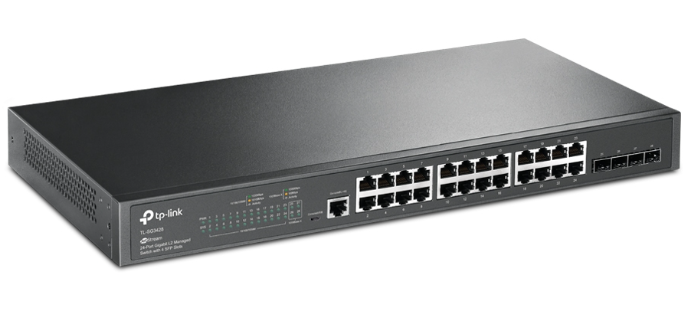

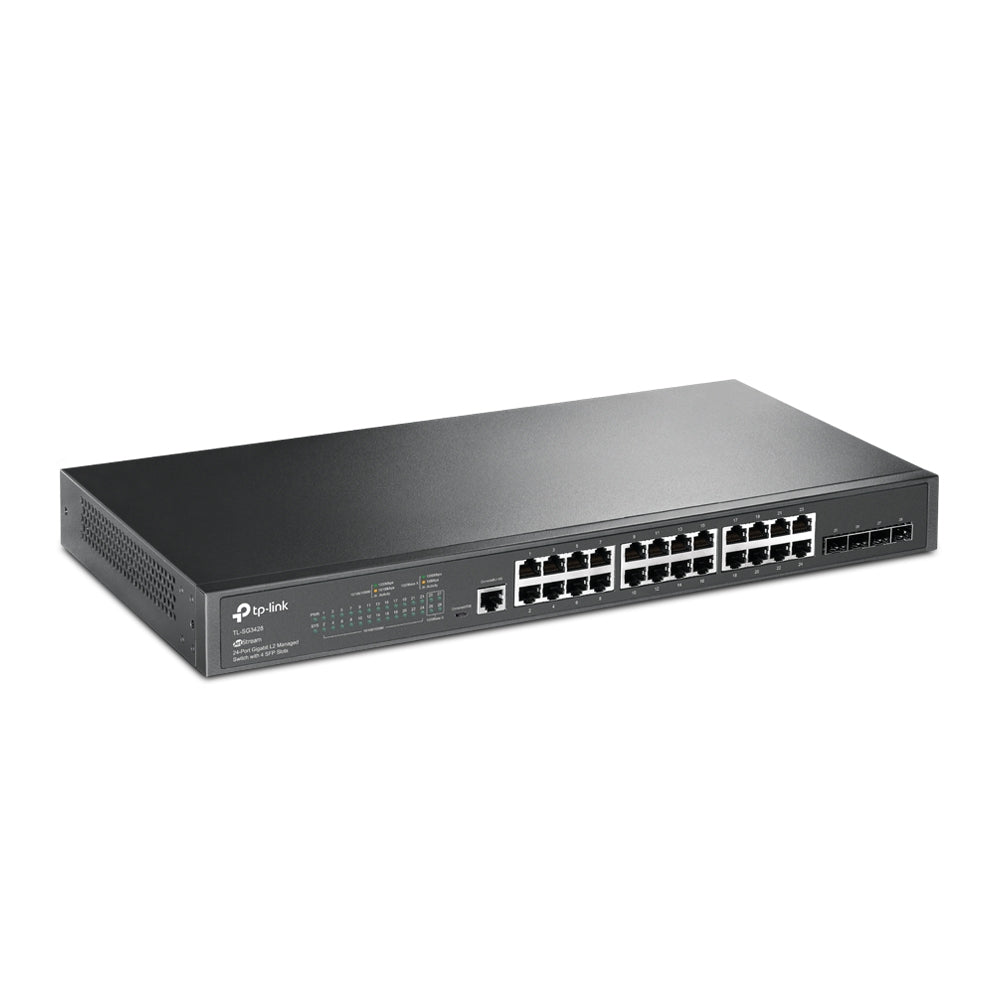

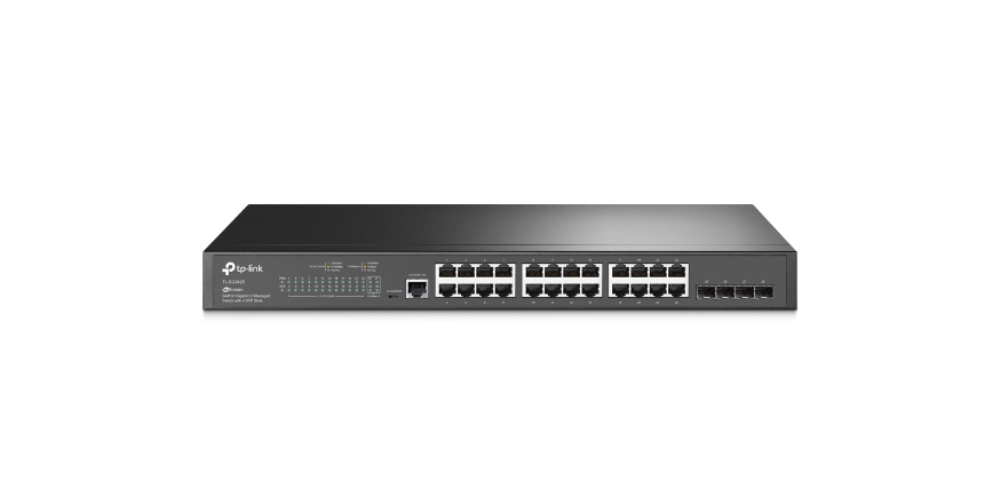

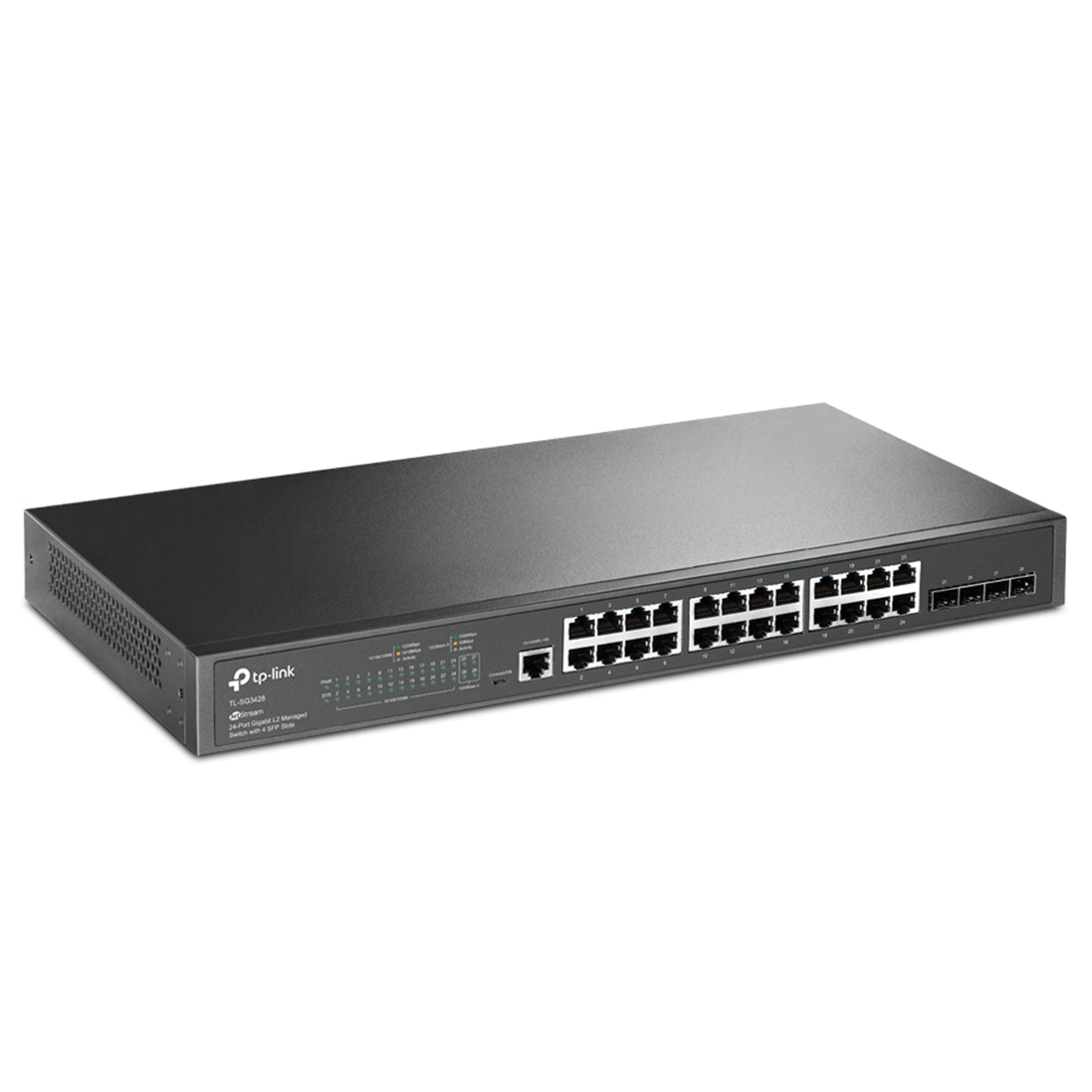

TP-Link SG3428

$299.99 CAD
$299.99 CAD
Sale Sold out
Only 1 units left
  • Full Gigabit Ports: 24× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

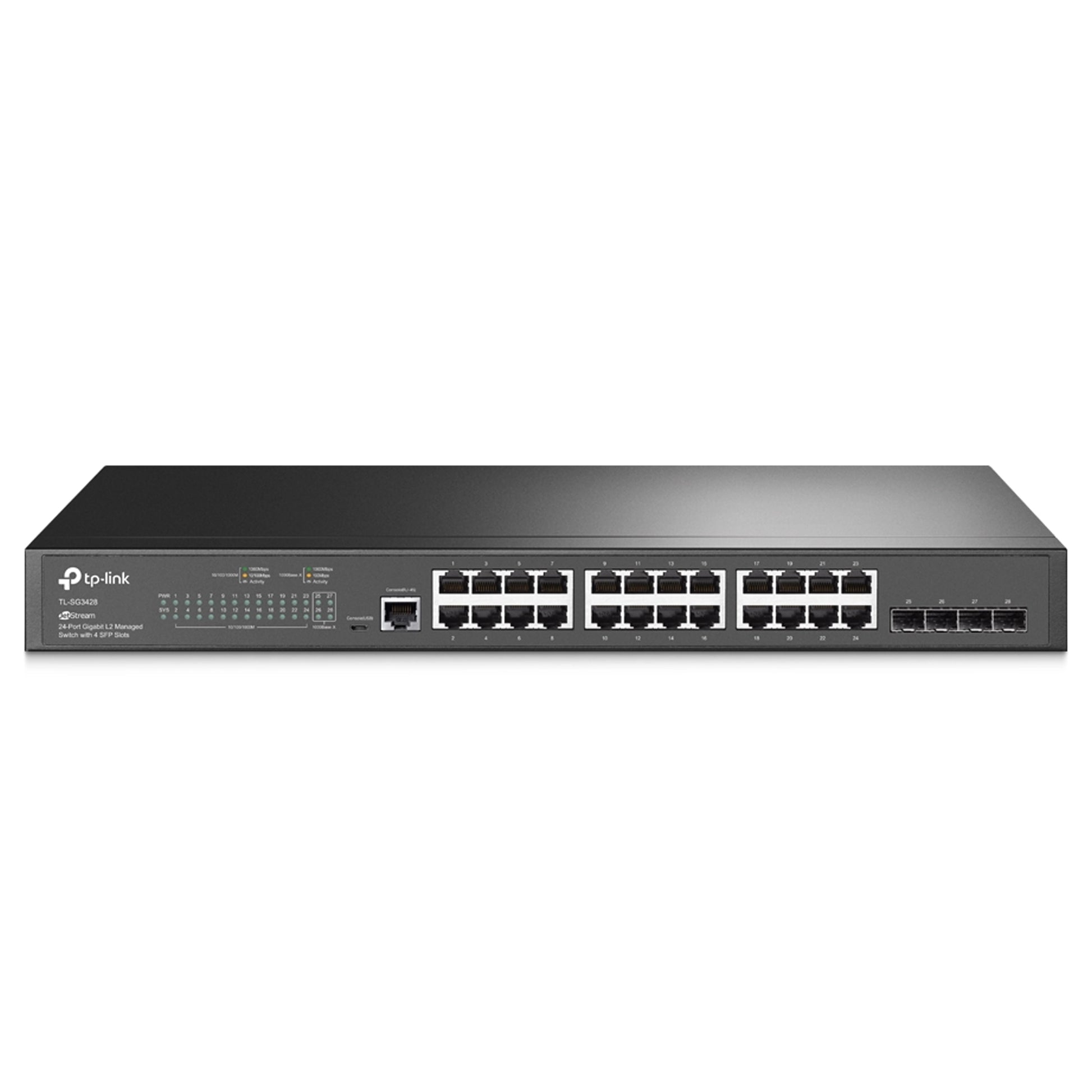

  • Interface: 24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
  • Fan Quantity: Fanless

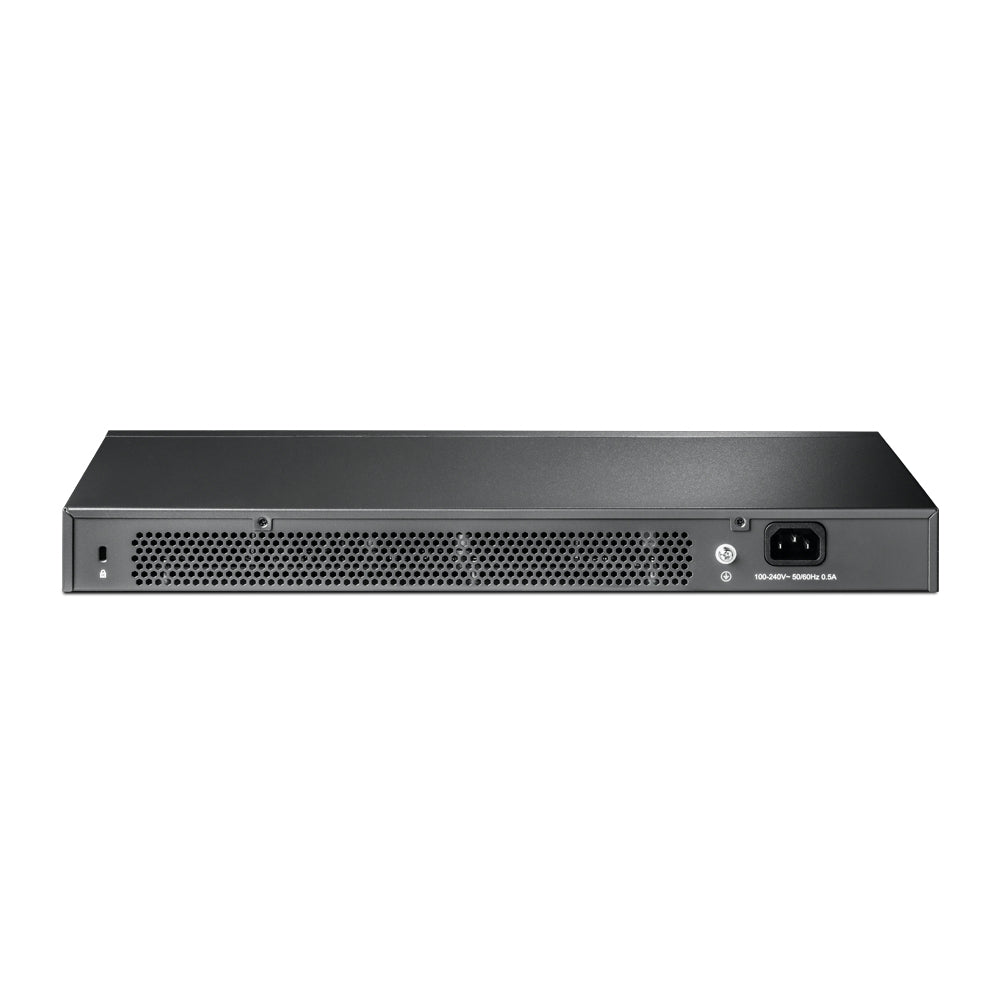

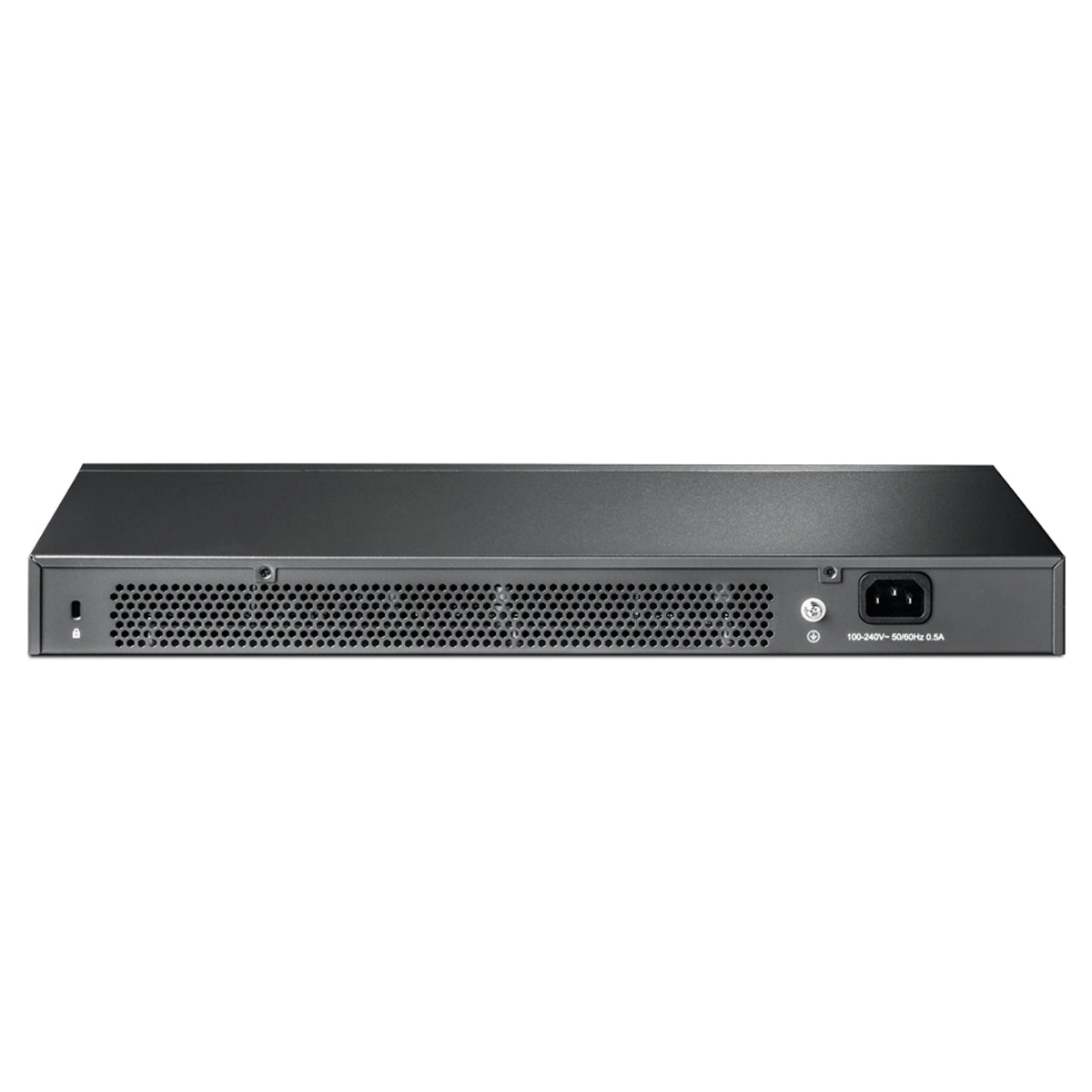

  • Power Supply: 100-240 V AC~50/60 Hz
  • Dimensions: 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: V1: 19.22 W (110V), V2: 19.9 W (220V)
  • Max Heat Dissipation: V1: 65.58 BTU/hr, V2: 67.73 BTU/hr
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • MAC Address Table: V1: 8K, V2+: 16K
  • Jumbo Frame: 9 KB
  • QoS: 8 queues, 802.1p/DSCP, SP/WRR/SP+WRR, bandwidth control, flow actions (mirror/redirect/rate/QoS remark)
  • L3 Features: 16 IPv4/IPv6 interfaces, static routing (48 routes), ARP (316 entries), proxy ARP, DHCP server/relay
  • L2 Features: Link aggregation (LACP), STP/RSTP/MSTP, loopback detection, flow control, port & CPU mirroring
  • Multicast: IGMP v1/v2/v3, MLD snooping, MVR, multicast filtering profiles
  • Advanced Features: Device discovery, batch config, firmware upgrade, monitoring, event alerts, reboot schedule
  • VLAN: 4K VLAN groups, 802.1Q, MAC VLAN, protocol VLAN, QinQ, voice VLAN
  • ACL: Time-based, MAC/IP/IPv6 ACL, policy control, port/VLAN binding
  • Security: IP-MAC binding, DHCP snooping, ARP inspection, DoS protection, port security, 802.1X, AAA, HTTPS, SSH
  • IPv6: Dual stack, IPv6 routing, ND, ICMPv6, DHCPv6, IPv6 SNMP/SSH/HTTP
  • MIBs: RFC1213, RFC1493, RFC2674, RMON, TP-Link private MIBs
  • Management: Omada app, OC300/OC200 controller, cloud access, Web GUI, CLI, SNMP, LLDP, system tools
  • Certifications: CE, FCC, RoHS
  • Package Contents: TL-SG3428 Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • System Requirements: Windows, macOS, Linux, NetWare, UNIX
  • Environment: Operating Temp: 0–45°C, Storage: -40–70°C, Humidity: 10–90% RH
