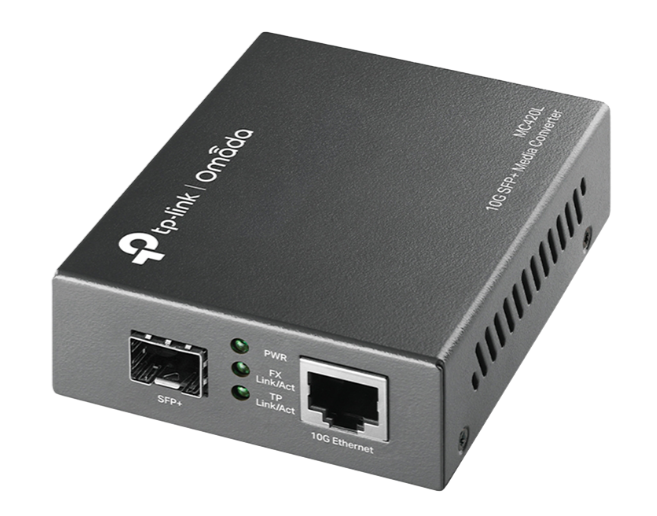

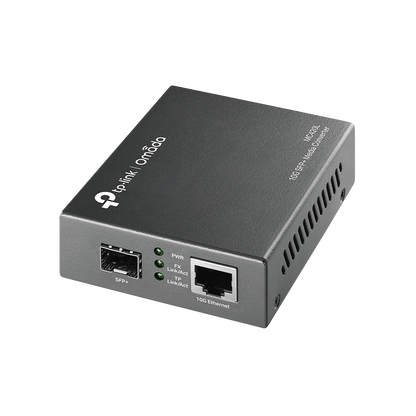

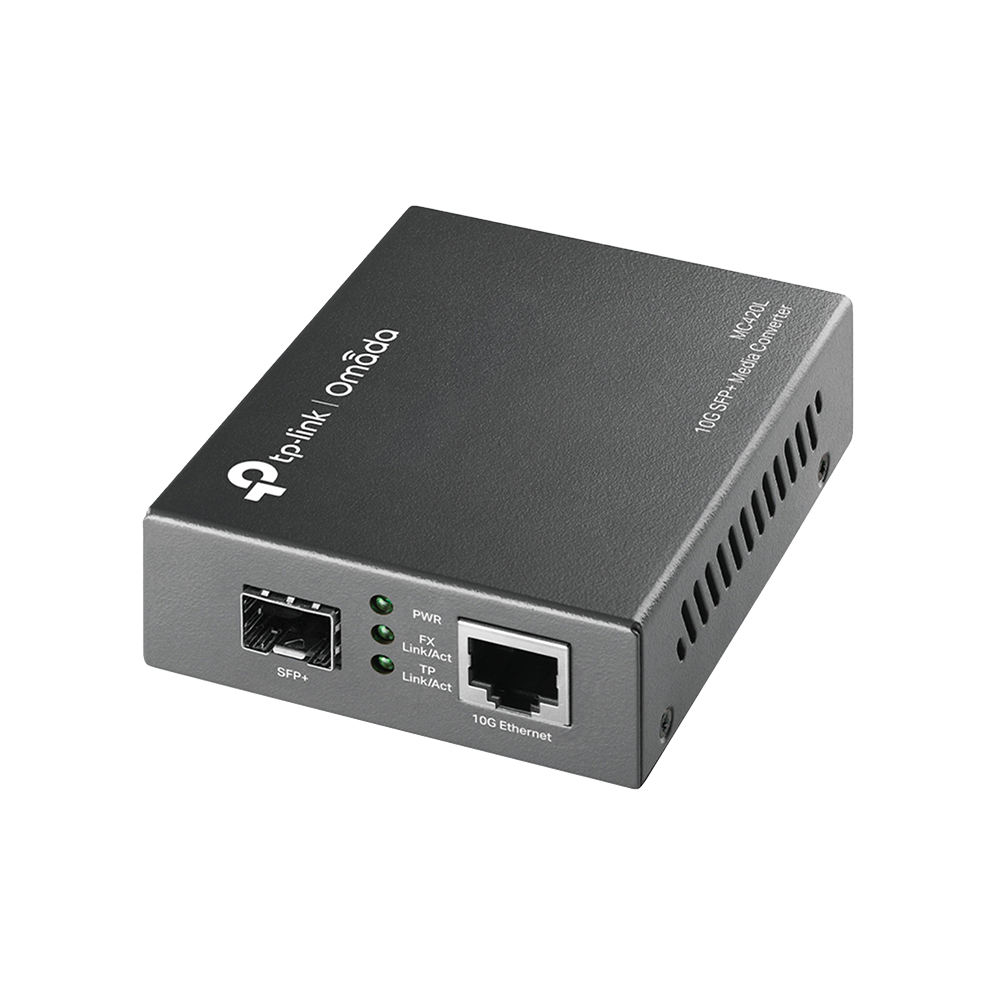

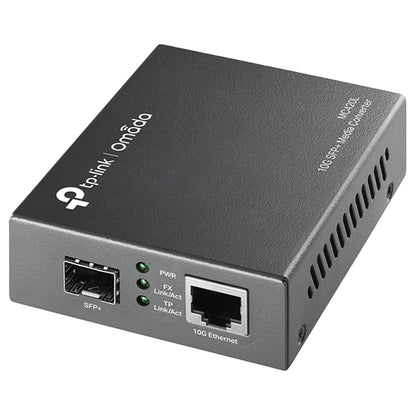

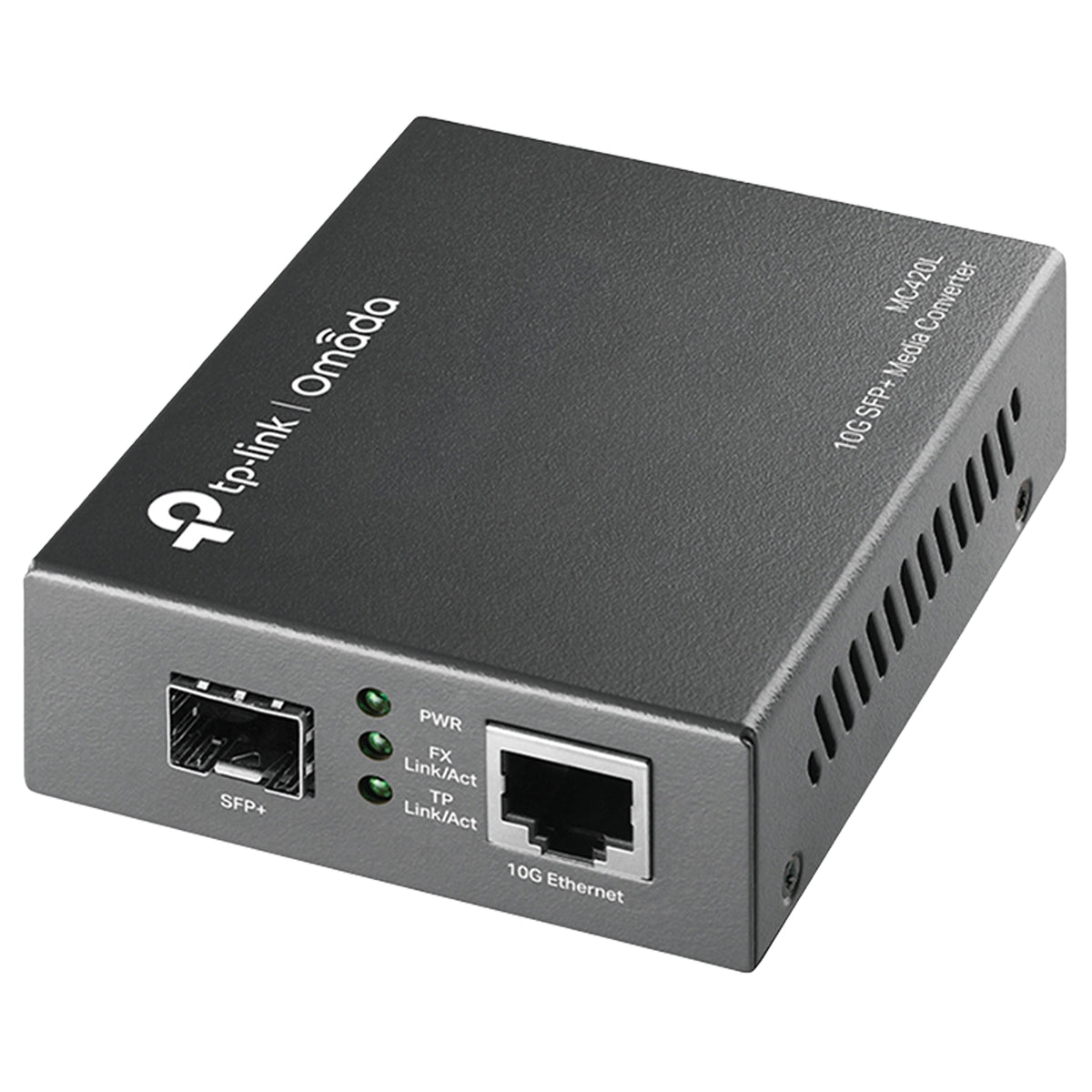

TP-Link MC420L

SKU: MC420L

$77.99 CAD
$77.99 CAD
Sale Sold out
Shipping calculated at checkout.
Only 10 units left
  • 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
  • FX port supports hot-swappable
  • Maximum transmission distance depends on the inserting SFP

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • MEDIA CONVERTER & MODULE: IEEE 802.3ab, 802.3bz, 802.3an, 802.3z, 802.3ae, 802.3x, 802.3aq, 802.3cb standards supported
  • BASIC FUNCTION: Auto-negotiation (Half/Full Duplex), transmission distance depends on SFP module
  • INTERFACE: 1× SFP+ Port, 1× 1G/2.5G/5G/10G RJ45 Port
  • WAVELENGTH: Depends on SFP/SFP+ module used
  • NETWORK MEDIA 10GBASE-R: Supports Multi-mode and Single-mode SFP+ modules
  • NETWORK MEDIA 10GBASE-T: 1000/2.5G/5G uses Cat5e+ (100m), 10G uses Cat6 (55m) or Cat6a/STP (100m)
  • DIMENSIONS: 3.7 × 2.9 × 1.1 in (94.5 × 73 × 27 mm)
  • POWER SUPPLY: External Adapter 9V/0.6A
  • MAX POWER CONSUMPTION: 5.26 W
  • LED INDICATORS: PWR, FX Link/Act, TP Link/Act
  • SAFETY & EMISSION: CE, FCC Certified
  • PACKAGE CONTENT: MC420L, Power Adapter, Installation Guide
  • ENVIRONMENT: Operating Temp 0–50°C, Storage -40–70°C, Humidity 10–90% (non-condensing)
No Data

FAQs : TP-Link MC420L

The TP-Link MC420L is a multi-gigabit media converter designed to bridge Ethernet and fiber connections for flexible, high-speed network deployments.
Yes. The MC420L supports high-speed connectivity up to 10 Gbps, making it suitable for bandwidth-intensive network applications.
It can be used to extend network connections over fiber, connect copper-based Ethernet equipment to fiber infrastructure, and support high-speed links between compatible devices.
The MC420L is suitable for offices, enterprises, data networks, surveillance infrastructure, and other environments requiring reliable copper-to-fiber network conversion.
