TP-Link ER7412-M2

$329.99 CAD
$329.99 CAD
Sale Sold out
Only 6 units left
  •  Quad-core @2.0GHz CPU
  • 2× 2.5G RJ45 WAN/LAN ports
  • 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
  • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
  • Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband.
  • High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralized cloud management via the web or the Omada app*
  • DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • SECURITY
  • DPI: Deep Packet Inspection (Supports 2421 Applications)
  • IDS/IPS: Intrusion Detection & Prevention
  • Access Control: Source/Destination IP ACL, Stateful ACL, IPv4/IPv6 ACL, Location-Based ACL
  • DNS Proxy: DNSSEC, DoH, DoT, DNS Override
  • Filtering: Web Group Filtering, URL Filtering, Web Security
  • ARP Inspection: GARP Packets, ARP Scanning, IP-MAC Binding
  • Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan, Block Ping from WAN
  • HARDWARE FEATURES
  • CPU: Quad-core ARMv8
  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, TCP/IP, DHCP, NAT, VPN Protocols

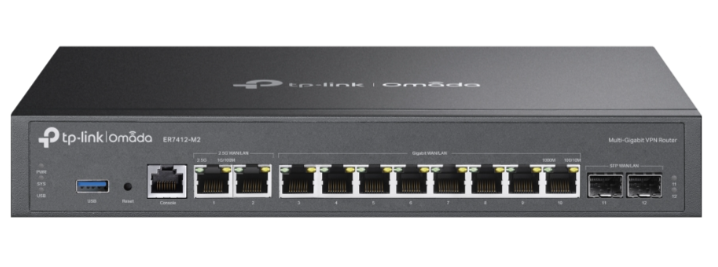

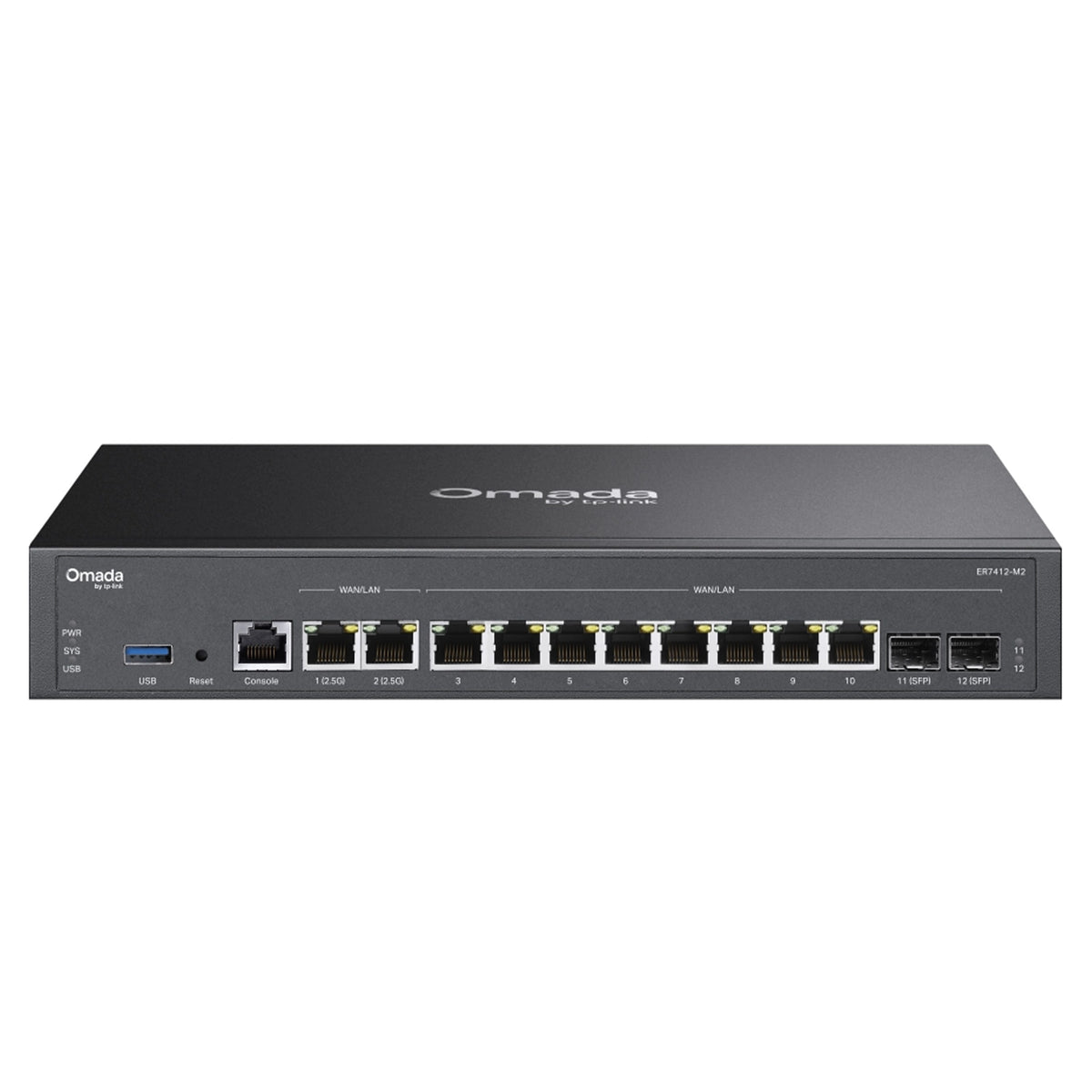

  • Interface: 2× 2.5G RJ45 WAN/LAN, 2× SFP WAN/LAN, 8× Gigabit RJ45 WAN/LAN, 1× Console, 1× USB 3.0
  • Network Media: 10/100/1000/2500BASE-T supported cables (Cat3–Cat6, max 100m)
  • Button: Reset

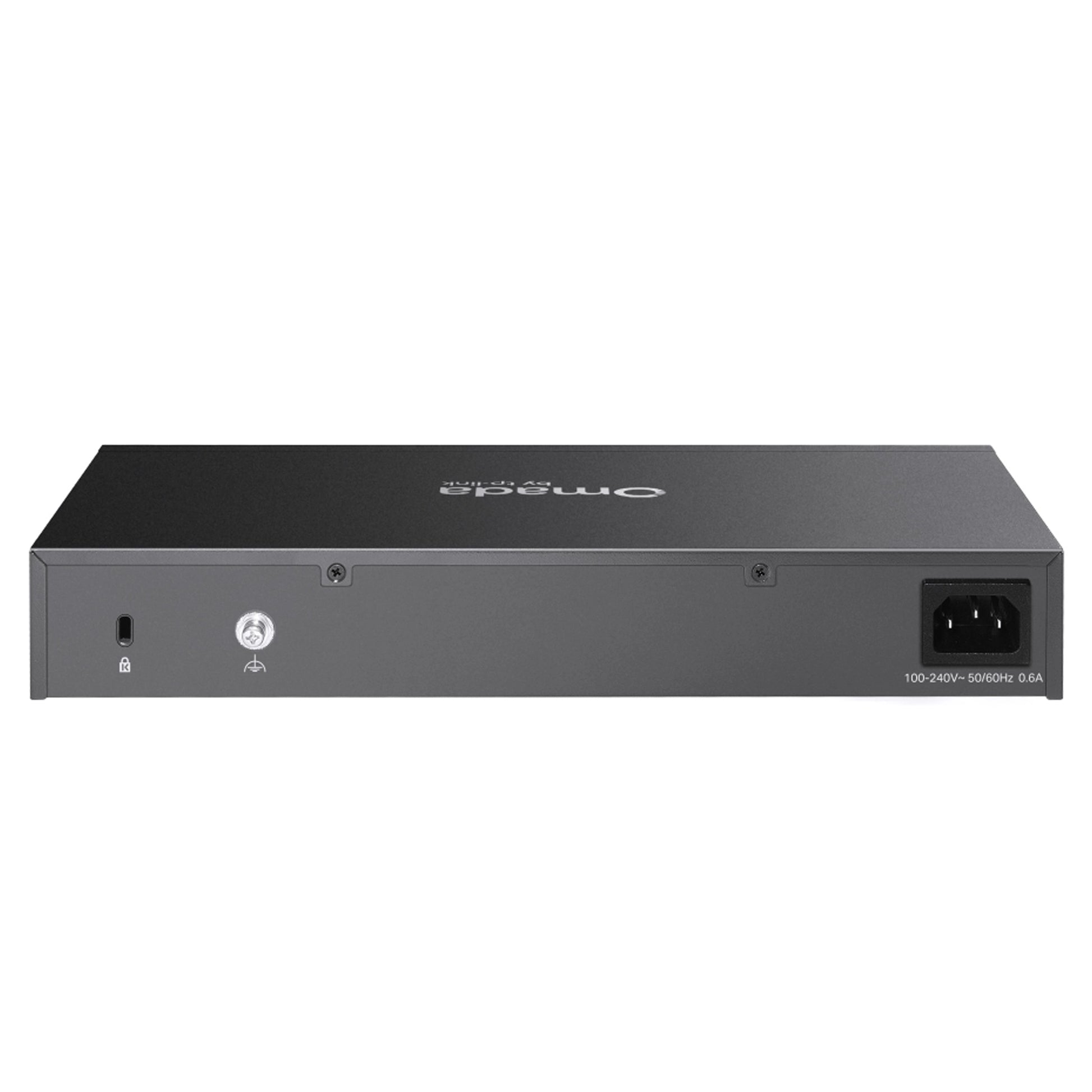

  • Power Supply: 100–240V AC, 50/60 Hz
  • Memory: 128MB NAND Flash, 1GB DDR4 RAM
  • Weight: 1.168 kg
  • Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
  • Protection: 4kV Surge Protection
  • Enclosure: Steel
  • Mounting: Desktop / Rackmount
  • Max Power Consumption: 18.5W
  • PERFORMANCE
  • Throughput: DPI 2.2Gbps, IDS/IPS 573 Mbps
  • VPN: WireGuard 771.6 Mbps, OpenVPN 266.2 Mbps, SSL VPN 263.1 Mbps
  • GRE: 1153 Mbps (Unencrypted), 559.2 Mbps (Encrypted)
  • Concurrent Sessions: 1,000,000
  • New Sessions/sec: 7,000
  • NAT Throughput: Up to ~2353 Mbps
  • IPSec VPN: Up to ~1133 Mbps
  • Packet Forwarding: 66 Byte ~3.4M pps, 1518 Byte ~202K pps
  • BASIC FUNCTIONS
  • WAN Types: Static IP, Dynamic IP, PPPoE, PPTP, L2TP, 4G/3G USB Backup
  • DHCP: Server, DHCPv6, Reservation, Multi-Net DHCP
  • Features: MAC Clone, Stateful ACL, QoS, Bridge VLAN, mDNS Repeater
  • IPv6: SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough
  • IPTV: IGMP v2/v3 Proxy, Bridge Mode
  • ADVANCED FEATURES
  • Routing: Static, Policy Routing, RIP, OSPF
  • Bandwidth Control: IP/Port-Based
  • Load Balance: Intelligent Routing, Link Backup, Failover
  • NAT: One-to-One, Virtual Server, Port Triggering, NAT-DMZ, ALG, UPnP
  • Session Limit: IP-Based
  • VPN
  • IPSec: 150 Tunnels, AES Encryption, IKE v1/v2, NAT-T, PFS
  • SSL VPN: 80 Tunnels
  • PPTP/L2TP: Server & Client Support, 150 Tunnels
  • OpenVPN: 121 Tunnels, Certificate + Account Mode
  • WireGuard: 20 Tunnels
  • SD-WAN: Supported (Controller Mode)
  • AUTHENTICATION
  • Web Authentication: Password, Hotspot, SMS, Radius, LDAP, External Portal
  • MANAGEMENT FEATURES
  • Omada Support: Cloud, Hardware & Software Controller
  • Cloud Access: Yes
  • Services: Dynamic DNS (Dyndns, No-IP, etc.)
  • Maintenance: Web UI, Remote Access, SNMP, CLI, Syslog, Diagnostics
  • Zero-Touch Provisioning: Yes
  • Advanced Management: Auto Discovery, Batch Config, Monitoring, Alerts, Reboot Schedule
  • OTHERS
  • Certification: CE, FCC
  • Package Content: ER7412-M2, Power Cord, Installation Guide, Rack Kit, Console Cable
  • System Requirements: Windows, MAC OS, NetWare, UNIX, Linux
  • Environment: Operating Temp 0–45°C, Storage -40–70°C, Humidity 10–90%
