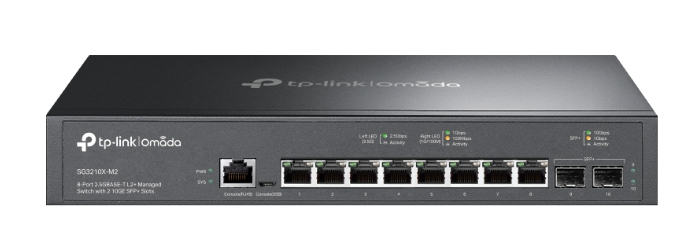

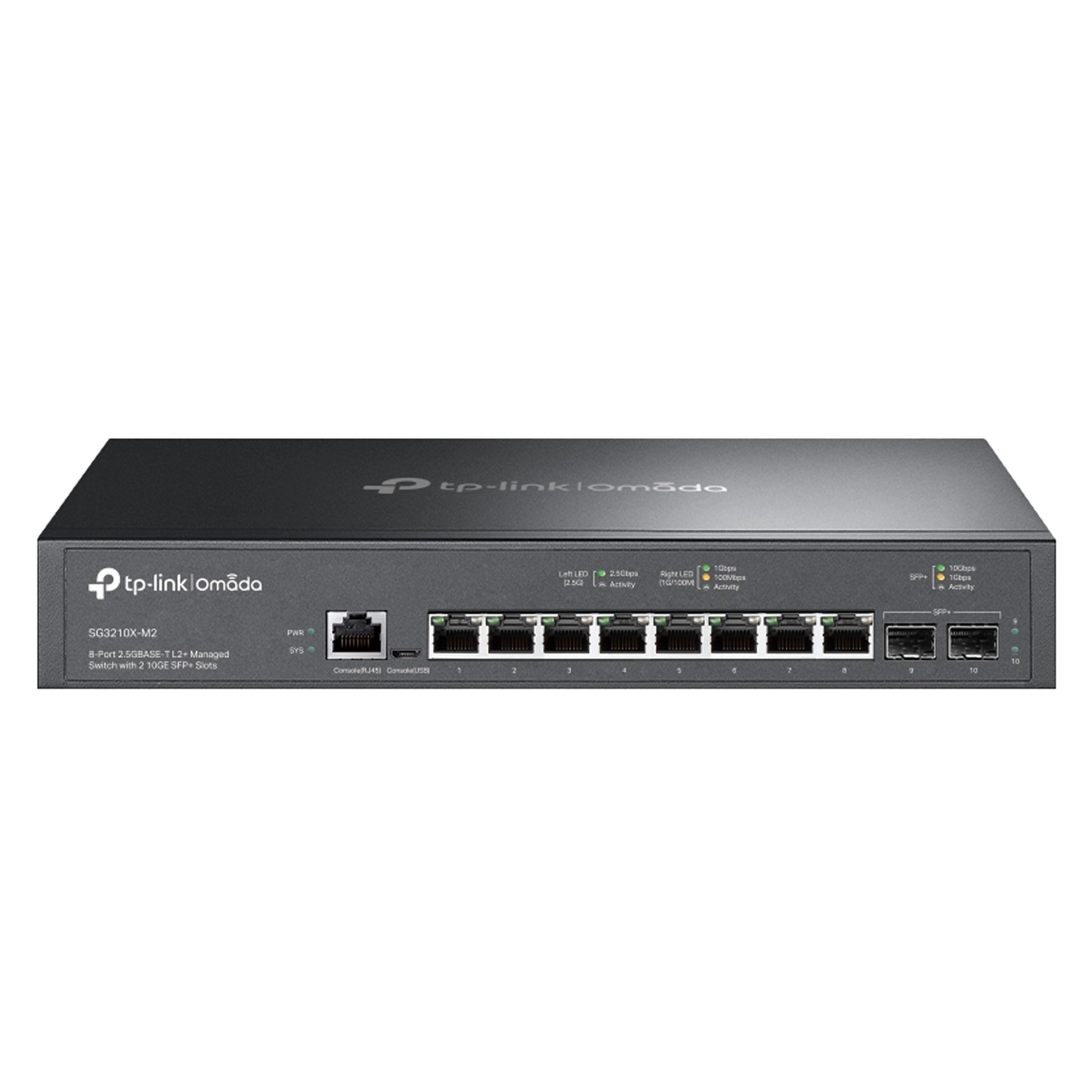

SG3210X-M2

$349.99 CAD
$349.99 CAD
Sale Sold out
In stock (13 units), ready to be shipped

  • 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.

  • 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

  • Static Routing: Helps route internal traffic for more efficient use of network resources.

  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Click here to view Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • Interface: 8× 2.5 Gbps RJ45 Ports, 2× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
  • Fan Quantity: Fanless Design
  • Power Supply: 100-240 V AC~50/60 Hz
  • Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
  • Mounting: Rack Mountable / Desktop
  • Max Power Consumption: 15.0 W (110V/60Hz)
  • Max Heat Dissipation: 51.18 BTU/h
  • Switching Capacity: 80 Gbps
  • Packet Forwarding Rate: 59.52 Mpps
  • MAC Address Table: 16K
  • Packet Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB
  • QoS: 8 queues, 802.1p CoS/DSCP, SP/WRR/SP+WRR scheduling, bandwidth control, flow actions (mirror/redirect/rate/QoS remark)
  • L3 Features: 32 IPv4/IPv6 interfaces, static routing (48 routes), static ARP (128 entries), proxy ARP, DHCP server & relay
  • L2 Features: Link aggregation (LACP), STP/RSTP/MSTP, loopback detection, flow control, port & CPU mirroring
  • Multicast: IGMP v1/v2/v3 snooping, MLD snooping, MVR, multicast filtering profiles
  • Advanced Features: Device discovery, batch config, firmware upgrade, monitoring, alerts, unified config, reboot schedule
  • VLAN: 4K VLAN groups, 802.1Q, MAC VLAN (256), protocol VLAN, QinQ, voice VLAN
  • ACL: Time-based, MAC/IP/IPv6 ACL, packet content ACL, policy control, port/VLAN binding
  • Security: IP-MAC binding, DHCP snooping, ARP inspection, DoS protection, port security, 802.1X, AAA, HTTPS, SSH
  • IPv6: Dual stack, IPv6 routing, ND, ICMPv6, DHCPv6, IPv6 SNMP/SSH/HTTP/TFTP
  • MIBs: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RMON, Radius MIBs, TP-Link private MIB
  • Management: Omada app, OC300/OC200/cloud controller, zero-touch provisioning, Web GUI, CLI, SNMP, LLDP, diagnostics tools
  • Certification: CE, FCC, RoHS
  • Package Contents: SG3210X-M2 Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
  • System Requirements: Windows, macOS, Linux, NetWare, UNIX
  • Environment: Operating Temp: 0–50°C, Storage Temp: -40–70°C, Humidity: 10–90% RH
