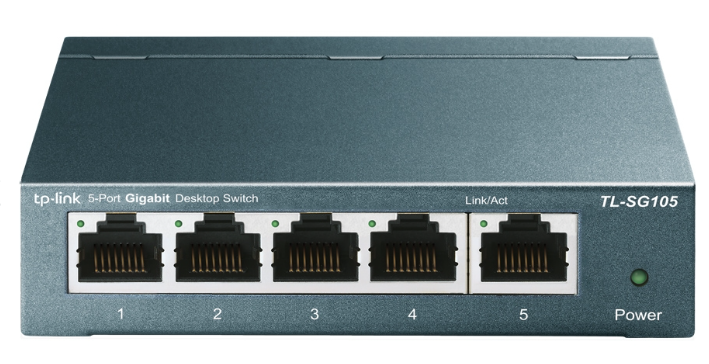

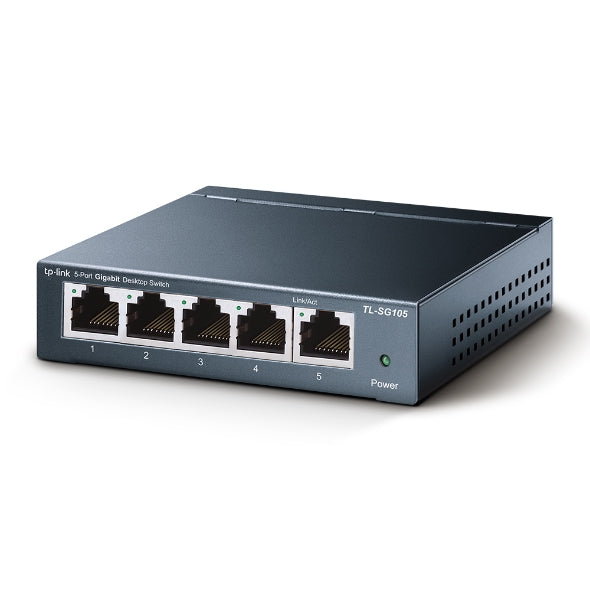

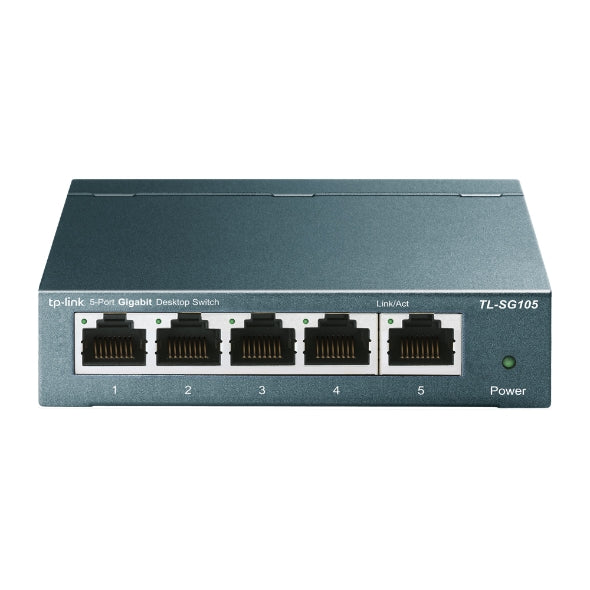

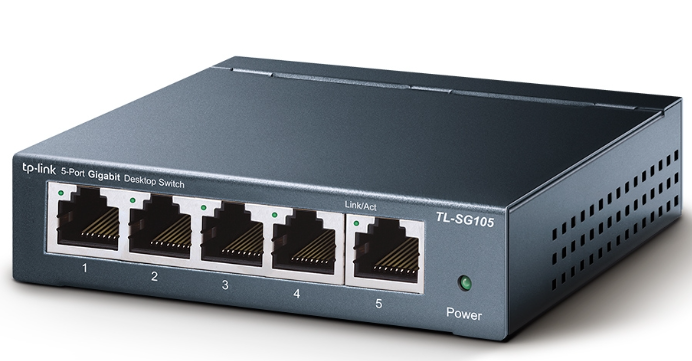

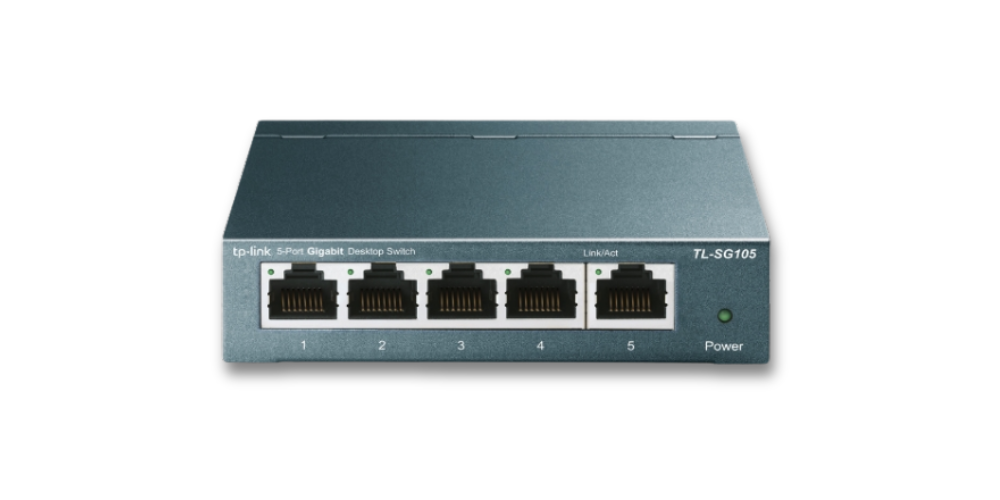

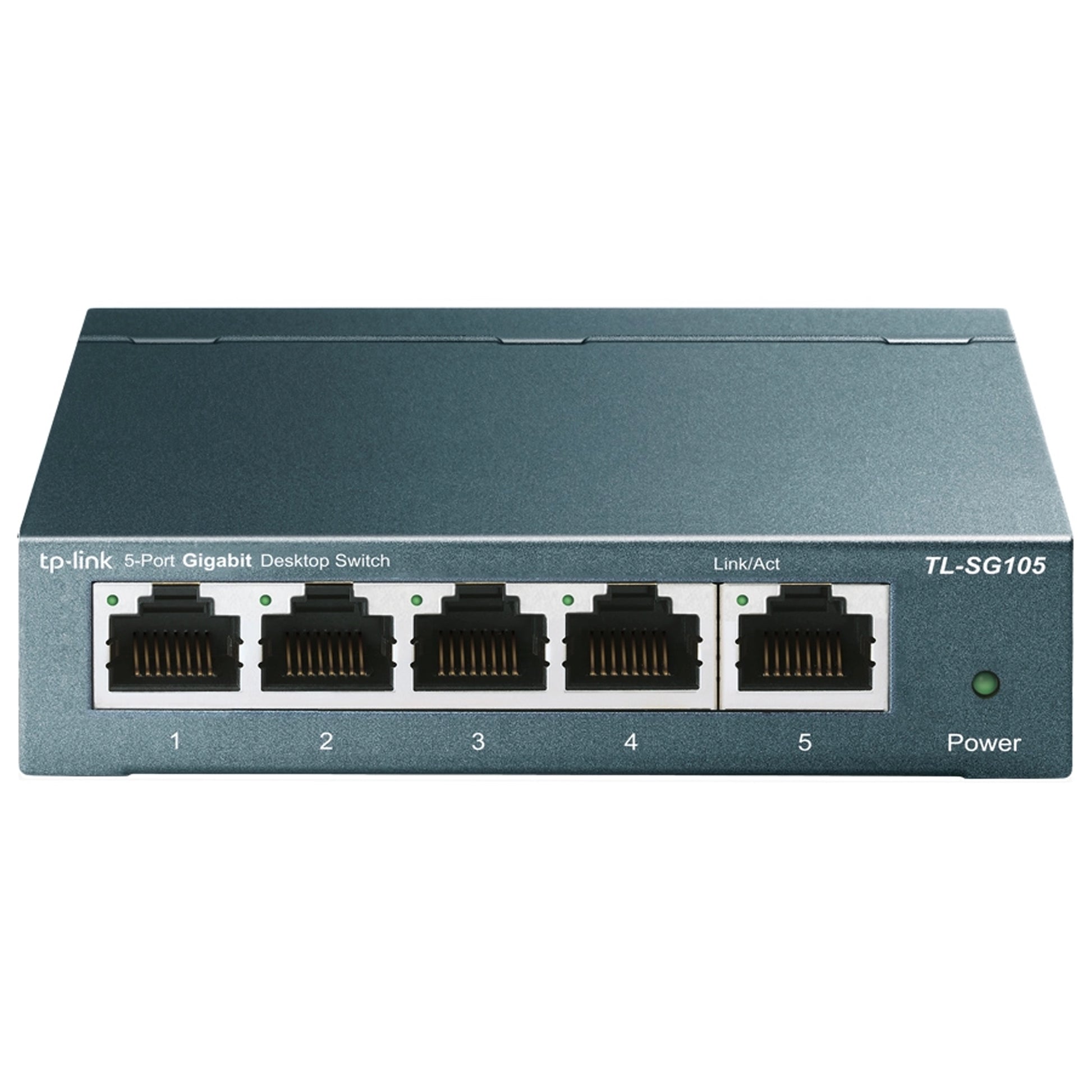

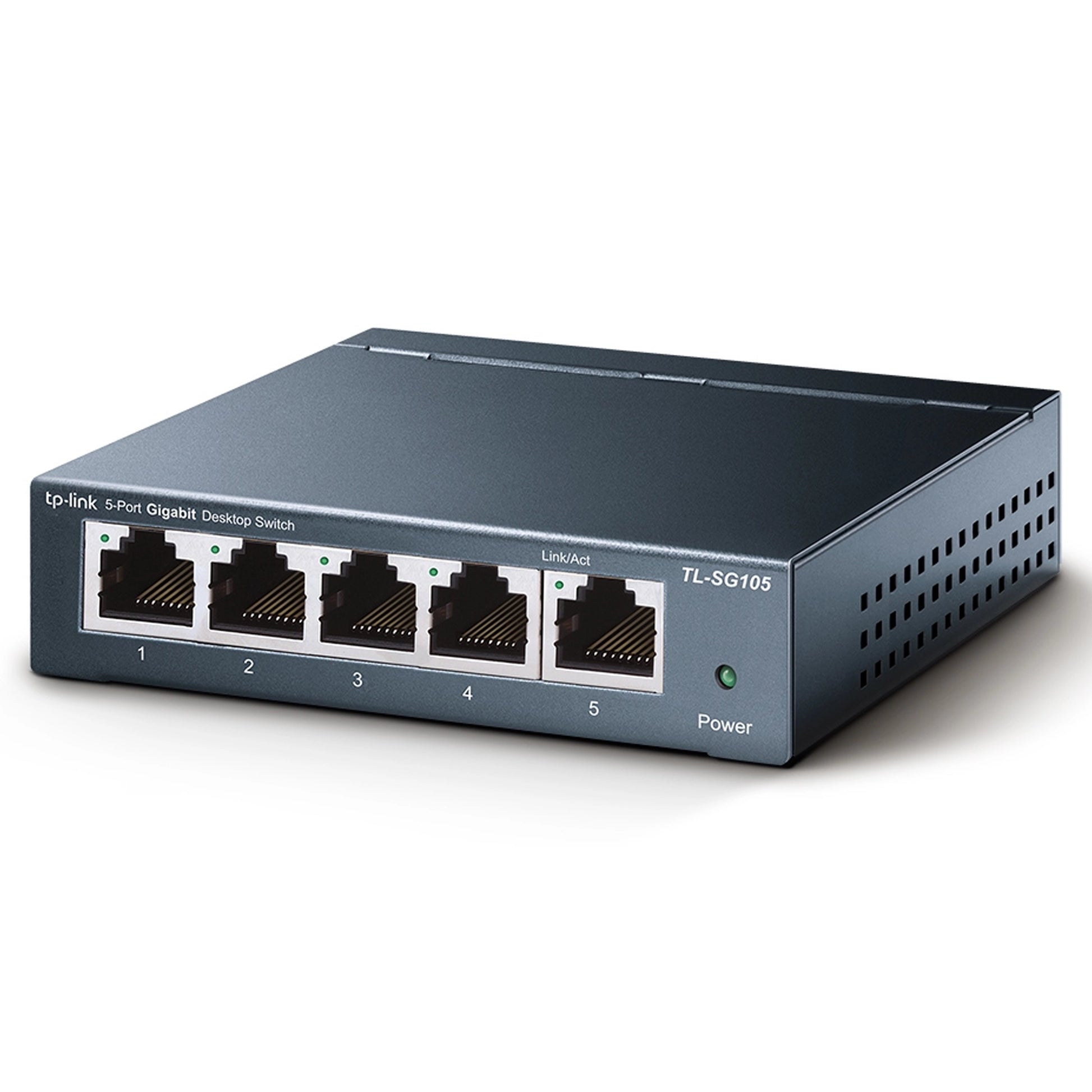

P-LINK TL-SG105 5-Port 10/100/1000Mbps Desktop Gigabit Steel Cased Switch TL-SG105

SKU: TP-SG105

$22.99 CAD
$22.99 CAD
Sale Sold out

5-Port 10/100/1000Mbps Desktop Switch

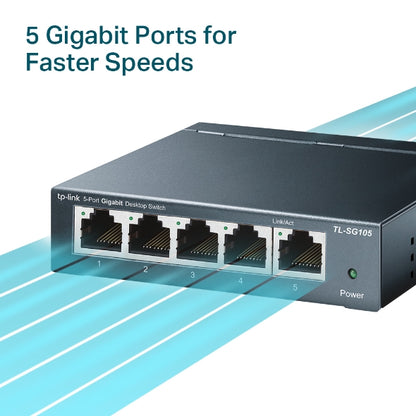

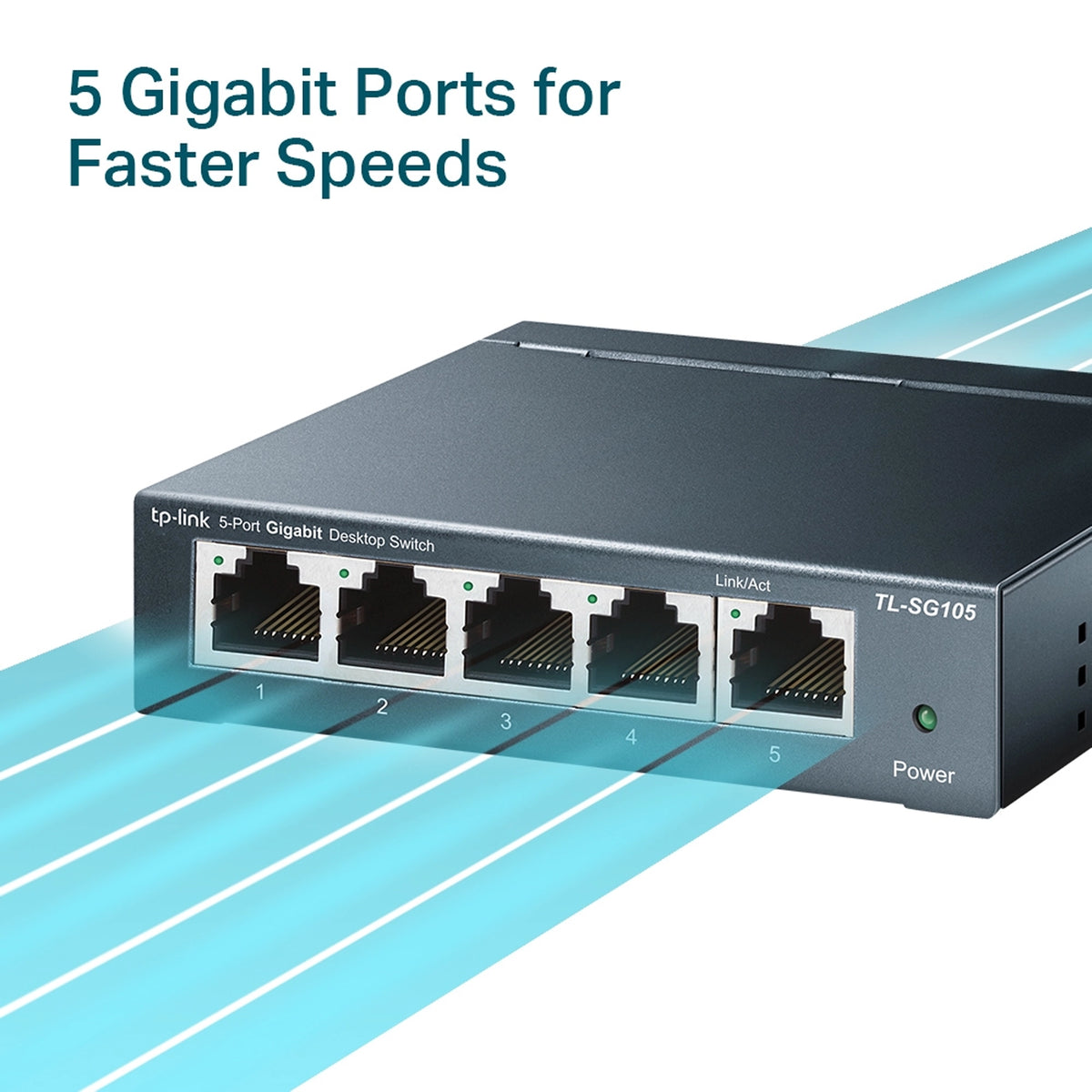

  • 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

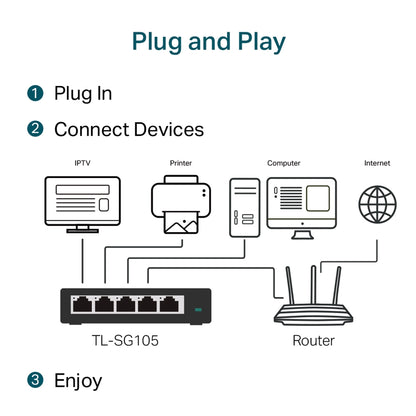

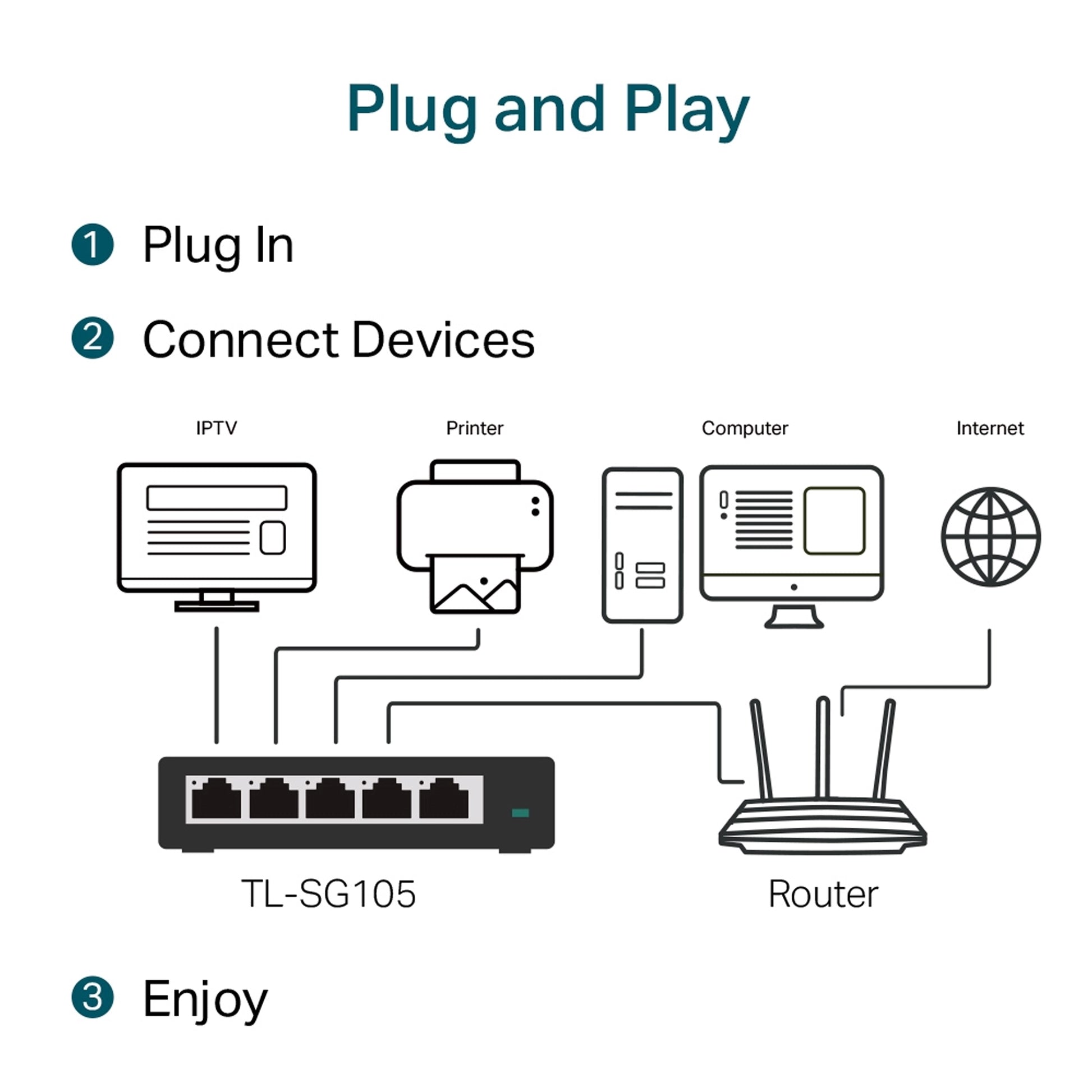

  • Plug and play, no configuration needed

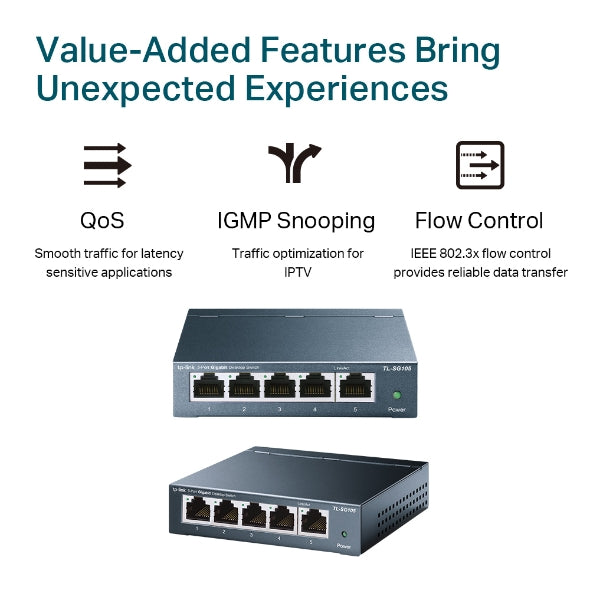

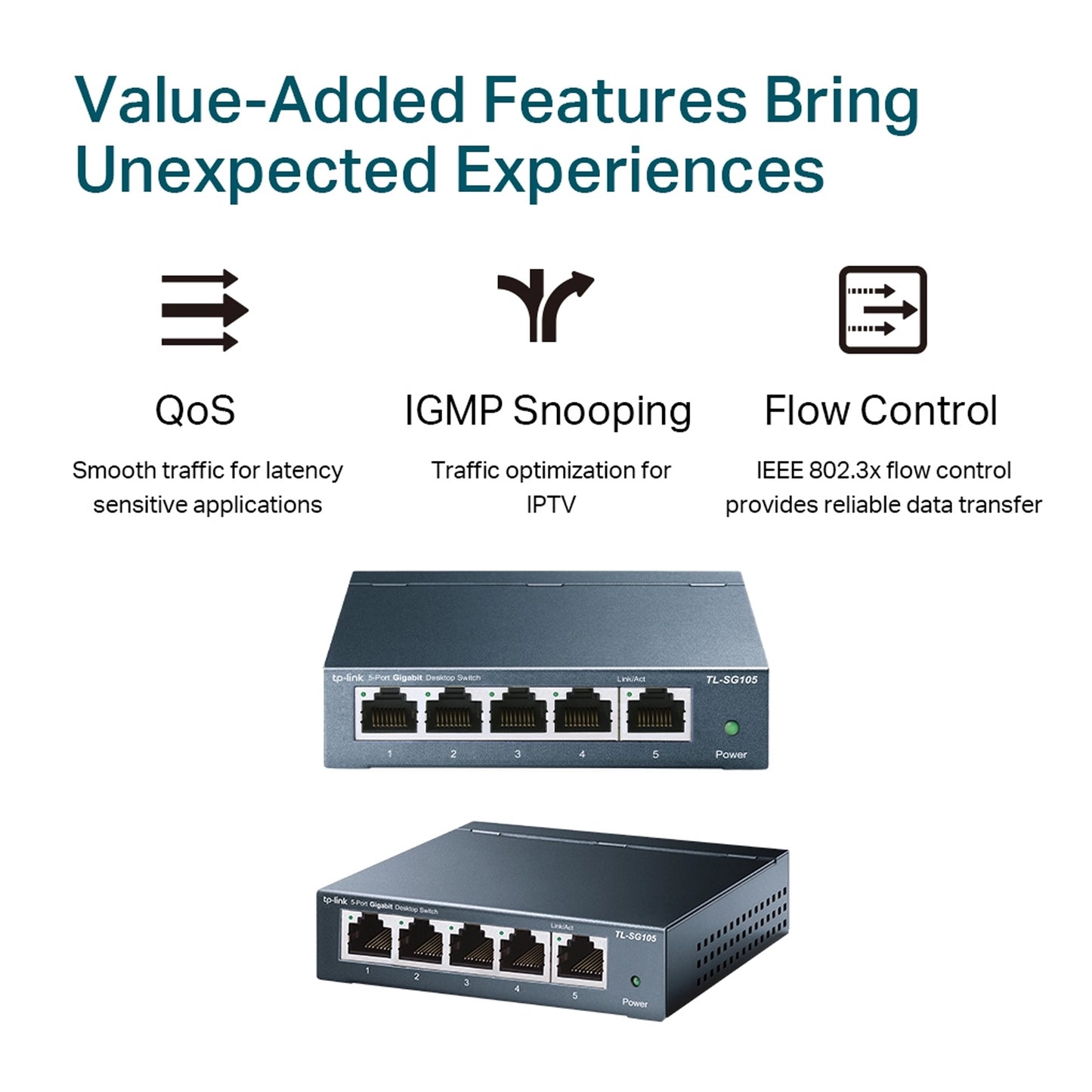

  • Supports 802.1p/DSCP QoS and IGMP Snooping functions

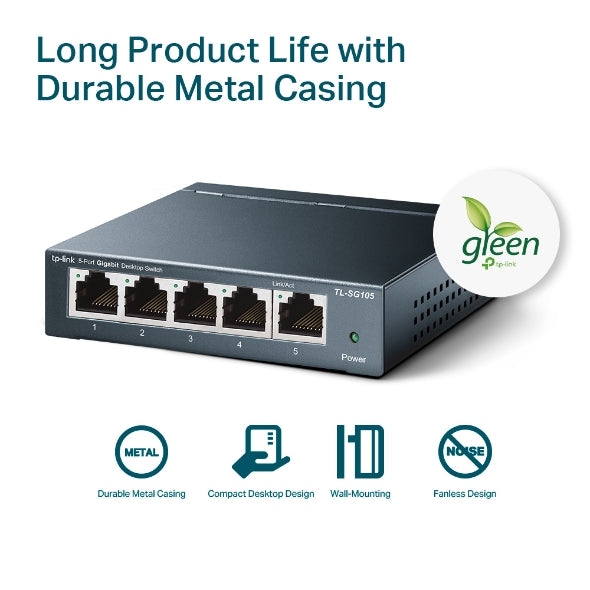

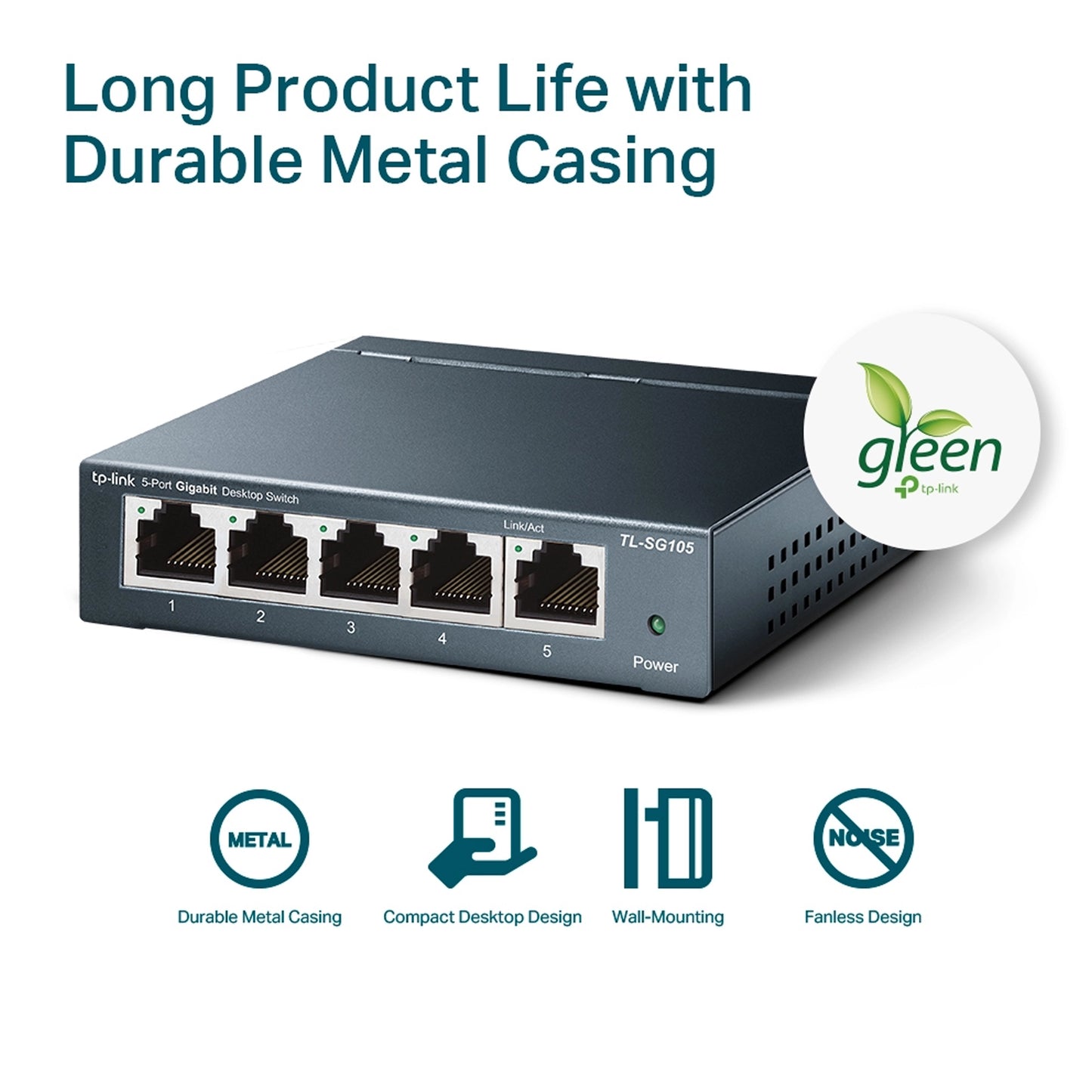

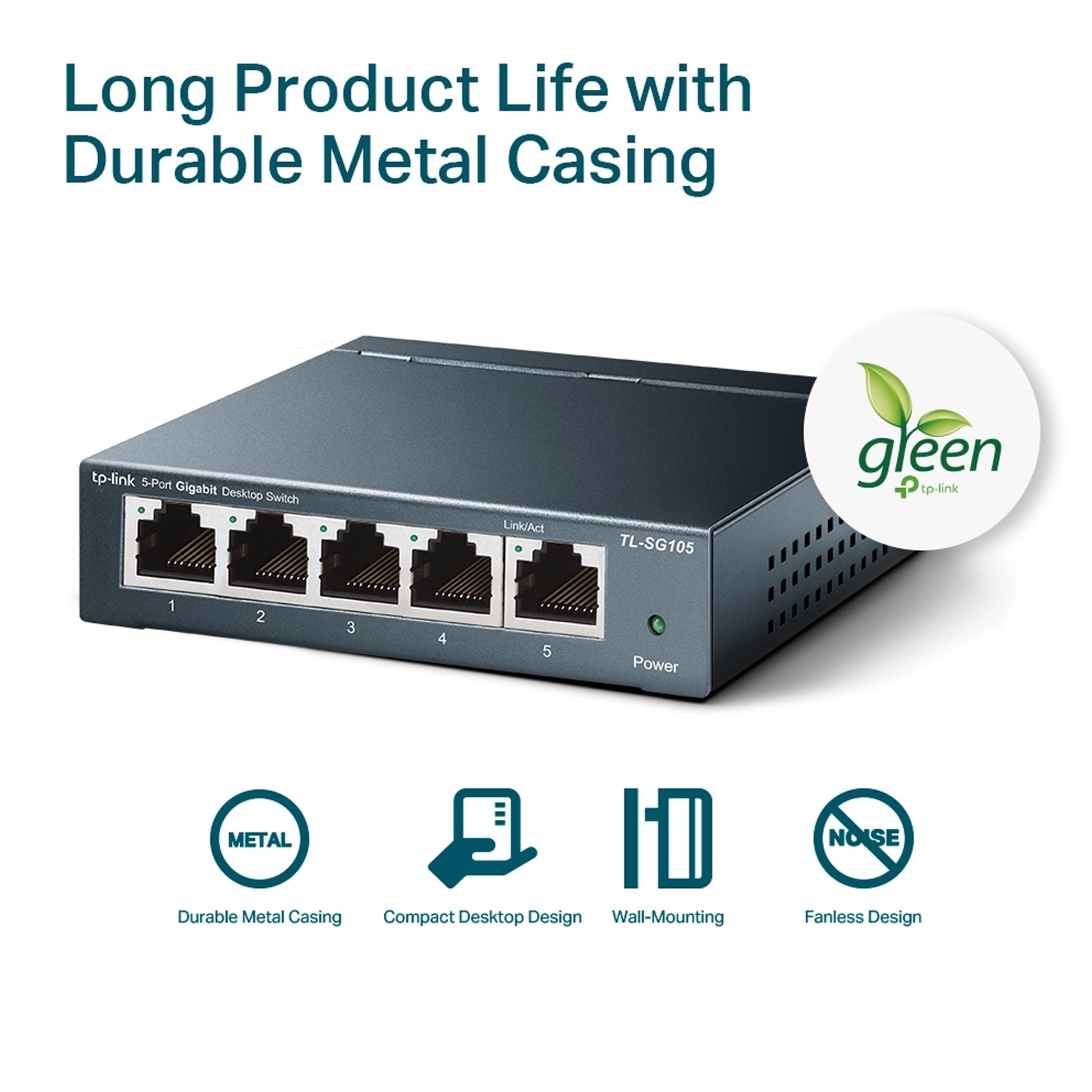

  • Durable metal casing, desktop/wall-mounting options, and a fanless design
  • IEEE 802.3x flow control provides reliable data transfer
  • Green Ethernet technology reduces power consumption

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • HARDWARE FEATURES
  • Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x, IEEE 802.1p
  • Interface: 5× 10/100/1000 Mbps Auto-Negotiation, Auto-MDI/MDIX Ports
  • Fan Quantity: Fanless
  • External Power Supply: 5V DC / 0.6A Power Adapter
  • LED: System Power; Link/Act Indicators per Port (Built into RJ-45 Ports)
  • Dimensions: 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
  • Max Power Consumption: 2.3W (220V / 50Hz)
  • Max Heat Dissipation: 7.83 BTU/h
  • PERFORMANCE
  • Packet Forwarding Rate: 7.4 Mpps
  • MAC Address Table: 2K
  • Packet Buffer Memory: 1 Mb
  • Jumbo Frame: 16 KB
  • SOFTWARE FEATURES
  • Advanced Features: Green Technology, 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping
  • Transmission Method: Store and Forward
  • OTHERS
  • Certification: CE, FCC, RoHS

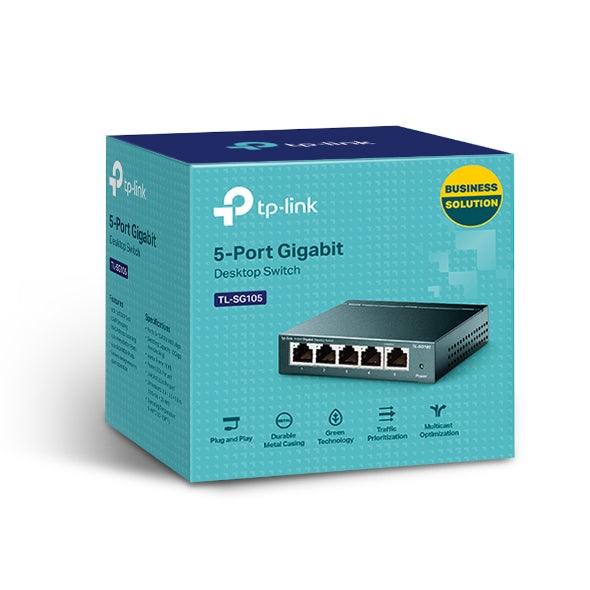

  • Package Content: 5-Port Gigabit Desktop Switch, Power Adapter, Installation Guide
  • Environment: Operating Temp: 0–40°C; Storage Temp: -40–70°C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH
