D53G-5HacD2HnD-TC&FG621-EA
Your best friend when it comes to affordable mobile networks. Amazing in the hands of seasoned system administrators. Or in a household with zero IT skills. Chateau can do it all. For mobile operators who want the best for their clients without breaking the bank.
Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. Not only do they lack features, speed, and power, the designs can get weird with all the black boxes and spiky antennas. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau. It features a purposeful balance of extensive features, accessible pricing, and classy design that will fit right in.
Chateau is a high-speed, dual-band home access point that adapts to your needs. It features a powerful quad-core ARM CPU, a fast, reliable, and responsive CAT6 LTE modem for excellent mobile connectivity, and the most advanced networking software on the market – RouterOS. But don’t worry – it can be as simple or as complex as you want. Chateau is designed to serve the most diverse user groups: IT professionals can push it to its limits, regular households can plug it in and forget it exists. With Chateau, you will always have options.

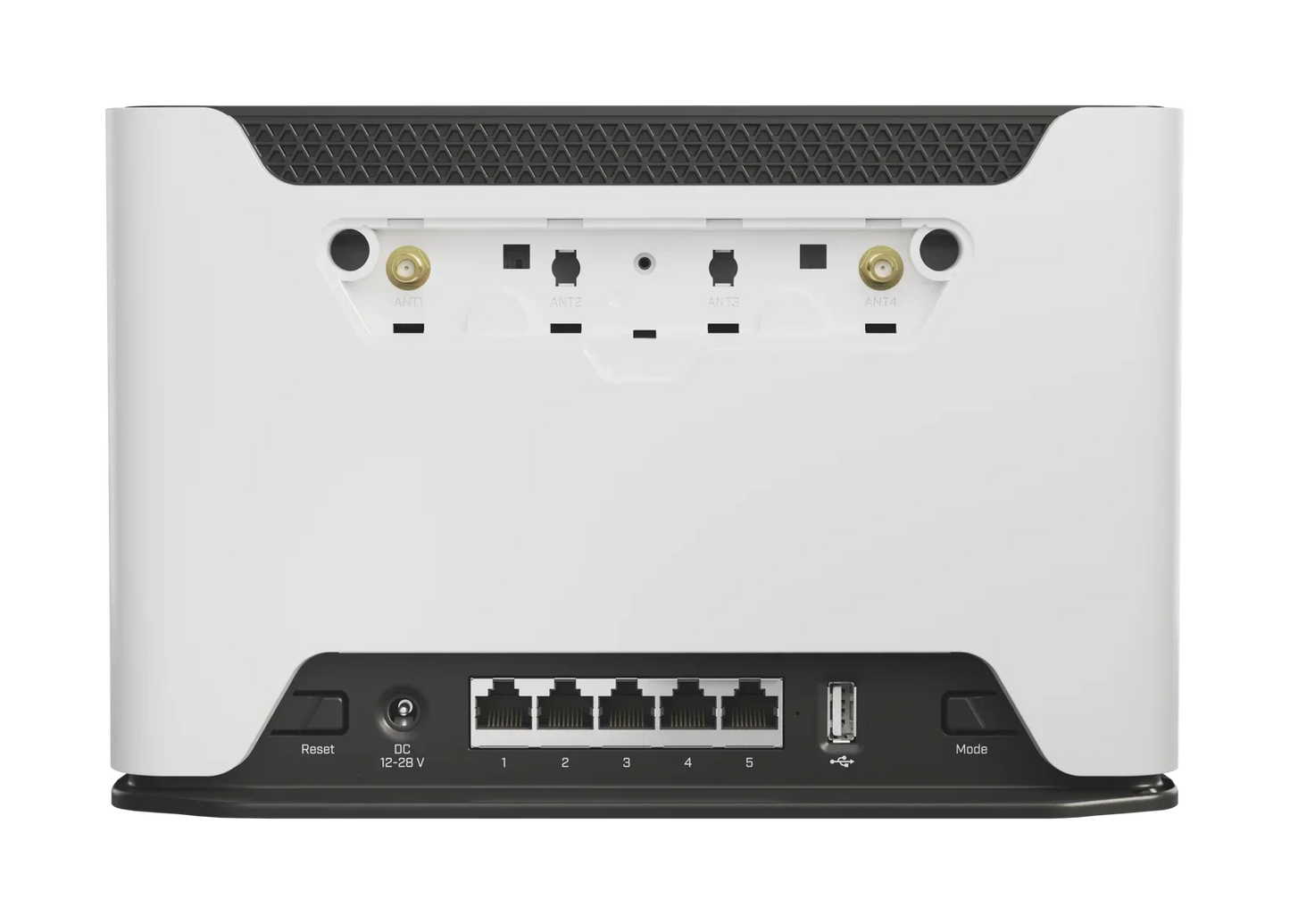

5x Gigabit Ethernet ports can be useful to connect all your home devices (media servers, PC towers, TV’s). You can also keep the LTE as a backup and use the Gigabit Ethernet to connect to a wired ISP for even higher speeds!
Remove the bottleneck in your mobile setup
Do you dream of escaping the hustle and bustle of the city and moving to the countryside? Perhaps you’ve already made the move but are frustrated by the slow internet speeds. Fear not, because Chateau is here to solve all your connectivity problems.
Many rural households are limited by cheap, featureless LTE routers that simply can’t handle the demands of modern internet usage. That’s where Chateau comes in. When the leading mobile operator in Latvia – LMT – replaced their previous client routers with Chateau devices, customer satisfaction went through the roof! Same LTE towers, same data plans, and a brand new Chateau – just like that! What is the point of having brand new phones, excellent LTE coverage, high-end laptops, and so on... if your old router is the bottleneck?
The freedom of LTE
Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.
Specifications
Details | |
---|---|
Product code | D53G-5HacD2HnD-TC&FG621-EA |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 448-896 (auto) MHz |
Switch chip model | IPQ-4019 |
RouterOS license | 4 |
Operating System | RouterOS v7 |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Suggested price | $149.00 |
Wireless capabilities
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2 |
Wireless 2.4 GHz chip model | IPQ-4019 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 4 |
Wireless 5 GHz chip model | IPQ-4019 |
Wireless 5 GHz generation | Wi-Fi 5 |
WiFi speed | AC1200 |
Mobile
Details | |
---|---|
3G Category | R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
3G bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
MIMO DL | 2x2 |
LTE FDD bands | 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
TAC | 86335904 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 5 |
Peripherals
Details | |
---|---|
Number of SIM slots | 1 Modem (Micro SIM) |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Powering
Details | |
---|---|
Number of DC inputs | 1 (DC jack) |
DC jack input Voltage | 12-28 V |
Max power consumption | 21 W |
Max power consumption without attachments | 15 W |
Cooling type | Passive |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | 20 |
Other
Details | |
---|---|
Mode button | Yes |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 26 | -96 |
54MBit/s | 23 | -78 |
MCS0 | 26 | -96 |
MCS7 | 22 | -73 |
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 26 | -96 |
54MBit/s | 22 | -80 |
MCS0 | 26 | -96 |
MCS7 | 21 | -75 |
MCS9 | 19 | -70 |
Included parts
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Click here to download the Datasheet.
