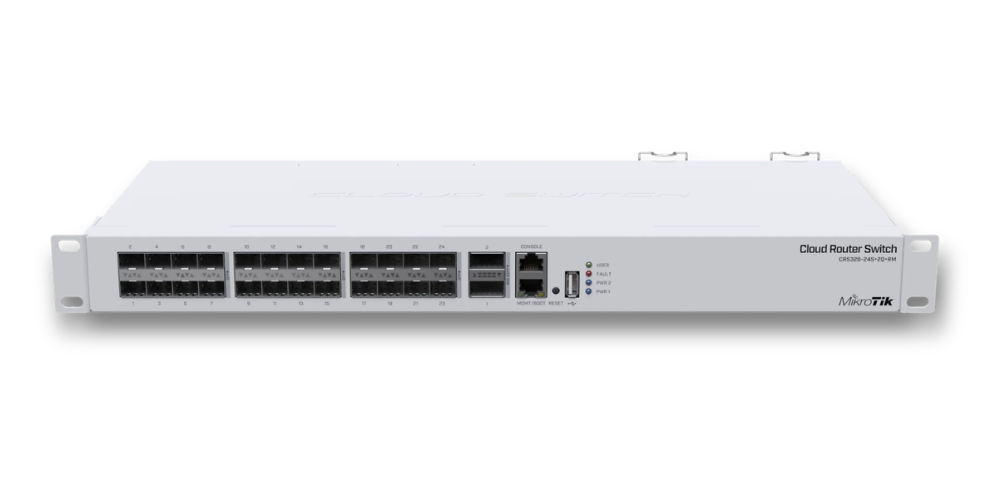

CRS326-24S+2Q+RM

⚠️ Out of stock. Contact Us or Call Us for stock status.
Regular price $741.63 CAD
Sale price $741.63 CAD Regular price
Sale Sold out

Features & Compatibility

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

Click here to download the Datasheet.

Payment methods

Payment methods
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

  • Product Code: CRS326-24S+2Q+RM
  • Architecture: MIPSBE
  • CPU: QCA9531
  • CPU Core Count: 1
  • CPU Nominal Frequency: 650 MHz
  • Switch Chip Model: 98DX8332
  • Dimensions: 443 x 200 x 44 mm
  • RouterOS License: 5
  • Operating System: RouterOS v7 / SwitchOS
  • RAM: 128 MB
  • Storage: 32 MB (FLASH)
  • MTBF: Approximately 200,000 hours @ 25°C
  • Tested Ambient Temperature: -20°C to 60°C
  • Powering:

    AC Inputs: 2
    AC Input Range: 100–240 V
    PSU Slots: 2
    Frequency: 50–60 Hz
    Max Power Consumption: 69 W
    Without Attachments: 42 W
    Cooling Type: 3 fans

  • Ethernet:

    10/100 Ethernet Ports: 1

  • Fiber:

    SFP+ Ports: 24
    40G QSFP+ Ports: 2

  • Peripherals:

    Serial Console Port: RJ45
    USB Ports: 1
    USB Power Reset: Yes
    USB Slot Type: USB Type A
    Max USB Current: 1 A

  • Certification & Approvals:

    Certifications: CE, EAC, ROHS
    IP Rating: IP20
