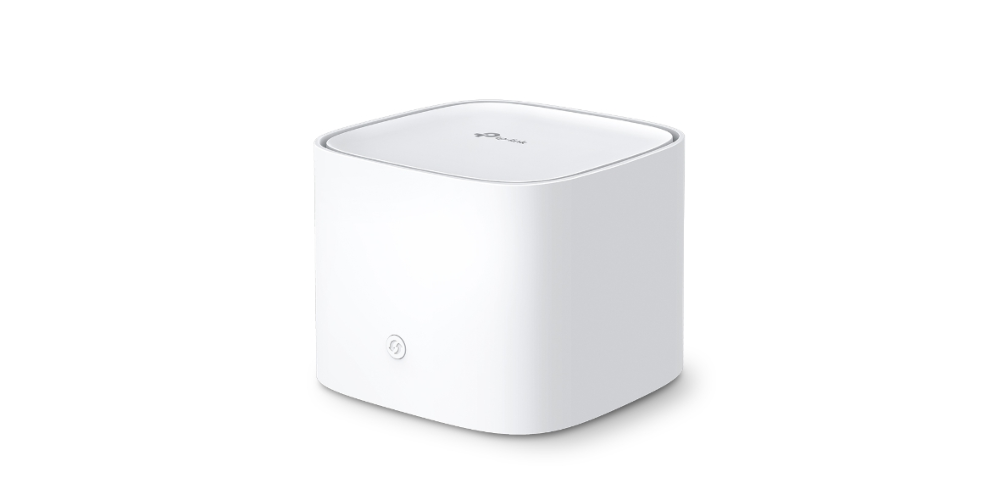

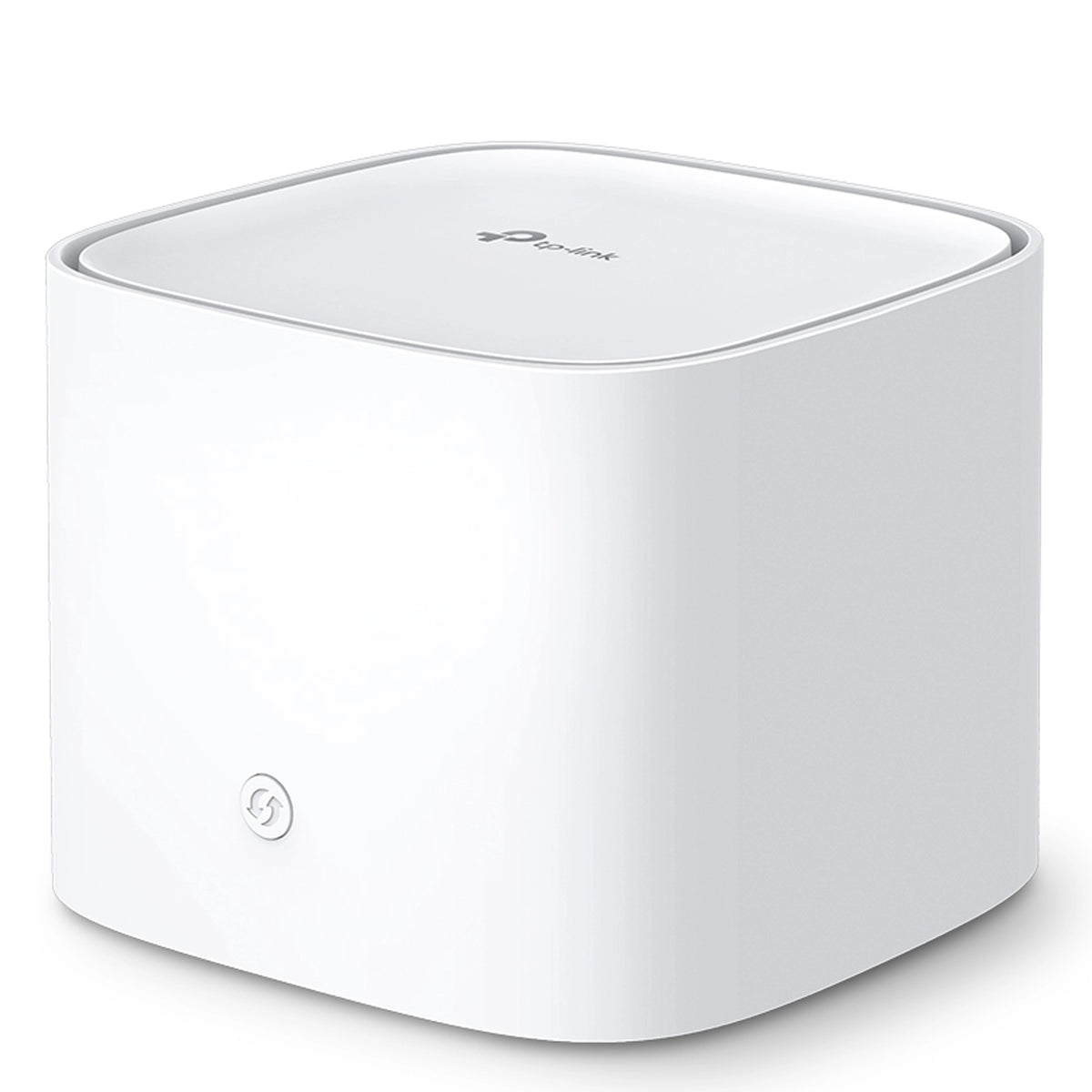

HX510 (1-pack)

Regular price $83.00 CAD
Sale price $83.00 CAD Regular price
Sale Sold out
In stock (47 units), ready to be shipped

AX3000 Whole Home Mesh WiFi 6 AP

Features & Compatibility

  • Dual-Band Wi-Fi 6: Speeds up to 3000 Mbps—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.*
  • Boosted Seamless Coverage: Client Steering & Band Steering intelligently connect devices to the mesh AP with the strongest signal – ensuring connectivity regardless of physical location. A unified wireless network (SSID) is used throughout the whole home – providing a truly seamless wireless experience.
  • Enhanced Security: WPA3 encryption, Multi-SSID, and Parental Controls provide personalized and safer online experience.
  • Wi-Fi CERTIFIED EasyMesh™: Experience strong, stable, and seamless wireless connections  based on standard mesh technology.**
  • Easy Setup: Set up your mesh WiFi in minutes with the powerful Aginet app.
  • Easy Cloud Management:  Compatible with TAUC (TP-Link Aginet Unified Cloud) to allow service providers to manage multiple devices remotely.



Specifications

HARDWARE FEATURES

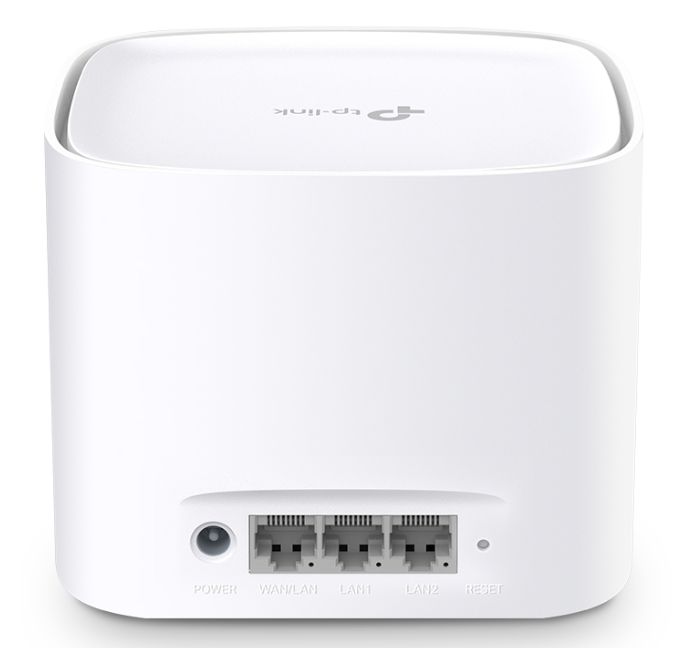

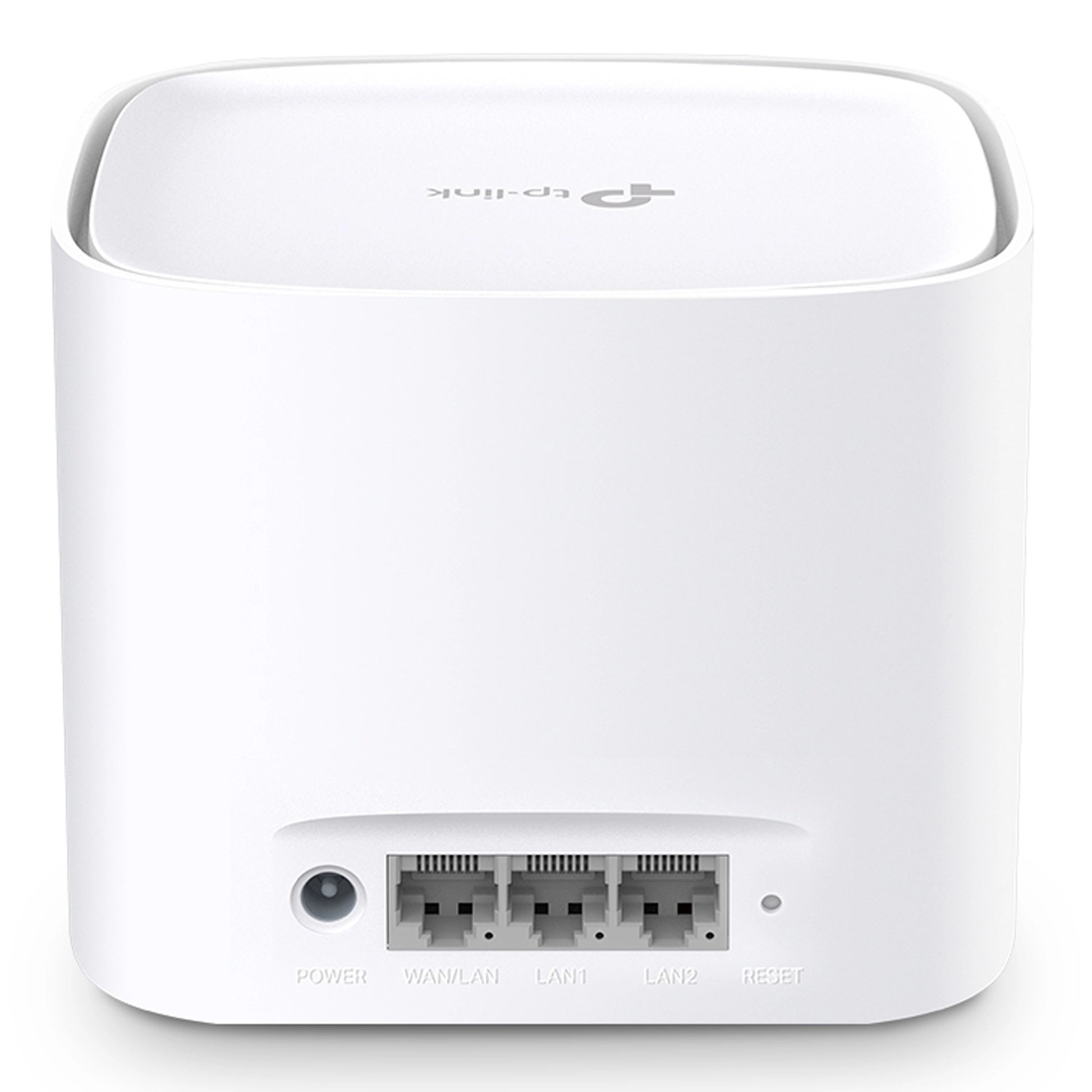

Interface 3 × Gigabit Ports



*Per Unit
1 Port supports WAN/LAN auto-sensing

Button Reset Button
WPS Button
External Power Supply 12 V ⎓ 1.5 A
Dimensions ( W x D x H ) 4.7 x 4.7 x 3.8 in
(120 x 120 x 96.5 mm)
WIRELESS FEATURES
Wireless Standards Wi-Fi 6
IEEE 802.11a/n/ac/ax 5 GHz
IEEE 802.11b/g/n/ax 2.4 GHz
Frequency 2.4 GHz and 5 GHz
Signal Rate AX3000
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Transmit Power FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Wireless Security WPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Multi-SSID 2× 5 GHz Multi-SSID
2× 2.4 GHz Multi-SSID
SOFTWARE FEATURES
Quality of Service WMM
Advanced Features Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
WAN Type Dynamic IP/Static IP/PPPoE
Management Local Management, TAUC Cloud Management
Firewall Security SPI Firewall
Protocols IPv4
IPv6
Working Modes Router Mode
Access Point Mode
OTHERS
Package Contents HX510 (1-pack)
1 HX510 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
Smartphone/Tablet Requirements Android 4.4 or later
iOS 9.0 or later
Certifications CE, FCC, Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED EasyMesh™
Environment Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Additional information

Weight .45 kg
Dimensions 16.5 × 12.7 × 12.7 cm
Brand

TP-Link



Click here to download the Datasheet.
