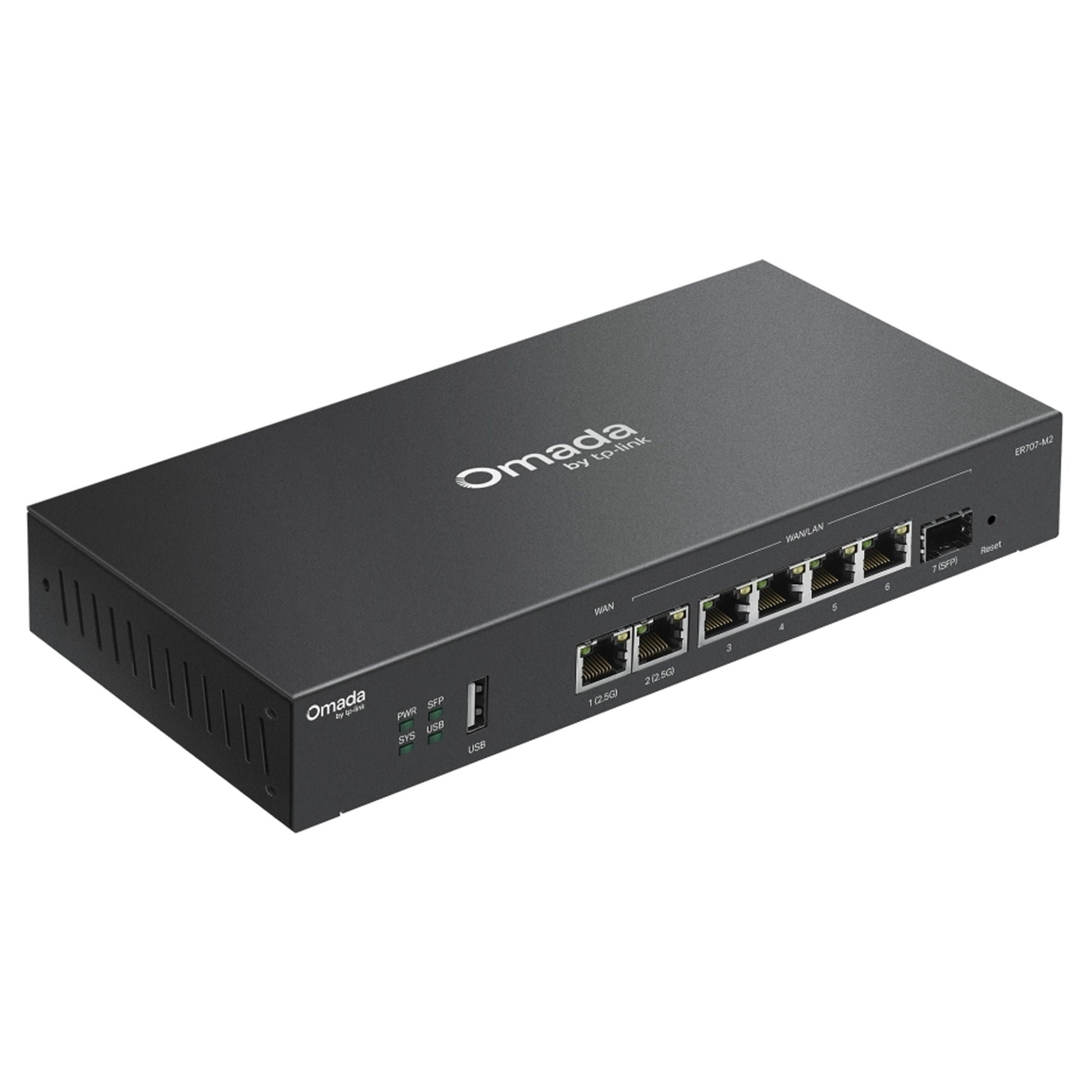

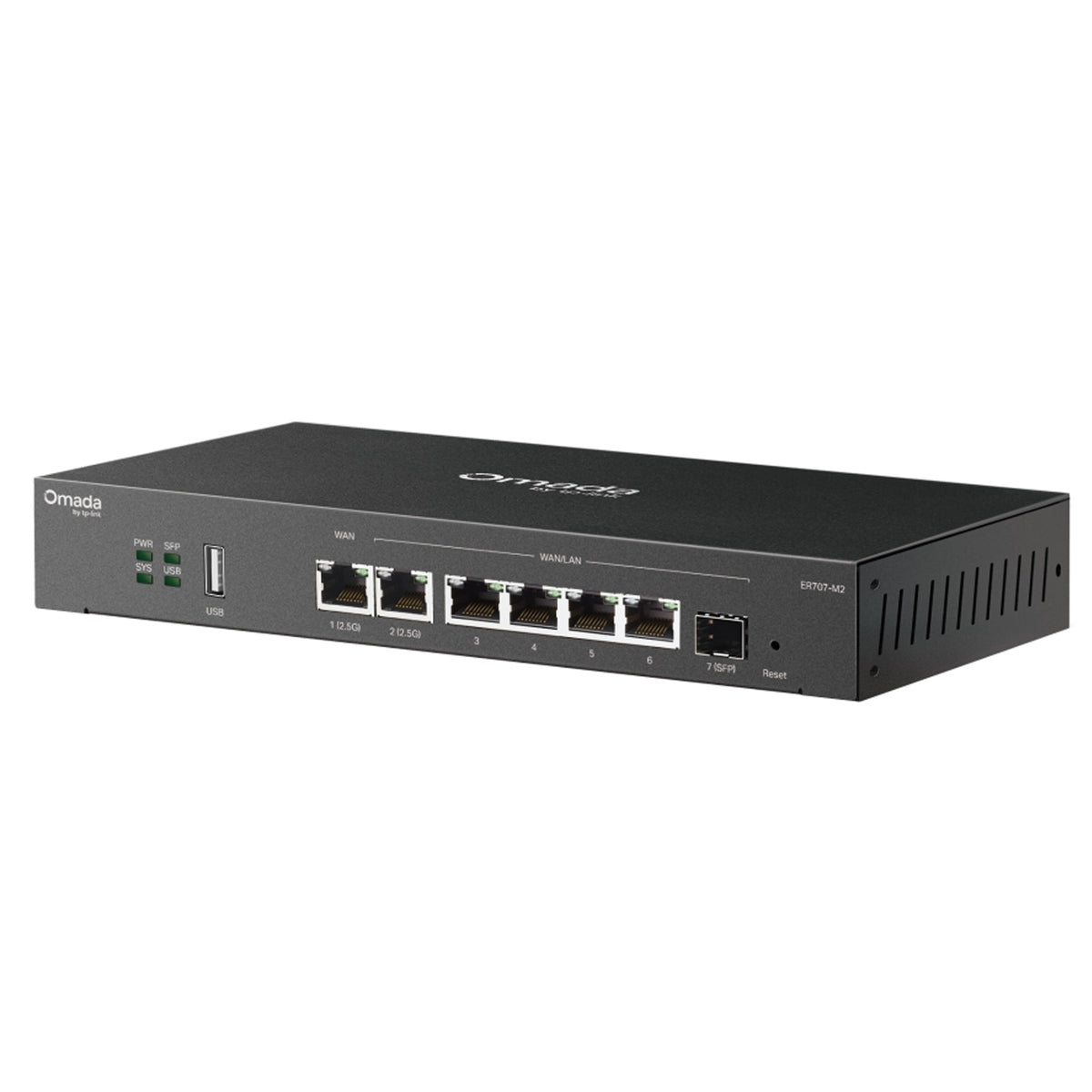

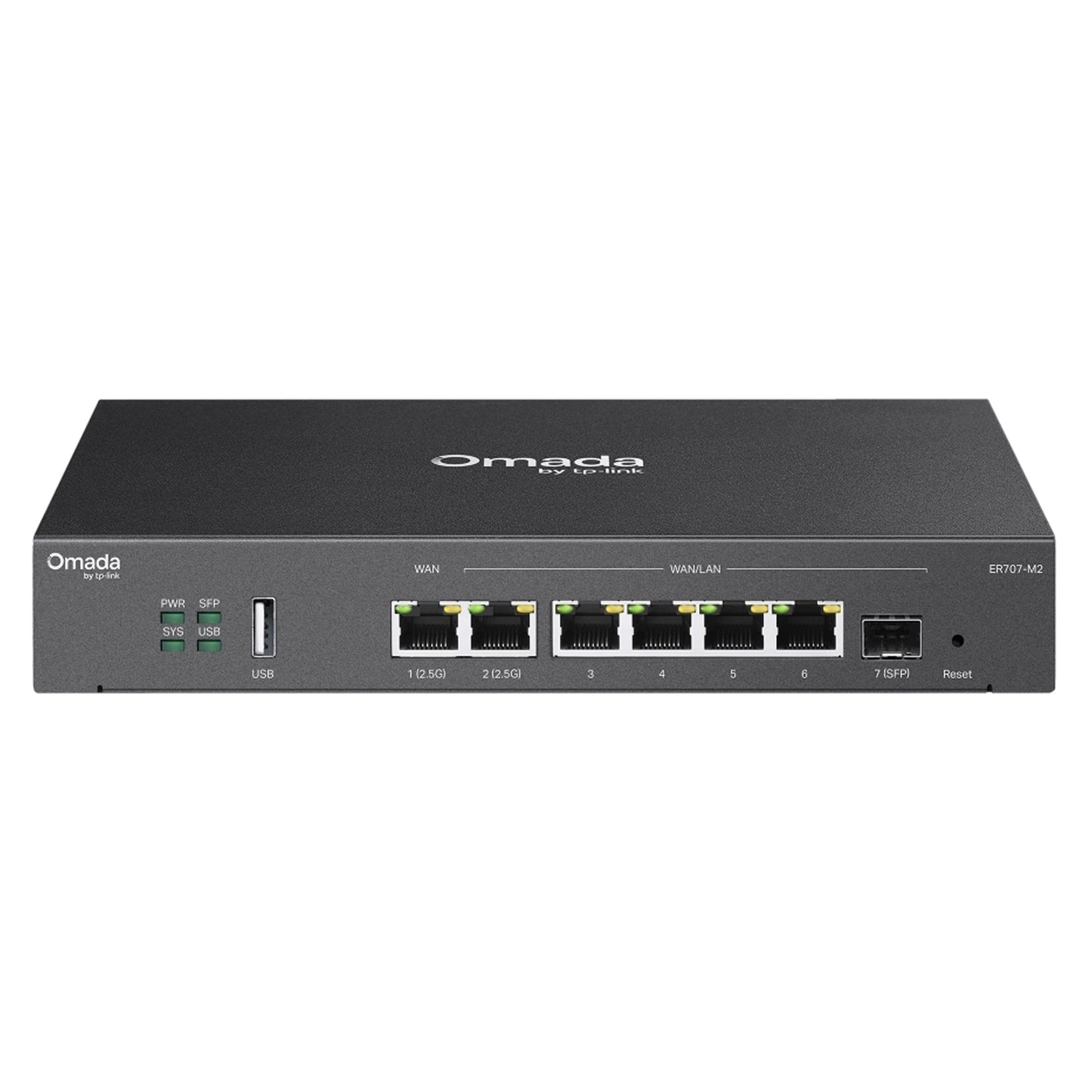

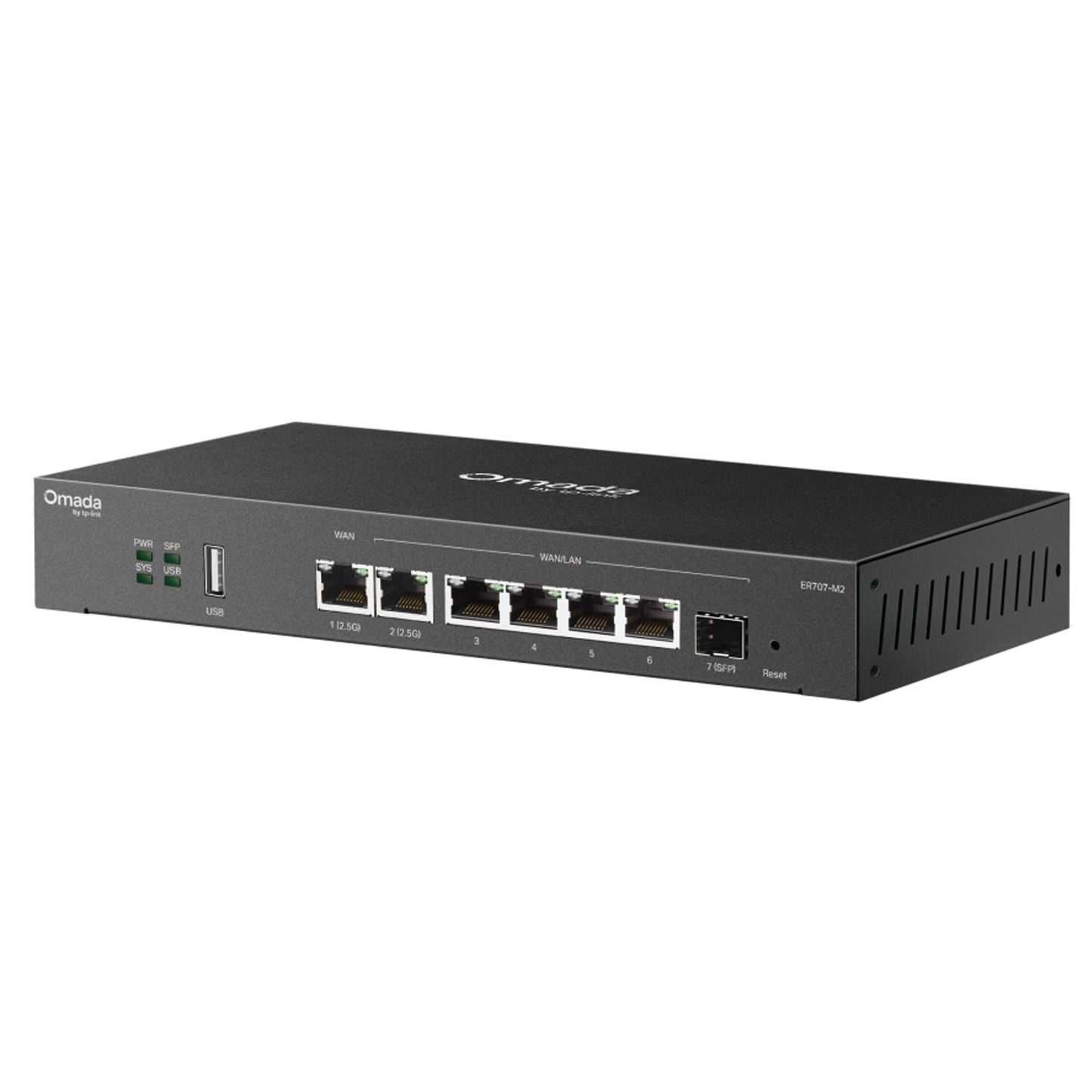

ER707-M2

$199.99 CAD
$199.99 CAD $166.00 CAD
Sale Sold out
In stock (33 units), ready to be shipped

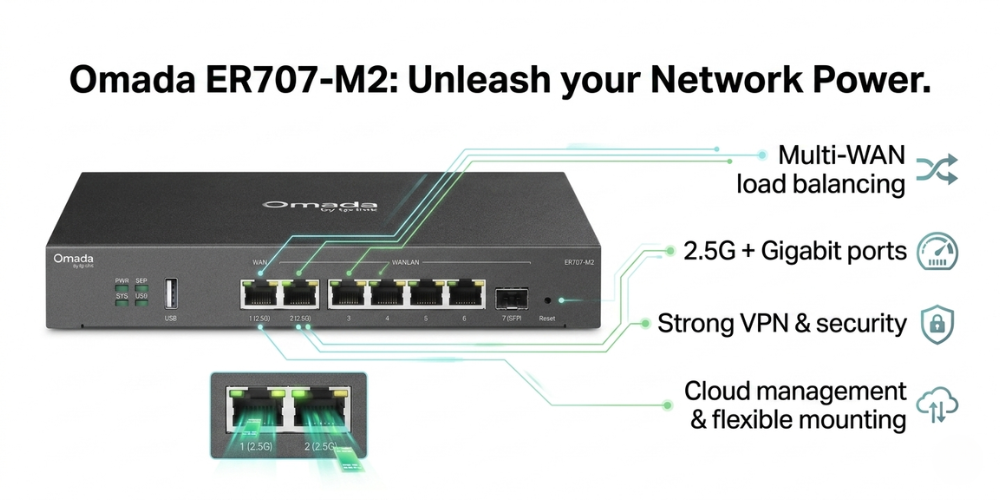

    • Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
    • Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
    • Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
    • Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
    • Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
    • Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
    Download Datasheet

    Payment methods

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

    View Product Details

    Security

    • Access Control: Source/Destination IP Based Access Control
    • DNS Proxy: DNSSEC, DoH, and DoT
    • Filtering:

      Web Group Filtering
      URL Categories and URL Filtering
      Web Security

    • ARP Inspection:

      Sending GARP Packets
      ARP Scanning
      IP-MAC Binding

    • Attack Defense:

      TCP/UDP/ICMP Flood Defense
      Block TCP Scan (Stealth FIN/Xmas/Null)
      Block Ping from WAN

    Hardware Features

    • Standards and Protocols:

      IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q, 802.3bz
      TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN

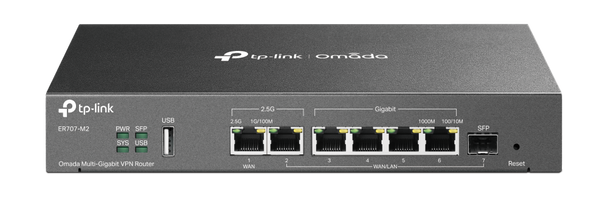

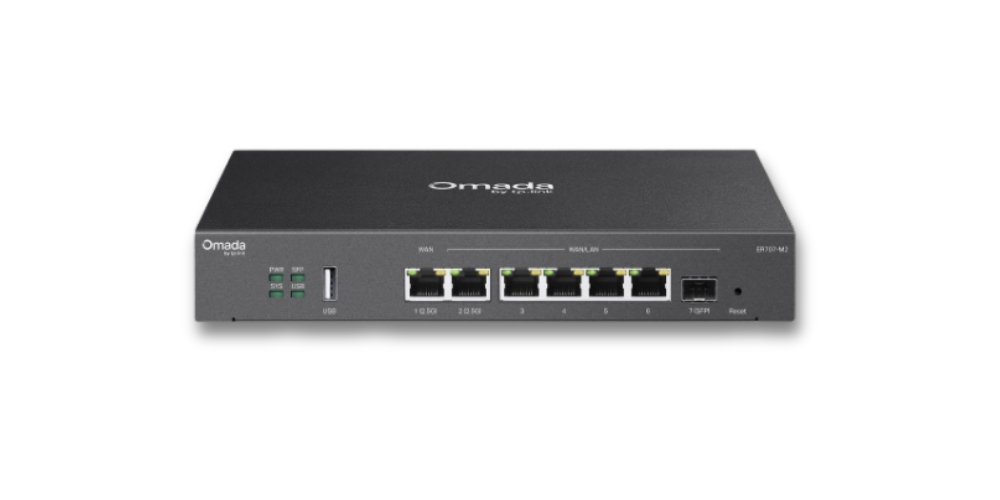

    • Interface:

      1× 2.5G RJ45 WAN Port
      1× 2.5G RJ45 WAN/LAN Port
      1× Gigabit SFP WAN/LAN Port
      4× Gigabit RJ45 WAN/LAN Ports
      1× USB 2.0 Port (Supports USB storage and LTE backup with LTE dongle)

    • Network Media:

      10BASE-T: UTP Cat3/4/5 cable (Max 100 m), STP 100Ω (Max 100 m)
      100BASE-TX: UTP Cat5/5e cable (Max 100 m), STP 100Ω (Max 100 m)
      1000BASE-T: UTP Cat5/5e/6 cable (Max 100 m)
      2500BASE-T: UTP Cat5/5e/6 cable (Max 100 m)

    • Fan Quantity: Fanless
    • Button: Reset Button

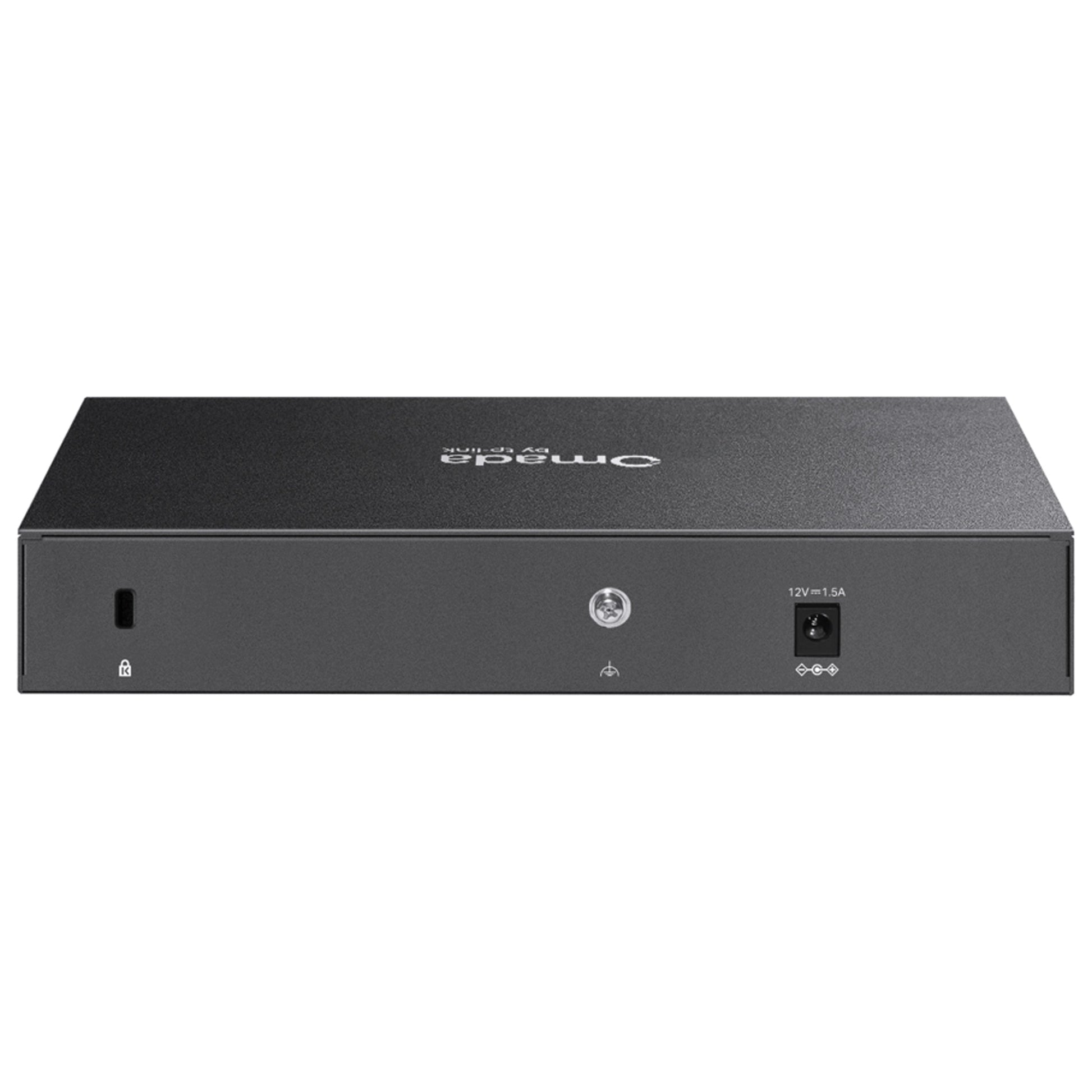

    • Power Supply: 12V/1.5A Adapter
    • Flash / DRAM: 128MB NAND / 1GB DDR4
    • LED Indicators: PWR, SYS, SFP, USB, WAN (Speed/Link/Act), LAN (Speed/Link/Act)
    • Dimensions (W × D × H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
    • Protection: 4 kV surge protection
    • Enclosure: Steel
    • Mounting: Desktop / Wall / Rackmount
    • Max Power Consumption: 14.2 W (with USB 2.0 connected), 7.1 W (without USB 2.0)

    Performance

    • Concurrent Sessions: 500,000
    • New Sessions / Second: 6,000
    • NAT Throughput:

      Static IP: 2365.17 / 2364.45 Mbps
      DHCP: 2364.45 / 2366.04 Mbps
      PPPoE: 2347.14 / 2348.29 Mbps
      L2TP: 1308.86 / 974.10 Mbps
      PPTP: 1236.27 / 1280.99 Mbps

    • Packet Forwarding Rate:

      66 Byte: Upload 1832.69 Mbps / Download 1741.84 Mbps
      1,518 Byte: Upload 2461.18 Mbps / Download 2457.32 Mbps

    • IPsec VPN Throughput:

      ESP-SHA1-AES256: 673.3 Mbps
      ESP-SHA256-AES256: 650.2 Mbps
      ESP-SHA384-AES256: 629.3 Mbps
      ESP-SHA512-AES256: 633.8 Mbps

    • L2TP VPN Throughput: Unencrypted: 1243.7 Mbps / Encrypted: 561.0 Mbps
    • DPI Throughput: TCP: 1823 Mbps / UDP: 1272 Mbps
    • SSL VPN Throughput: 132.24 Mbps
    • IPS Throughput: TCP: 208 Mbps / UDP: 161 Mbps
    • WireGuard VPN Throughput: 343 Mbps

    Basic Functions

    • WAN Connection Types: IPv4 (Static/Dynamic/PPPoE/L2TP/PPTP), IPv6 (PPP, DHCPv6, Static, 6to4, Pass-Through), Mobile Broadband (4G/3G via USB)
    • MAC Clone: Modify WAN/LAN MAC Address
    • DHCP:

      DHCP Server / DHCPv6 PD Server
      DHCP Options Customization
      Address Reservation
      Multi-IP Interfaces / Multi-Net DHCP

    • Stateful ACL: Supported
    • Quality of Service: Supported
    • Bridge VLAN / mDNS Repeater: Supported
    • IPv6 Modes: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address Mode
    • VLAN: 802.1Q VLAN
    • IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

    Advanced Features

    • Advanced Routing: Static Routing, Policy Routing, RIP, OSPF
    • Bandwidth Control: IP/Port-based, Guaranteed & Limited Bandwidth
    • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup (Timing/Failover), Online Detection
    • NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Forwarding, Port Triggering, NAT-DMZ, ALG, UPnP, Disable NAT
    • Session Limit: IP-based

    VPN

    • GRE: Supported (Standalone Mode)
    • SD-WAN: Supported (Controller Mode)
    • SSL VPN: Server, 60 Tunnels
    • IPsec VPN: 100 Tunnels, LAN-to-LAN / Client-to-LAN, IKEv1/v2, DES/3DES/AES, SHA1/SHA2, NAT-T, DPD, PFS
    • PPTP VPN: Server, 12 Clients, 60 Tunnels, MPPE Encryption
    • L2TP VPN: Server, 12 Clients, 60 Tunnels, L2TP over IPSec
    • OpenVPN: Server, 6 Clients, 66 Tunnels
    • WireGuard VPN: Supported

    Authentication

    • No Authentication / Simple Password
    • Hotspot: Local User / Voucher / SMS / Radius
    • External Radius Server, External Portal Server, LDAP

    Management Features

    • Omada App Supported (Requires Omada Controller)
    • Centralized Management: Cloud / Hardware / Software Controller
    • Cloud Access: Supported (Requires Controller)
    • Dynamic DNS: DynDNS, No-IP, Peanuthull, Comexe
    • Maintenance: Web Interface, Remote Management, Export/Import, SNMP, Diagnostics, NTP Sync, Port Mirroring, CLI, Syslog
    • Zero-Touch Provisioning: Supported
    • Additional Features: Automatic Discovery, Network Monitoring, Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Config

    Others

    • Certification: CE, FCC, RoHS
    • Package Content: ER707-M2, Power Adapter, Quick Installation Guide, Rackmount Kit
    • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
    • Environment:

      Operating Temp: 0–40 ℃ (32–104 ℉)
      Storage Temp: -40–70 ℃ (-40–158 ℉)
      Operating Humidity: 10–90% RH non-condensing
      Storage Humidity: 5–90% non-condensing
