• ePMP_4500
1 6

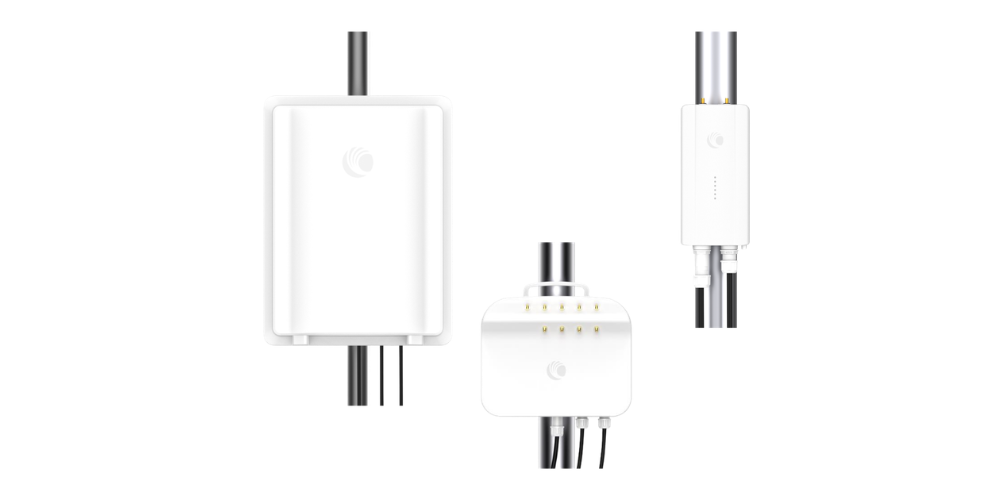

ePMP4500L5GHZ

ePMP4500L 5GHZ

$911.35 CAD
$911.35 CAD
Sale Sold out
In stock (36 units), ready to be shipped

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. ePMP 4500 access points (AP) interoperate with Force 400 Subscriber modules and in the future will support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.

Click here to download the Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

Spectrum

  • Channel Spacing: Configurable in 5 MHz increments
  • 4500 ROW Frequency Range: 4920–6180 MHz
  • 4500 FCC/IC Frequency Range: 5180–5885 MHz
  • 4500C ROW Frequency Range: 4920–6180 MHz
  • 4500C FCC/IC Frequency Range: 5180–5885 MHz
  • 4500L ROW Frequency Range: 4920–6180 MHz
  • 4500L FCC/IC Frequency Range: 4920–5885 MHz
  • Channel Width: 20 / 40 / 80 MHz

Interface

  • MAC (Media Access Control) Layer: Cambium Proprietary
  • Proprietary Physical Layer:

    ePMP 4500 and 4500C: 8x8 MU-MIMO/OFDMA based on 802.11ax
    ePMP 4500L: 2x2 MIMO/OFDMA based on 802.11ax

Performance

  • ARQ: Yes
  • Nominal Receive Sensitivity (20 MHz): MCS0 = -91 dBm to MCS13 (4096 QAM-5/6) = -62 dBm (per chain)
  • Nominal Receive Sensitivity (40 MHz): MCS0 = -88 dBm to MCS13 (4096 QAM-5/6) = -59 dBm (per chain)
  • Nominal Receive Sensitivity (80 MHz): MCS0 = -85 dBm to MCS13 (4096 QAM-5/6) = -57 dBm (per chain)
