SKU: ePMP4500L5GHZ

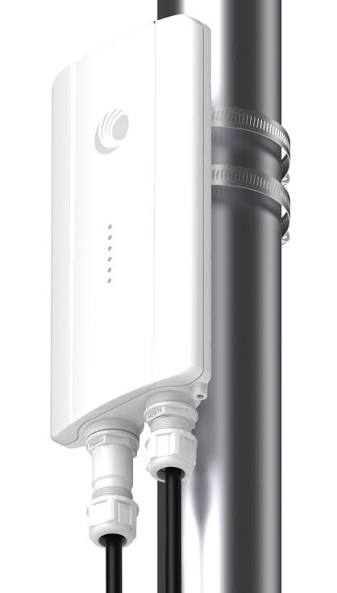

ePMP4500L 5GHZ
⚠️
Out of stock.
Contact Us
or
Call Us
for stock status.
Regular price
$911.35 CAD
Sale price
$911.35 CAD
Regular price
Unit price
/
per
Sale
Sold out
Re-stocking soon
Couldn't load pickup availability

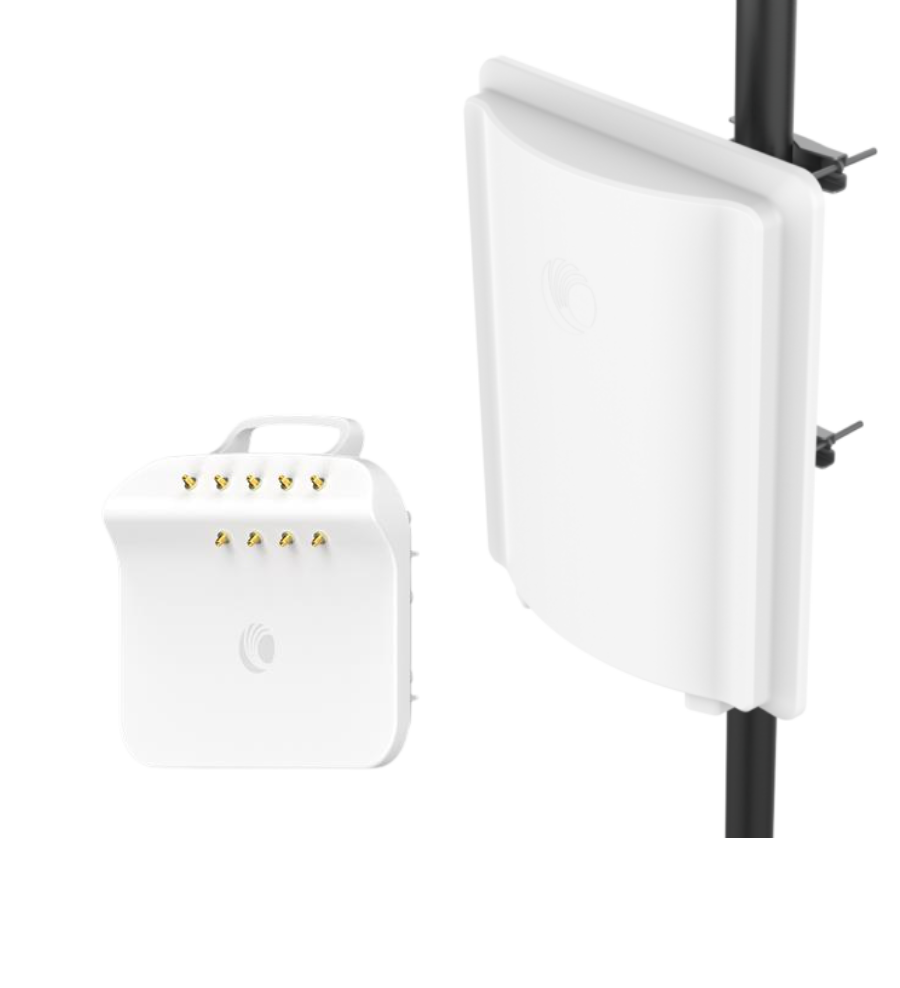

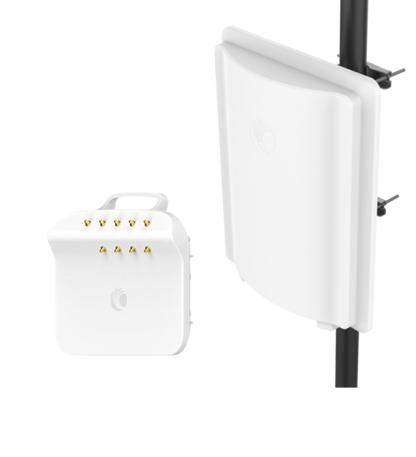

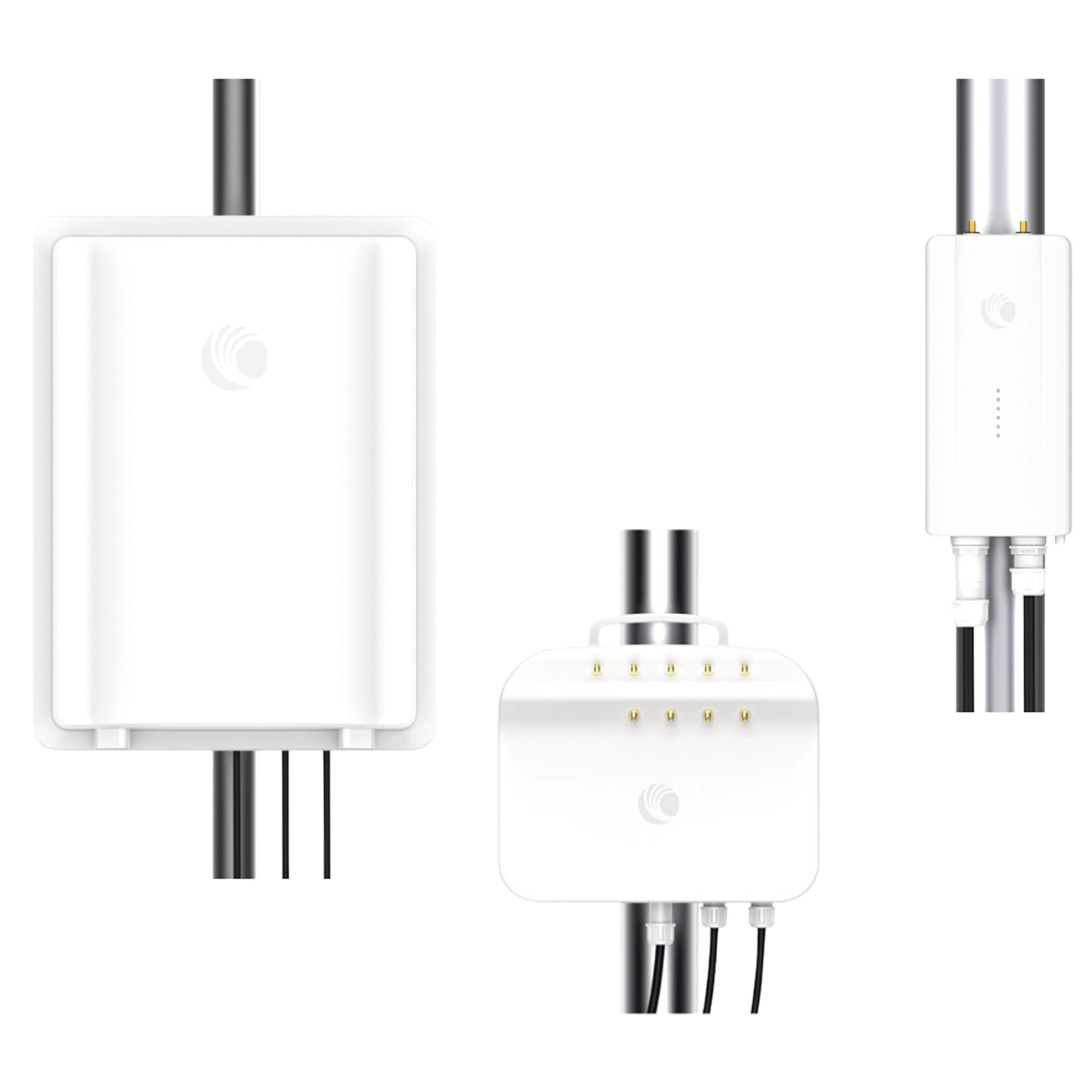

Cambium Networks’ ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. ePMP 4500 access points (AP) interoperate with Force 400 Subscriber modules and in the future will support backward compatibility to Force 300 Subscriber modules. A sophisticated scheduling and QoS engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.
Click here to download the Datasheet
Payment methods
Payment methods-
Vendor:
cambium Networks
Specifications
Spectrum
- Channel Spacing: Configurable in 5 MHz increments
- 4500 ROW Frequency Range: 4920–6180 MHz
- 4500 FCC/IC Frequency Range: 5180–5885 MHz
- 4500C ROW Frequency Range: 4920–6180 MHz
- 4500C FCC/IC Frequency Range: 5180–5885 MHz
- 4500L ROW Frequency Range: 4920–6180 MHz
- 4500L FCC/IC Frequency Range: 4920–5885 MHz
- Channel Width: 20 / 40 / 80 MHz
Interface
- MAC (Media Access Control) Layer: Cambium Proprietary
- Proprietary Physical Layer:
ePMP 4500 and 4500C: 8x8 MU-MIMO/OFDMA based on 802.11ax
ePMP 4500L: 2x2 MIMO/OFDMA based on 802.11ax
Performance
- ARQ: Yes
- Nominal Receive Sensitivity (20 MHz): MCS0 = -91 dBm to MCS13 (4096 QAM-5/6) = -62 dBm (per chain)
- Nominal Receive Sensitivity (40 MHz): MCS0 = -88 dBm to MCS13 (4096 QAM-5/6) = -59 dBm (per chain)
- Nominal Receive Sensitivity (80 MHz): MCS0 = -85 dBm to MCS13 (4096 QAM-5/6) = -57 dBm (per chain)
