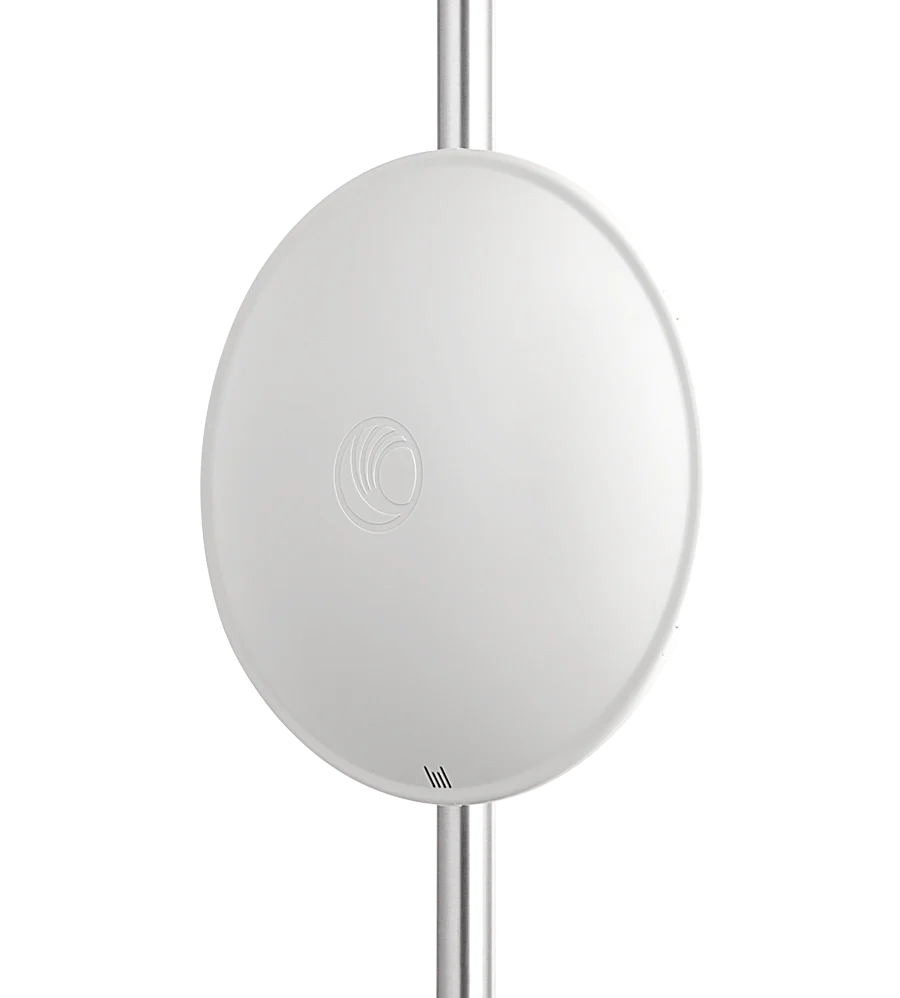

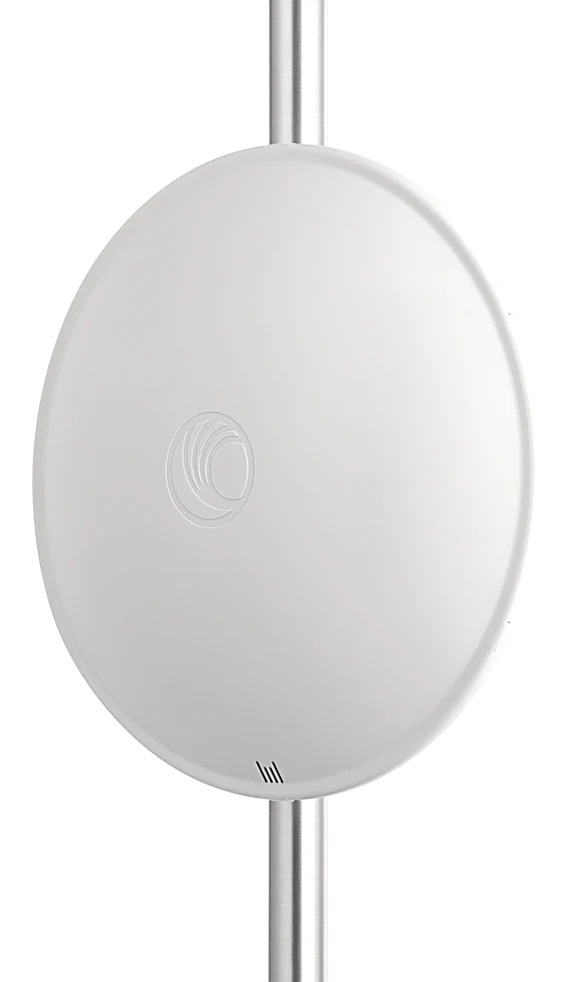

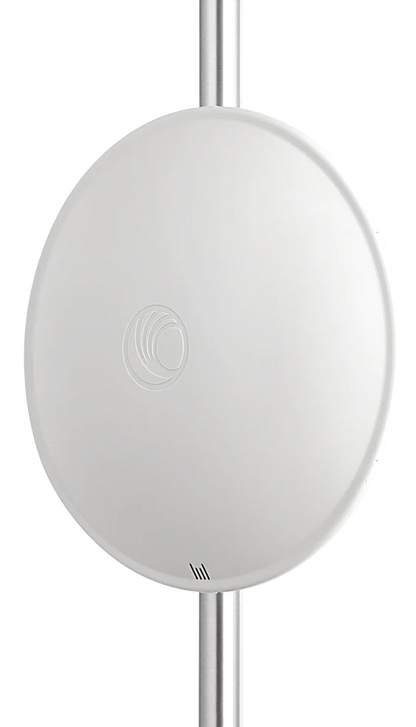

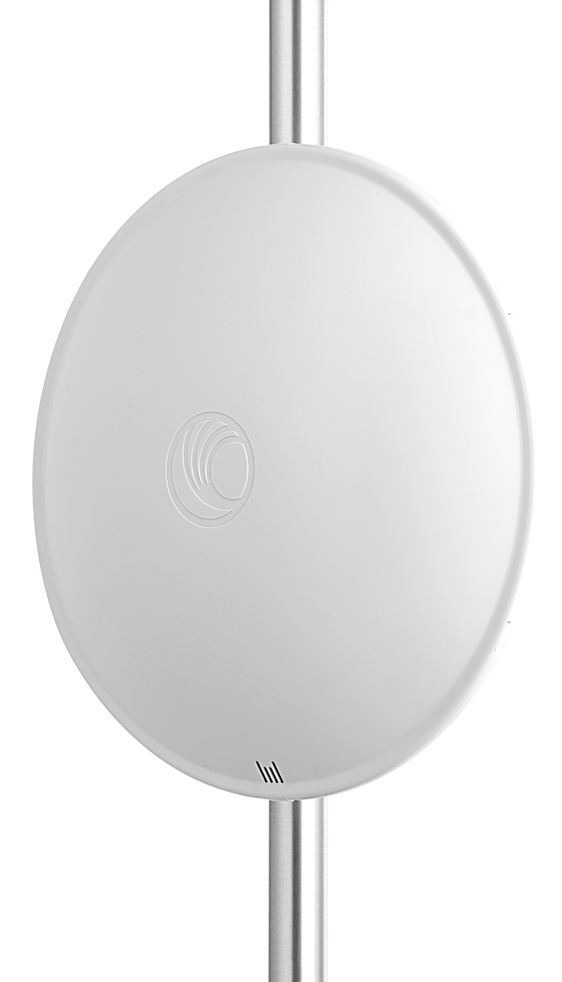

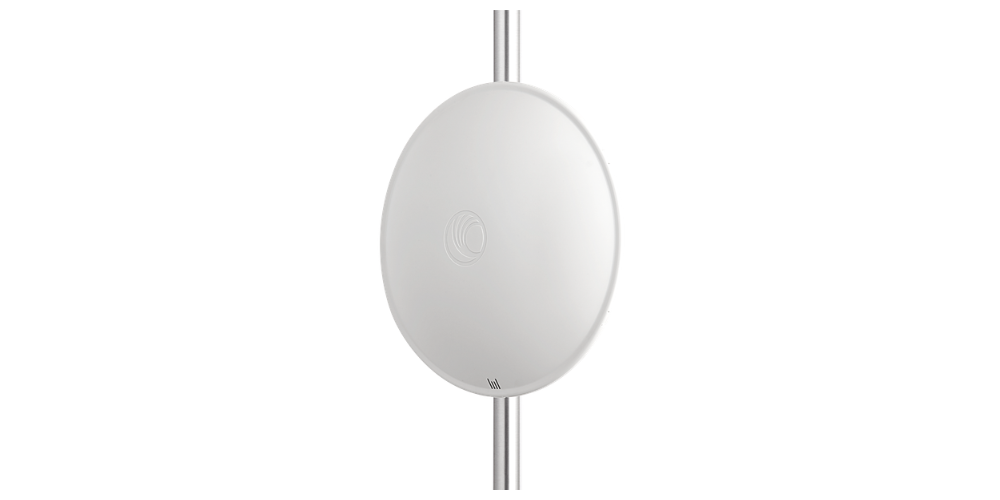

ePMP Force 200

$218.28 CAD
$218.28 CAD
Sale Sold out
In stock (62 units), ready to be shipped

The ePMP™ Force 200 5 GHz adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products and provides superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 25 dBi antenna. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.



Click here to download the Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

Spectrum

  • Channel Spacing: Configurable in 5 MHz increments
  • Frequency Range: 4910 – 5970 MHz (5 GHz Model)
  • Channel Width: 5 / 10 / 20 / 40 MHz

Interface

  • MAC Layer: Cambium Proprietary
  • Physical Layer: 2x2 MIMO/OFDM
  • Ethernet Interface: 10/100/1000 BaseT, PoE Supported
  • Protocols: IPv4/IPv6, UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
  • Network Management: HTTPs, SNMPv2c, SSH, CnMaestro™
  • VLAN: 802.1Q with 802.1p priority

Performance

  • ARQ: Supported
  • Receive Sensitivity (20 MHz): -92 dBm to -68 dBm
  • Receive Sensitivity (40 MHz): -89 dBm to -65 dBm
  • Modulation: BPSK to 64QAM (MCS0 – MCS15)
  • QoS: 3-Level Priority (Voice, High, Low)
  • Transmit Power: -15 to +30 dBm

Physical

  • Surge Protection: 1 Joule Integrated
  • Enclosure: IP55 Rated
  • Temperature: -30°C to +60°C
  • Weight: 2.3 kg
  • Wind Resistance: Up to 145 km/h
  • Dimensions: 47 cm x 28 cm
  • Pole Mount: 6.4 – 7.6 cm Diameter
  • Power Consumption: 10W Max / 5W Typical
  • Input Voltage: 10 – 30 V

Security

  • Encryption: 128-bit AES (CCMP)

Certifications

  • FCC ID: Z8H89FT0015
  • Industry Canada: 109W-0015
  • CE: EN 301 893, EN 302 502
