ePMP 6 GHz Force 4600C

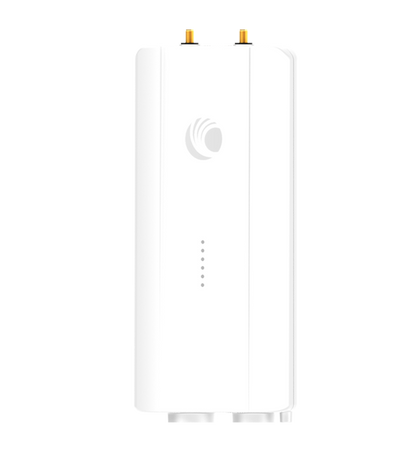

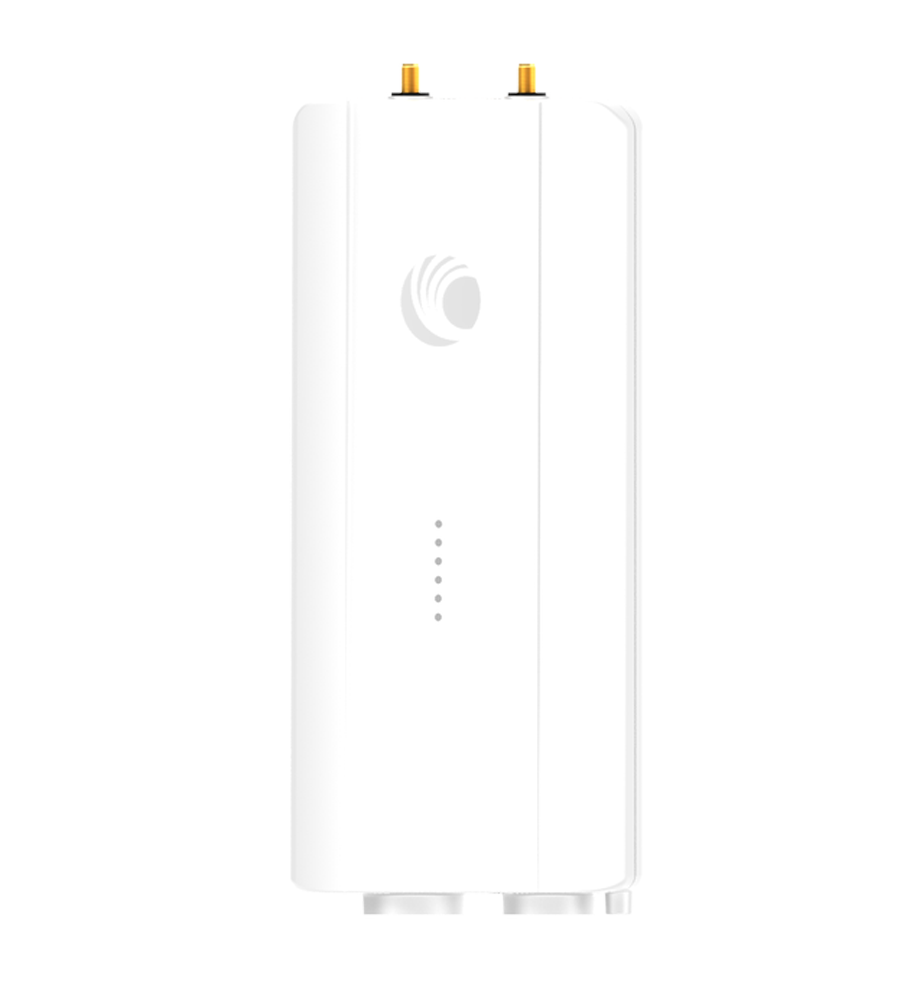

Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4600 series of 6 GHz subscriber modules (SM) meets this demand offering high performance and low latency across both PMP and PTP deployments. The Force 4600 Series of SM’s is available in two form factors: the Force 4600C connectorized with 2 x RP-SMA connectors and the Force 4625 integrated with a 25 dBi dish antenna.

The Force 4600C offers higher capacity and higher modulation. An optional range extender is ordered separately and can be assembled and attached in the field increasing gain to 28 dBi. This extender adds additional link budget and fade margin for challenging links or to move to higher capacity where needed and higher modulations can be achieved..

Both models include the following:

• High capacity and latencies less than 5 ms when using ePTP technology.
  Proven air interface on top of 802.11ax technology
• Interoperability with the ePMP 4600 Series AP which uses MU-MIMO to achieve more than 4 Gbps per sector by transmitting to two ePMP 4600 Series SM’s simultaneously.
• Security features meeting the requirements of enterprise, industrial, government and service provider users.

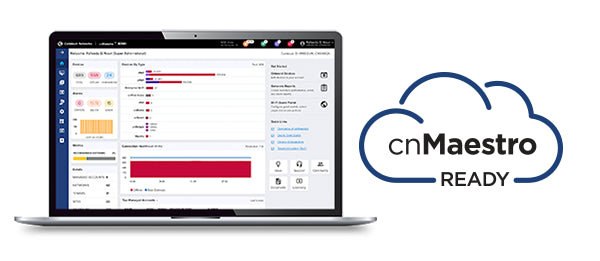

  Management by Cambium Networks cnMaestro™ management system for easy provisioning, monitoring and upgrades.
• Network planning with LINKPlanner and cnHeat.
• 3-year hardware warranty and support from Cambium Networks.
• Each SM comes with a Power over Ethernet injector and pole mount hardware included.
