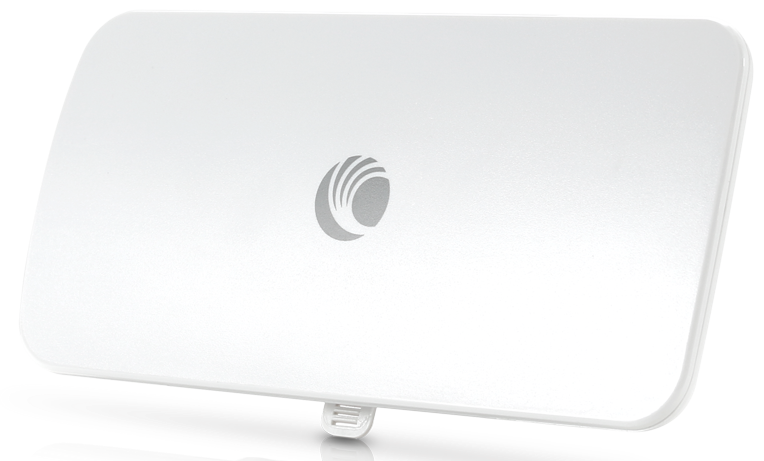

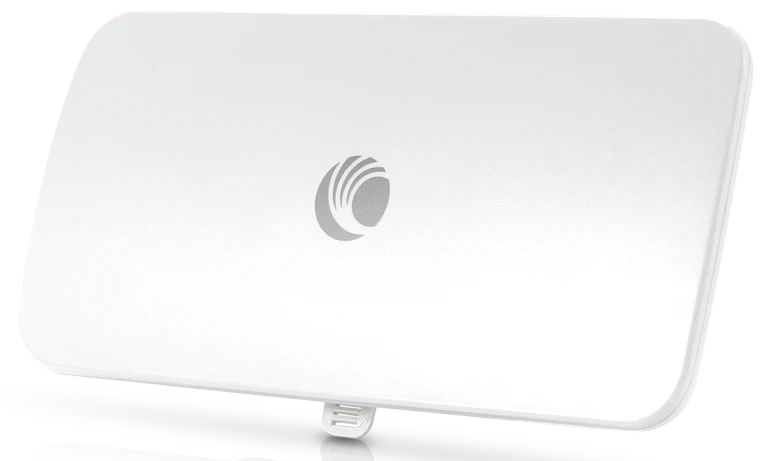

ePMP 5GHz Force 300-16 RADIO

$295.35 CAD
$295.35 CAD
Sale Sold out
In stock (51 units), ready to be shipped

Force 300-16 continues the tradition of previous products with a horizontal orientation mount providing a 15 degree beamwidth and 16 dBi gain.

The F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference. Supporting peak throughput greater than 500 Mbps, the Force 300-16 also supports an always on spectrum analyzer.

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Specifications

Spectrum

  • Channel Spacing: Configurable in 5 MHz increments
  • Frequency Range: Wide band operation from 4910 – 5970 MHz

    (Allowable frequencies depend on country regulations)
  • Channel Width: 20 / 40 / 80 MHz

Interface

  • MAC (Media Access Control) Layer: Cambium
  • Proprietary Physical Layer: 2x2 MIMO / OFDM
  • Ethernet Interface: 10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts
  • Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
  • Network Management: IPv4/IPv6, HTTPS, SNMPv2c, SSH, Cambium Networks CnMaestro™
  • VLAN: 802.1Q with 802.1p priority

Performance

  • ARQ: Yes
  • Nominal Receive Sensitivity (20 MHz):
    MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain)
  • Nominal Receive Sensitivity (40 MHz):
    MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain)
  • Nominal Receive Sensitivity (80 MHz):
    MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain)
  • Modulation Levels: Adaptive MCS0 (BPSK) to MCS9 (256 QAM-5/6)
  • Transmit Power Range: 0 to +29 dBm (combined), adjustable in 1 dB steps (subject to regional EIRP limits)
