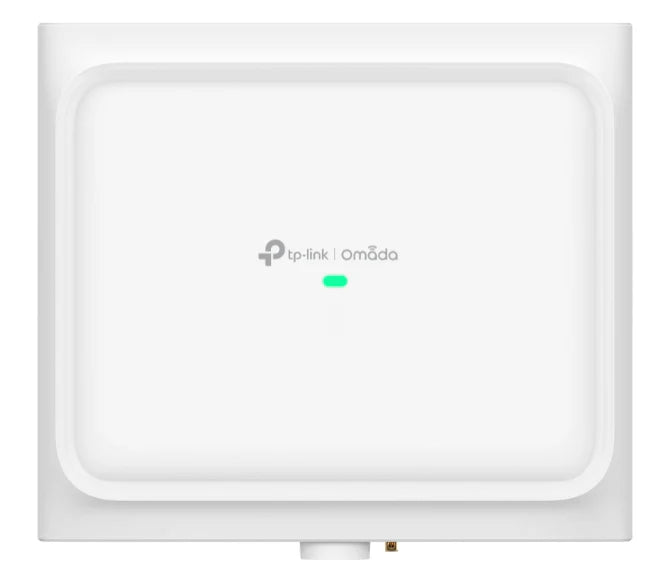

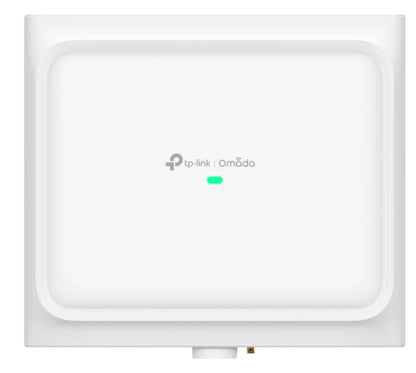

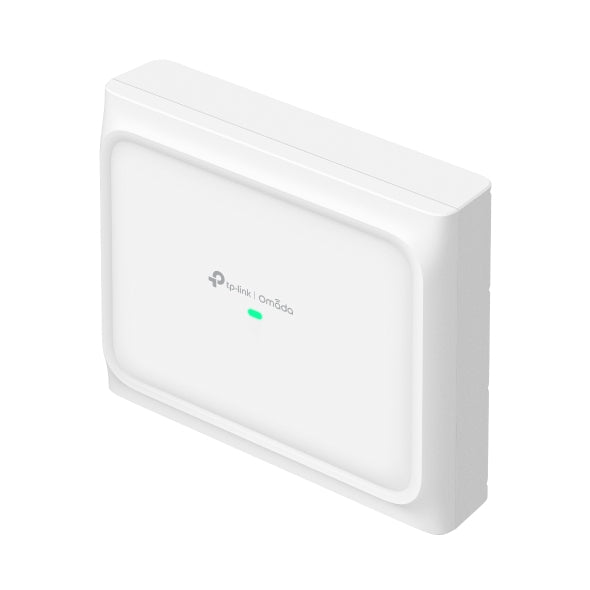

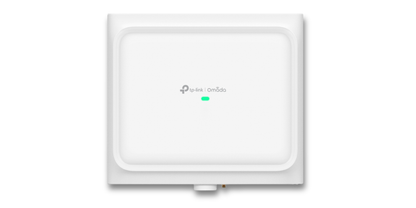

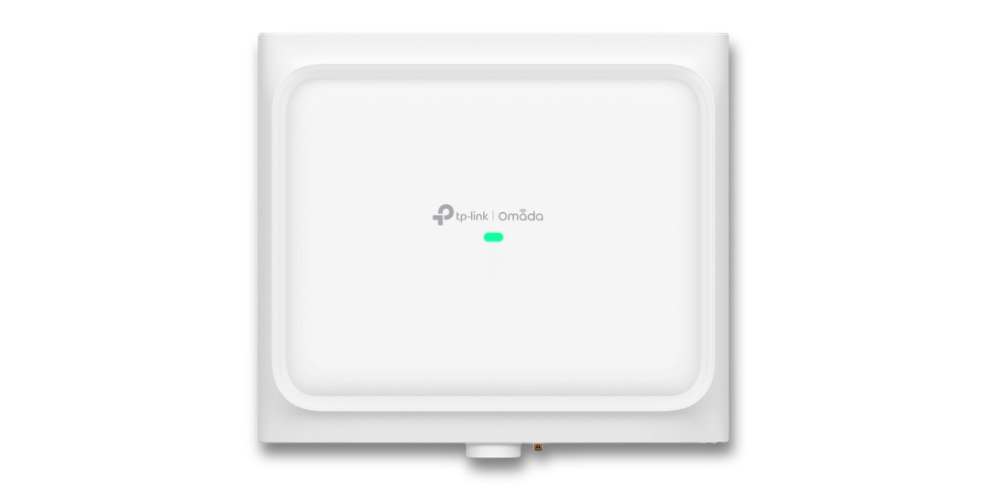

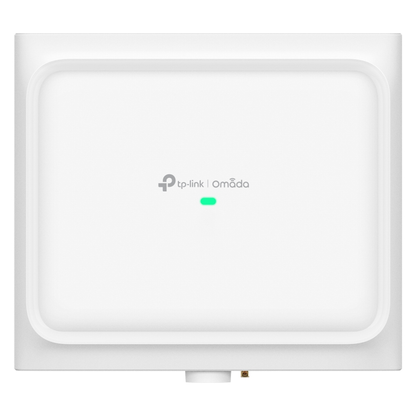

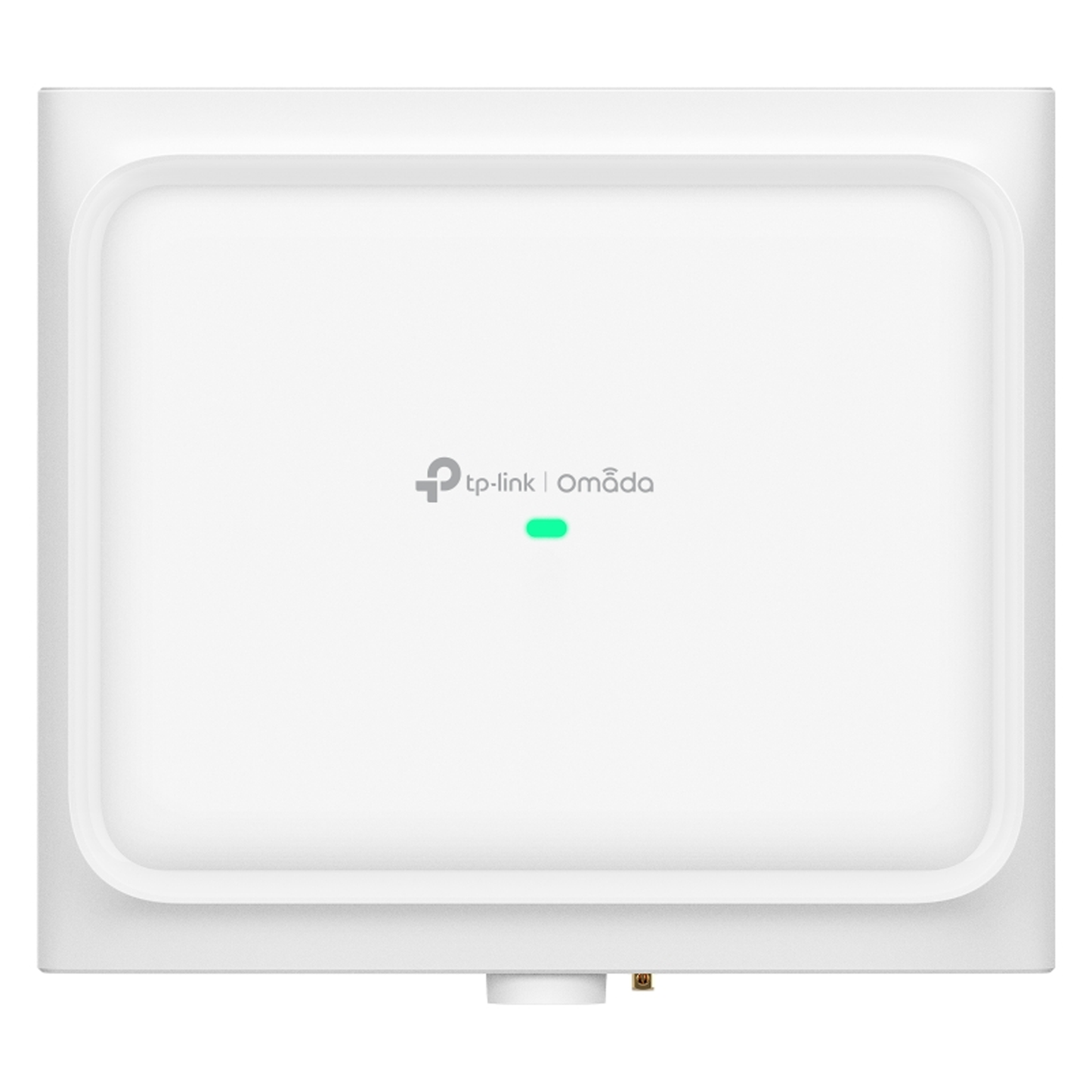

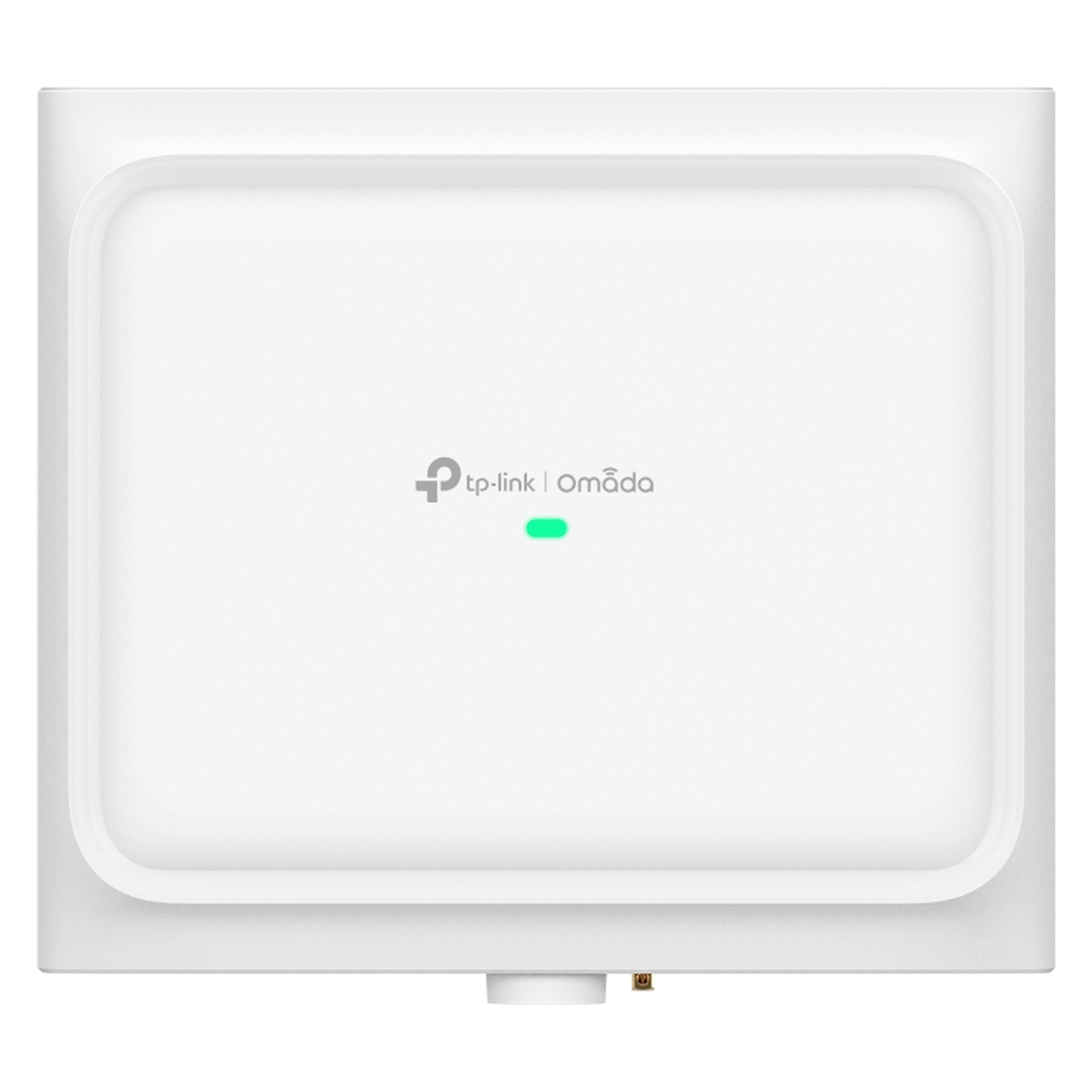

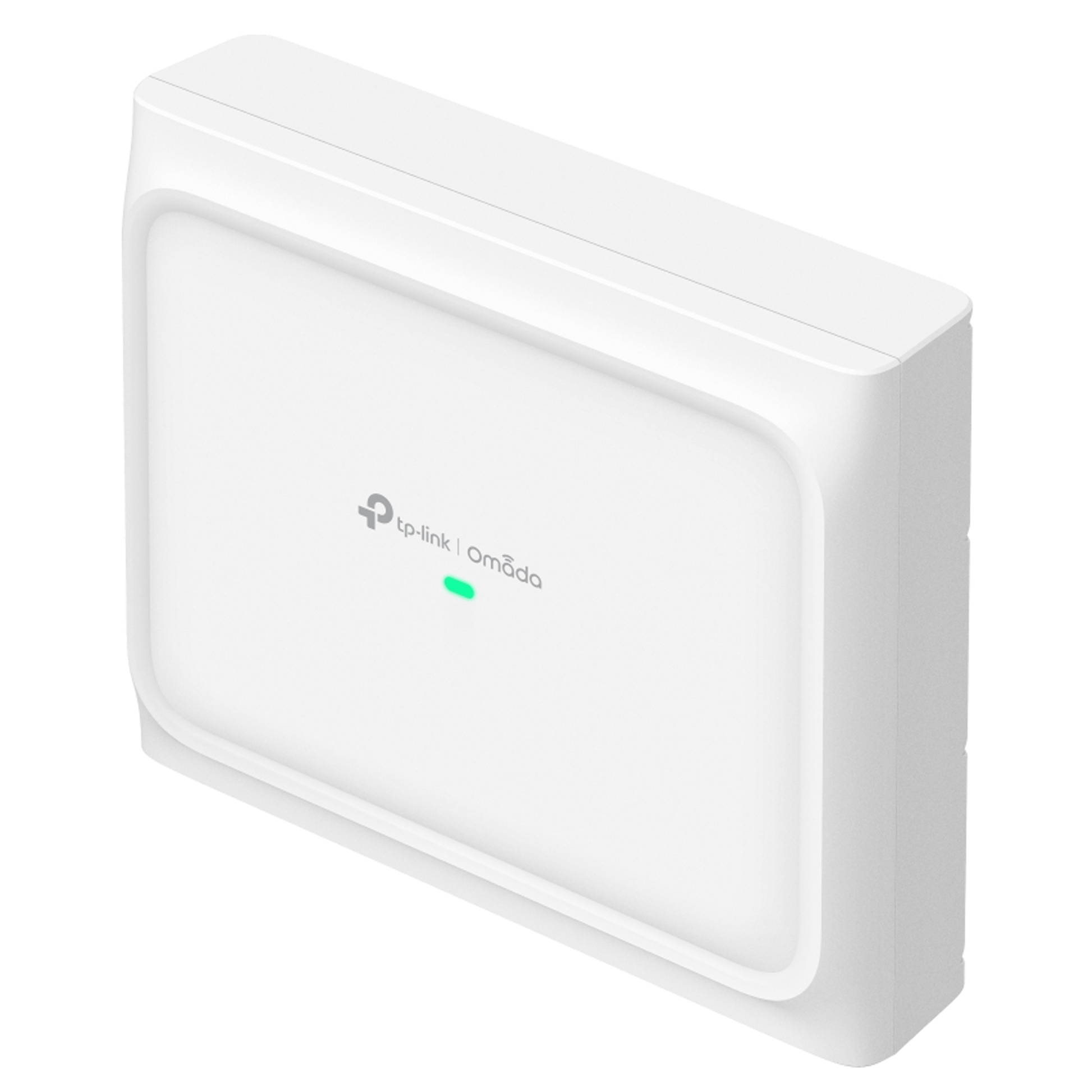

TP-Link EAP772 Outdoor

$369.99 CAD
$369.99 CAD
Sale Sold out
Only 10 units left

Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point

•Tri-Band Six-Stream Outdoor WiFi 7: Up to 11 Gbps.

•6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.

•True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage.

•Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.

•Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup.

•Advanced Features: Centralized management, mesh, and seamless roaming.

Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

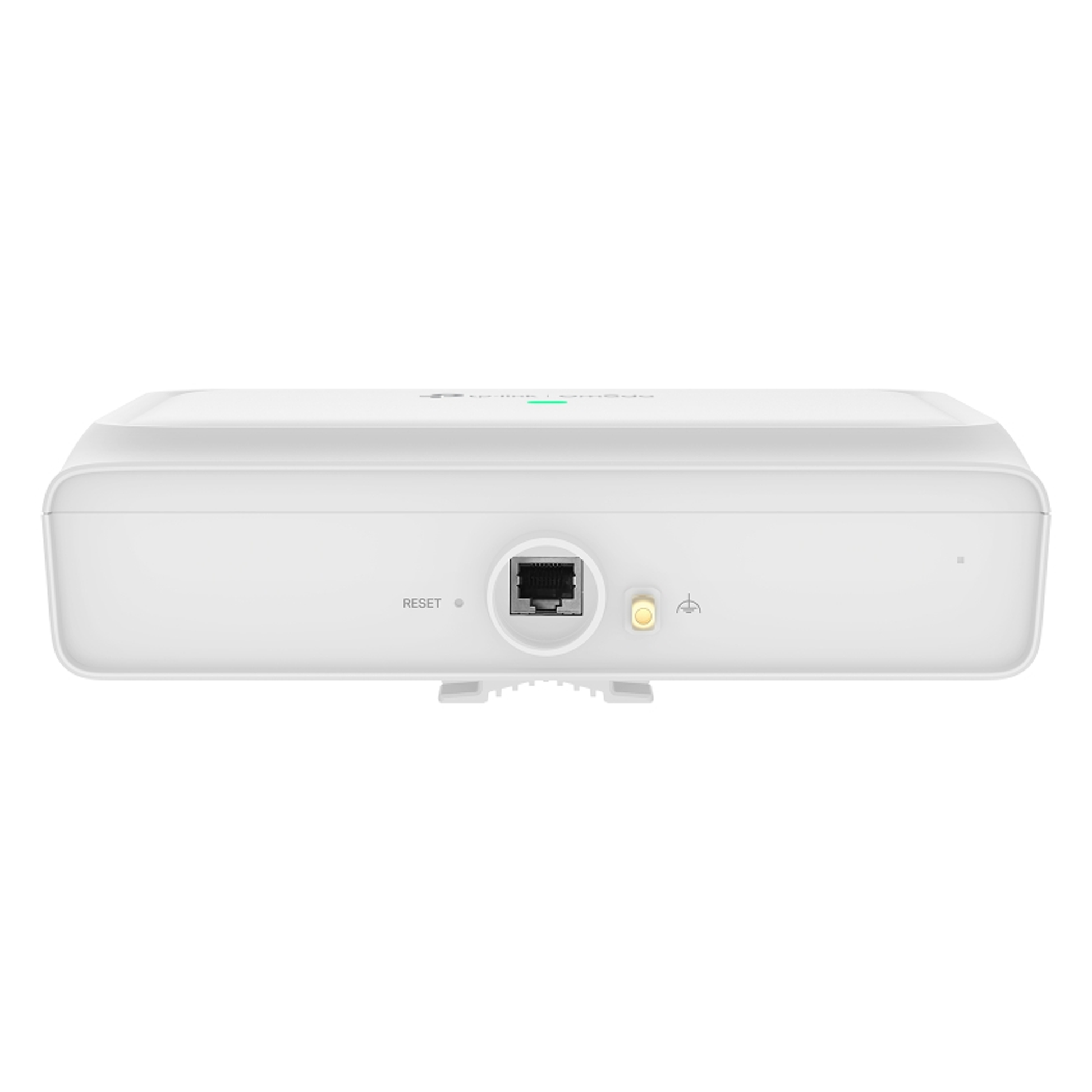

  • Interface: 1× 2.5G Ethernet (RJ-45) Port (Supports 802.3at PoE)
  • Button: Reset
  • Power Supply: 802.3at PoE
  • Max Power Consumption: EU: 21.5W, US: 23W (PoE)
  • Dimensions: 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
  • Antenna: 2.4GHz: 2×4dBi, 5GHz: 2×6dBi, 6GHz: 2×6dBi
  • GNSS: L1 receiver supporting GPS, Galileo, GLONASS, BeiDou; sensitivity -164dBm; integrated 3dBi antennas
  • Bluetooth: BLE 5.2
  • Weatherproof: IP68 Rated

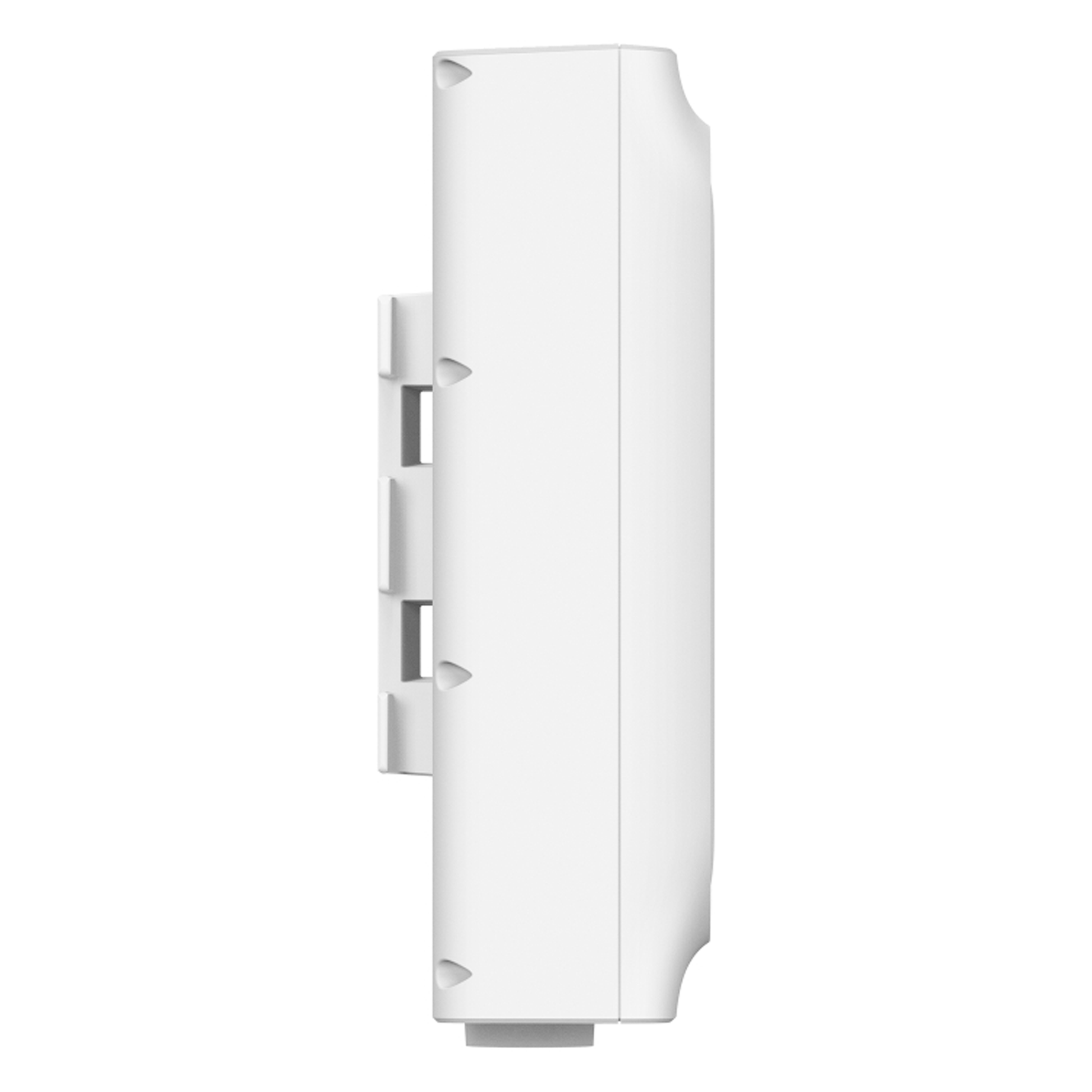

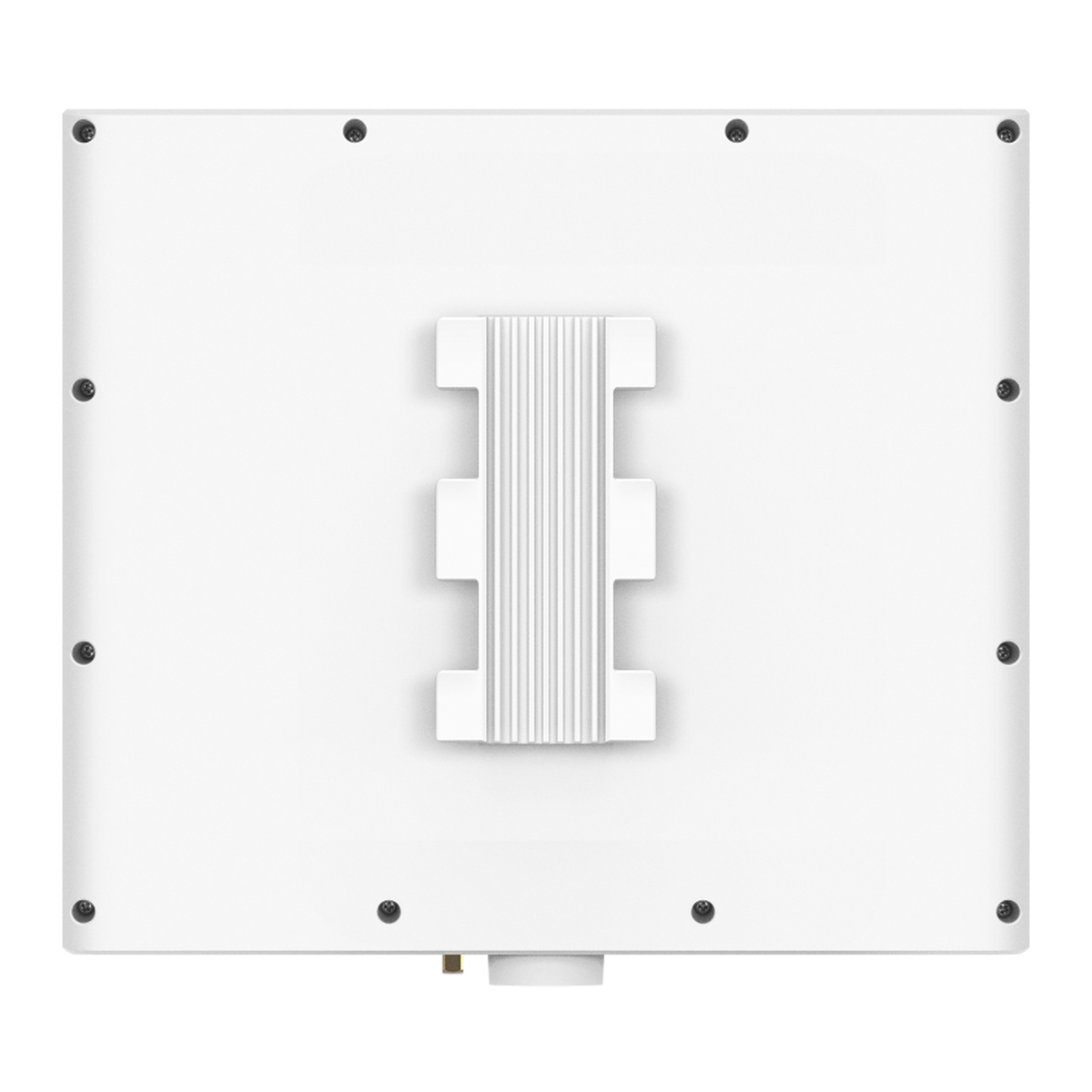

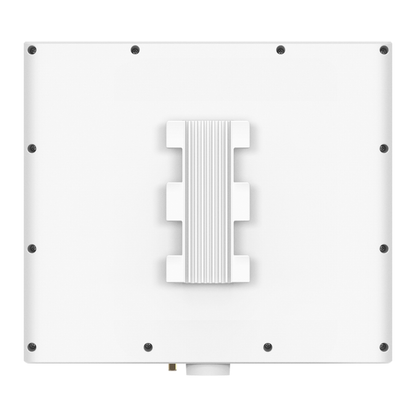

  • Mounting: Pole/Wall Mount (Kits Included)
  • Coverage: 300m² (3,200 ft²) Omnidirectional
  • Concurrent Clients: 250+
  • Wireless Standards: IEEE 802.11be/ax/ac/n/g/b/a
  • Frequency: 2.4GHz, 5GHz, 6GHz
  • Signal Rate: 802.11be up to 5765 Mbps, 802.11ax up to 2402 Mbps, 802.11ac up to 2166.7 Mbps, 802.11n up to 300 Mbps
  • Wireless Features: 4K-QAM, OFDMA, MU-MIMO, MLO, 320MHz, Mesh, Seamless Roaming, Band Steering, Load Balance, Beamforming, QoS, Multiple SSIDs (up to 24)
  • Wireless Security: Captive Portal, MAC Filtering, VLAN Mapping, Rogue AP Detection, 802.1X, WPA/WPA2/WPA3 Personal & Enterprise
  • Transmission Power: CE: <20dBm (2.4GHz), <28dBm (5GHz); FCC: <25dBm (2.4/5/6GHz)
  • Management: Omada App, Cloud/Hardware/Software Controller (OC300/OC200), Web GUI, SSH, SNMP, Syslog, Multi-site, VLAN, Zero-Touch Provisioning
  • Email Alerts: Supported
  • MAC Access Control: Supported
  • Certification: CE, FCC, RoHS
  • Package Content: EAP772-Outdoor Access Point, Mounting Kits, Installation Guide, Waterproof Kit
  • System Requirements: Windows, Linux
  • Environment: Operating Temp: -30–70°C, Storage Temp: -40–70°C, Humidity: 10–90% RH
