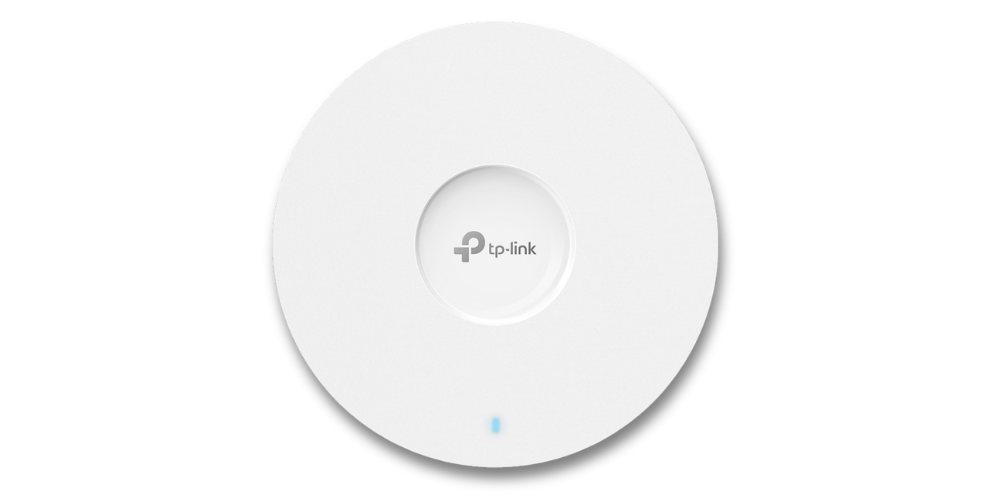

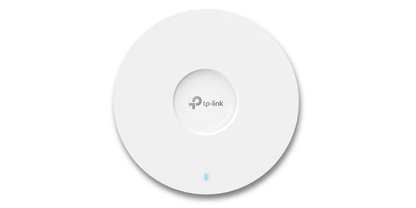

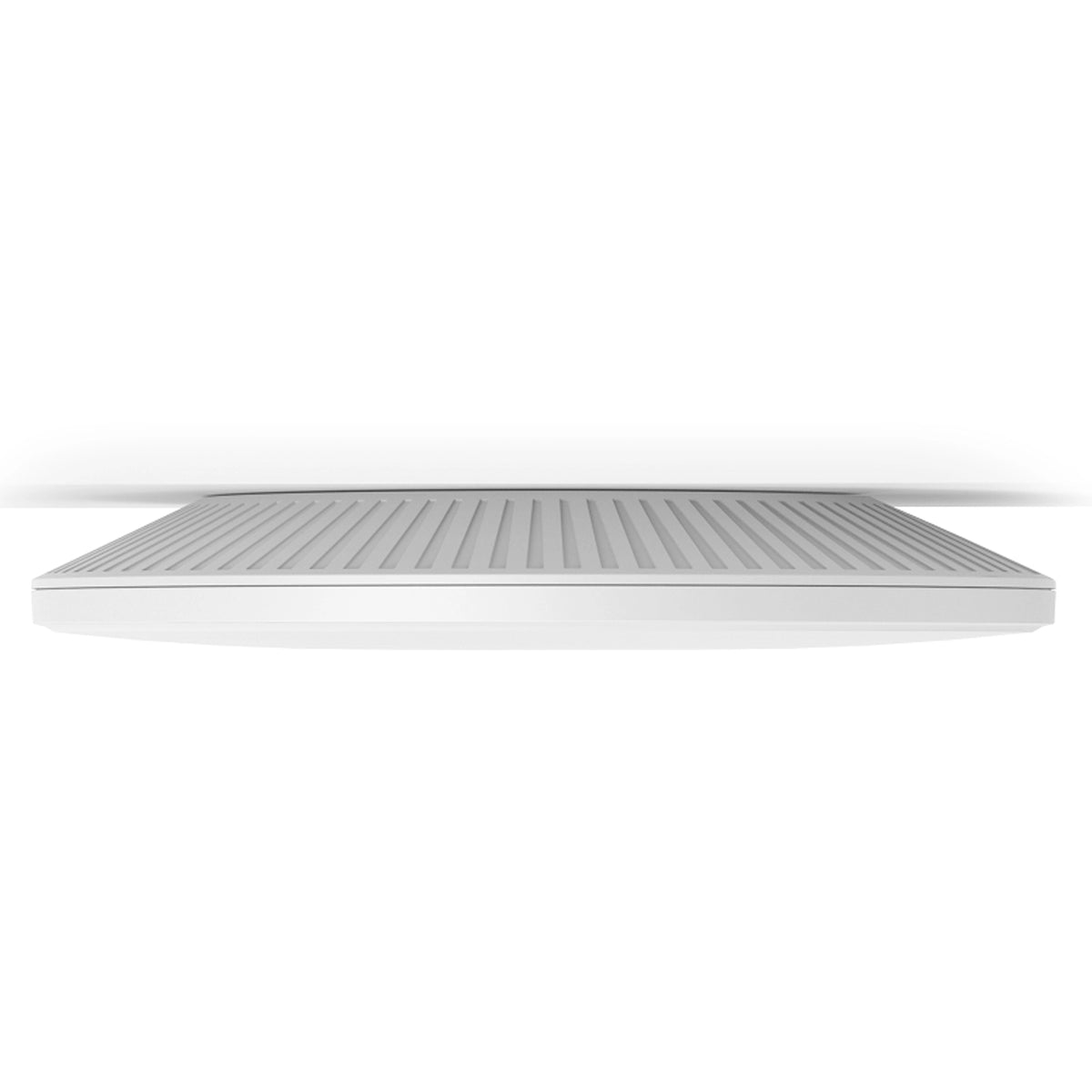

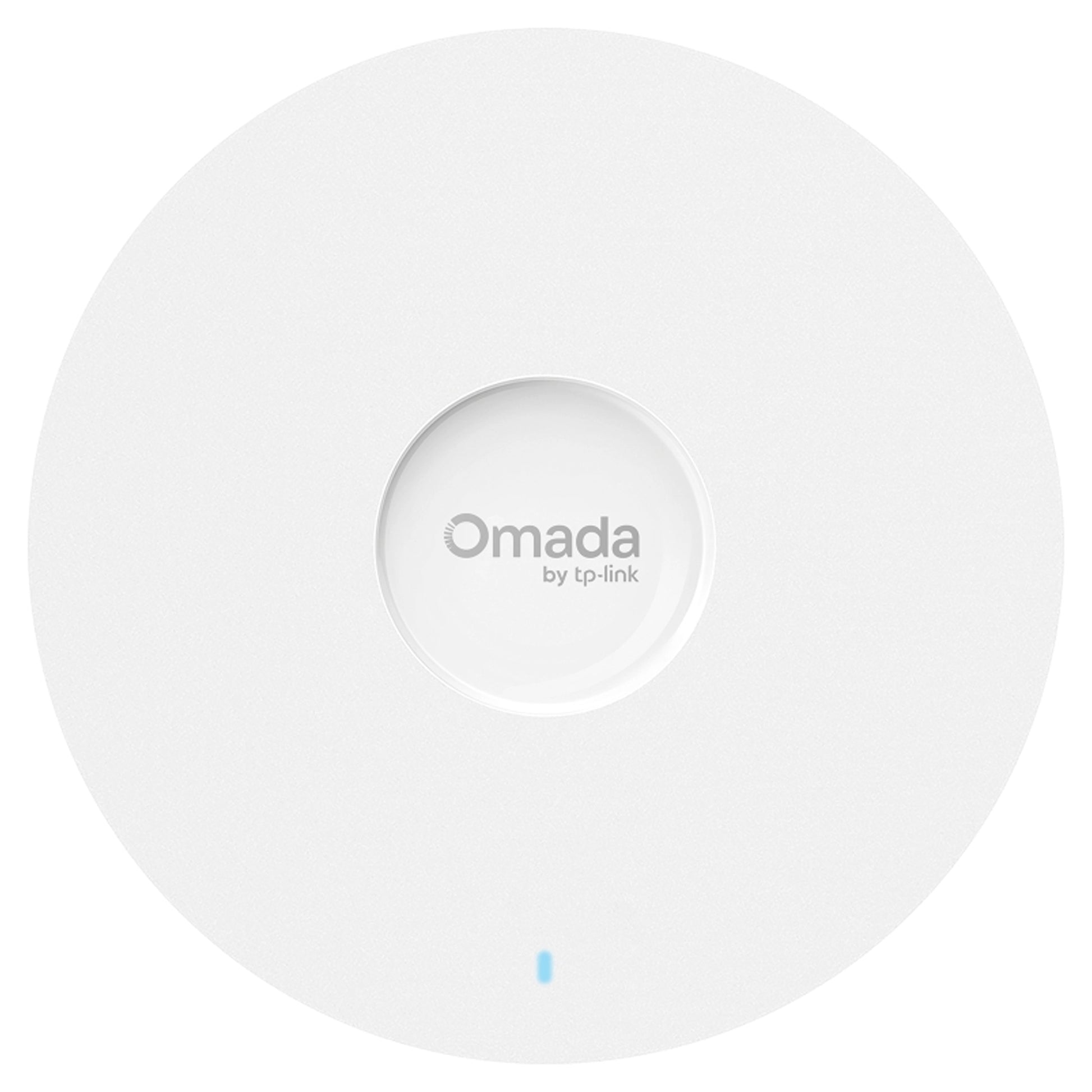

EAP683UR(US)

$172.35 CAD
$172.35 CAD
Sale Sold out
Only 1 units left
  • Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
  • Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
  • Integrates with the Omada SDN platform for centralized management.
  • Advanced Features: Omada Mesh, Seamless Roaming, and more.§
  • PoE+ Powered: Supports both 802.3at PoE and DC (adapter not included).

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

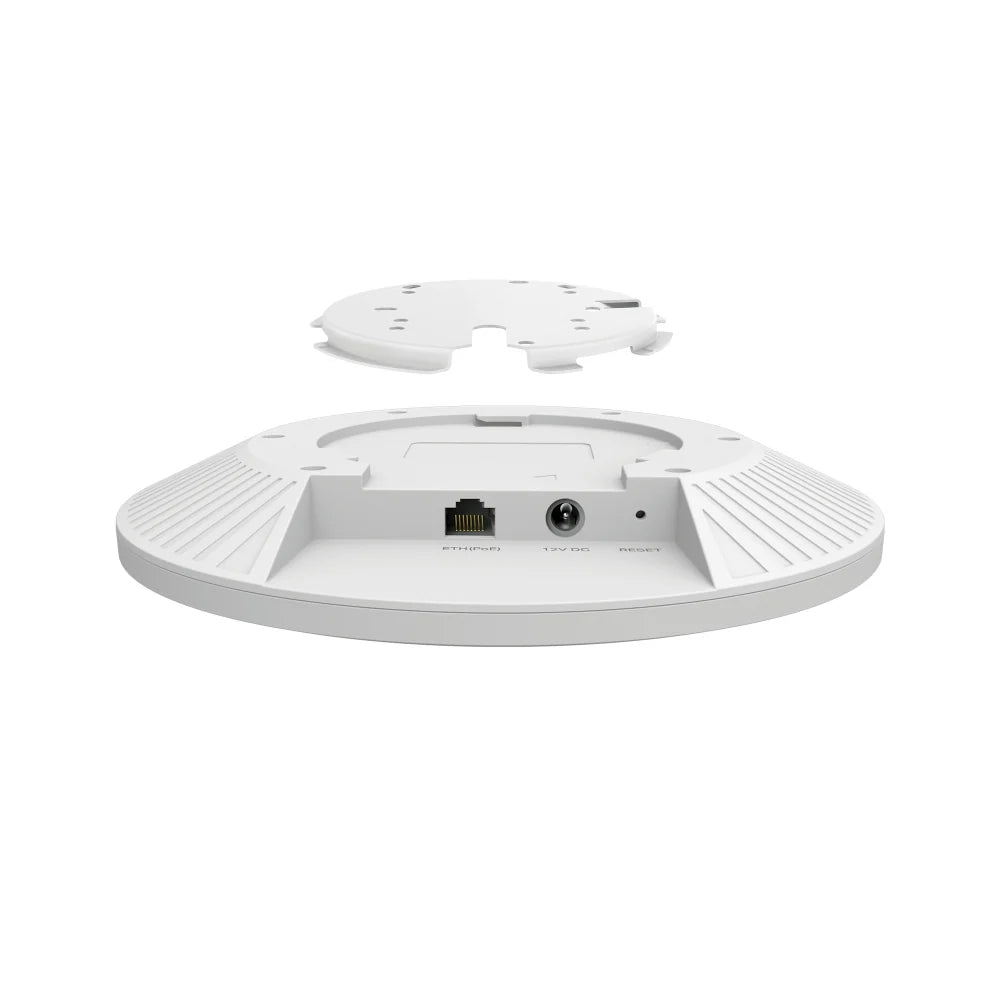

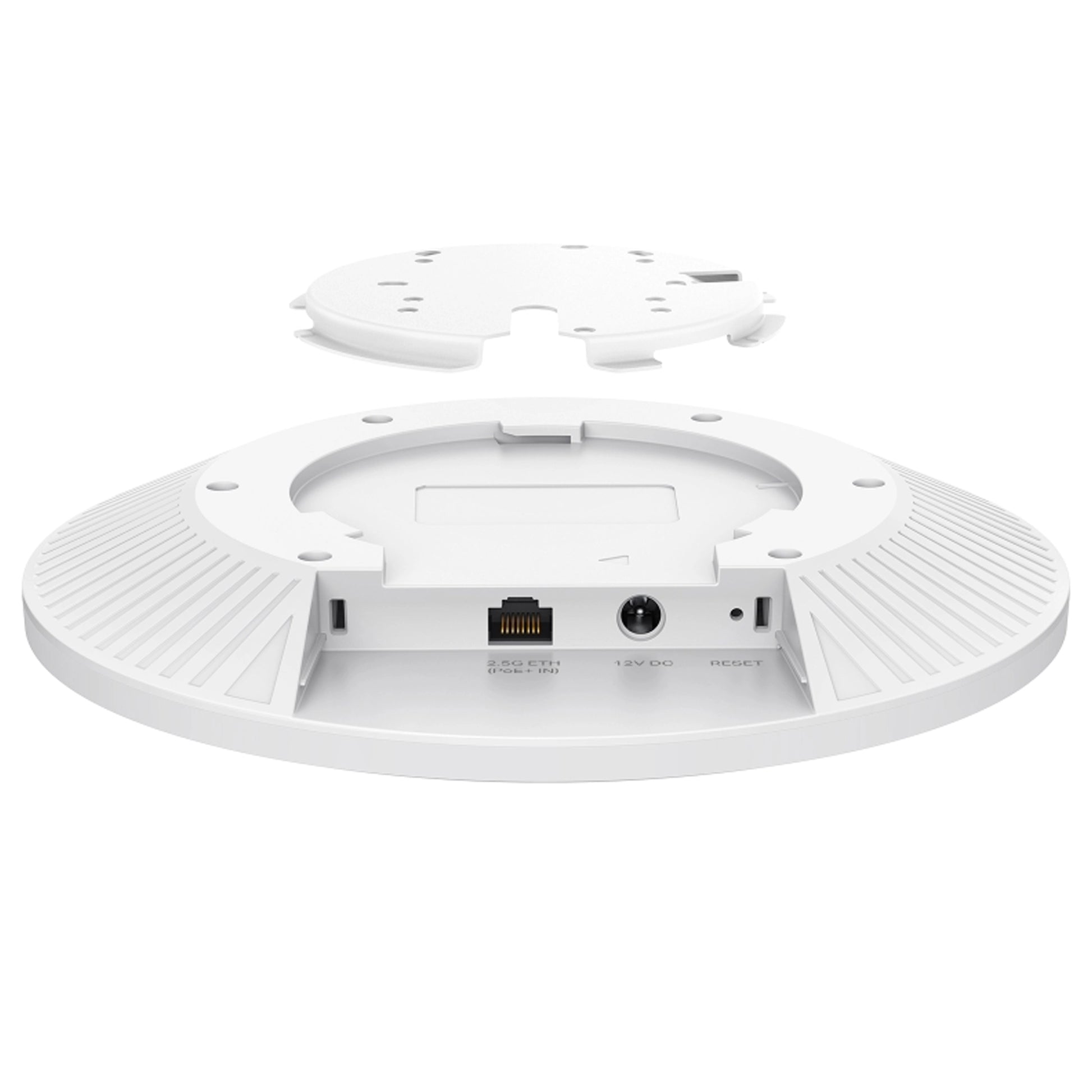

  • Interface: 1× 2.5 Gigabit PoE+ Port
  • Button: Reset
  • Power Supply: 802.3at PoE; 12V/2A DC (Power Adapter Not Included)
  • Max Power Consumption: EU: 20.43W; US: 23.69W

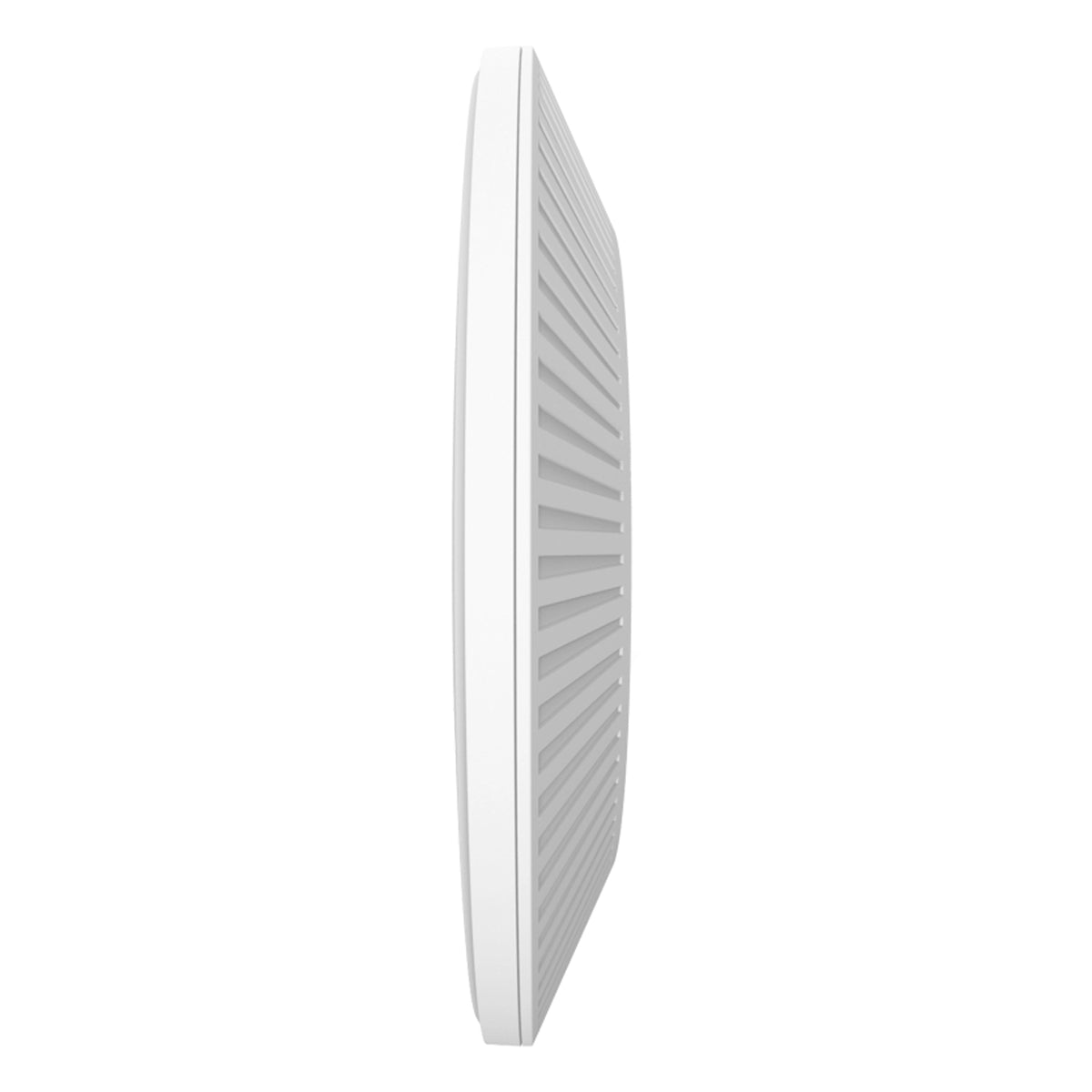

  • Dimensions: 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  • Antenna: Internal Omni; 2.4GHz: 4×4dBi; 5GHz: 4×5dBi
  • Bluetooth: V5.2
  • Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)
  • WIRELESS FEATURES
  • Coverage: 2000ft² (185㎡)
  • Concurrent Clients: 510+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5GHz up to 4804 Mbps; 2.4GHz up to 1148 Mbps
  • Wireless Functions: 1024-QAM, OFDMA, MU-MIMO (4×4 DL/UL), SU-MIMO, HE160 (160MHz), Seamless Roaming (802.11k/v/r), Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, QoS (WMM), Multiple SSIDs (Up to 16), Auto Channel, Tx Power Control, Rate Limit, Reboot/Wireless Schedule, Wireless Statistics
  • Wireless Security: Captive Portal, MAC Filtering, Wireless Isolation, SSID-VLAN Mapping, Rogue AP Detection, 802.1X, WPA/WPA2/WPA3 Personal & Enterprise
  • Transmission Power: CE: 7–20dBm (2.4GHz), 7–23dBm (5GHz U-NII-1/2A), 7–28dBm (5GHz U-NII-2C); FCC: 9–26dBm (2.4GHz & 5GHz)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based, Hardware, and Software Controllers
  • Cloud Access: Yes (Requires Omada Controller)
  • Email Alerts: Yes
  • LED Control: Yes (On/Off)
  • MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local / Remote Syslog
  • SSH: Yes
  • Web Management: HTTP / HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (via Omada Cloud Controller)
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: EAP683 UR, Mounting Kits, Installation Guide, Cable Compartment Cover
  • System Requirements: Windows XP/Vista/7/8/10/11, Linux
  • Environment: Operating Temp: 0–40°C; Storage Temp: -40–70°C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH
