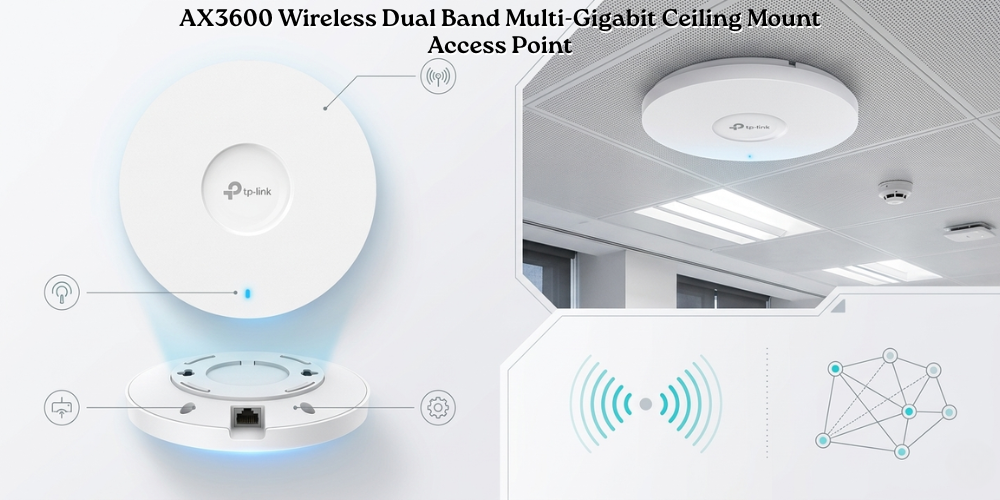

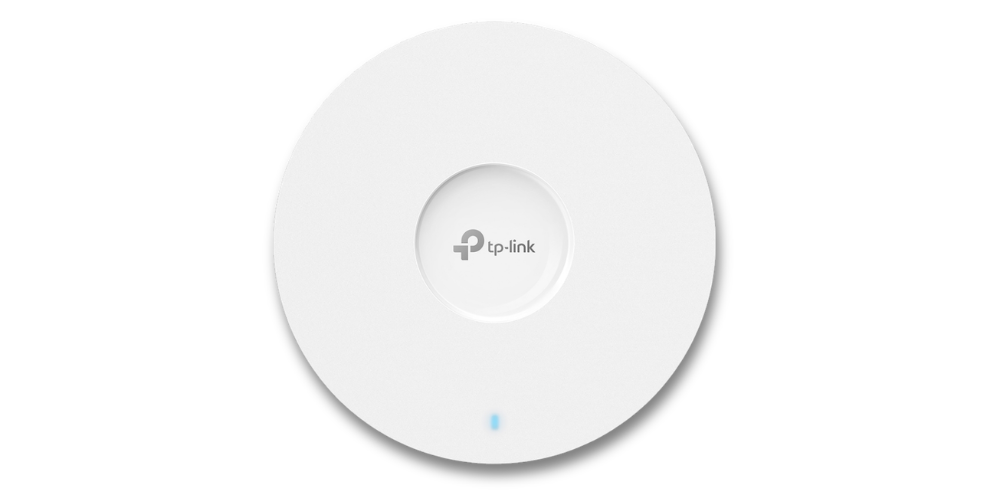

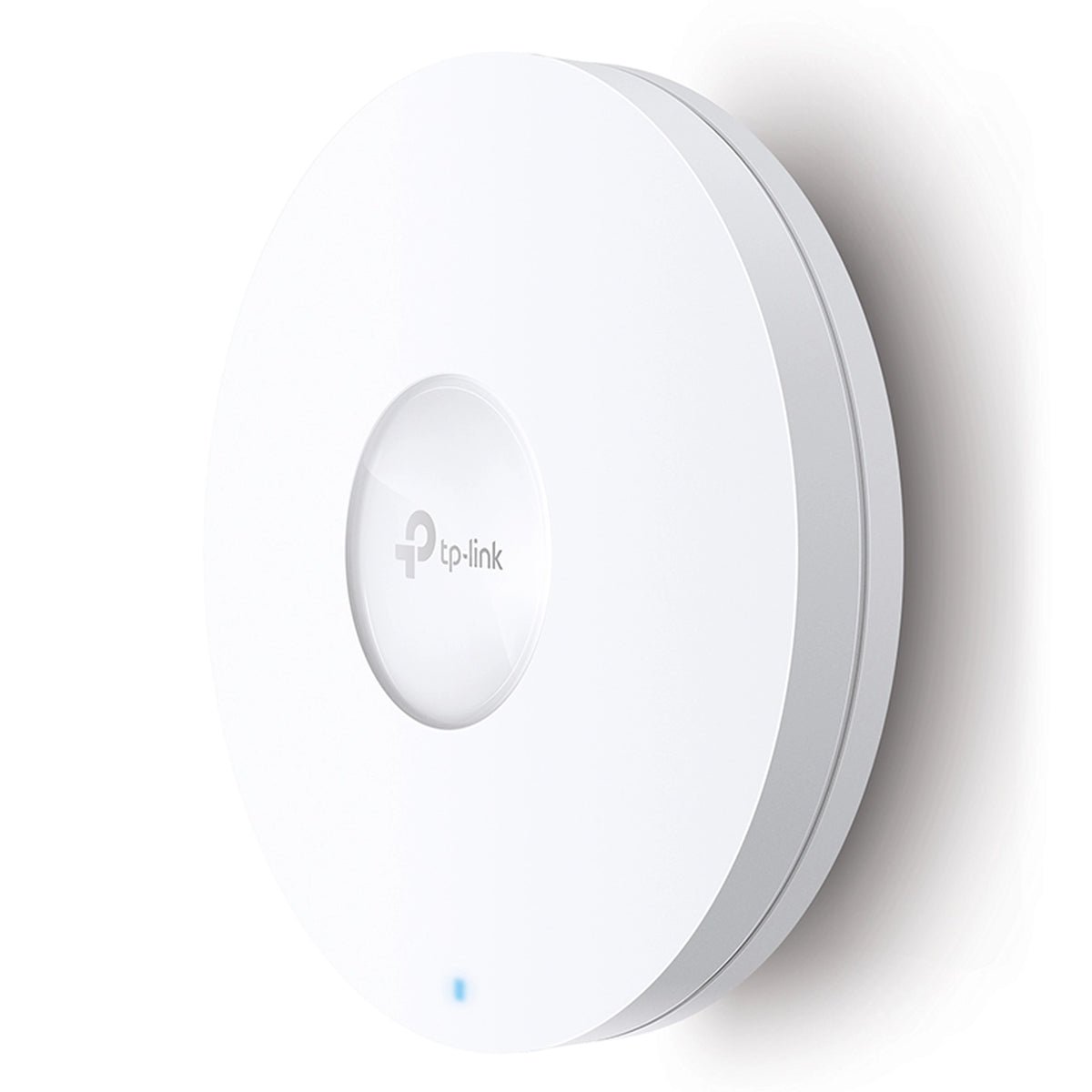

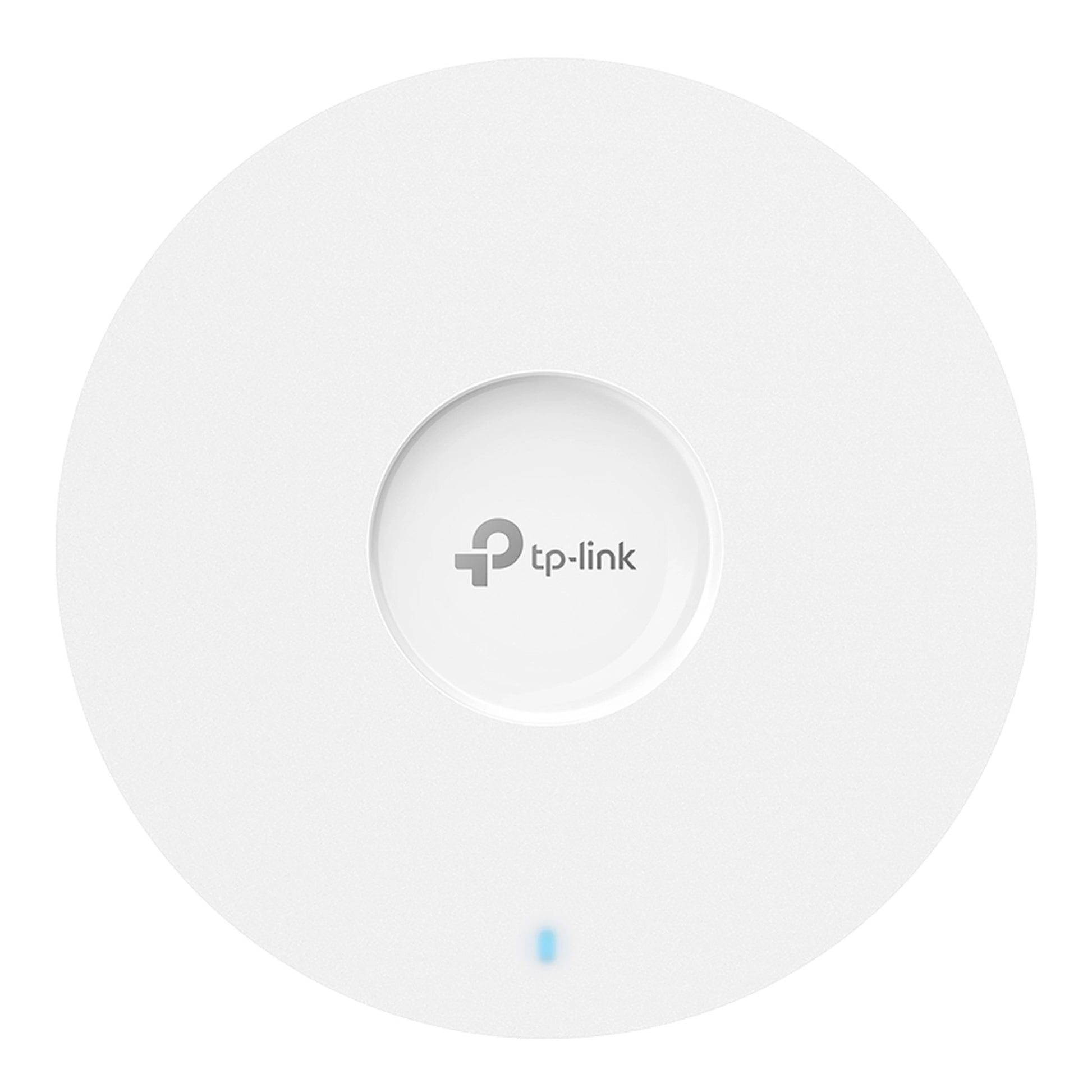

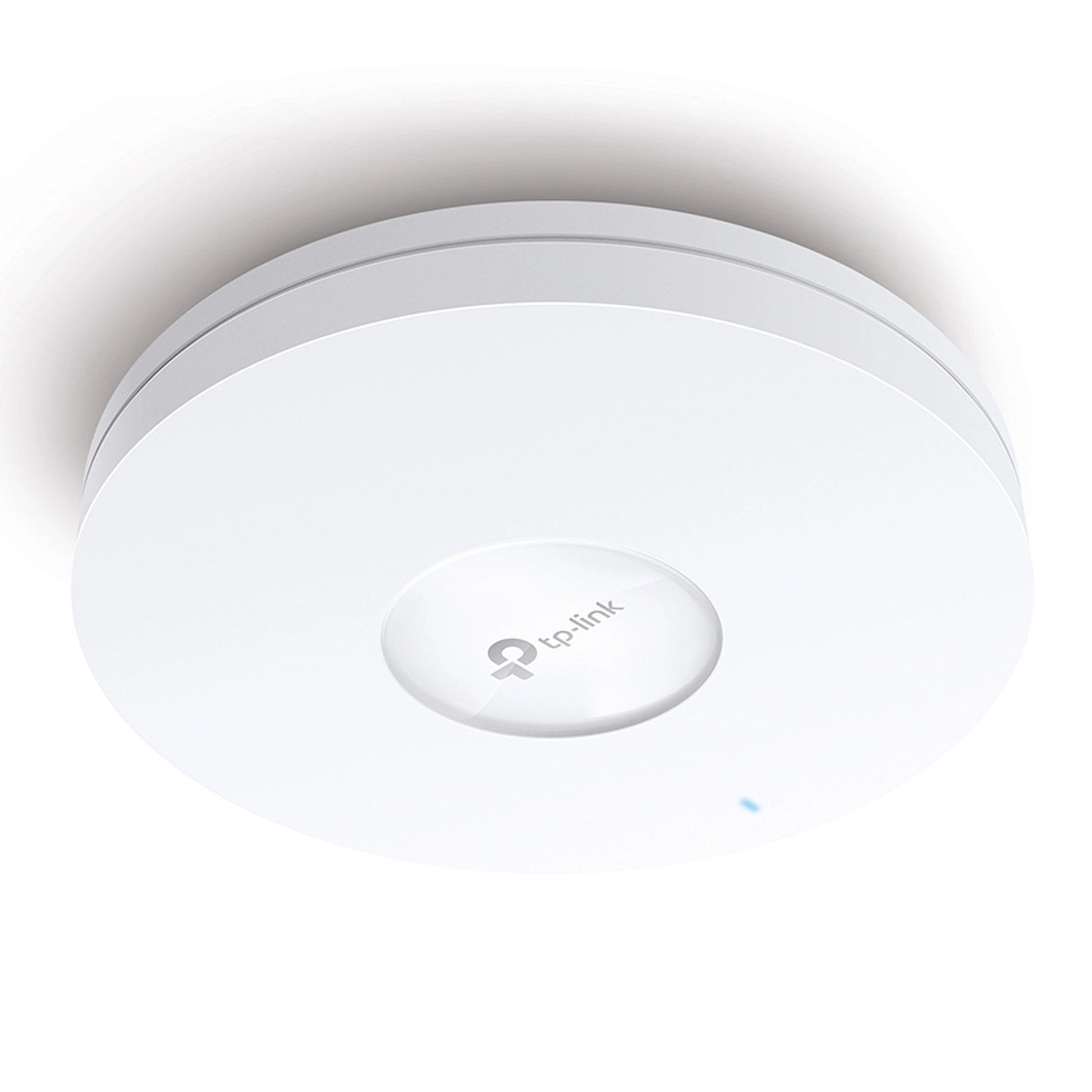

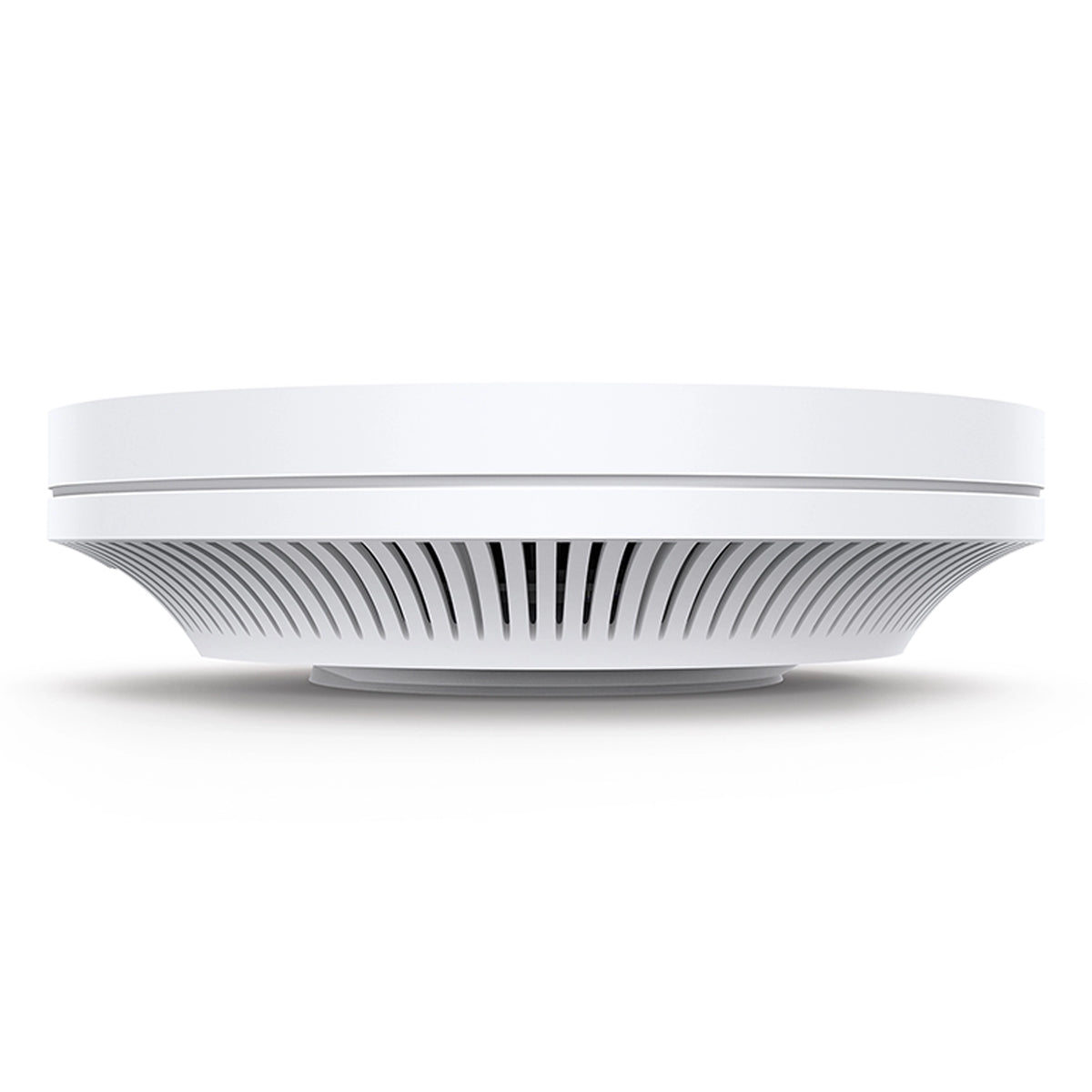

EAP660 HD

$299.99 CAD
$299.99 CAD
Sale Sold out
Only 6 units left
  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

  • Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
  • Button: Reset
  • Power Supply:

    802.3at PoE
    12 V DC

  • Max. Power Consumption:

    EU: 18.5 W
    US: 21.5 W

  • Dimensions (W x D x H): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
  • Antenna: Internal Omni

    2.4 GHz: 4× 4 dBi
    5 GHz: 4× 5 dBi

  • Mounting: Ceiling / Wall Mounting (Kits included)

WIRELESS FEATURES

  • Concurrent Clients: 500+***
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate:

    5 GHz: Up to 2402 Mbps
    2.4 GHz: Up to 1148 Mbps

  • Wireless Functions:

    1024-QAM
    4× Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS (WMM)
    MU-MIMO
    Seamless Roaming△
    Omada Mesh△
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client

  • Wireless Security:

    Captive Portal Authentication△
    Access Control
    Wireless MAC Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

  • Transmission Power:

    CE:

    <20 dBm (2.4 GHz, EIRP)
    <23 dBm (5 GHz, EIRP)


    FCC:

    <26 dBm (2.4 GHz)
    <26 dBm (5 GHz)



MANAGEMENT FEATURES

  • Omada App: Yes
  • Centralized Management:

    Omada Cloud-Based Controller
    Omada Hardware Controller (OC300)
    Omada Hardware Controller (OC200)
    Omada Software Controller

  • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes. Requires Omada Cloud-Based Controller

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Content:

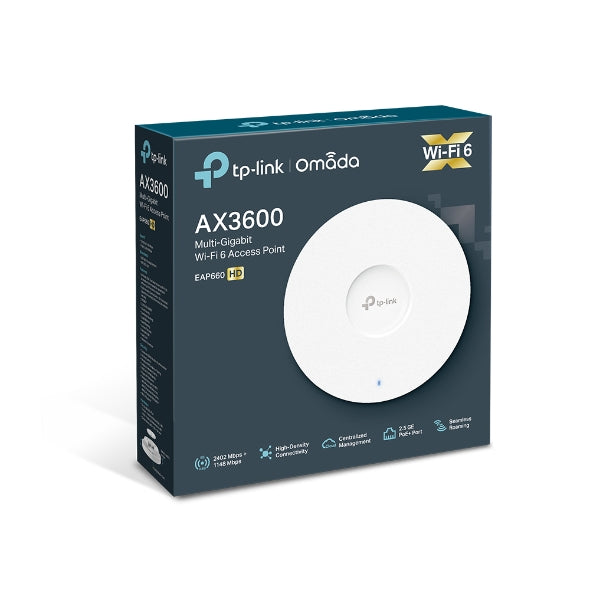

    EAP660 HD
    Power Adapter
    Ceiling/Wall Mounting Kits
    Installation Guide

  • System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
  • Environment:

    Operating Temperature: 0–40 ℃ (32–104 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
