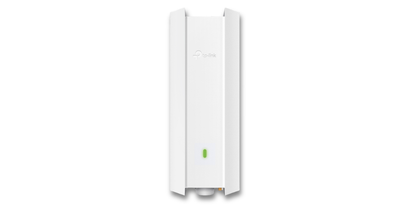

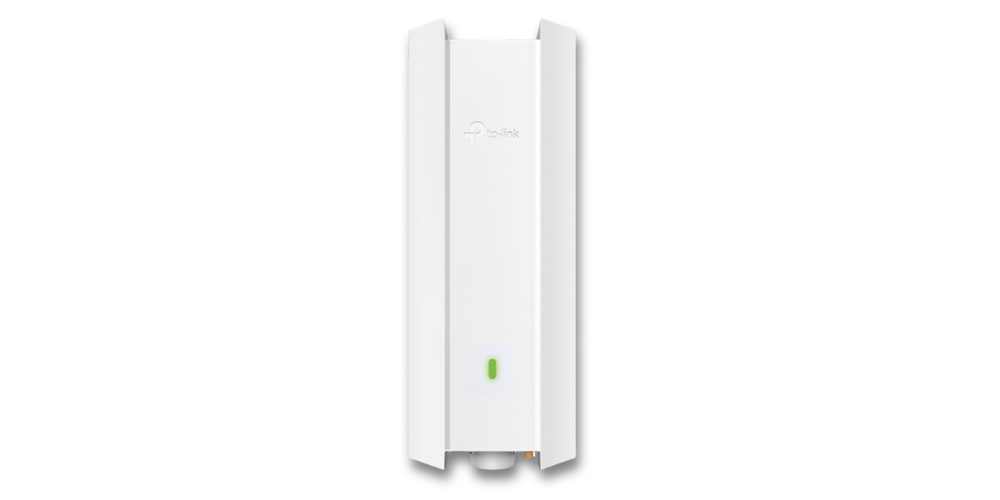

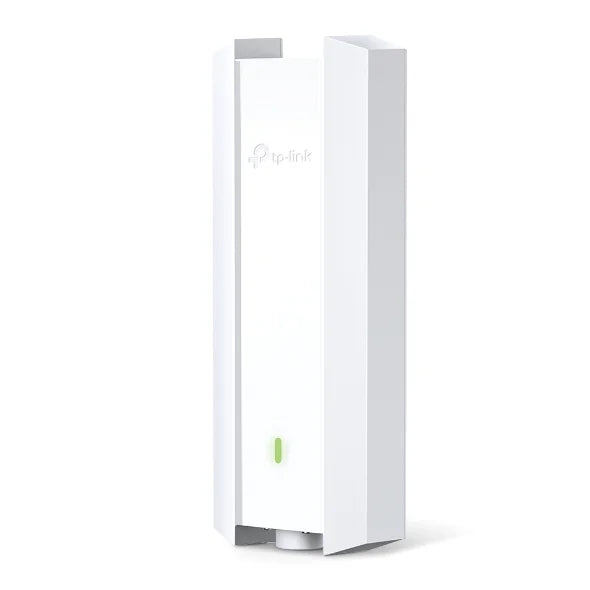

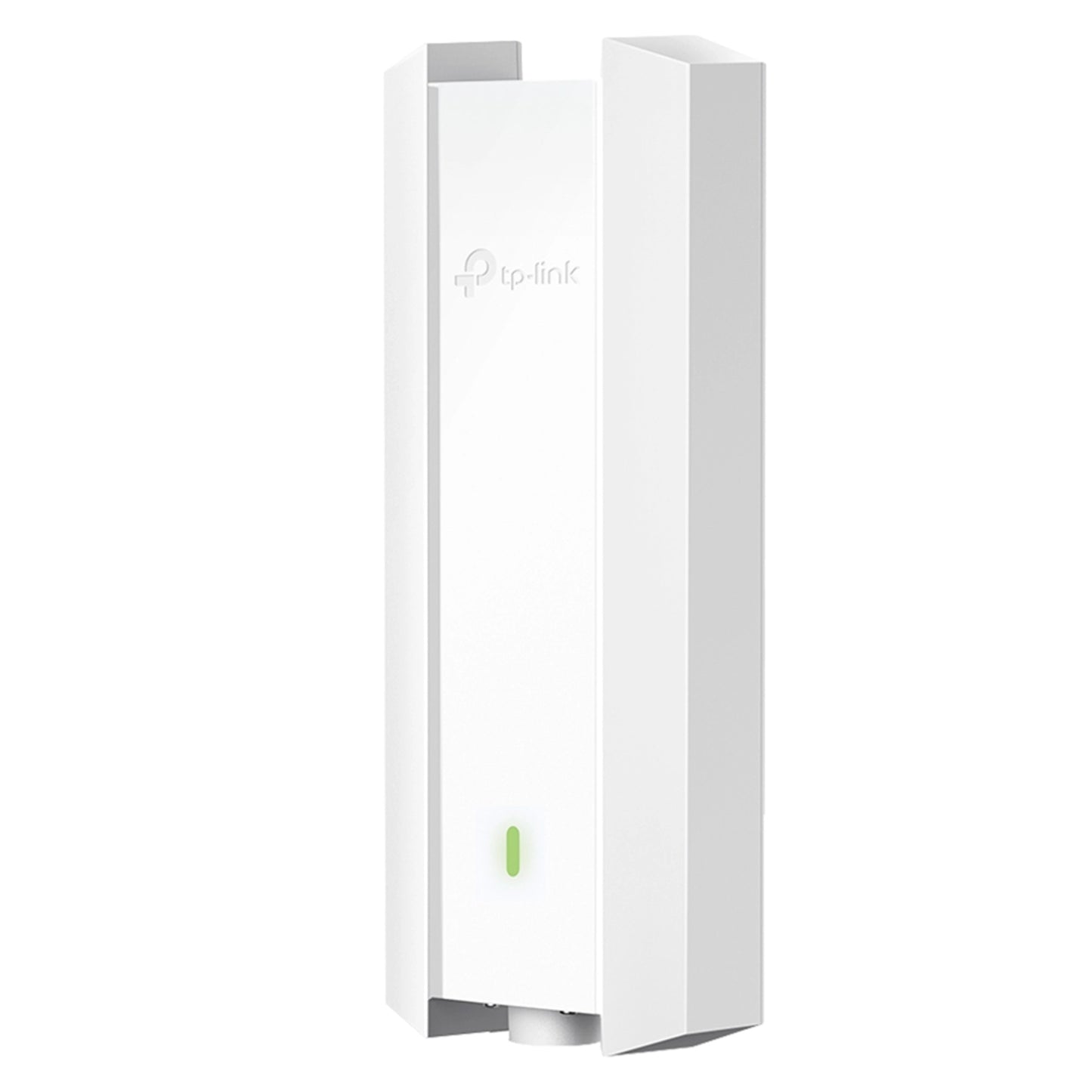

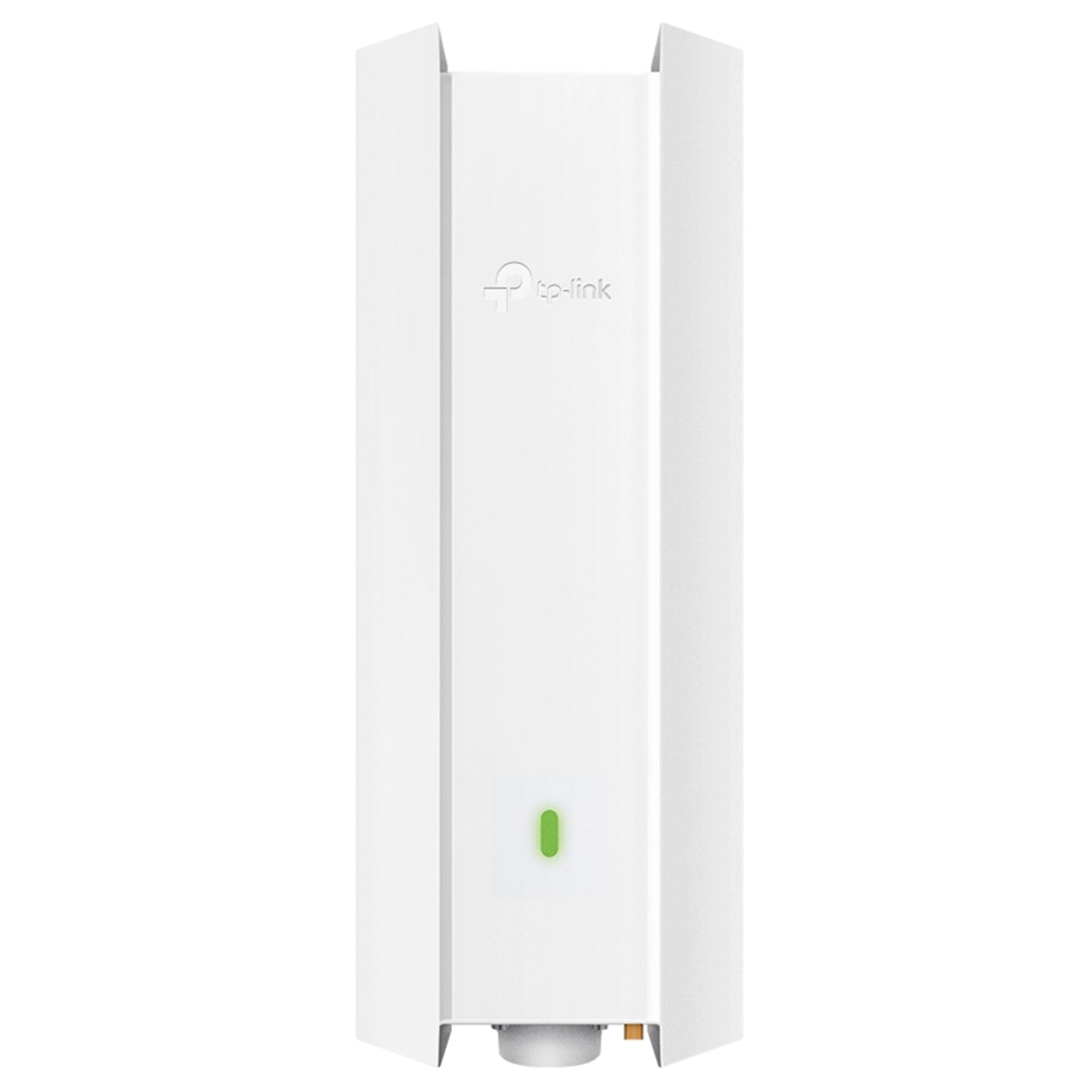

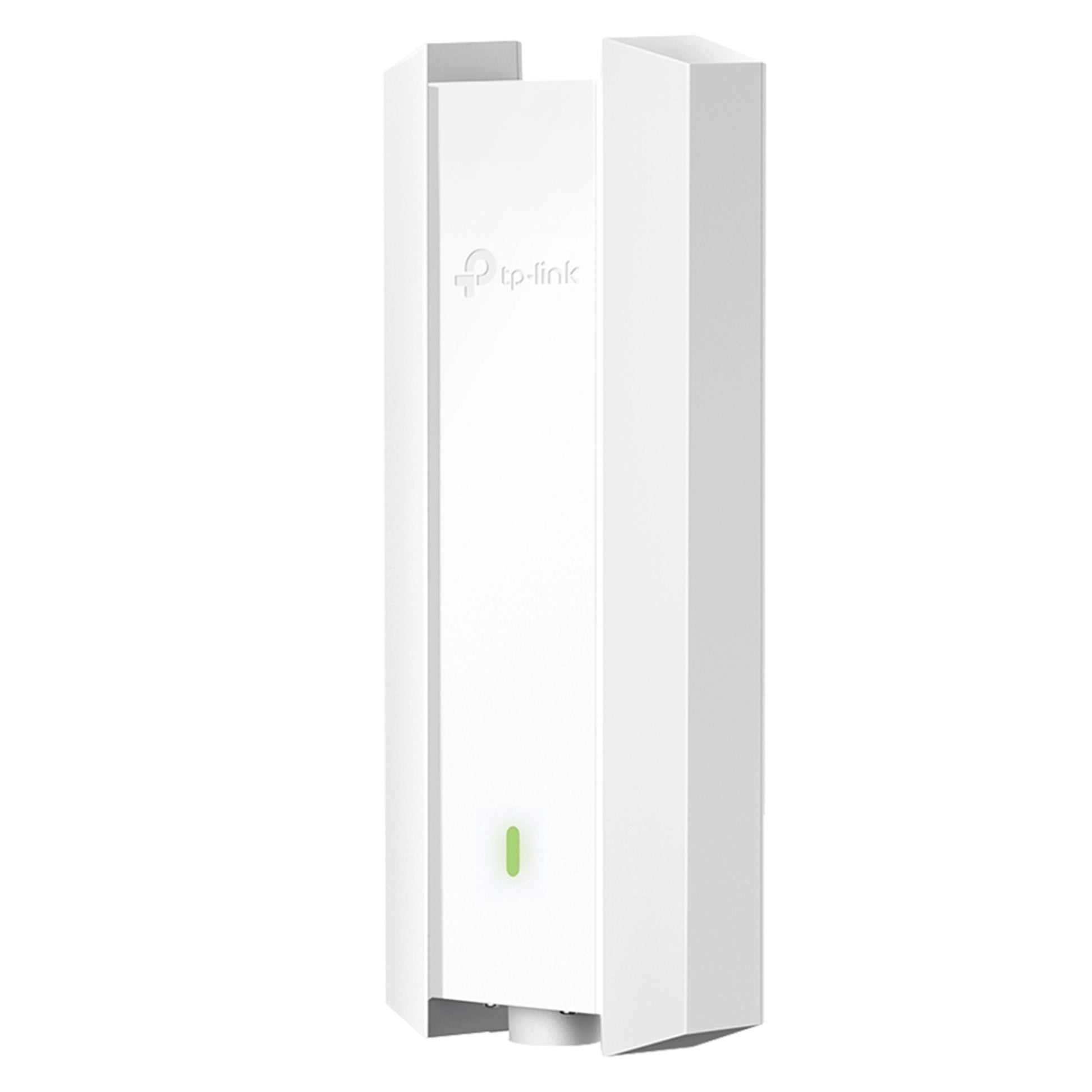

EAP650-Outdoor

$199.99 CAD
$199.99 CAD
Sale Sold out
In stock (39 units), ready to be shipped

AX3000 Indoor/Outdoor WiFi 6 Access Point

Features & Compatibility

  • Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
  • 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
  • Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
  • PoE Powered: : Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3

Click here to download the Datasheet.

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

HARDWARE FEATURES

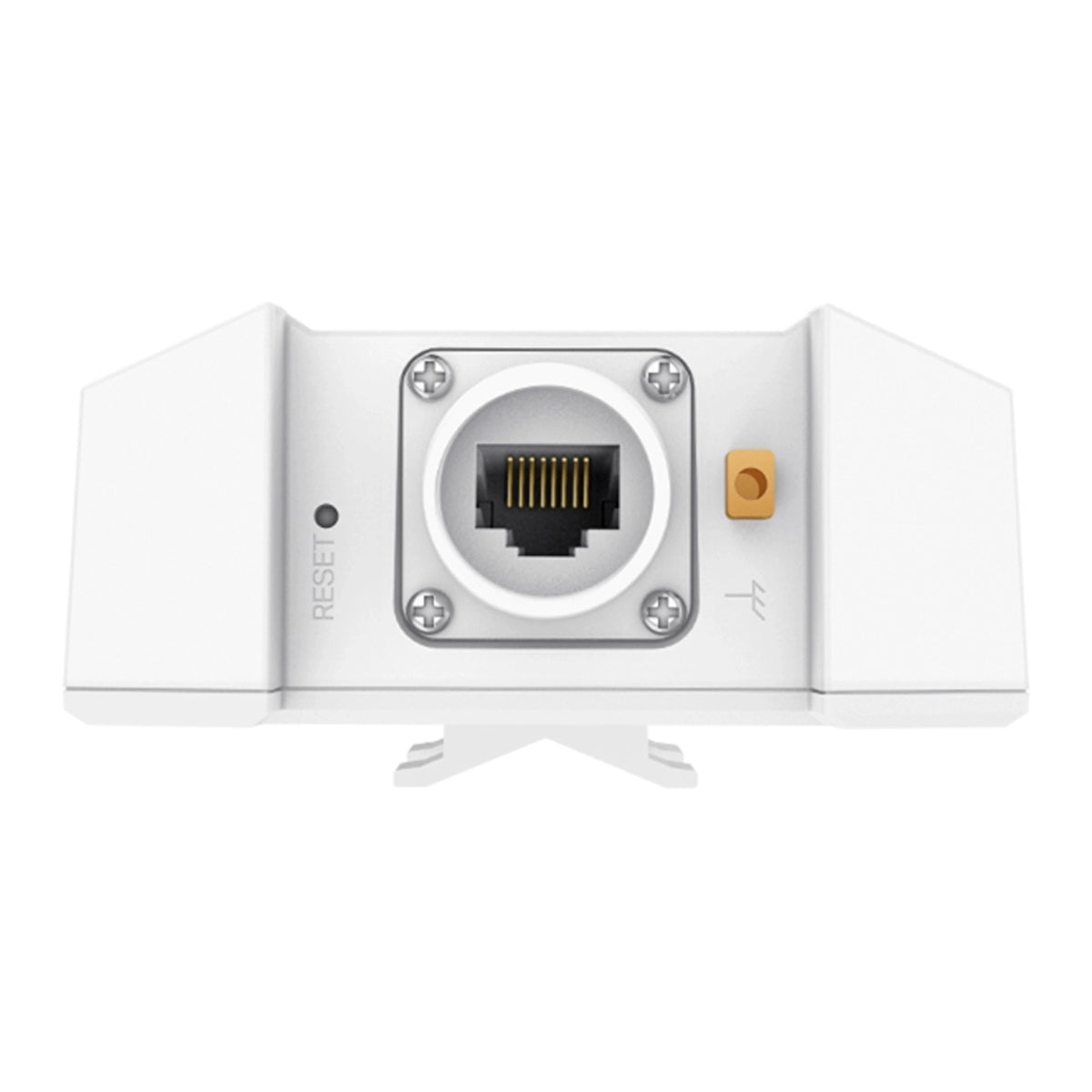

  • Interface: 1× Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE and Passive PoE)
  • Button: Reset
  • Power Supply:

    802.3at PoE
    48V Passive PoE (PoE Adapter Included)

  • Max. Power Consumption:

    EU: 12.5 W (802.3at PoE or Passive PoE)
    US: 14.7 W (802.3at PoE or Passive PoE)

  • Dimensions (W x D x H): 280.4 × 106.5 × 56.8 mm (without antenna & mounting kit)
  • Antenna:

    2.4 GHz: 2× 4 dBi
    5 GHz: 2× 5 dBi

  • Weatherproof Enclosure: IP67

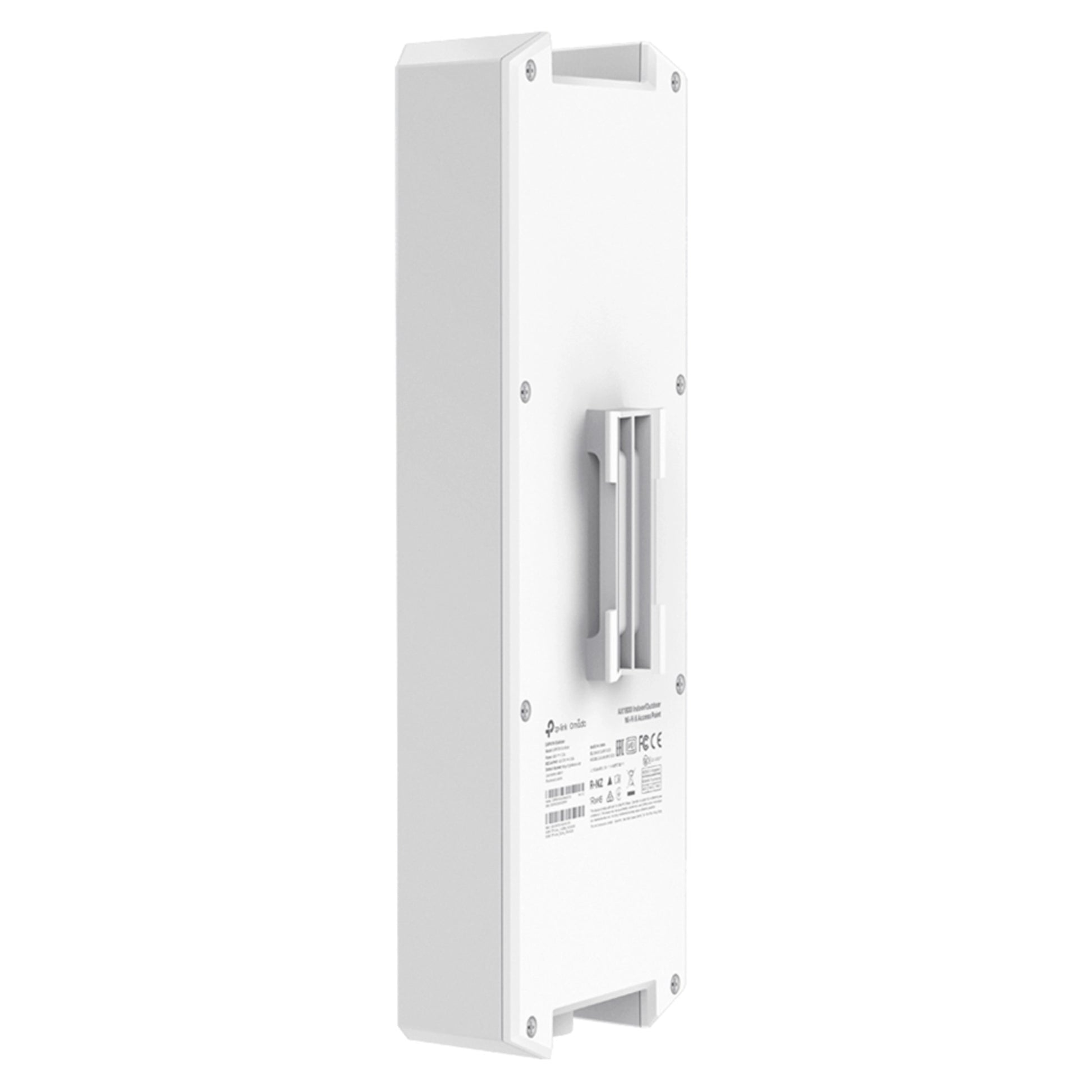

  • Mounting: Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

  • Concurrent Clients: 250+6
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz, 5 GHz
  • Signal Rate:

    802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)
    802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

  • Wireless Functions:

    1024-QAM
    4× Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 per band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS (WMM)
    MU-MIMO
    Omada Mesh3
    Seamless Roaming3
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client

  • Wireless Security:

    Captive Portal Authentication3
    Access Control
    Wireless MAC Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

  • Transmission Power:

    CE: <20 dBm (2.4 GHz, EIRP), <30 dBm (5 GHz, EIRP)
    FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)

MANAGEMENT FEATURES

  • Omada App: Yes
  • Centralized Management:

    Omada Cloud-Based Controller
    Omada Hardware Controller (OC300)
    Omada Hardware Controller (OC200)
    Omada Software Controller

  • Cloud Access:

    Yes, through Omada Cloud-Based Controller
    OC300
    OC200
    Omada Software Controller

  • Email Alerts: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c
  • System Logging Local/Remote Syslog: Yes
  • SSH: Yes
  • Web-based Management: Yes
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes. Requires Omada Cloud-Based Controller

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Content:

    Access Point EAP650-Outdoor
    Passive PoE Adapter
    Power Cord
    Mounting Kits
    Installation Guide

  • System Requirements: Microsoft Windows XP, Vista, 7, 8, 10, 11, Linux
  • Environment:

    Operating Temperature: -30–70 ℃ (-22–158 ℉)
    Storage Temperature: -40–70 ℃ (-40–158 ℉)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
