EAP610

$119.99 CAD
$119.99 CAD
Sale Sold out
Only 1 units left

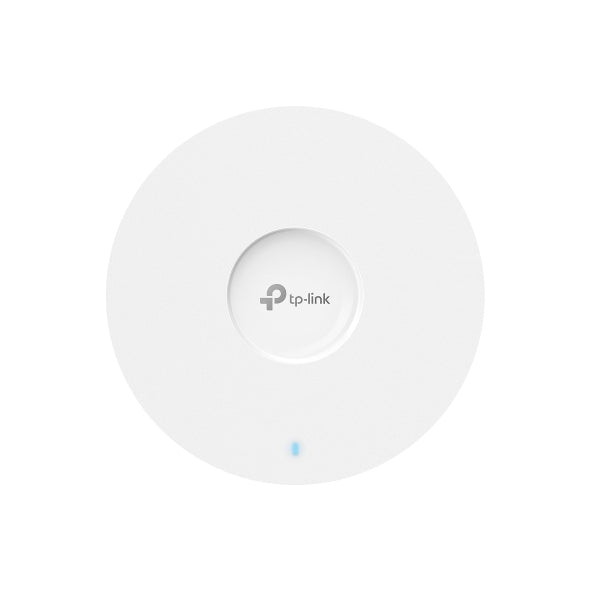

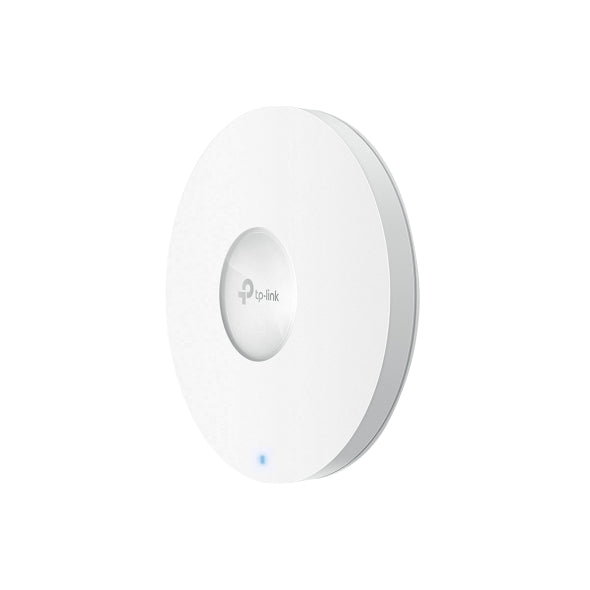

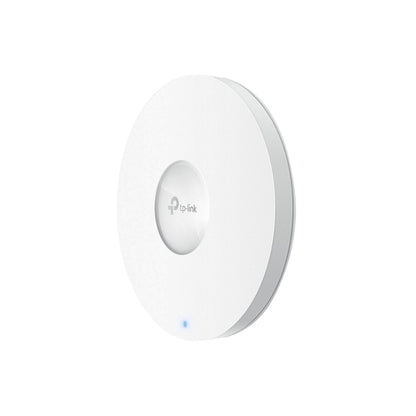

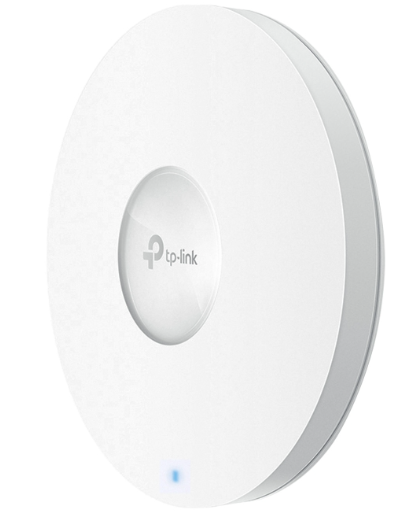

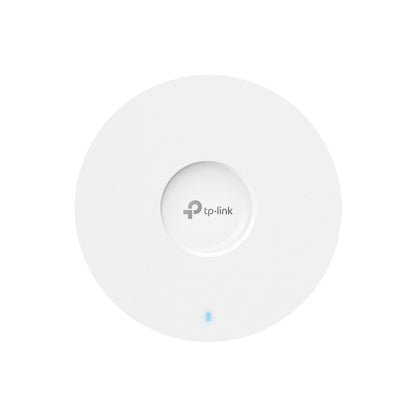

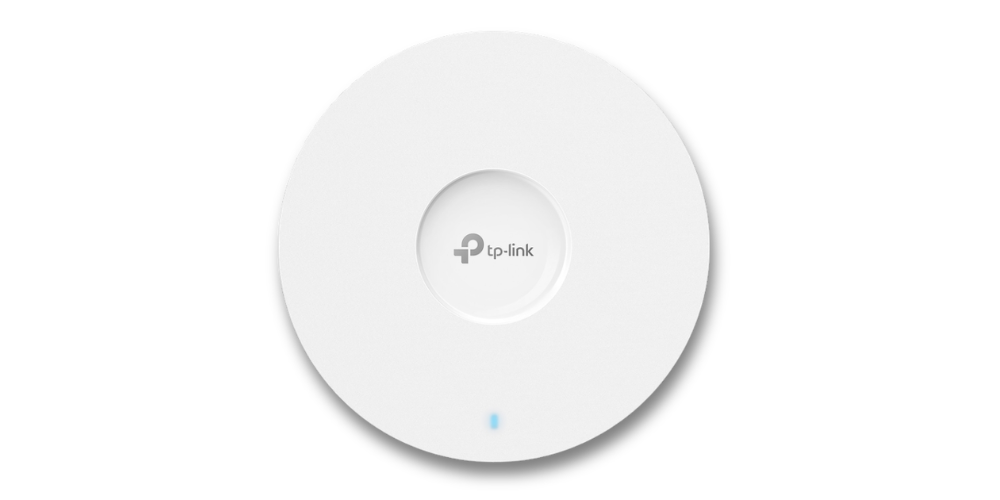

AX1800 Ceiling Mount WiFi 6 Access Point

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.

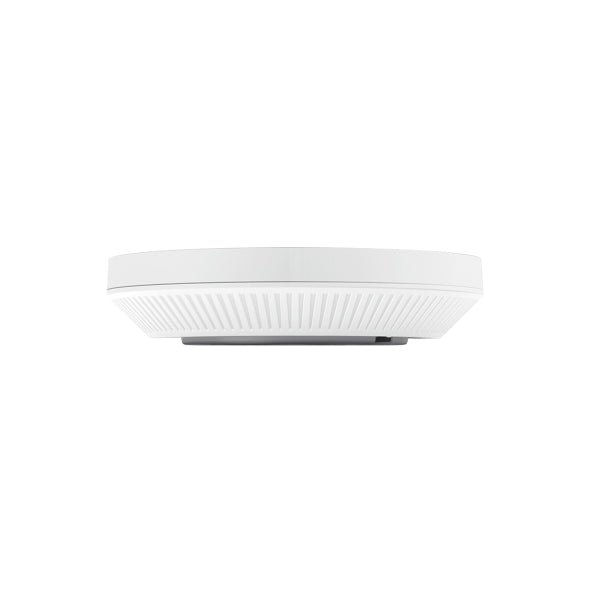

  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES
  • Interface: 1× Gigabit Ethernet (RJ-45) Port
  • Button: Reset
  • Power Supply: 802.3at PoE, 48V Passive PoE, 12V/1.5A DC (Power Adapter Included)
  • Max Power Consumption: EU: 13.7W (PoE), 12.3W (DC); US: 14.2W (PoE), 12.8W (DC)
  • Dimensions: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
  • Antenna: Internal Omni; 2.4GHz: 2×4dBi; 5GHz: 2×5dBi

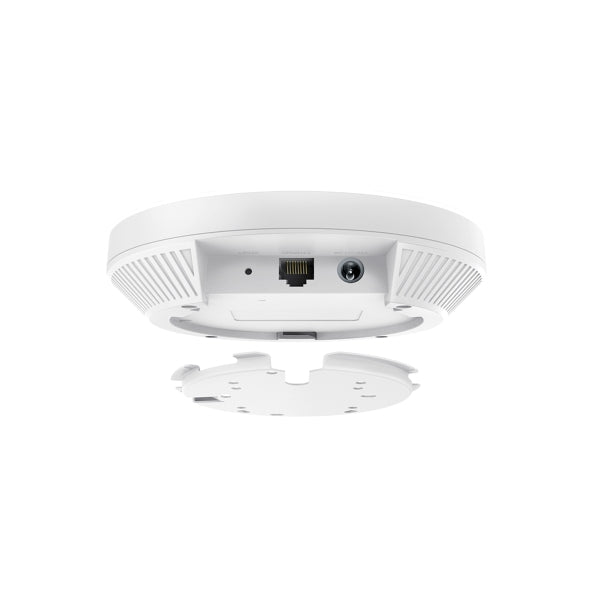

  • Mounting: Ceiling/Wall Mount (Kits Included), Junction Box Mounting
  • WIRELESS FEATURES
  • Coverage: 115㎡ (1250 ft²)
  • Concurrent Clients: 250+
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate: 5GHz up to 1201 Mbps; 2.4GHz up to 574 Mbps
  • Wireless Functions: 1024-QAM, OFDM Symbol Extension, MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, QoS (WMM), Multiple SSIDs (Up to 16), Auto Channel, Tx Power Control, Rate Limit, Reboot/Wireless Schedule, Wireless Statistics
  • Wireless Security: Captive Portal, MAC Filtering, Wireless Isolation, SSID-VLAN Mapping, Rogue AP Detection, 802.1X, WPA/WPA2/WPA3 Personal & Enterprise
  • Transmission Power: CE: <20dBm (2.4GHz), <23dBm (5GHz band1/2), <25dBm (5GHz band3); FCC: <25dBm (2.4GHz & 5GHz)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud, OC300, OC200, Software Controller
  • Cloud Access: Yes (via OC300, OC200, Software & Cloud Controller)
  • Email Alerts: Yes
  • LED Control: Yes (On/Off)
  • MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging: Local / Remote Syslog
  • SSH: Yes
  • Web Management: HTTP / HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes (via Omada Cloud Controller)
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: EAP610, Power Adapter, Ceiling/Wall Mount Kits, Installation Guide
  • System Requirements: Windows XP/Vista/7/8/10/11, Linux
  • Environment: Operating Temp: 0–40°C; Storage Temp: -40–70°C; Operating Humidity: 10–90% RH; Storage Humidity: 5–90% RH
