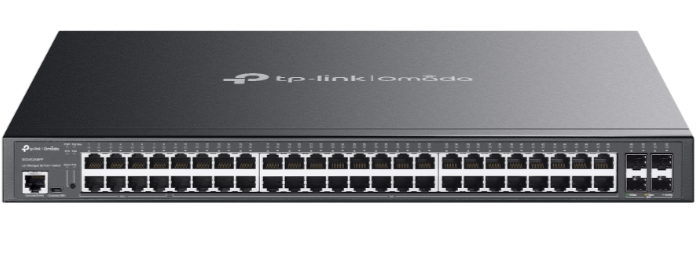

TP-Link Omada SG3452XMPP 48-Port Gigabit L2+ Managed PoE++ Switch with 4× 10G SFP+ Uplinks

SKU: TP-SG3452XMPP

$999.99 CAD
$999.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 750 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • HARDWARE FEATURES
  • Interface: 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
  • Fan Quantity: 3
  • Physical Security Lock: √
  • Power Supply: 100-240 V AC~50/60 Hz
  • PoE Ports (RJ45): Standard: 802.3at/af/bt compliant; PoE++ Ports: Ports 1~8 (up to 90 W per port); PoE+ Ports: Ports 9~48 (up to 30 W per port); Power Budget: 750 W*
  • Dimensions (W x D x H): 17.3×13.0×1.7 in (440×330×44 mm)
  • Mounting: Rack Mountable
  • Max. Power Consumption: 913.4 W (110V/60Hz) with 750 W PD connected
  • Max. Heat Dissipation: 3114.69 BTU/hr (110 V/60 Hz) with 750 W PD connected
  • PERFORMANCE
  • Packet Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB
  • Switching Capacity: 176 Gbps
  • Packet Forwarding Rate: 130.9 Mpps
  • MAC Address Table: 16 K
  • SOFTWARE FEATURES
  • Quality of Service: 8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
  • L2 and L2+ Features: 128 IP Interfaces (IPv4/IPv6), Static Routing: 48 static routes, Static ARP: 128 entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay: Interface/VLAN, DHCP L2 Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring
  • L2 Multicast: Supports 1000 IGMP groups, IGMP Snooping, IGMP Authentication, Multicast VLAN Registration (MVR), MLD Snooping, Multicast Filtering: 256 profiles & 16 entries per profile
  • Advanced Features: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
  • ISP Features: L2PT, DLDP, PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlow
  • VLAN: Max 4K VLAN Groups, 802.1Q Tagged VLAN, MAC VLAN: 30 Entries, Protocol VLAN: Template 16, Private VLAN, GVRP, VLAN VPN (QinQ), Voice VLAN
  • Access Control List: Time-based ACL, MAC ACL, IP ACL, Combined ACL, Packet Content ACL, IPv6 ACL, Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
  • Security: IP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard 100 Entries), IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard 100 Entries), DoS Defend, Static/Dynamic Port Security (up to 64 MAC per port), Storm Control, 802.1X (Port/Mac authentication, VLAN Assignment, MAB, Guest VLAN, Radius), AAA (TACACS+), Port Isolation, Secure HTTPS/CLI, IP/Port/MAC access control
  • IPv6: Dual IPv4/IPv6, MLD Snooping, IPv6 ACL & Interface, Static IPv6 Routing, Neighbor Discovery, MTU Discovery, ICMPv6, TCPv6/UDPv6, IPv6 Apps: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), SNMP, SSH, SSL, HTTP/HTTPS, TFTP
  • MIBs: MIB II, Interface MIB, Ethernet MIB, Bridge MIB, P/Q-Bridge MIB, RMON MIB, RMON2 MIB, Radius Accounting & Authentication Client MIB, Remote Ping/Traceroute MIB, TP-Link private MIB
  • MANAGEMENT
  • Omada App: Yes (requires Omada Hardware, Cloud, or Software Controller)
  • Centralized Management: Omada Cloud-Based Controller, Hardware Controller, Software Controller
  • Cloud Access: Yes (requires Omada Hardware, Cloud, or Software Controller)
  • Zero-Touch Provisioning: Yes (requires Omada Cloud-Based Controller)
  • Management Features: Web-based GUI, CLI via console/telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON 1,2,3,9), SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Content: SG3452XMPP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
  • System Requirements: Microsoft® Windows® 98SE/NT/2000/XP/Vista/7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux
  • Environment: Operating Temp: 0–40 ℃, Storage Temp: -40–70 ℃, Operating Humidity: 10–90% RH, Storage Humidity: 5–90% RH
The TP-Link Omada SG3452XMPP is a high-capacity L2+ managed switch built for demanding business and enterprise networks. It combines 48 Gigabit Ethernet ports with advanced PoE capability and 4× 10G SFP+ uplinks, making it suitable for environments that require reliable wired connectivity, centralized power delivery, and high-speed network aggregation. Its PoE support allows compatible devices such as wireless access points, IP cameras, VoIP phones, and other powered network equipment to receive both data and power through Ethernet cabling. This helps simplify installation while reducing the need for separate power adapters across larger network deployments. The 10G SFP+ uplinks provide additional bandwidth for backbone connections, switch-to-switch links, server connectivity, and network aggregation. Combined with Omada management features, the SG3452XMPP is well suited for offices, campuses, hospitality environments, surveillance networks, and other large-scale professional installations.

FAQs : TP-Link Omada SG3452XMPP

The TP-Link SG3452XMPP is an L2+ managed Gigabit switch designed for professional networks that need high port density, PoE power delivery, and fast 10G uplinks.
The SG3452XMPP provides 48 Gigabit Ethernet ports, making it suitable for connecting a large number of wired and PoE-enabled network devices.
The 4× 10G SFP+ uplinks can support high-speed backbone connections, network aggregation, and links to compatible switches, servers, or other infrastructure.
