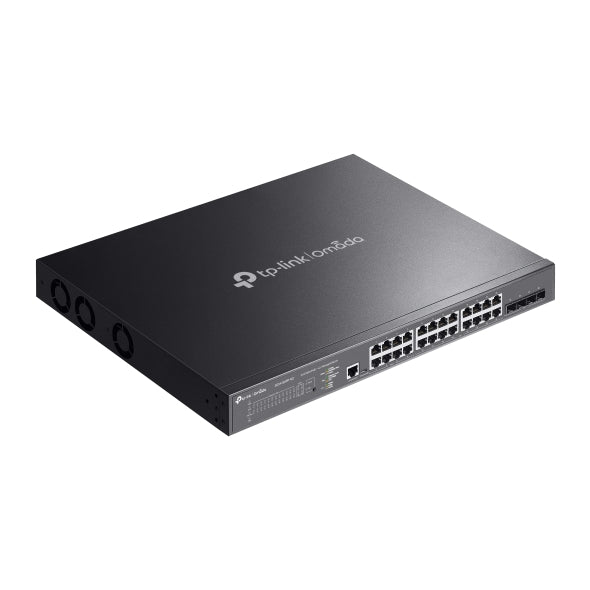

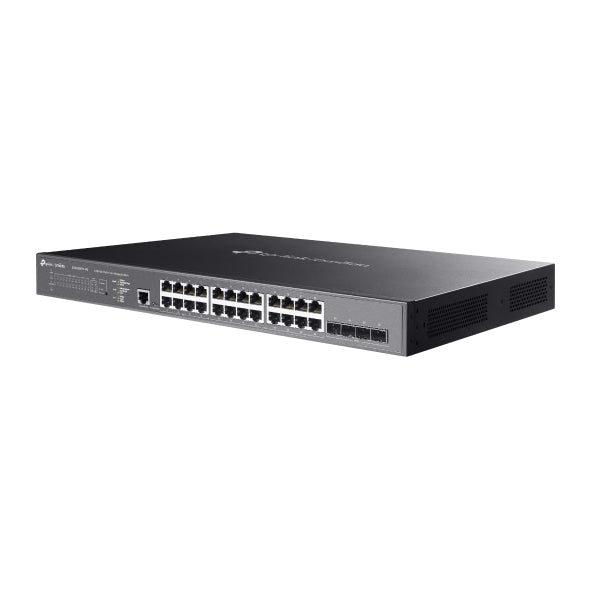

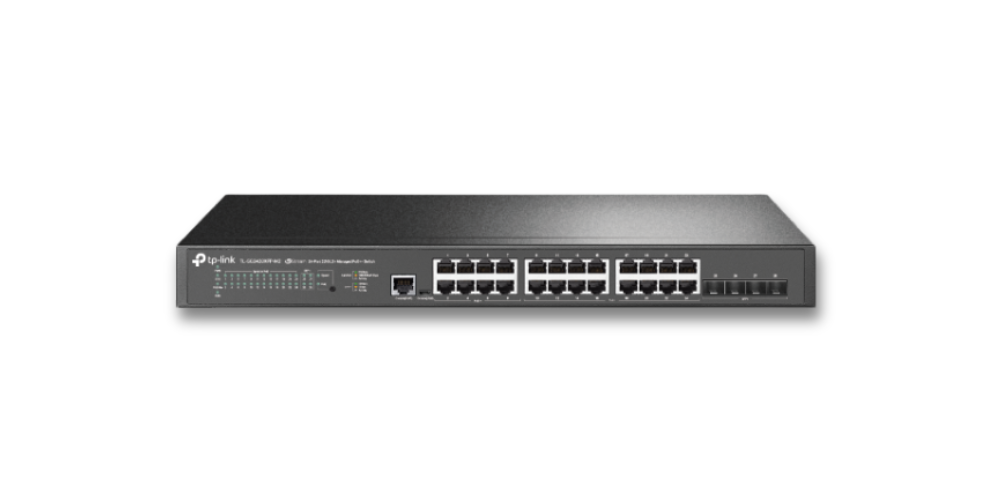

TP-Link Omada SG3428XPP-M2 24-Port 2.5G L2+ Managed Switch with 16 PoE+ Ports, 8 PoE++ Ports and 4× 10G SFP+

SKU: TP-SG3428XPP-M2

$999.99 CAD
$999.99 CAD $1,099.99 CAD
Sale Sold out
Shipping calculated at checkout.
Only 4 units left
  • 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
  • 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
  • 4× 10G SFP+ slots
  • 500 W total PoE budget*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details

Hardware Features

  • Interface: 24 × 2.5G RJ45 (8 × PoE++, 16 × PoE+), 4 × 10G SFP+, 1 × RJ45 Console, 1 × Micro-USB Console
  • Fan Quantity: 3
  • Physical Security Lock: Yes
  • Power Supply: 100–240V AC, 50/60Hz
  • PoE Ports: 802.3bt/at/af compliant, 8 × PoE++ (60W), 16 × PoE+ (30W), Total Budget 500W
  • Dimensions: 440 × 330 × 44 mm
  • Mounting: Rack Mountable
  • Max Power Consumption: 629.1W
  • Max Heat Dissipation: 2153.45 BTU/h

Performance

  • Switching Capacity: 200 Gbps
  • Forwarding Rate: 148.80 Mpps
  • MAC Address Table: 32K
  • Packet Buffer Memory: 16 Mbit
  • Jumbo Frame: 9 KB

Quality of Service (QoS)

  • QoS Features: 8 queues, 802.1p/DSCP, SP/WRR/SP+WRR scheduling, bandwidth control, QoS remark

Layer 2 / Layer 3 Features

  • L2/L3 Features: 32 IP interfaces, static routing (48 routes), ARP (512 entries), DHCP server/relay, link aggregation, STP, loop detection, mirroring

Multicast

  • L2 Multicast: 511 IGMP groups, IGMP snooping/authentication, MVR, MLD snooping, multicast filtering

Advanced & ISP Features

  • Advanced: Auto discovery, batch config, firmware upgrade, monitoring, alerts, reboot schedule
  • ISP Features: L2PT, DLDP, PPPoE ID insertion, ERPS, Ethernet OAM, DDM

VLAN

  • VLAN Support: 4K VLANs, 802.1Q, MAC VLAN (256), protocol VLAN, GVRP, VLAN mapping, voice VLAN

Access Control

  • ACL: MAC/IP/IPv6 ACL, time-based ACL, packet filtering, QoS policies, port/VLAN binding

Security

  • Security Features: IP-MAC binding, DHCP snooping, ARP inspection, IPv4/IPv6 source guard, DoS protection, port security, 802.1X, AAA, HTTPS, SSH

IPv6

  • IPv6 Support: Dual stack, routing, ACL, ND, ICMPv6, DHCPv6, IPv6 apps (SSH, SNMP, HTTP, TFTP)

Management

  • Management: Omada app, cloud & centralized control, zero-touch provisioning, Web GUI, CLI, SNMP, monitoring & logs

Others

  • Certifications: CE, FCC, RoHS
  • Package: Switch, power cord, rack kit
  • System Support: Windows, macOS, Linux

Environment

  • Environment: Operating 0–40°C, Storage -40–70°C, Humidity 10–90% non-condensing
The TP-Link Omada SG3428XPP-M2 is a high-performance L2+ managed switch built for business and enterprise networks that require multi-gigabit connectivity, advanced PoE capability, and fast 10G uplinks. It combines 24× 2.5GBASE-T ports with 4× 10G SFP+ slots, making it suitable for bandwidth-intensive network environments. Among its 24 multi-gigabit Ethernet ports, the switch includes 16 PoE+ ports and 8 PoE++ ports, helping power a wide range of compatible devices such as WiFi access points, IP cameras, VoIP phones, and higher-power networking equipment. This can simplify deployment by carrying both network data and electrical power through Ethernet cabling. The 4× 10G SFP+ uplinks provide additional bandwidth for backbone connections, switch aggregation, servers, and other high-speed infrastructure. As part of the TP-Link Omada ecosystem, the SG3428XPP-M2 is well suited for centrally managed offices, campuses, hotels, retail environments, surveillance networks, and other scalable business deployments.

FAQs : TP-Link Omada SG3428XPP-M2

The SG3428XPP-M2 is an L2+ managed multi-gigabit switch designed for professional networks that need 2.5G Ethernet, PoE+ and PoE++ power delivery, and 10G fiber uplinks.
It provides 24 PoE-capable 2.5G ports, including 16 PoE+ ports and 8 PoE++ ports, allowing compatible powered devices to receive power and data over Ethernet.
The 4× 10G SFP+ slots can be used for high-speed uplinks, switch aggregation, fiber backbone connections, and links to other compatible network infrastructure.
