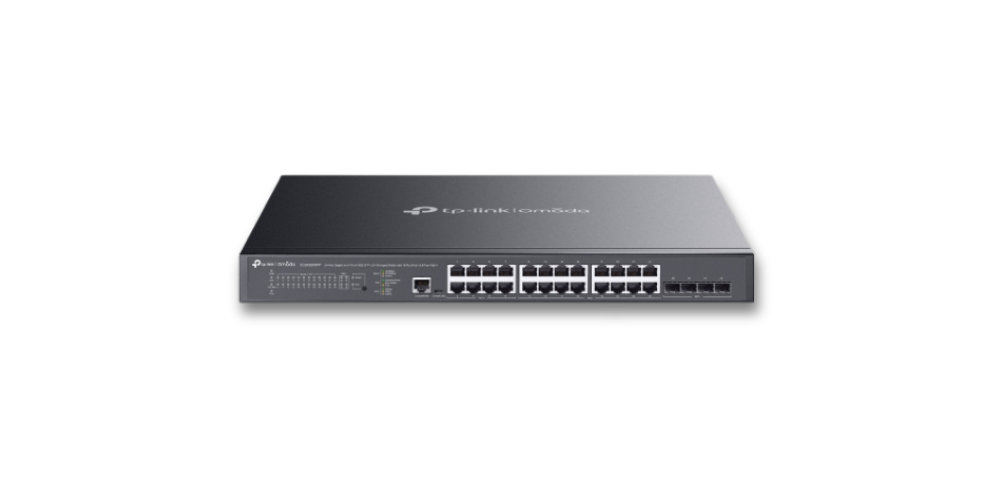

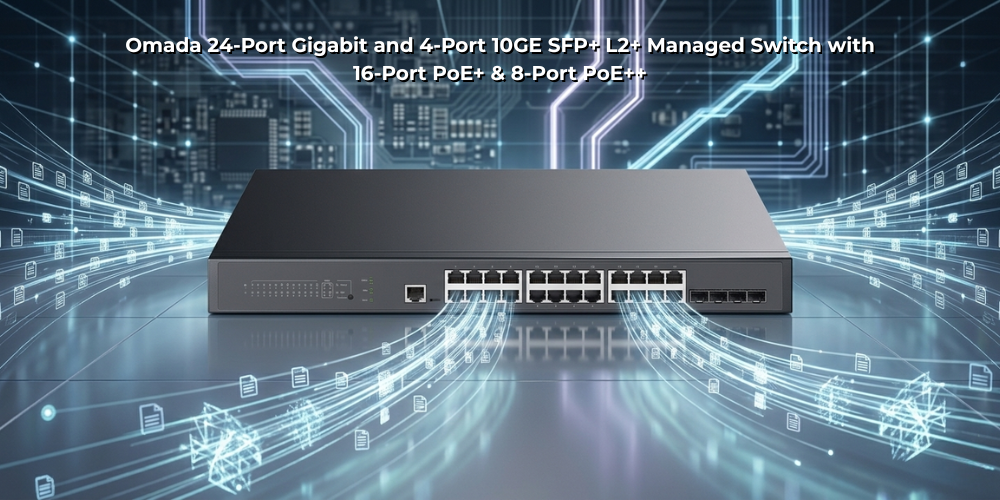

TP-Link SG3428XMPP

$699.99 CAD
$699.99 CAD $699.99 CAD
Sale Sold out
Only 7 units left
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Hardware Features

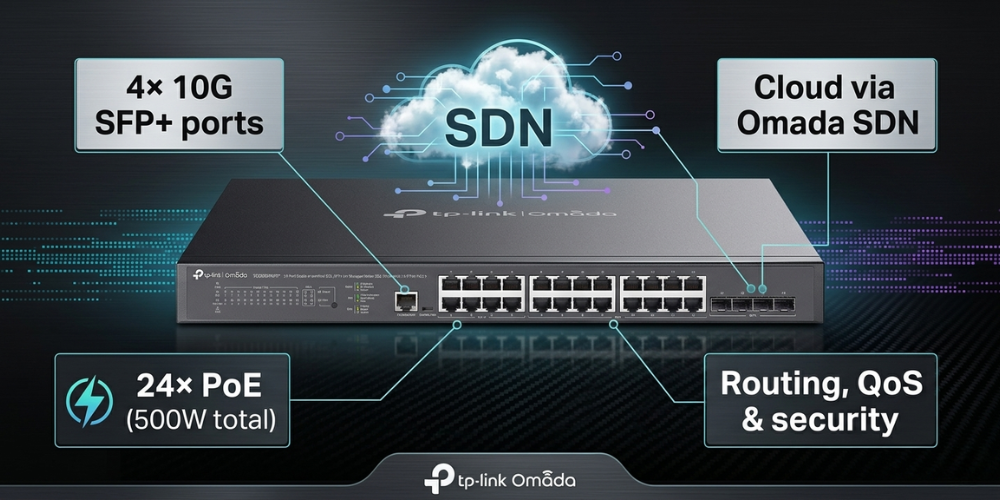

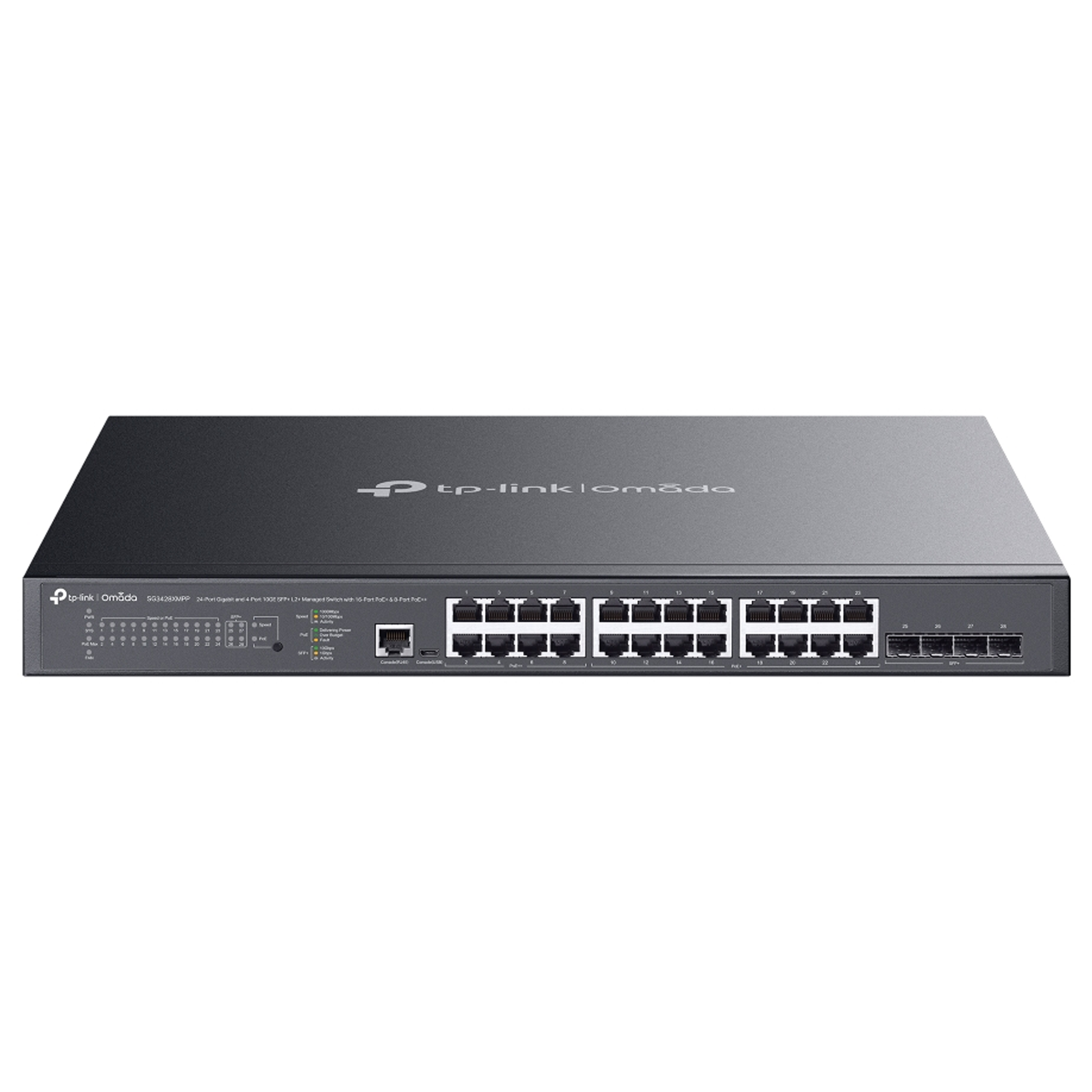

  • Interfaces:

    24 × 10/100/1000 Mbps RJ45 Ports (8 × PoE++, 16 × PoE+)
    4 × 10G SFP+ Slots
    1 × RJ45 Console Port
    1 × Micro-USB Console Port

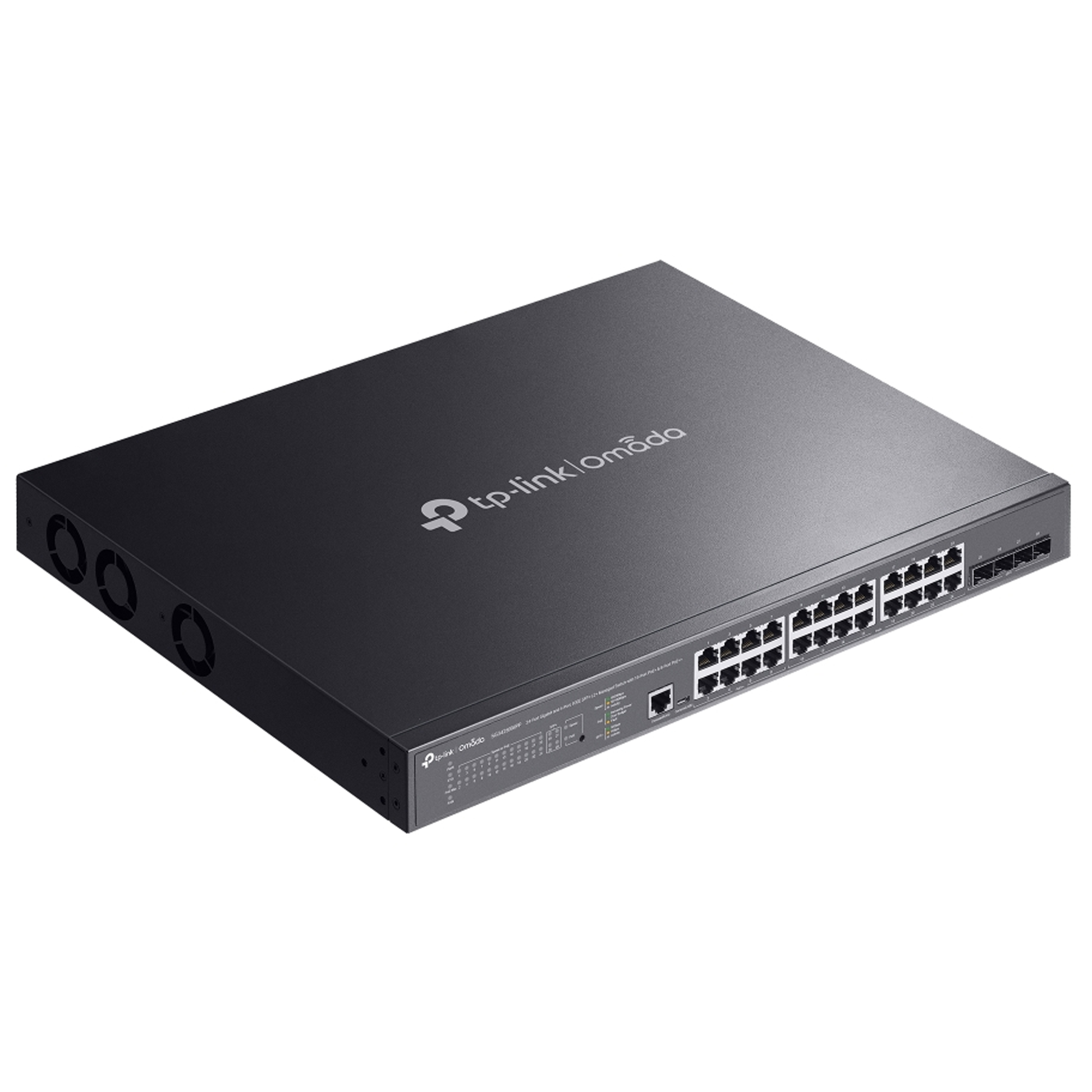

  • Fan Quantity: 3
  • Physical Security Lock: Yes

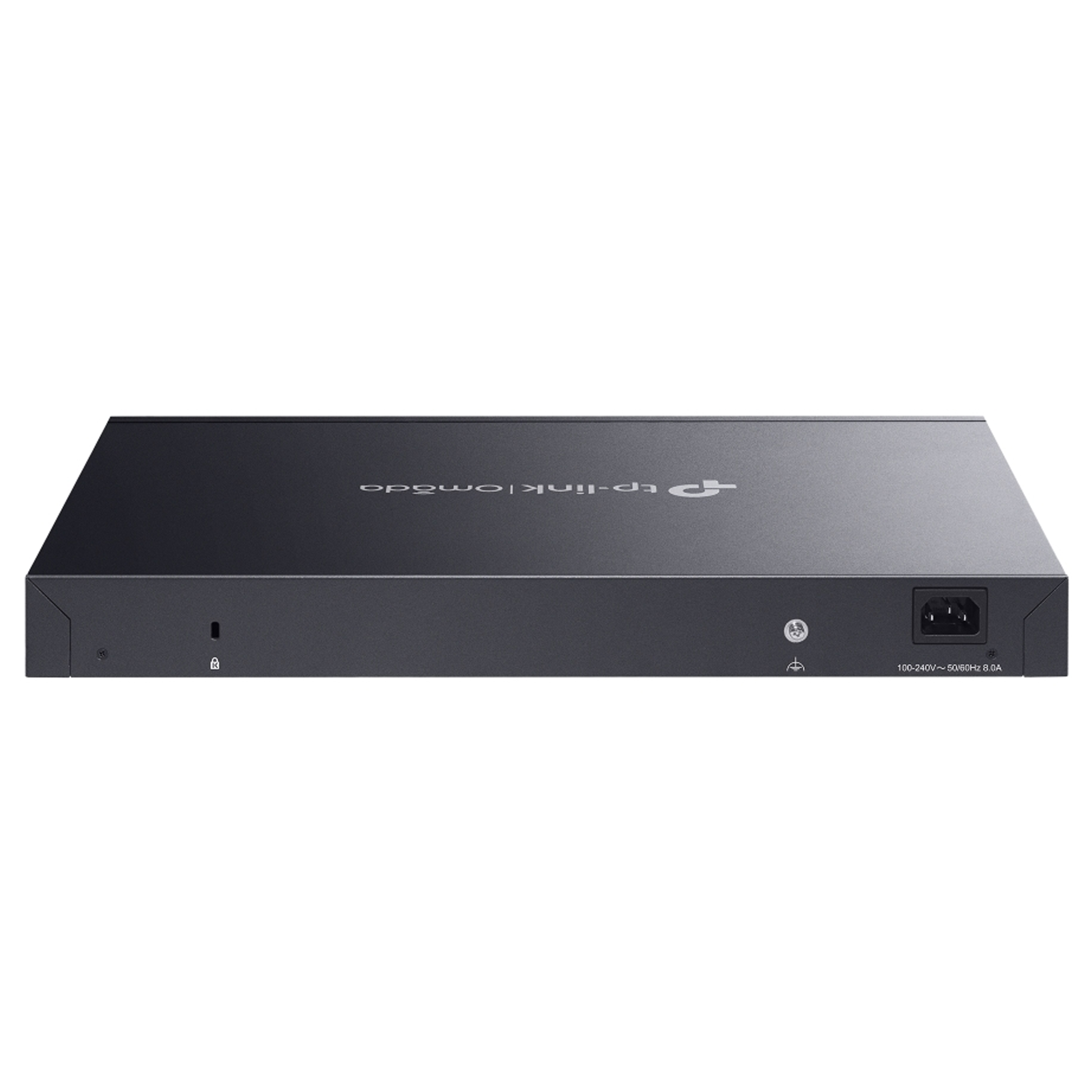

  • Power Supply: 100–240V AC, 50/60Hz
  • PoE Ports:

    PoE++ (Ports 1–8): up to 90W per port
    PoE+ (Ports 9–24): up to 30W per port
    Total PoE Budget: 500W

  • Dimensions: 440 × 330 × 44 mm
  • Mounting: Rack Mountable

Power & Heat

  • Max Power Consumption: 605.5W (full PoE load)
  • Max Heat Dissipation: 2064.96 BTU/hr

Performance

  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • MAC Address Table: 16K
  • Packet Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB

Quality of Service (QoS)

  • 8 Priority Queues
  • 802.1p CoS / DSCP Priority
  • Scheduling: SP, WRR, SP+WRR
  • Bandwidth Control (Port/Flow Based)
  • QoS Actions: Remark, Rate Limit

Layer 2 / Layer 3 Features

  • 128 IPv4/IPv6 Interfaces
  • Static Routing (48 Routes)
  • ARP Table: 512 Entries
  • DHCP Server & Relay
  • Link Aggregation & Spanning Tree
  • Loopback Detection & Flow Control
  • Port & CPU Mirroring

L2 Multicast

  • Up to 1000 IGMP Groups
  • IGMP Snooping & Authentication
  • MLD Snooping
  • MVR Support
  • Multicast Filtering Profiles

VLAN

  • Up to 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN (30 Entries)
  • Protocol VLAN
  • Private VLAN
  • QinQ & VLAN Mapping
  • Voice VLAN

Access Control List (ACL)

  • MAC, IP & IPv6 ACL
  • Time-Based ACL
  • Policy Actions: Mirror, Redirect, Rate Limit, QoS Remark
  • Port & VLAN Based ACL

Security

  • IP-MAC-Port Binding (512 Entries)
  • DHCP Snooping & ARP Inspection
  • IPv4/IPv6 Source Guard
  • DoS Protection & DHCP Filter
  • Port Security (64 MACs per port)
  • 802.1X Authentication & AAA (RADIUS, TACACS+)
  • HTTPS & SSH Secure Management

IPv6 Features

  • Dual Stack IPv4/IPv6
  • IPv6 Routing & ACL
  • ND & ICMPv6 Support
  • IPv6 Applications (SSH, SNMP, HTTP, TFTP)

ISP Features

  • L2PT, DLDP, PPPoE ID Insertion
  • ERPS & Ethernet OAM
  • DDM & sFlow

Management

  • Omada App & Cloud Controller Support
  • Centralized & Cloud Management
  • Zero-Touch Provisioning
  • Web GUI, CLI, SNMP
  • Monitoring, Logs & Diagnostics

Others

  • Certifications: CE, FCC
  • Package Includes: Switch, Power Cord, Rack Kit
  • System Support: Windows, macOS, Linux

Environment

  • Operating Temperature: 0–40°C
  • Storage Temperature: -40–70°C
  • Humidity: 10–90% RH (Non-condensing)
