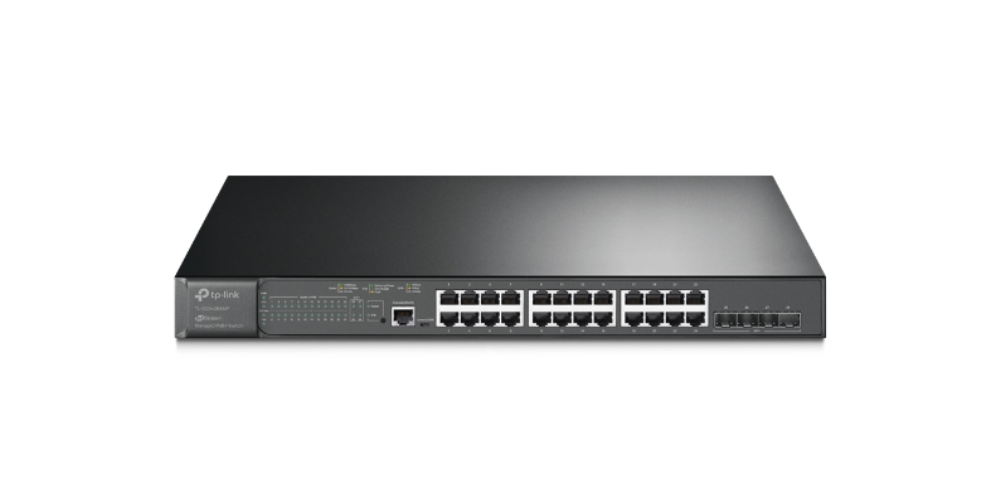

TP-Link SG3428XMP

$510.45 CAD
$510.45 CAD
Sale Sold out
Only 4 units left

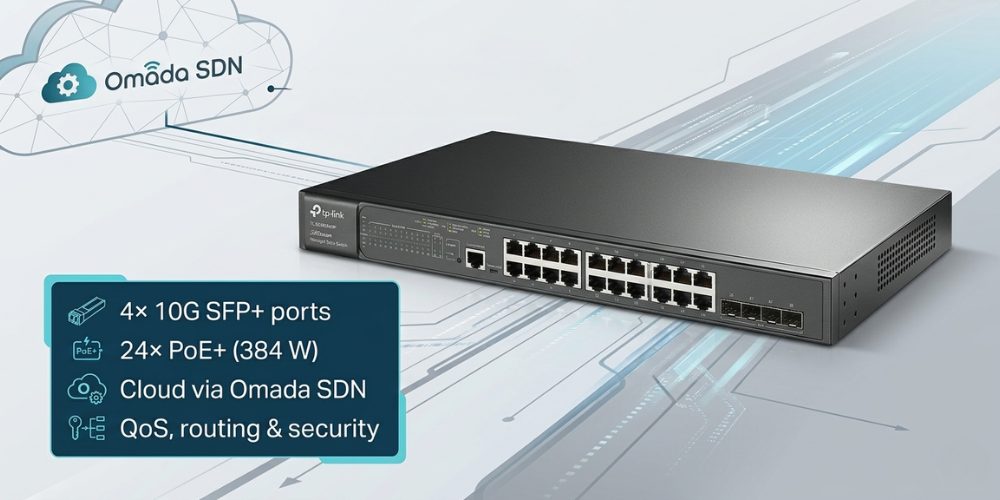

  • 4× 10 Gbps SFP+ slots
  • 24× Gigabit 802.3af/at PoE+ ports
  • 384 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details

Hardware Features

  • Interfaces:

    24 × 10/100/1000 Mbps RJ45 Ports
    4 × 10G SFP+ Slots
    1 × RJ45 Console Port
    1 × Micro-USB Console Port

  • Fan Quantity: 2
  • Power Supply: 100–240V AC, 50/60Hz
  • PoE+ Ports: 24 × PoE+ (802.3af/at), up to 30W per port
  • PoE Budget: 384W
  • Dimensions: 440 × 330 × 44 mm
  • Mounting: Rack Mountable

Power & Heat

  • Max Power Consumption:

    ~465.8W (full PoE load)
    ~34.4W (no PoE load)

  • Max Heat Dissipation:

    ~1589 BTU/h (full load)
    ~117 BTU/h (no PoE load)

Performance

  • Switching Capacity: 128 Gbps
  • Forwarding Rate: 95.23 Mpps
  • MAC Address Table: 16K
  • Packet Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB

Quality of Service (QoS)

  • 8 Priority Queues
  • 802.1p CoS / DSCP Priority
  • Queue Scheduling: SP, WRR, SP+WRR
  • Bandwidth Control (Port/Flow Based)
  • Flow Actions: Mirror, Redirect, Rate Limit, QoS Remark

Layer 3 Features

  • 16 IPv4/IPv6 Interfaces
  • Static Routing (48 Routes)
  • Static ARP (128 Entries)
  • DHCP Server & Relay
  • Proxy ARP & Gratuitous ARP

Layer 2 & L2+ Features

  • Link Aggregation (Static & LACP)
  • Spanning Tree: STP, RSTP, MSTP
  • Loopback Detection
  • Flow Control (802.3x)
  • Port & CPU Mirroring

L2 Multicast

  • IGMP Snooping (v1/v2/v3)
  • MLD Snooping (v1/v2)
  • MVR Support
  • Multicast Filtering Profiles

VLAN

  • Up to 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN (30 Entries)
  • Protocol VLAN
  • Private VLAN
  • QinQ (Port-based & Selective)
  • Voice VLAN

Access Control List (ACL)

  • MAC, IP & IPv6 ACL
  • Time-based ACL
  • Policy Actions: Mirror, Redirect, Rate Limit
  • Port & VLAN Based ACL

Security

  • IP-MAC-Port Binding (512 Entries)
  • DHCP Snooping & ARP Inspection
  • IPv4/IPv6 Source Guard
  • DoS Protection
  • Port Security (64 MACs per port)
  • 802.1X Authentication (Port/MAC Based)
  • AAA (RADIUS, TACACS+)
  • HTTPS & SSH Secure Management

IPv6 Features

  • Dual Stack IPv4/IPv6
  • IPv6 Routing & ACL
  • ND & ICMPv6 Support
  • IPv6 Applications (SSH, SNMP, HTTP, TFTP)

Management

  • Omada App & Cloud Controller Support
  • Centralized Management (OC200 / OC300)
  • Zero-Touch Provisioning
  • Web GUI, CLI, SNMP
  • System Monitoring & Logs

Others

  • Certifications: CE, FCC, RoHS
  • Package Includes: Switch, Power Cord, Rack Kit
  • System Support: Windows, macOS, Linux

Environment

  • Operating Temperature: 0–50°C
  • Storage Temperature: -40–70°C
  • Humidity: 10–90% RH (Non-condensing)
