TP-Link 500W Power Module PSM500-AC

SKU: TP-PSM500-AC

$298.33 CAD
$298.33 CAD
Sale Sold out
Shipping calculated at checkout.
Only 1 units left
  • Up to 500 watts output power
  • Hot swappable
  • 53.5 V DC output voltage
  • Output over-voltage/under-voltage/short circuit/over-current protection
  • Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details

Redundant Power Supply

  • AC Power Supply: 100–240V ~ 50/60Hz, 8A
  • DC Power Output: 53.5V / 9.35A
  • Max. Power Output: 500W
  • Surge Protection: ±6 kV
  • Dimensions (W × D × H): 259.5 × 95.8 × 40.1 mm

Environment

  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10%–90% RH (Non-condensing)
  • Storage Humidity: 5%–90% RH (Non-condensing)

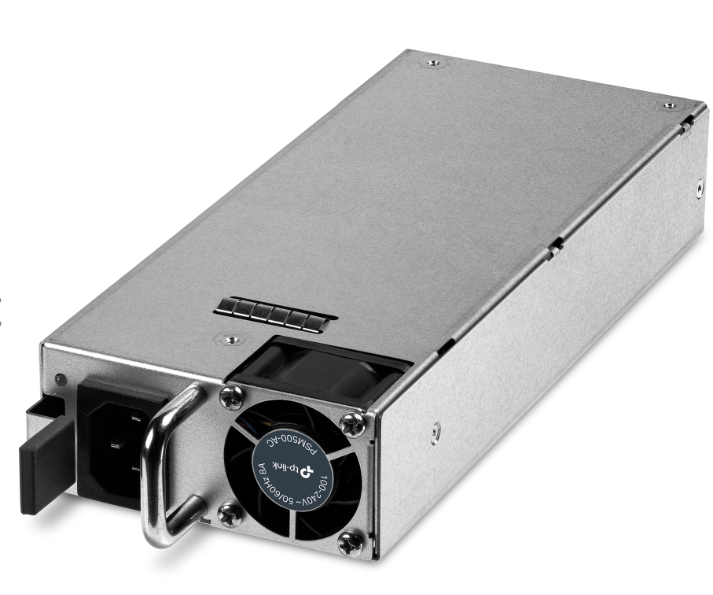

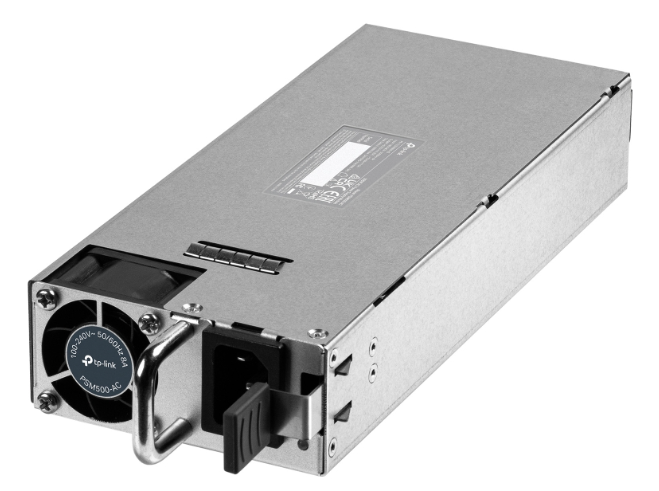

The TP-Link PSM500-AC is a 500W AC power supply module designed for compatible Omada and Omada Pro switches that require dependable and replaceable power delivery. It converts AC input into a 53.5V DC output and supports up to 500W of power, making it suitable for demanding enterprise switching environments. One of its key advantages is the hot-swappable design. This allows the module to be installed or replaced without shutting down the entire supported system, helping reduce service disruption during maintenance. The module also includes protection against over-voltage, under-voltage, short circuits, and over-current conditions, along with ±6 kV surge protection for added electrical resilience. The PSM500-AC supports a 100–240V AC input range and delivers a maximum output current of 9.35A. It is compatible with selected TP-Link switches including models such as SG6428XHP, SG6654XHP, and several S6500-series switches. For businesses running professional network infrastructure, the PSM500-AC provides a practical way to add or maintain reliable switch power while supporting easier maintenance and system continuity.

FAQs : TP-Link PSM500-AC

The TP-Link PSM500-AC is a 500W AC power supply module designed for compatible Omada and Omada Pro network switches.
Yes. The module is hot-swappable, allowing replacement or installation without requiring the supported switch to be completely powered down.
The PSM500-AC provides a primary output of 53.5V DC with a maximum output power of 500W and up to 9.35A output current.
You can buy the TP-Link PSM500-AC from JRS Global Technologies Canada through jrsglcanada.com for TP-Link networking products and business solutions.
