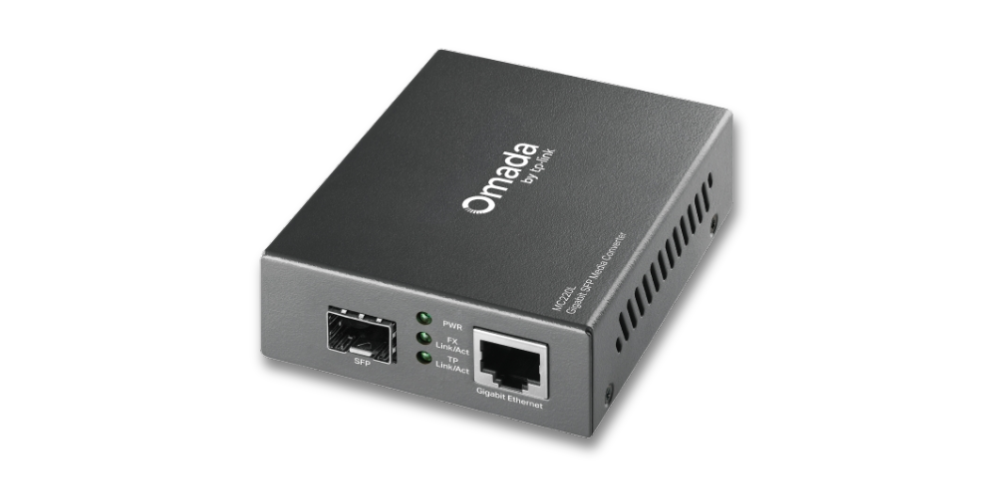

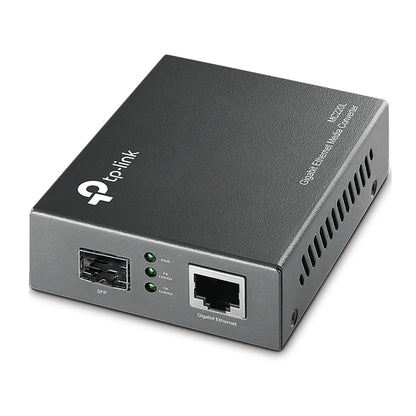

TP-Link MC220L

MEDIA CONVERTER & MODULE

• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Basic Function:

  Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  Maximum transmission distance depends on the inserted SFP module


• Interface:

  1× 1000M SFP port
  1× 10/100/1000M RJ45 port (Auto MDI/MDIX)


• Wave Length: Depends on the used SFP module
• Network Media 1000BASE-X: Multi-mode / Single-mode SFP module
• Network Media 1000BASE-T:

  UTP Category 5 / 5e cable (maximum 100m)
  EIA/TIA-568 100Ω STP (maximum 100m)


• Dimensions (W × D × H): 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)
• Power Supply: External Power Adapter
• Max. Power Consumption: 1.7 W
• LED Indicators: PWR, Link/Act
• Safety & Emission: FCC, CE, RoHS
• Package Content:

  MC220L Media Converter
  Power Adapter
  Installation Guide


• Environment:

  Operating Temperature: 0℃–50℃ (32℉–122℉)
  Storage Temperature: -40℃–70℃ (-40℉–158℉)
  Operating Humidity: 10%–90% non-condensing
  Storage Humidity: 5%–90% non-condensing
