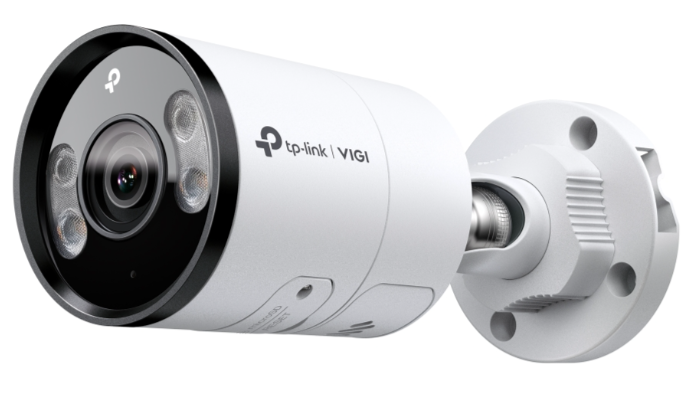

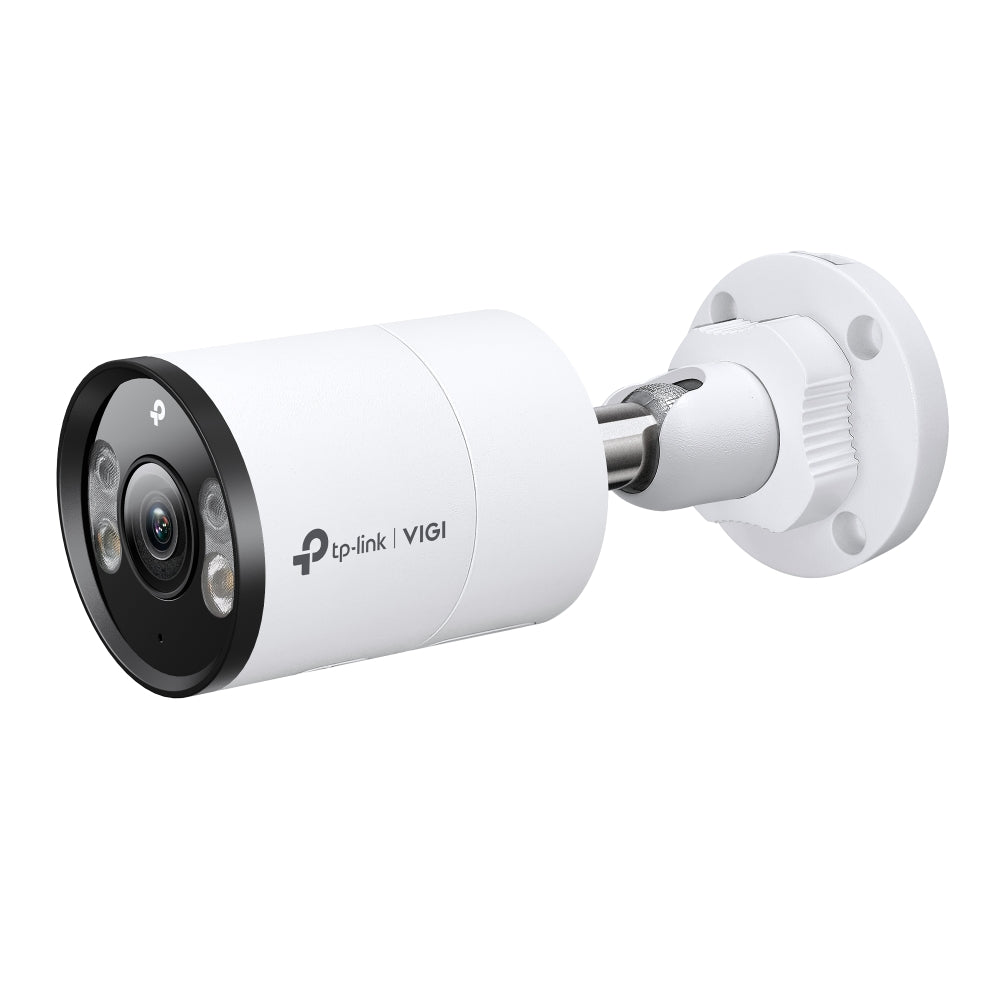

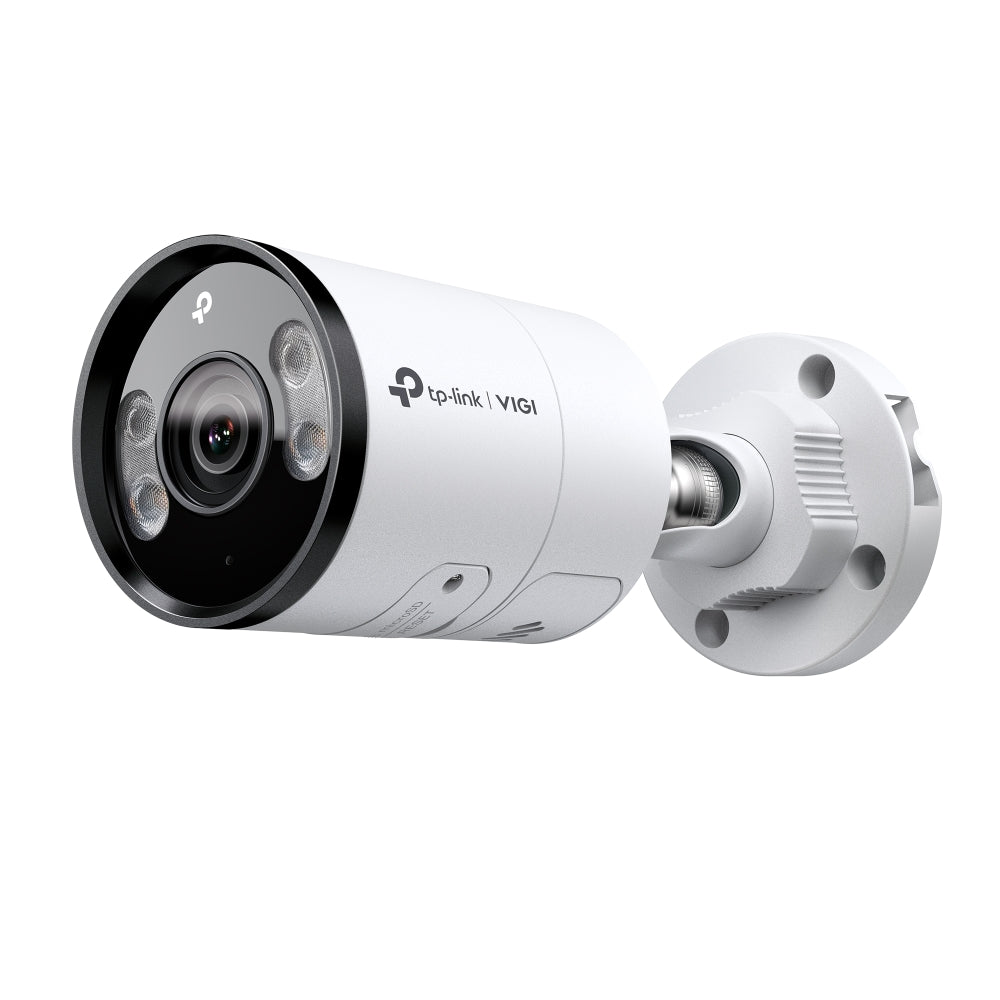

TP-Link InSight S355

Camera

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux (0 Lux with IR/White Light)
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified / Scheduled / Auto

Lens

• Type: Fixed Focal Lens
• Focal Length: 2.8 / 4 / 6 mm
• Aperture: F1.6
• Lens Mount: M12 × P0.5

Field of View (FOV)

• 2.8 mm: H: 111.4°, V: 58.8°, D: 134°
• 4 mm: H: 88°, V: 46°, D: 105.4°
• 6 mm: H: 57.3°, V: 31.3°, D: 67.2°

DORI Distance

• 2.8 mm: Detect 64m, Observe 27m, Recognize 13m, Identify 6m
• 4 mm: Detect 80m, Observe 33m, Recognize 16m, Identify 8m
• 6 mm: Detect 120m, Observe 50m, Recognize 24m, Identify 12m

Angle Adjustment

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

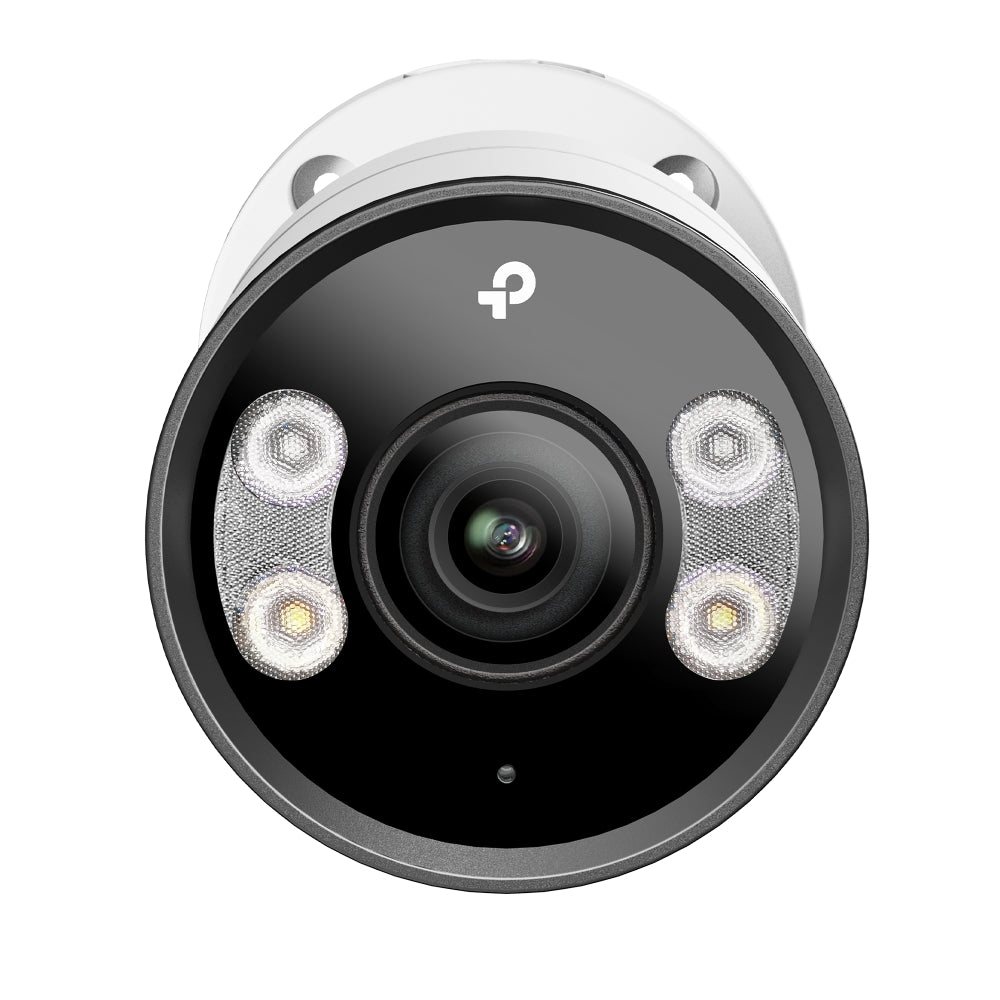

Illuminator

• IR LED: 2 LEDs, Range 30m, 850nm
• White LED: 2 LEDs, Range 30m
• Control: Auto / Scheduled / Always On / Always Off

Video

• Max Resolution: 2880 × 1620
• Bit Rate Control: CBR / VBR
• Compression: H.265+/H.265/H.264+/H.264
• Video Bit Rate: Main: 256 Kbps–6 Mbps | Sub: 64–512 Kbps

Stream Details

• Main Stream: Up to 30fps, Resolution up to 2880×1620
• Sub Stream: Up to 30fps, Resolution up to 848×480
• Note: Rotation (90°/270°) supports max 20fps


• Settings: Brightness, Contrast, Saturation, Sharpness, Exposure, WDR
• Enhancement: BLC / 3D DNR / HLC / SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Privacy Mask: Up to 4
• ROI: 1 Region
• OSD: Yes

Audio

• Communication: Two-Way Audio
• Compression: Yes
• Sampling Rate: 8KHz
• Bit Rate: 64 Kbps (G.711)
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP, HTTPS, RTSP, FTP, IPv4/IPv6, etc.
• ONVIF: Yes (Profile S/T/G)
• Live View: 3 Main + 3 Sub Streams
• Clients: VIGI App, Web UI, VMS, Cloud
• Browser Support: Chrome, Firefox, Safari, Edge
• Security: HTTPS, IP Filter, Authentication

Alarm & Events

• Smart Events: Intrusion, Line Crossing, People/Vehicle Detection, etc.
• Basic Events: Motion Detection, Tampering, Illegal Login
• Notifications: Push Alerts, Audio Warning, Light Flash

Interfaces

• Network: 1× RJ45 (PoE)
• Storage: MicroSD up to 512GB
• Microphone: Built-in (5m range)
• Speaker: Built-in
• Reset Button: Yes

General

• Operating Temp: -30°C to 60°C
• Humidity: ≤95% Non-condensing
• Material: Metal
• Weight: 0.525 Kg
• Dimensions: 184 × 74 × 74 mm
• Protection: IP67

Power

• DC: 12V ±5%, Max 9.7W
• PoE: 802.3af/at, Max 10.7W

Package Contents

• VIGI Network Camera
• Quick Start Guide
• Waterproof Accessories
• Mounting Kit

Certifications

• CE, NTRA, VCCI, KC, BSMI, FCC, IC
