TP-Link Omada ER7212PC 3-in-1 Gigabit VPN Router with 8 PoE+ Ports and Built-in Controller

SKU: TP-ER7212PC

$359.99 CAD
$359.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether.
  • Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
  • Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
  • 110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
  • Centralized Management: Cloud access and the Omada app offer convenience and easy management.
  • Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.

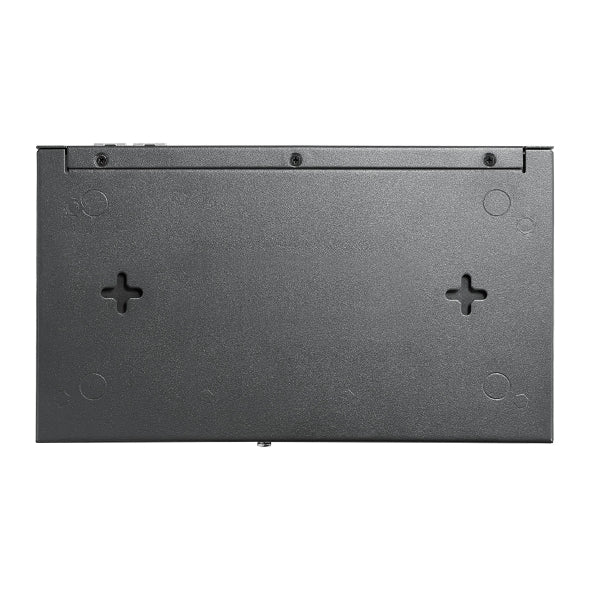

  • Easy Installation: Fanless and compact design for desktop and wall mounting.
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details

SECURITY

  • Access Control: Source/Destination IP Based Access Control
  • Filtering: URL Filtering
  • ARP Inspection: -
  • Attack Defense:

    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN

HARDWARE FEATURES

  • Standards and Protocols:

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
    TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

  • Interface:

    2 Gigabit SFP WAN/LAN ports
    1 Gigabit WAN port
    1 Gigabit LAN/WAN port
    8 Gigabit LAN ports

  • Network Media:

    10BASE-T: UTP category 3, 4, 5 cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
    100BASE-TX: UTP category 5, 5e cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)
    1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

  • Fan Quantity: Fanless
  • Button: Reset Button
  • Power Supply: 53.5VDC/2.43A Adapter
  • PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
  • Flash / DRAM: 8Mb Nor + 4 GB EMMC / 1 GB DDR3
  • LED Indicators: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed/Link/Act), LAN (Speed/Link/Act)
  • Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
  • Protection: 4 kV surge protection
  • Enclosure: Steel
  • Mounting: Desktop/Wall-mount
  • Max. Power Consumption:

    With PoE Max: 133.2 W
    Without PoE: 13.88 W

PERFORMANCE

  • Concurrent Session: 24,980
  • New Sessions/Second: 1,900
  • NAT Throughput:

    Static IP: 935.5 Mbps / 942.1 Mbps
    DHCP: 940.2 Mbps / 941.7 Mbps
    PPPoE: 913.1 Mbps / 935.2 Mbps
    L2TP: 545.0 Mbps / 912.7 Mbps
    PPTP: 523.0 Mbps / 912.8 Mbps

  • IPsec VPN Throughput (AES256): 168.5 Mbps
  • OpenVPN Throughput: 34 Mbps
  • L2TP VPN Throughput: Unencrypted: 845.3 Mbps, Encrypted: 333.2 Mbps
  • PPTP VPN Throughput: Unencrypted: 1012.6 Mbps, Encrypted: 401.4 Mbps
  • Packet Forwarding Rate:

    66 Byte: 154,069 pps / 156,977 pps
    1,518 Byte: 81,193 pps / 81,193 pps

BASIC FUNCTIONS

  • WAN Connection Type: Static IP, Dynamic IP, PPPoE, PPTP, L2TP
  • MAC Clone: Modify WAN MAC Address
  • DHCP: DHCP Server, DHCP Address Reservation, Multi-IP Interfaces, Multi-Net DHCP
  • IPv6: Supported
  • VLAN: 802.1Q VLAN
  • IPTV: IGMP v2/v3 Proxy

ADVANCED FEATURES

  • Access Control: IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing
  • Bandwidth Control: IP/Port-based Bandwidth Control
  • Load Balance: Intelligent Load Balance, Application Optimized Routing, Link Backup, Online Detection
  • NAT: Multi-Net NAT, Virtual Server, NAT-DMZ, FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Session Limit: IP-based Session Limit

VPN

  • IPsec VPN:

    20 Tunnels, LAN-to-LAN, Client-to-LAN
    Main / Aggressive Negotiation Mode
    AES128, AES192, AES256 Encryption
    IKE v1/v2
    SHA1, SHA2 Authentication
    NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)

  • PPTP VPN: Server, 10 Clients, 16 Tunnels, PPTP with MPPE Encryption
  • L2TP VPN: Server, 10 Clients, 16 Tunnels, L2TP over IPSec
  • OpenVPN: Server, 10 Clients, 16 Tunnels

AUTHENTICATION

  • Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, Facebook

MANAGEMENT

  • Omada App: Yes
  • Centralized Management: Yes
  • Cloud Access: Yes
  • Service: Dynamic DNS (DynDNS, No-IP)
  • Maintenance: Web Management Interface, Remote Management, Export & Import Configuration, SNMP v1/v2c/v3, Syslog Support
  • Zero-Touch Provisioning: -
  • Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, Management up to 1 Router, 2 Switches, and 10 EAPs

OTHERS

  • Certification: CE, FCC, RoHS
  • Package Content: ER7212PC, Power Adapter, Power Cord, Quick Installation Guide
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
  • Environment:

    Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
    Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    Operating Humidity: 10% to 90% non-condensing
    Storage Humidity: 5% to 90% non-condensing

The TP-Link Omada ER7212PC is a versatile 3-in-1 networking device that combines a Gigabit VPN router, PoE+ power delivery, and integrated Omada controller functionality in one compact unit. This design makes it especially useful for small and medium business networks that want to reduce hardware complexity while keeping routing, power, and centralized management in one place. It provides 8 Gigabit PoE+ LAN ports with a total PoE budget of 110W, allowing compatible access points, IP cameras, VoIP phones, and other powered devices to receive power and data through Ethernet. The router also includes flexible WAN connectivity through Gigabit RJ45 and SFP interfaces, helping businesses adapt the network to different connection requirements. The integrated Omada controller allows centralized management of supported Omada devices without requiring a separate hardware controller. The ER7212PC also supports business VPN technologies including IPsec, OpenVPN, L2TP/PPTP, and WireGuard on current specifications, making it a practical option for secure remote and site-to-site connectivity.

FAQs : TP-Link Omada ER7212PC

The ER7212PC is a 3-in-1 Gigabit VPN router that combines routing, PoE+ power delivery, and integrated Omada centralized management in a single device.
It provides 8 Gigabit PoE+ LAN ports with a combined PoE budget of 110W, suitable for powering compatible access points, cameras, phones, and other PoE devices.
Yes. It has built-in Omada controller software, allowing compatible gateways, switches, and access points to be centrally managed without a separate controller appliance.
