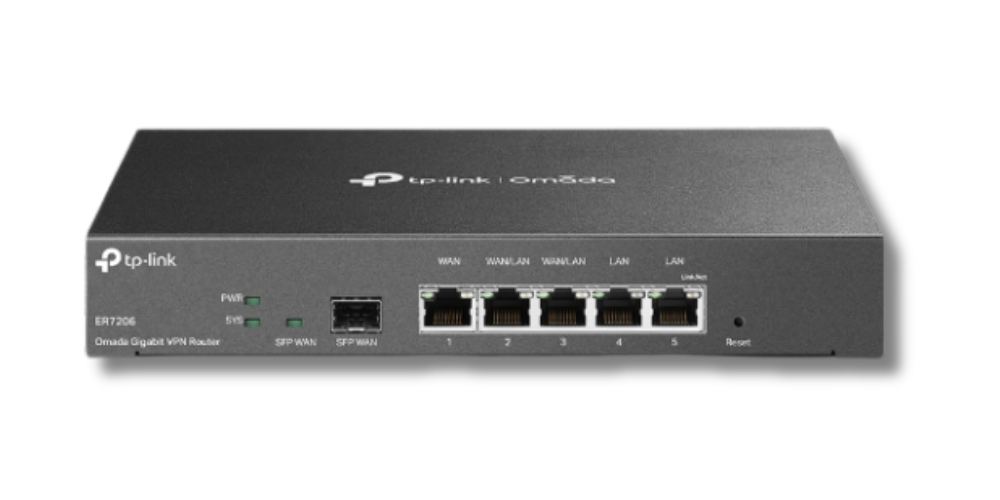

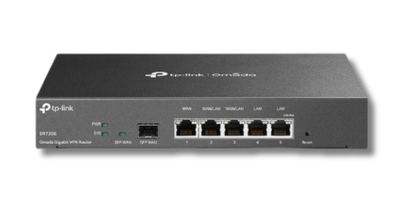

TP-Link ER7206

HARDWARE FEATURES

• Standards and Protocols:

  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
  TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP


• Interface:

  1 Fixed Gigabit SFP WAN Port
  1 Fixed Gigabit RJ45 WAN Port
  2 Fixed Gigabit RJ45 LAN Ports
  2 Changeable Gigabit RJ45 WAN/LAN Ports


• Network Media:

  10BASE-T: UTP category 3, 4, 5 cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
  100BASE-TX: UTP category 5, 5e cable (Max 100m), EIA/TIA-568 100Ω STP (Max 100m)
  1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)


• Button: Reset Button
• Power Supply: 100–240 V~50/60 Hz
• Flash / DRAM: SPI 4MB + NAND 128MB / 512MB
• LED Indicators: PWR, SYS, SFP WAN, WAN (Speed/Link/Act), LAN (Speed/Link/Act)
• Dimensions (W x D x H): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

PERFORMANCE

• Concurrent Session: 150,000
• IPsec VPN Throughput: 291.6 Mbps

BASIC FUNCTIONS

• WAN Connection Type:

  Static/Dynamic IP
  PPPoE
  PPTP
  L2TP


• MAC Clone: Modify WAN/LAN MAC Address
• DHCP:

  DHCP Server
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP


• IPv6: Developing
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

• ACL: IP/Port/Protocol/Domain Name Filtering
• Advanced Routing: Static Routing, Policy Routing
• Bandwidth Control: IP/Port-based, Guarantee & Limited Bandwidth
• Load Balance:

  Intelligent Load Balance
  Application Optimized Routing
  Link Backup (Timing / Failover)
  Online Detection


• NAT:

  One-to-One NAT
  Multi-Net NAT
  Virtual Server
  Port Triggering
  NAT-DMZ
  FTP/H.323/SIP/IPSec/PPTP ALG, UPnP


• Security:

  SPI Firewall
  VPN Passthrough
  FTP/H.323/PPTP/SIP/IPSec ALG
  DoS Defence, Ping of Death
  Local Management


• Session Limit: IP-based Session Limit

VPN

• IPsec VPN:

  100 Tunnels, LAN-to-LAN, Client-to-LAN
  Main / Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256
  IKEv1/v2
  MD5, SHA1 Authentication
  NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)


• PPTP VPN:

  Server
  10 Clients, 50 Tunnels
  PPTP with MPPE Encryption


• L2TP VPN:

  Server
  10 Clients, 50 Tunnels
  L2TP over IPSec


• OpenVPN:

  Server
  10 Clients, 50 Tunnels



SECURITY

• Filtering: WEB Group Filtering, URL Filtering, Web Security
• ARP Inspection: Sending GARP Packets, ARP Scanning, IP-MAC Binding
• Attack Defense: TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN
• Access Control: Source/Destination IP Based

AUTHENTICATION

• Web Authentication: No Authentication, Simple Password, Hotspot (Local User / Voucher / SMS / Radius), External Radius Server, External Portal Server, Facebook

MANAGEMENT

• Omada App: Yes
• Centralized Management: Omada Cloud-Based Controller, Hardware Controller (OC300/OC200), Software Controller
• Cloud Access: Yes (via OC300, OC200, Omada Cloud, or Software Controller)
• Service: Dynamic DNS (DynDNS, No-IP, PeanutHull, Comexe)
• Maintenance:

  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Syslog Support


• Management Features: Automatic Device Discovery, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Captive Portal Configuration, ZTP (Zero-Touch Provisioning)

OTHERS

• Certification: CE, FCC, RoHS
• Package Contents: ER7206, Power Cord, Quick Installation Guide
• System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX, Linux
• Environment:

  Operating Temperature: 0–40 ℃ (32–104 ℉)
  Storage Temperature: -40–70 ℃ (-40–158 ℉)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
