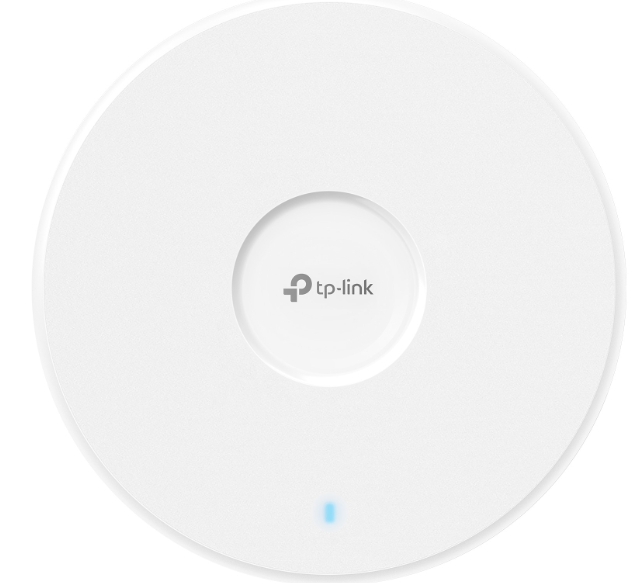

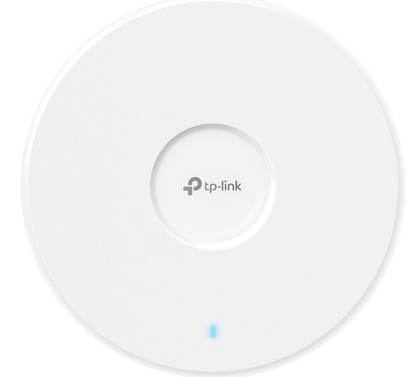

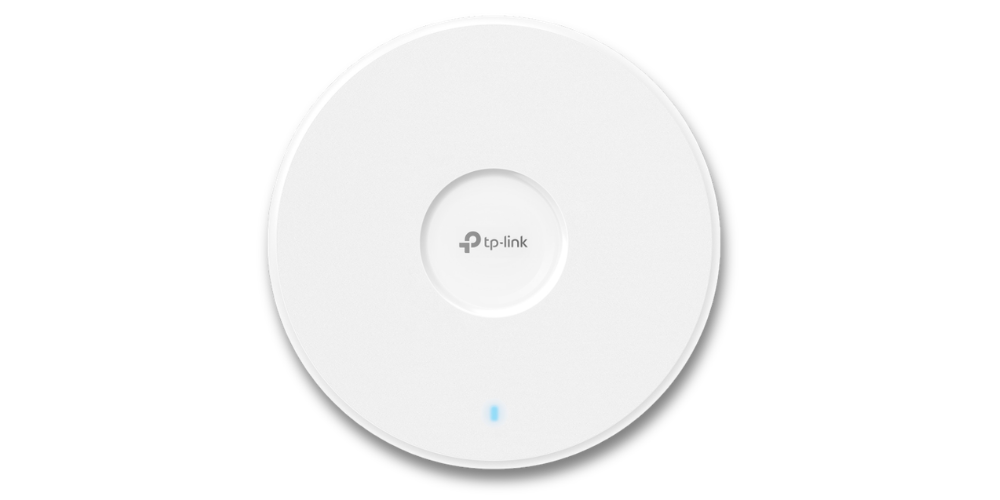

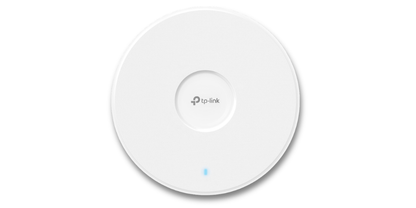

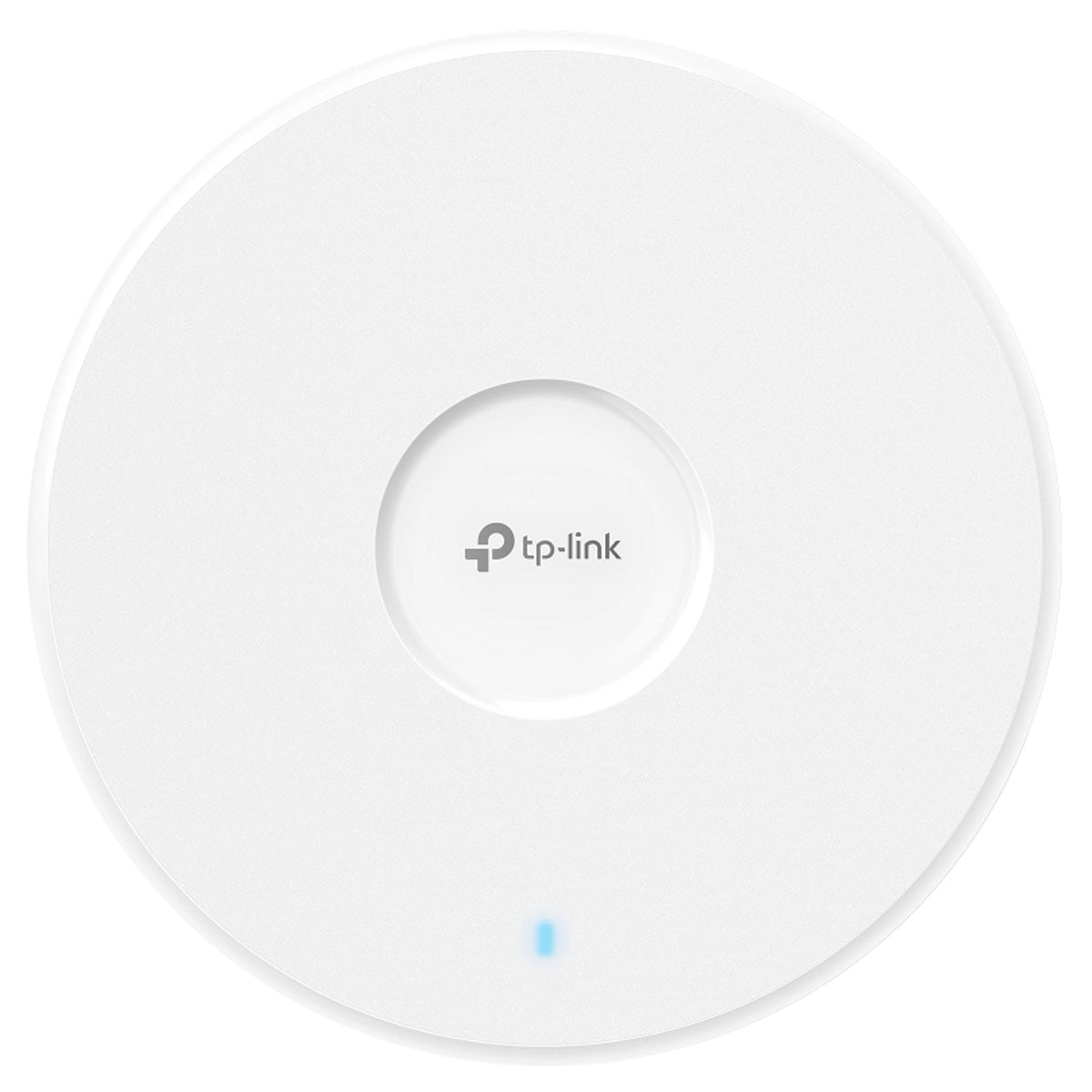

EAP773

$279.99 CAD
$279.99 CAD
Sale Sold out
In stock (28 units), ready to be shipped
  • BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.†
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7.
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.‡
  • Low Latency and Interference:  Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡
  • Advanced Functions：Supports centralized management, mesh, and AI roaming.△
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

View Product Details
  • HARDWARE FEATURES

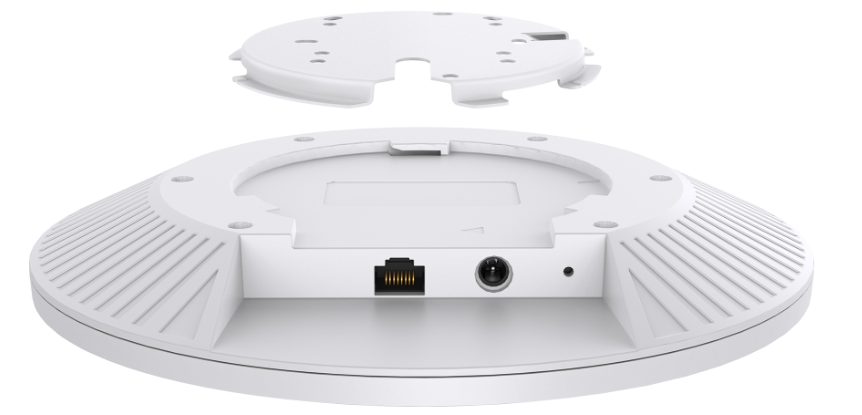

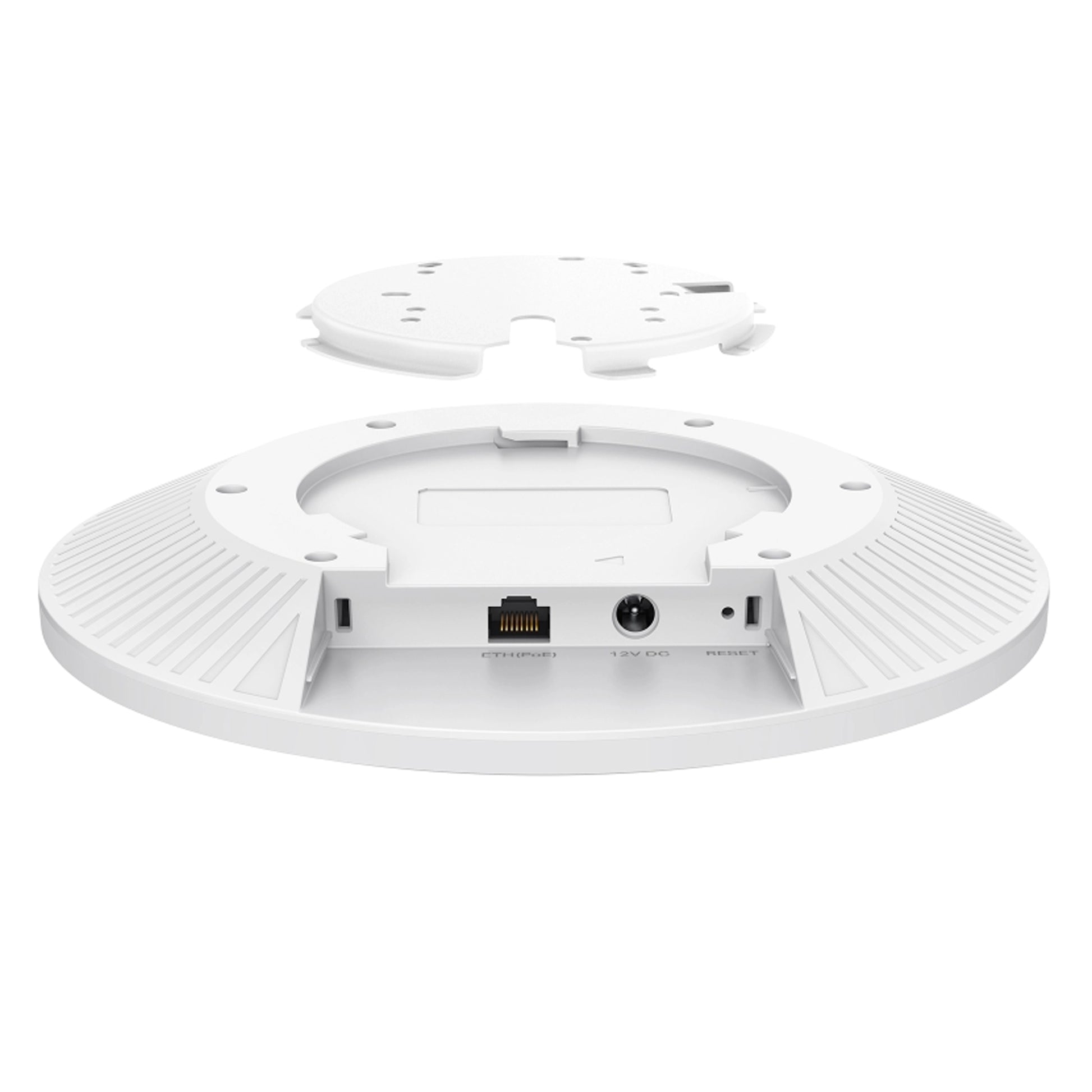

  • Interface: 1× 10G Ethernet Port
  • Button: Reset
  • Power Supply: 802.3at PoE or 12V/2.5A DC (Note: DC power adapter not included, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length)
  • Max. Power Consumption: 25.4 W (PoE), 22.4 W (DC)
  • Weight: 0.73 kg (1.61 lb)
  • Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  • Antenna: 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi, 6 GHz: 2× 5 dBi
  • Bluetooth: 1× 5 dBi (peak gain), onboard omnidirectional antennas

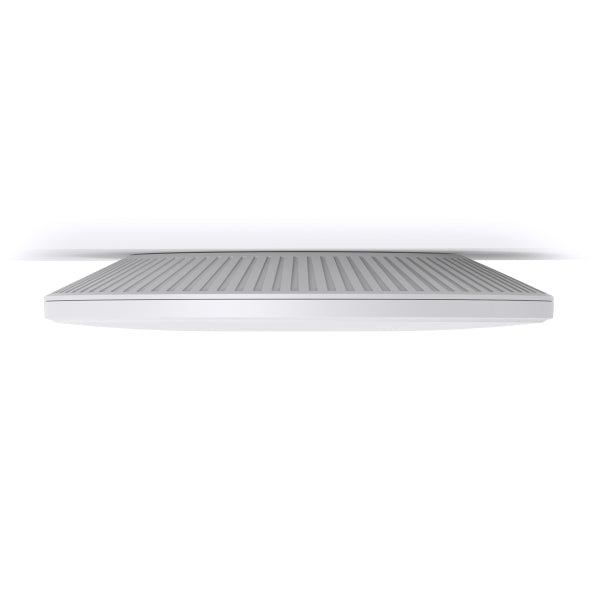

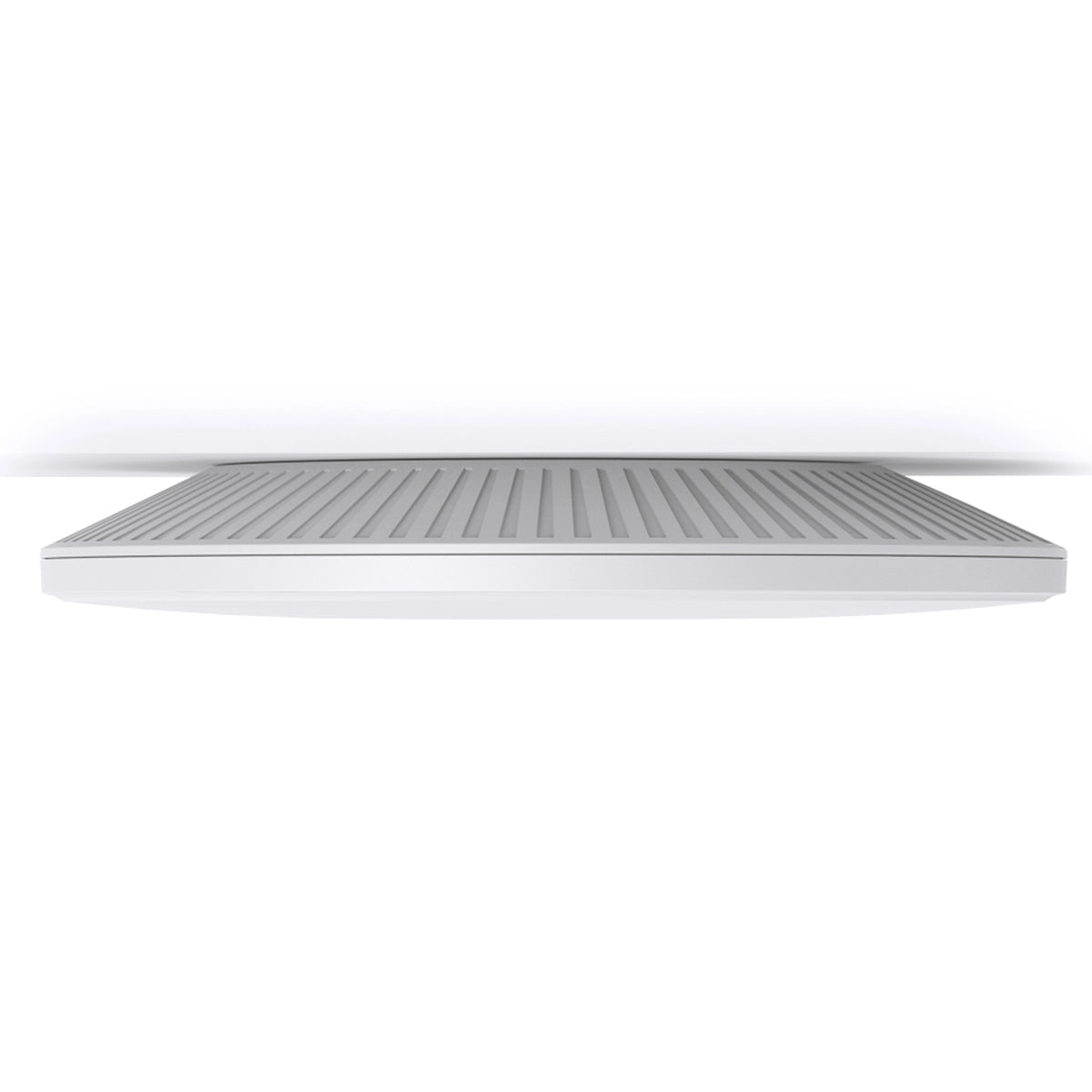

  • Mounting: Ceiling/Wall/Junction Box Mounting (Kits included), T-Bar Mounting (Kits included)
  • WIRELESS FEATURES
  • Coverage: 140㎡ (1500 ft²)
  • Concurrent Clients: 380+**
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, 2.4 GHz
  • Signal Rate: 688 Mbps (2.4 GHz), 4324 Mbps (5 GHz), 5765 Mbps (6 GHz)
  • Wireless Functions: MLO, 4K-QAM, Seamless Roaming(802.11k/v/r), MU-MIMO (2x2 DL/UL), HE320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs:24 (8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
  • Wireless Security: Captive Portal Authentication, Access Control, Maximum MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: 4–25 dBm (2.4 GHz), 4–24 dBm (5 GHz, U-NII-2A & U-NII-2C), 4–25 dBm (5 GHz, U-NII-1 & U-NII-3), 4–23 dBm (6 GHz)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
  • Cloud Access: Yes (Require the use of an Omada controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • Web-based Management: Yes
  • OTHERS
  • Certification: FCC/CE/NCC/VCCI/JRF
  • Package Content: EAP773, Installation Guide, Mounting Kit
  • Environment: Operating Temperature 0°C–40°C (32°F–104°F), Storage Temperature -30°C–70°C (-22°F–158°F), Operating Humidity 10%–90% non-condensing, Storage Humidity 5%–90% non-condensing, Storage up to +2000 m (6561 ft), Operating up to +2000 m (6561 ft)
