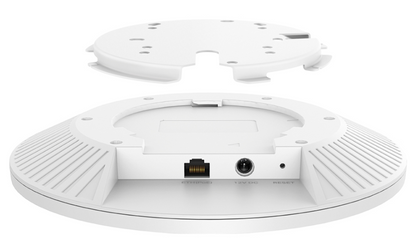

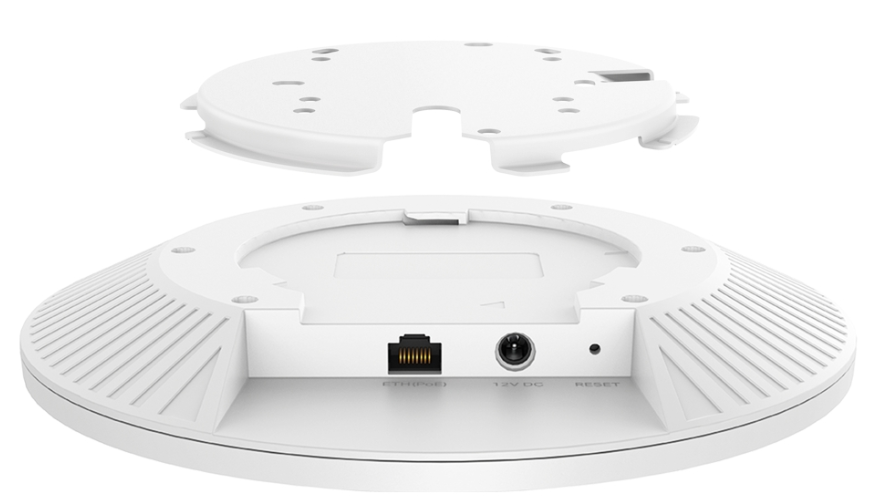

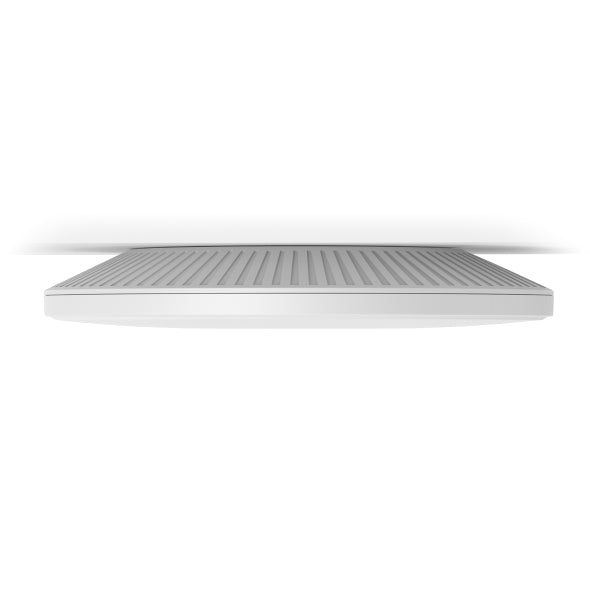

TP-Link Omada EAP772 BE11000 Tri-Band WiFi 7 Ceiling Mount Access Point

SKU: TP-EAP772

$255.99 CAD
$255.99 CAD $259.99 CAD
Sale Sold out
Shipping calculated at checkout.
Only 21 units left
  • BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 4320 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
  • A clear 6 GHz band brings cleaner and wider band resources.‡
  • 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
  • 320 MHz bandwidth enables many more simultaneous transmissions.‡
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
  • Advanced Functions: Centralized management, mesh, and AI roaming.△
Download Datasheet

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

  • Vendor:

    Tp-link

View Product Details
  • HARDWARE FEATURES
  • Interface: 1× 2.5G Ethernet Port
  • Button: Reset
  • Power Supply: 802.3at PoE or 12V/2.5A DC
  • Max. Power Consumption: 25.44 W (PoE), 22.57 W (DC)
  • Dimensions (W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
  • Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi, 6 GHz: 2× 5.0 dBi
  • Bluetooth: 1× 4.0 dBi, Bluetooth 5.2 (*Firmware update may be required)
  • Mounting: Ceiling / Wall Mounting (Kits Included)
  • WIRELESS FEATURES
  • Coverage: 140㎡ (1500 ft²)
  • Concurrent Clients: 380+**
  • Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
  • Frequency: 6 GHz, 5 GHz, 2.4 GHz
  • Signal Rate: 688 Mbps (2.4 GHz), 4324 Mbps (5 GHz), 5765 Mbps (6 GHz)
  • Wireless Functions: MLO, 4K-QAM, Seamless Roaming(802.11k/v/r), MU-MIMO, EHT320, Mesh, BSS Coloring, OFDMA, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs:24 (8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
  • Wireless Security: Captive Portal Authentication, Access Control, Maximum MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz), < 23 dBm (6 GHz)
  • MANAGEMENT FEATURES
  • Omada App: Yes
  • Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
  • Cloud Access: Yes (Require OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Yes
  • Web-based Management: Yes
  • OTHERS
  • Certification: CE, FCC, RoHS, IC
  • Package Content: EAP772, Installation Guide, Ceiling/Wall Mounting Kit (Note: Power Adapter NOT included)
  • Environment: Operating Temperature 0–40 °C (32–104 °F), Storage Temperature -40–70 °C (-40–158 °F), Operating Humidity 10–90% non-condensing, Storage Humidity 5–90% non-condensing
The TP-Link Omada EAP772 is a ceiling-mount tri-band WiFi 7 access point designed for modern business networks that need faster wireless performance, lower latency, and improved capacity. In the US configuration, it delivers up to 11 Gbps combined wireless speed across the 2.4 GHz, 5 GHz, and 6 GHz bands. A built-in 2.5 Gigabit Ethernet port helps prevent the wired connection from becoming a bottleneck, while support for 802.3at PoE or DC power provides flexible installation options. This makes the EAP772 suitable for offices, hotels, educational environments, retail spaces, and other professional locations requiring high-capacity wireless connectivity. As part of the TP-Link Omada SDN ecosystem, the EAP772 supports centralized management along with features such as Mesh and seamless roaming. WiFi 7 technologies including 320 MHz channels, Multi-Link Operation, and 4K-QAM help improve efficiency for demanding business applications and dense device environments.

FAQs : TP-Link Omada EAP772

The EAP772 is a tri-band WiFi 7 ceiling-mount access point designed for professional wireless networks that require high speed, capacity, and centralized management.
The US model provides up to approximately 11 Gbps combined wireless speed, with 688 Mbps on 2.4 GHz, 4324 Mbps on 5 GHz, and 5765 Mbps on 6 GHz.
Yes. It includes 1× 2.5G Ethernet port and supports 802.3at PoE, helping provide both high-speed wired backhaul and flexible installation.
